Rigid galvanised ductwork, Aluminium and Special

Circular ducts

Circular galvanised steel ducts are ideal for all types of air distribution systems.

90� T-piece: Sealed T-piece

The right-angle T-piece with seal is used to connected two galvanised ducts at a 90° angle while delivering class C airtight performance.

45� branch connector: Sealed 45� branch connector (TO)

The 45° branch piece with seal is used to connected two galvanised ducts at a 45° angle while delivering class C airtight performance.

Sealed male connector: BMJ

The sealed male plug is used to block off the end of a galvanised steel circular duct while delivering class C airtight performance.

T-piece branch connector (CP): CP with seals

The sealed CP branch connector provides a junction and accessibility to the vertical collector system and horizontal ducting while delivering class C airtight performance.

Collector storey connection (CRE): CRE with seals

The CRE sealed storey manifold is used to connect up to three 125 mm diameter ducts to the vertical riser while delivering class C airtight performance.

30� elbow: 30� elbow with seals

The sealed 30° bend is used to change the direction of a galvanised ducting system by a 30° angle while delivering class C airtight performance.

45� elbow: 45� elbow with seals

The sealed 45° bend is used to change the direction of a galvanised ducting system by a 45° angle while delivering class C airtight performance.

90� elbow: 90� elbow with seals

The sealed 90° bend is used to change the direction of a galvanised ducting system by a 90° angle while delivering class C airtight performance.

Y-piece: 90� elbow with seals

The sealed 90° Y-piece enables confluence of 2 galvanised duct branches at 90° from each other, while delivering class C airtight performance.

Airtight flexible connection: RT Flex

The RT Flex provides a durable, airtight terminal connection between the riser and the terminal, on multi-occupancy residential or commercial building systems.

Circular 90� Spigot Connector: PEC with seals

The PEC sealed circular 90° branch connector makes a right-angle branch on a galvanised circular duct.

Flat 90� Spigot Connector: PEP with seals

The PEP sealed flat 90° branch connector makes a right-angle branch on a galvanised oblong or rectangular duct.

Male connector: RM with seals

The sealed male connector is used to join two galvanised ducts together while delivering class C airtight performance.

Concentric Conical Reduction: RCC with seals

The sealed RCC concentric conical reducer is used to join two galvanised ducts of different diameters together while delivering class C airtight performance.

Offset Conical Reduction: RCE with seals

The sealed RCE concentric conical reducer is used to join two galvanised ducts of different diameters together while delivering class C airtight performance.

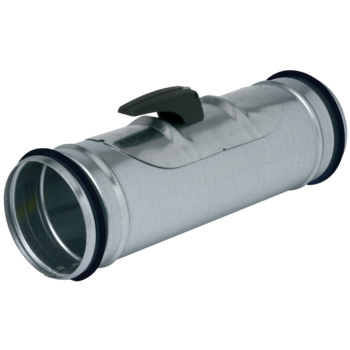

Male inspection connector "SMART access

The “SMART access” male inspection connector connects two circular ducts and integrates an inspection hatch.

Acoustic and Aeraulic T-piece spigot connector: CP2A with seals

The sealed CP2A branch connector provides a junction and accessibility to the vertical collector system and horizontal ducting, improves acoustic and aeraulic performance, while delivering class C airtight performance.

90� T-piece: TE 90�

The TE 90° T-piece is used to connect two ductwork branches at an angle of 90°.

45� branch connector: TO 45�

The TE 45° T-piece is used to connect two ductwork branches at an angle of 45°.

Male - Female Plug: BMF

The Male - Female Plug seals off a galvanised steel duct or accessory in commercial and multi-occupancy residential buildings.

T-piece spigot connector (CP): CP

The T-piece branch connector creates a junction and access point for the vertical collector system and the horizontal ducting.

T-piece spigot connector for air tightness readings: CPT

The CPT T-piece branch connector for air tightness readings creates a junction and access point for the vertical collector system and the horizontal ducting.

Collector storey connection (CRE): Multi-dwelling CRE

The multi-dwelling CRE storey manifold can connect two dwellings on the same storey to the same vertical riser.

Collector storey connection (CRE): Standard CRE storey collector

The CRE standard storey manifold is used to connect up to four 125 mm diameter ducts to the vertical riser.

90� Y-branch piece: CS 90�

The 90° Y-piece enables confluence of 2 galvanised duct branches at 90° from each other.

30� elbow

The 30° bend is used to change the direction of a galvanised ducting system by a 30° angle.

45� elbow

The 45° bend is used to change the direction of a galvanised ducting system by a 45° angle.

90� elbow

The 90° bend is used to change the direction of a galvanised ducting system by a 90° angle.

Circular 90� Spigot Connector: PEC 90�

The PEC circular 90° branch connector makes a right-angle branch on a galvanised circular duct.

Flat 90� Spigot Connector: PEP 90�

The PEP flat 90° branch connector makes a right-angle branch on a galvanised oblong or rectangular duct.

Circular Oblique Spigot Connector: POC 45�

The PEC circular branch connector makes a 45° angle branch on a galvanised circular duct.

Flat Oblique Spigot Connector: POP 45�

The POP angled branch connector makes a 45° angle branch on a galvanised oblong or rectangular duct.

Female connector: RF

The female connector connects two galvanised accessories together.

Male connector: RM

The male connector connects two galvanised ducts together.

Concentric Conical Reduction: RCC

The RCC joins two galvanised ducts of different diameters together.

Concentric Flat Reduction: RPC

The RPC joins two galvanised ducts of different diameters together over a minimum length.

Acoustic and Aeraulic T-piece spigot connector: CP2A

The CP2A branch connector provides a junction and accessibility to the vertical collector system and horizontal ducting, improves acoustic and aeraulic performance.

Acoustic and Aeraulic T-piece spigot connector for air tightness readings: CPT2A

The CPT2A branch connector provides a junction and accessibility to the vertical collector system and horizontal ducting, improves acoustic and aeraulic performance.

Circular Protective Screen: GPC

The GPC circular protective screen is an anti-bird screen for attachment to circular ducts.

Flat Roof Penetration Sleeve: FT

The flat roof penetration sleeve is a ducting accessory used to protect the duct as it passes through the flat roof.

Sealing flap

The sealing flap is a galvanised steel ducting accessory that ensures a leaktight seal on roof penetrations.

60� bend

Oblong rigid spiral ducts: CSRO

The galvanised oblong duct is a high-performance alternative to rectangular ducting, enabling high airflows in limited spaces.

Oblong Male Plug: BMO

The Oblong Male Plug seals off an oblong duct system in commercial and multi-occupancy residential buildings.

Oblong horizontal elbow: CHO 30�

The oblong horizontal 30° bend is used to change the direction of an oblong ducting system by a 30° angle in the plane of the system.

Oblong horizontal elbow: CHO 45�

The oblong horizontal 45° bend is used to change the direction of an oblong ducting system by a 45° angle in the plane of the system.

Oblong horizontal elbow: CHO 90�

The oblong horizontal 90° bend is used to change the direction of an oblong ducting system by a 90° angle in the plane of the system.

Oblong vertical elbow: CVO 30�

The Oblong vertical 30° bend is used to change the direction of an oblong ducting system by a 30° angle.

Oblong vertical elbow: CVO 45�

The Oblong vertical 45° bend is used to change the direction of an oblong ducting system by a 45° angle.

Oblong vertical elbow: CVO 90�

The Oblong vertical 90° bend is used to change the direction of an oblong ducting system by a 90° angle.

Oblong Horizontal Y-piece: CSH 90�

The oblong horizontal 90° Y-piece enables confluence of two oblong duct branches at a 90° angle from each other.

Oblong 90� spigot connector: 90� PDO

The PDO oblong 90° branch connector makes a right-angle branch on a galvanised circular duct.

Oblong 90� spigot Connector on flat section: PDOP

The PDOP oblong 90° branch connector for flat section makes a right-angle branch on a galvanised oblong or rectangular duct.

Oblong Female Connector: RFO

The RFO oblong female connector connects two galvanised oblong accessories together.

Oblong Male Connector: RMO

The RMO oblong male connector connects two galvanised oblong ducts together.

Oblong / Cylindrical Concentric Reduction: RCOC

The RCOC oblong / circular concentric reducer connects an oblong duct to a circular duct.

Oblong Concentric Reduction: RCO

The RCO oblong concentric reducer joins two galvanised ducts of different diameters together.

Oblong/Cylindrical Tangent Reduction on flat section: ROCTP

The ROCTP oblong cylindrical tangent reducer is used to connect an oblong duct with a circular duct while maintaining a linear and flat ducting without losing space underneath.

Oblong Tangent Reduction on flat duct section: ROTP

The ROTP oblong tangent reducer is used to connect oblong ducts of different diameters while maintaining a linear and flat ducting without losing space underneath.

Oblong balancing damper: RGO

The RGO oblong balancing damper is used to adjust the pressure in oblong ducting branches in commercial or multi-occupancy residential buildings.

90� T-piece: Aluminium TE 90�

The TE 90° Alu T-piece is used to connect two aluminium ductwork branches at an angle of 90°.

Male - Female Plug: BMF aluminium

The BMF aluminium male-female plug seals off an aluminium duct or accessory in commercial and multi-occupancy residential buildings.

T-piece spigot connector (CP): Aluminium CP

The aluminium T-piece branch connector (CP) creates a junction and access point for the vertical collector system and the horizontal ducting.

Rigid aluminium ducts

Rigid aluminium ducts are ideal for gas CMEV systems or installations exposed to saline atmospheres.

Aluminium elbow 45�

The aluminium 45° bend is used to change the direction of an aluminium ducting system by a 45° angle.

Aluminium elbow 90�

The aluminium 90° bend is used to change the direction of an aluminium ducting system by a 90° angle.

Circular 90� branch connector: PEC alu

The PEC aluminium circular 90° branch connector makes a right-angle branch on an aluminium circular duct.

Flat 90� Spigot Connector: Aluminium PEP

The PEP aluminium flat 90° branch connector makes a right-angle branch on an aluminium rectangular duct.

Female connector: Aluminium RF

The RF aluminium female connector connects two aluminium accessories together.

Male connector: Aluminium RM

The RM aluminium male connector connects two aluminium ducts together.

Concentric Conical Reduction: Aluminium RCC

The RCC aluminium joins two aluminium ducts of different diameters together.

Concentric Flat Reduction: Aluminium RPC

The RPC aluminium joins two aluminium ducts of different diameters together over a minimum length.

RG / RGP aluminium dampers

The aluminium balancing damper is used to adjust the pressure in aluminium ducting branches in commercial or multi-occupancy residential buildings.

Acoustic and Aeraulic T-piece spigot connector: Aluminium CP2A

The CP2A aluminium branch connector provides a junction and accessibility to the vertical collector system and horizontal ducting, while improving acoustic and aeraulic performance.

Male Plug + Drain: BM + aluminium Drain
