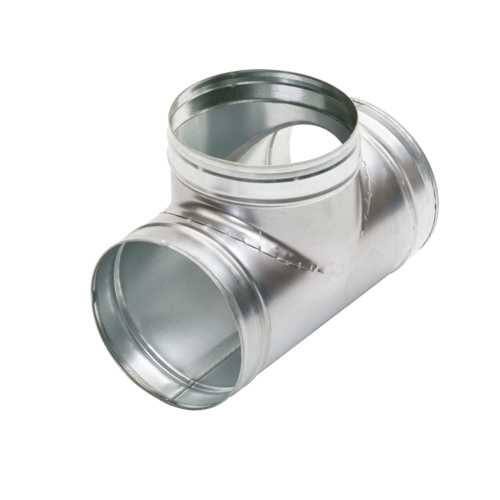

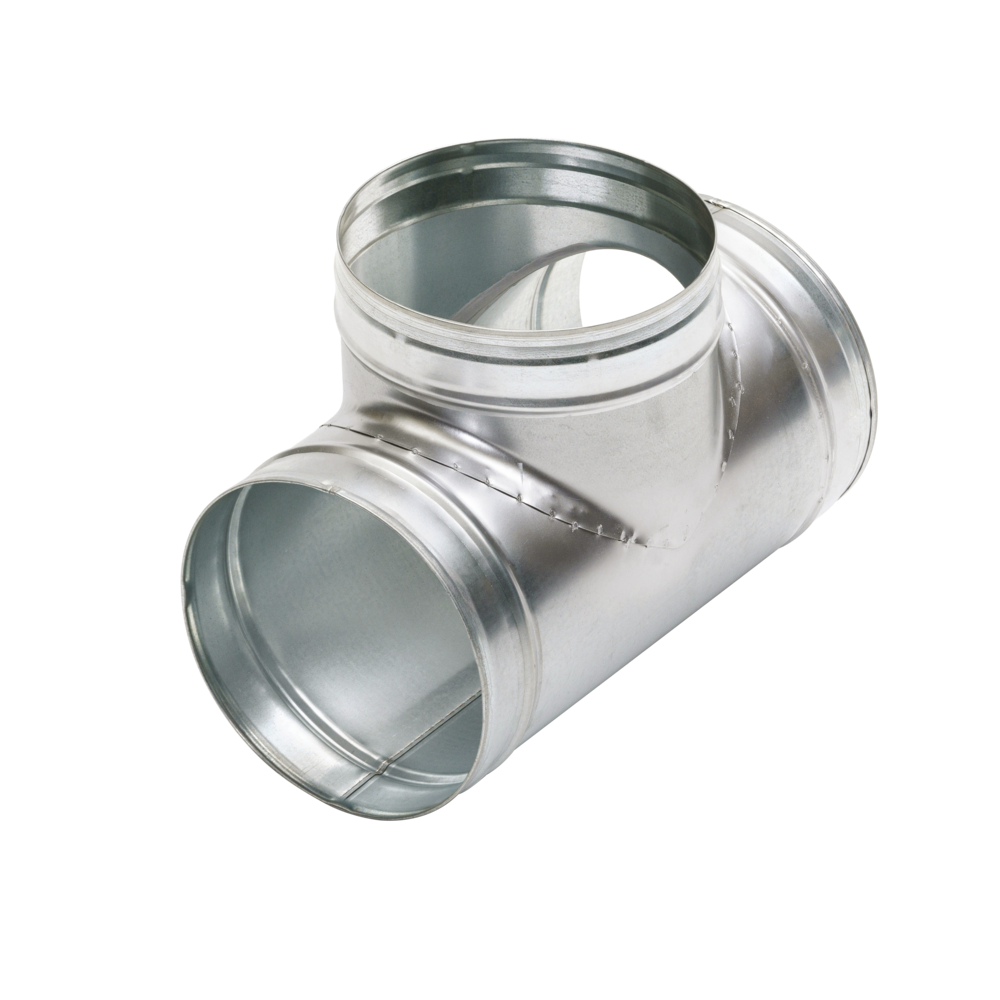

The TE 90° T-piece is used to connect two ductwork branches at an angle of 90°.
90° T-piece: TE 90°
The TE 90° T-piece is used to connect two ductwork branches at an angle of 90°. It ensures leak-free installation without excessive pressure losses on the branch connection.
- available in diameters from 80 to 900,
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- Final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Galvanised steel |
| References | Ø A (mm) | Ø B (mm) |
|---|---|---|
| 11093135 - TE GALVA T-PIECE - D355/355 | 355 |
355 |
| 11093136 - TE GALVA T-PIECE - D355/315 | 355 |
315 |
| 11093137 - TE GALVA T-PIECE - D355/250 | 355 |
250 |
| 11093138 - TE GALVA T-PIECE - D355/200 | 355 |
200 |
| 11093139 - TE GALVA T-PIECE - D355/160 | 355 |
160 |
| 11093140 - TE GALVA T-PIECE - D355/125 | 355 |
125 |
| 11093142 - TE GALVA T-PIECE - D400/400 | 400 |
400 |
| 11093143 - TE GALVA T-PIECE - D400/355 | 400 |
355 |
| 11093144 - TE GALVA T-PIECE - D400/315 | 400 |
315 |
| 11093145 - TE GALVA T-PIECE - D400/250 | 400 |
250 |
| 11093146 - TE GALVA T-PIECE - D400/200 | 400 |
200 |
| 11093147 - TE GALVA T-PIECE - D400/160 | 400 |
160 |
| 11093148 - TE GALVA T-PIECE - D400/125 | 400 |
125 |
| 11093150 - TE GALVA T-PIECE - D500/500 | 500 |
500 |
| 11093151 - TE GALVA T-PIECE - D500/400 | 500 |
400 |
| 11093152 - TE GALVA T-PIECE - D500/355 | 500 |
355 |
| 11093153 - TE GALVA T-PIECE - D500/315 | 500 |
315 |
| 11093154 - TE GALVA T-PIECE - D500/250 | 500 |
250 |
| 11093155 - TE GALVA T-PIECE - D500/200 | 500 |
200 |
| 11093156 - TE GALVA T-PIECE - D500/160 | 500 |
160 |
| 11093157 - TE GALVA T-PIECE - D500/125 | 500 |
125 |
| 11093159 - TE GALVA T-PIECE - D630/630 | 630 |
630 |
| 11093160 - TE GALVA T-PIECE - D630/500 | 630 |
500 |
| 11093161 - TE GALVA T-PIECE - D630/400 | 630 |
400 |
| 11093162 - TE GALVA T-PIECE - D630/355 | 630 |
355 |
| 11093163 - TE GALVA T-PIECE - D630/315 | 630 |
315 |
| 11093164 - TE GALVA T-PIECE - D630/250 | 630 |
250 |
| 11093165 - TE GALVA T-PIECE - D630/200 | 630 |
200 |
| 11093166 - TE GALVA T-PIECE - D630/160 | 630 |
160 |
| 11093187 - TE GALVA T-PIECE - D630/450 | 630 |
450 |
| 11093188 - TE GALVA T-PIECE - D500/450 | 500 |
450 |
| 11093195 - TE GALVA T-PIECE - D450/450 | 450 |
450 |
| 11093196 - TE GALVA T-PIECE - D450/400 | 450 |
400 |
| 11093197 - TE GALVA T-PIECE - D450/355 | 450 |
355 |
| 11093198 - TE GALVA T-PIECE - D450/315 | 450 |
315 |
| 11093199 - TE GALVA T-PIECE - D450/250 | 450 |
250 |
| 11094001 - TE GALVA T-PIECE - D560/560 | 560 |
560 |
| 11094003 - TE GALVA T-PIECE - D560/450 | 560 |
450 |
| 11094004 - TE GALVA T-PIECE - D560/400 | 560 |
400 |
| 11094005 - TE GALVA T-PIECE - D560/355 | 560 |
355 |
| 11094006 - TE GALVA T-PIECE - D560/315 | 560 |
315 |
| 11094173 - TE GALVA T-PIECE - D450/200 | 450 |
200 |
| 11094174 - TE GALVA T-PIECE - D450/160 | 450 |
160 |
| 11094175 - TE GALVA T-PIECE - D450/125 | 450 |
125 |
| 11094176 - TE GALVA T-PIECE - D560/250 | 560 |
250 |
| 11094177 - TE GALVA T-PIECE - D560/200 | 560 |
200 |
| 11094178 - TE GALVA T-PIECE - D560/160 | 560 |
160 |
| 11093168 - TE GALVA T-PIECE - D800/800 | 800 |
800 |
| 11094007 - TE GALVA T-PIECE - D710/710 | 710 |
710 |
| 11094014 - TE GALVA T-PIECE - D900/900 | 900 |
900 |
| 11093102 - TE GALVA T-PIECE - D80/80 | 80 |
80 |
| 11093104 - TE GALVA T-PIECE - D100/100 | 100 |
100 |
| 11093105 - TE GALVA T-PIECE - D100/80 | 100 |
80 |
| 11093107 - TE GALVA T-PIECE - D125/125 | 125 |
125 |
| 11093108 - TE GALVA T-PIECE - D125/100 | 125 |
100 |
| 11093109 - TE GALVA T-PIECE - D125/80 | 125 |
80 |
| 11093111 - TE GALVA T-PIECE - D160/160 | 160 |
160 |
| 11093112 - TE GALVA T-PIECE - D160/125 | 160 |
125 |
| 11093113 - TE GALVA T-PIECE - D160/100 | 160 |
100 |
| 11093114 - TE GALVA T-PIECE - D160/80 | 160 |
80 |
| 11093116 - TE GALVA T-PIECE - D200/200 | 200 |
200 |
| 11093117 - TE GALVA T-PIECE - D200/160 | 200 |
160 |
| 11093118 - TE GALVA T-PIECE - D200/125 | 200 |
125 |
| 11093122 - TE GALVA T-PIECE - D250/250 | 250 |
250 |
| 11093123 - TE GALVA T-PIECE - D250/200 | 250 |
200 |
| 11093124 - TE GALVA T-PIECE - D250/160 | 250 |
160 |
| 11093125 - TE GALVA T-PIECE - D250/125 | 250 |
125 |
| 11093130 - TE GALVA T-PIECE - D315/250 | 315 |
250 |
| 11093131 - TE GALVA T-PIECE - D315/200 | 315 |
200 |
| 11093132 - TE GALVA T-PIECE - D315/160 | 315 |
160 |
| 11093133 - TE GALVA T-PIECE - D315/125 | 315 |
125 |
| Fire protection rating |
|---|
| M0 |
