Oblong horizontal elbow: CHO 30°
Airflow control
Oblong horizontal elbow: CHO 30°
Airflow control

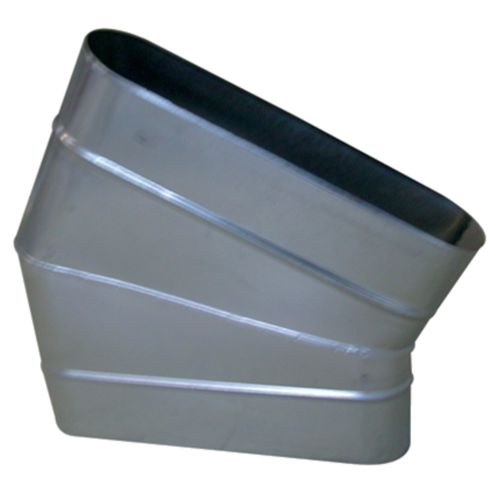

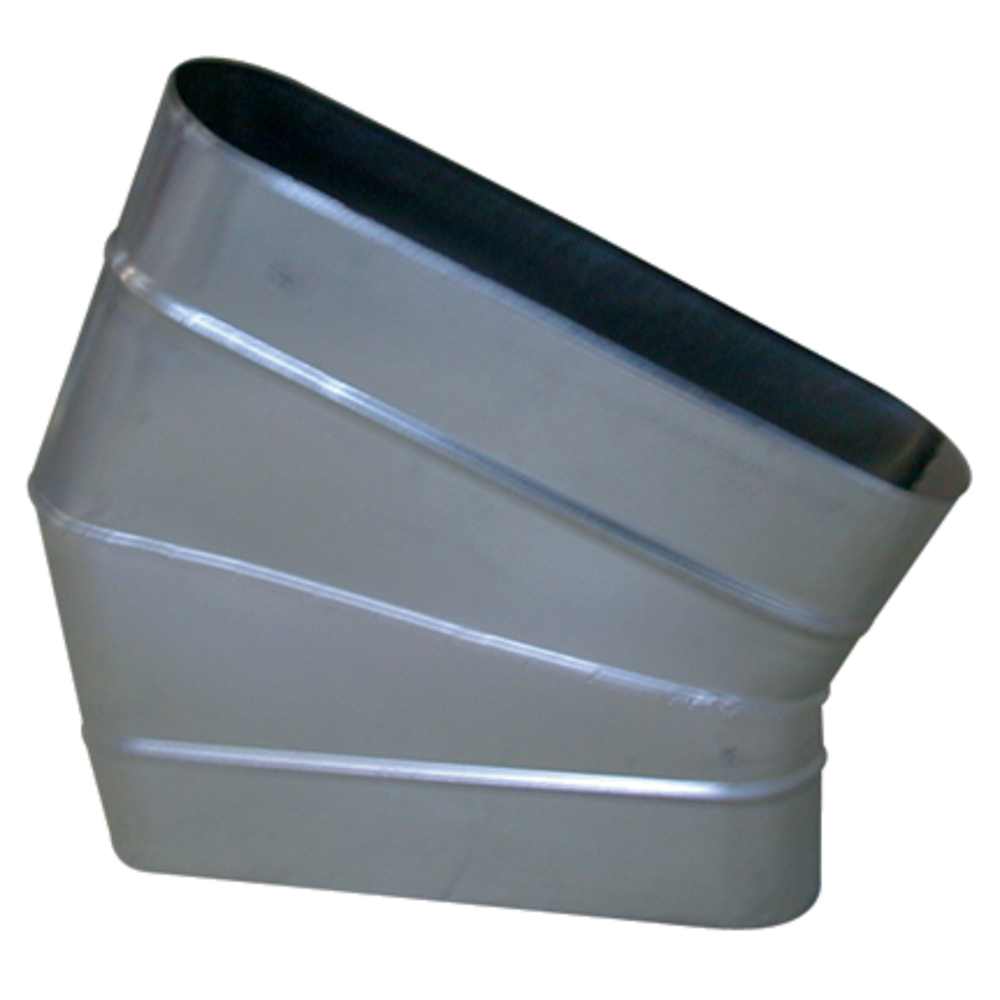

The oblong horizontal 30° bend is used to change the direction of an oblong ducting system by a 30° angle in the plane of the system.
Oblong horizontal elbow: CHO 30°
The oblong horizontal 30° bend is used to change the direction of an oblong ducting system by a 30° angle in the plane of the system.
The + products
- small size for high airflow,
- good airtight performance and controlled pressure losses,
- easy to install and maintain (no inaccessible corners).
- standard dimensions (20 oblong sections),
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- Final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Galvanised steel |

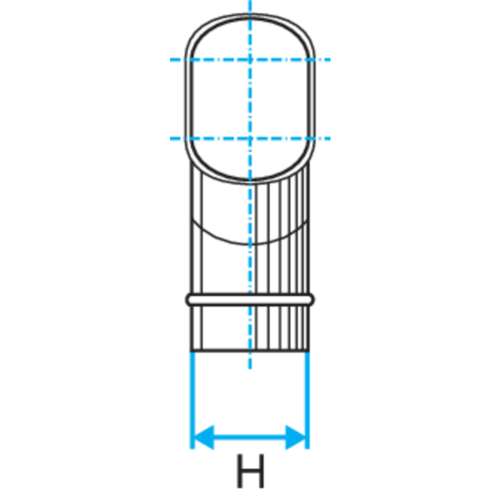

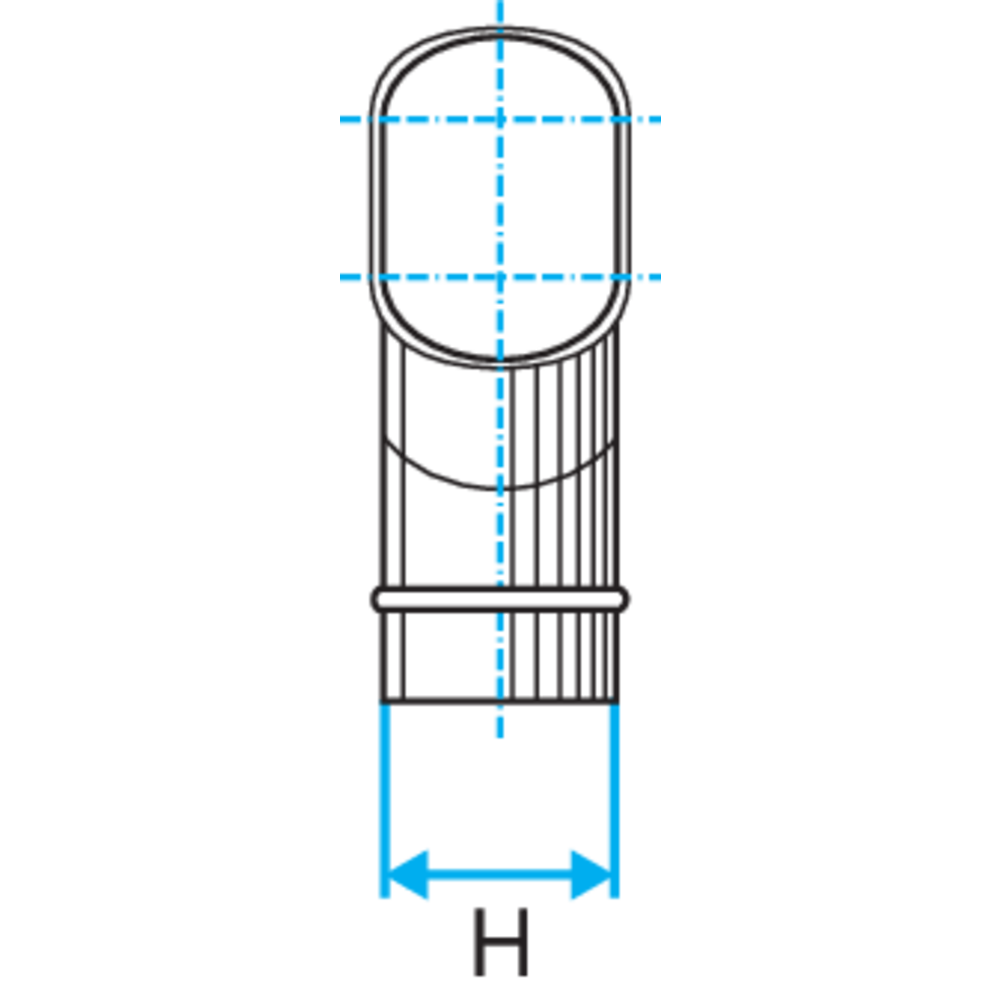

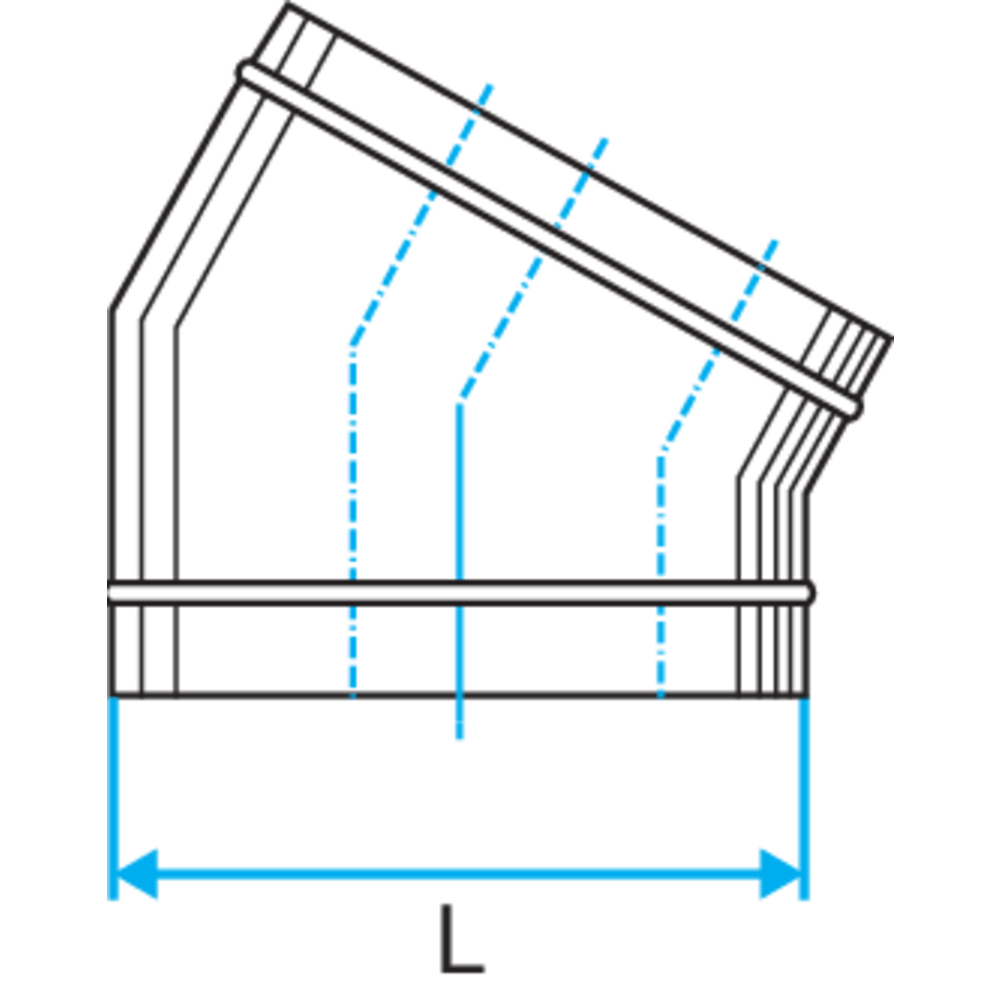

| References | H (mm) | L (mm) |
|---|---|---|
| 11063201 - CHO 30° BEND GALVA - 360x80 | 80 |
360 |
| 11063202 - CHO 30° BEND GALVA - 350x100 | 100 |
350 |
| 11063204 - CHO 30° BEND GALVA - 410x165 | 165 |
410 |
| 11063206 - CHO 30° BEND GALVA - 545x165 | 165 |
545 |
| 11063207 - CHO 30° BEND GALVA - 700x165 | 165 |
700 |
| 11063208 - CHO 30° BEND GALVA - 515x215 | 215 |
515 |
| 11063211 - CHO 30° BEND GALVA - 645x265 | 265 |
645 |
| 11066333 - CHO 30° BEND GALVA - 325x130 | 130 |
325 |
| 11066335 - CHO 30° BEND GALVA - 490x130 | 130 |
490 |
| Fire protection rating |
|---|
| M0 |
