90° Y-branch piece: CS 90°
Airflow control
90° Y-branch piece: CS 90°
Airflow control

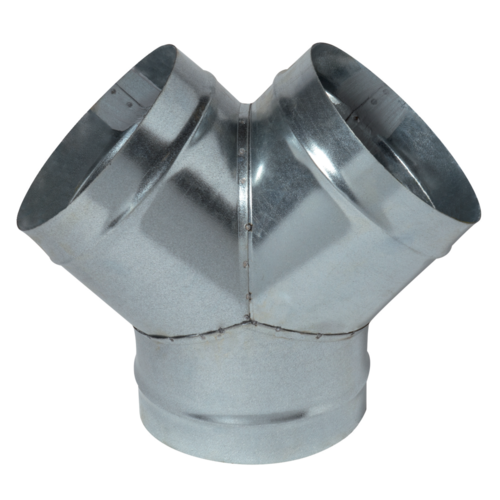

The 90° Y-piece enables confluence of 2 galvanised duct branches at 90° from each other.
90° Y-branch piece: CS 90°
The 90° Y-piece enables confluence of 2 galvanised duct branches at 90° from each other. Its aeraulic design means limited pressure loss, especially when used for air supply.
- available in diameters from 80 to 900,
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- Final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Galvanised steel |

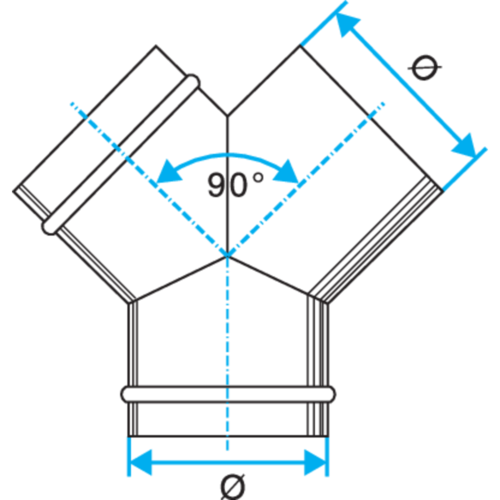

| References | Ø (mm) | Ø A (mm) |
|---|---|---|
| 11093821 - CS 90° Y-PIECE GALVA - D560 | 560 |
560 |
| 11093822 - CS 90° Y-PIECE GALVA - D710 | 710 |
710 |
| 11093823 - CS 90° Y-PIECE GALVA - D900 | 900 |
900 |
| 11093081 - CS 90° Y-PIECE GALVA - D80 | 80 |
80 |
| 11093082 - CS 90° Y-PIECE GALVA - D100 | 100 |
100 |
| 11093083 - CS 90° Y-PIECE GALVA - D125 | 125 |
125 |
| 11093085 - CS 90° Y-PIECE GALVA - D160 | 160 |
160 |
| 11093086 - CS 90° Y-PIECE GALVA - D200 | 200 |
200 |
| 11093087 - CS 90° Y-PIECE GALVA - D250 | 250 |
250 |
| 11093088 - CS 90° Y-PIECE GALVA - D315 | 315 |
315 |
| 11093089 - CS 90° Y-PIECE GALVA - D355 | 355 |
355 |
| 11093090 - CS 90° Y-PIECE GALVA - D400 | 400 |
400 |
| 11093091 - CS 90° Y-PIECE GALVA - D450 | 450 |
450 |
| 11093092 - CS 90° Y-PIECE GALVA - D500 | 500 |
500 |
| 11093093 - CS 90° Y-PIECE GALVA - D630 | 630 |
630 |
| 11093094 - CS 90° Y-PIECE GALVA - D800 | 800 |
800 |
| Fire protection rating |
|---|
| M0 |
