Oblong Tangent Reducer on flat duct section: ROTP
Airflow control

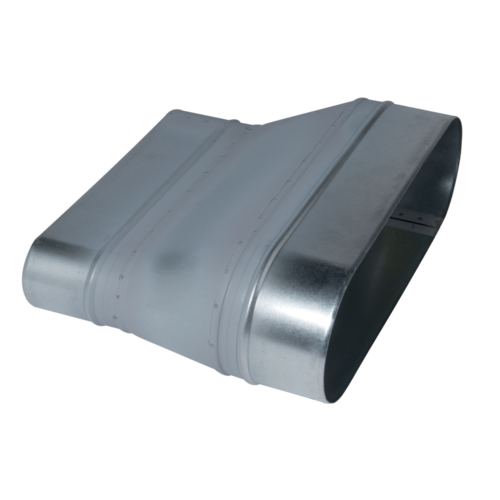

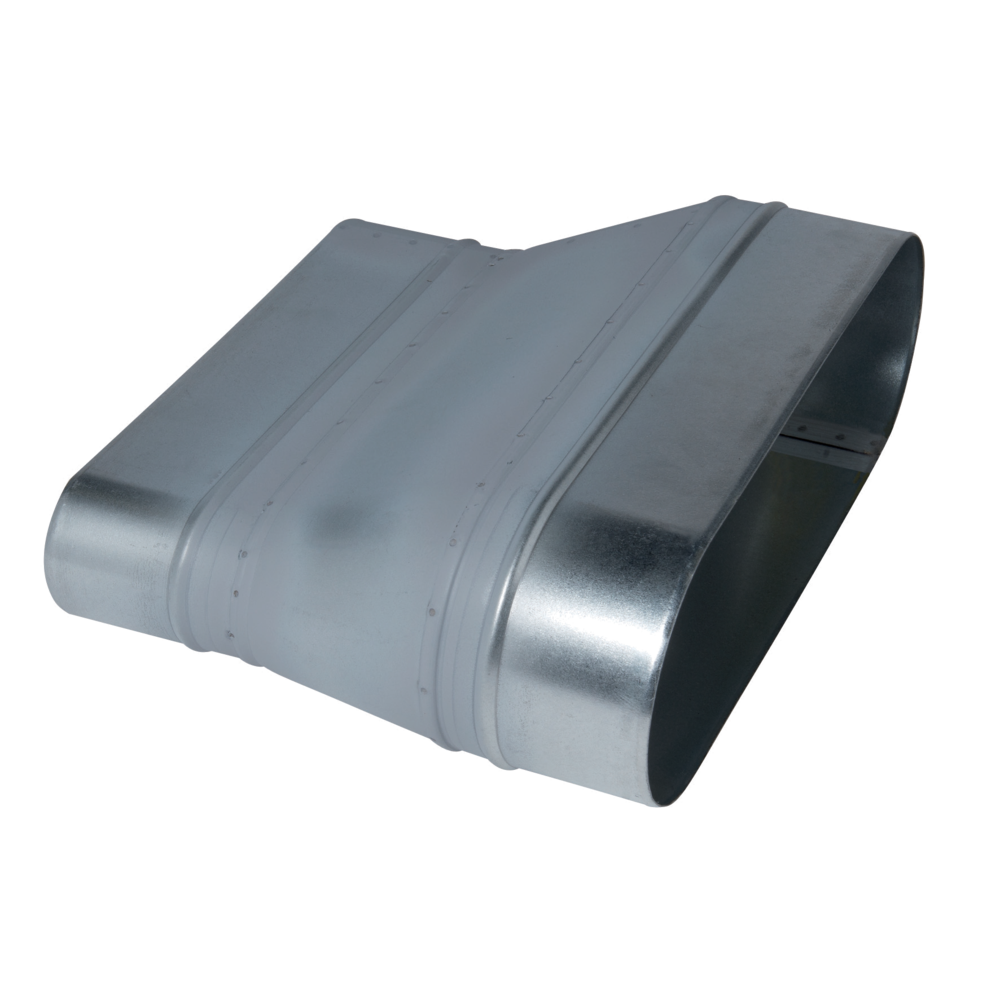

The ROTP oblong tangent reducer is used to connect oblong ducts of different diameters while maintaining a linear and flat ducting without losing space underneath.
Oblong Tangent Reducer on flat duct section: ROTP
The ROCTP oblong tangent reducer on flat section is used to connect two oblong ducts of different diameters while maintaining a linear and flat ducting without losing space underneath.
The + products
- small size for high airflow,
- good airtight performance and controlled pressure losses,
- easy to install and maintain (no inaccessible corners).
- standard dimensions (20 oblong sections),
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- Final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Galvanised steel |

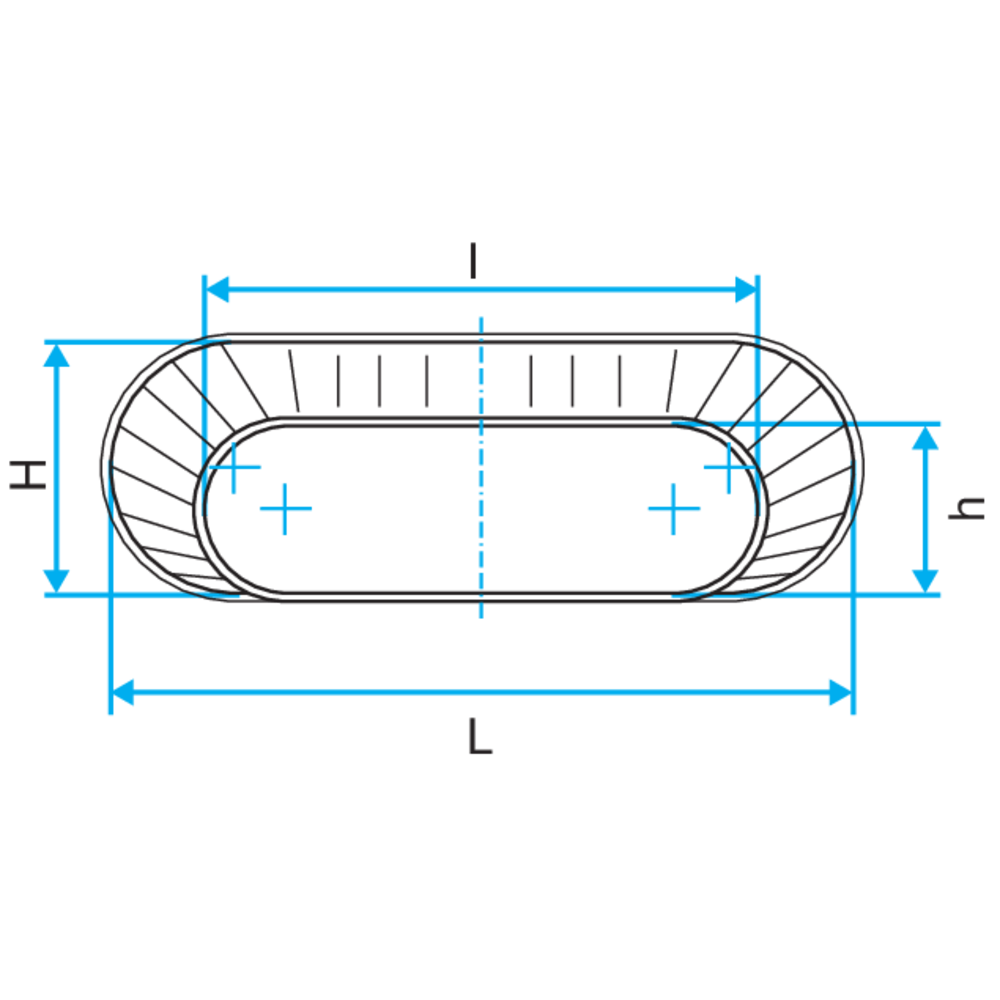

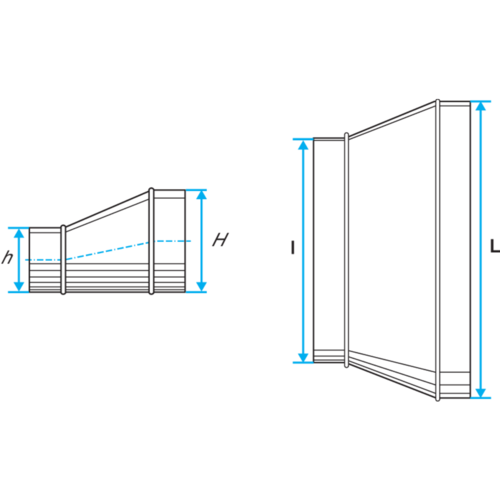

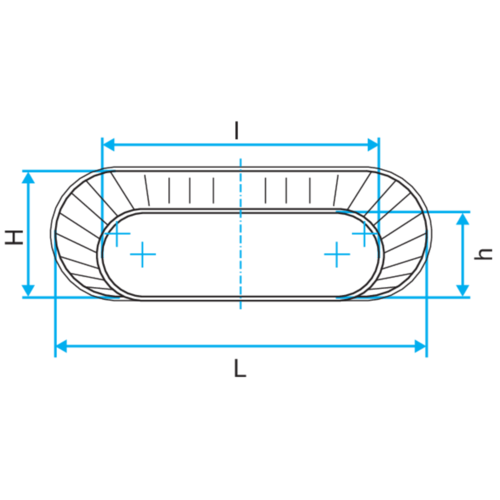

| References | H (mm) | L (mm) |
|---|---|---|
| 11064231 - ROTP GALVA - 350x100 / 360x80 | 100 |
350 |
| 11064232 - ROTP GALVA - 450x100 / 360x80 | 100 |
450 |
| 11064234 - ROTP GALVA - 410x165 / 360x80 | 165 |
410 |
| 11064235 - ROTP GALVA - 410x165 / 350x100 | 165 |
410 |
| 11064236 - ROTP GALVA - 410x165 / 450x100 | 165 |
410 |
| 11064237 - ROTP GALVA - 475x165 / 350x100 | 165 |
475 |
| 11064238 - ROTP GALVA - 475x165 / 450x100 | 165 |
475 |
| 11064240 - ROTP GALVA - 545x165 / 350x100 | 165 |
545 |
| 11064241 - ROTP GALVA - 545x165 / 450x100 | 165 |
545 |
| 11064244 - ROTP GALVA - 700x165 / 450x100 | 165 |
700 |
| 11064248 - ROTP GALVA - 515x215 / 450x100 | 215 |
515 |
| 11064249 - ROTP GALVA - 515x215 / 410x165 | 215 |
515 |
| 11064250 - ROTP GALVA - 515x215 / 475x165 | 215 |
515 |
| 11064251 - ROTP GALVA - 515x215 / 545x165 | 215 |
515 |
| 11064252 - ROTP GALVA - 515x215 / 700x165 | 215 |
515 |
| 11064253 - ROTP GALVA - 675x215 / 410x165 | 215 |
675 |
| 11064254 - ROTP GALVA - 675x215 / 475x165 | 215 |
675 |
| 11064255 - ROTP GALVA - 675x215 / 545x165 | 215 |
675 |
| 11064256 - ROTP GALVA - 675x215 / 700x165 | 215 |
675 |
| 11064262 - ROTP GALVA - 645x265 / 475x165 | 265 |
645 |
| 11064263 - ROTP GALVA - 645x265 / 545x165 | 265 |
645 |
| 11064264 - ROTP GALVA - 645x265 / 700x165 | 265 |
645 |
| 11064265 - ROTP GALVA - 645x265 / 515x215 | 265 |
645 |
| 11064266 - ROTP GALVA - 645x265 / 675x215 | 265 |
645 |
| 11064267 - ROTP GALVA - 645x265 / 880x215 | 265 |
645 |
| 11064295 - ROTP GALVA - 950x320 / 645x265 | 320 |
950 |
| 11064296 - ROTP GALVA - 950x320 / 880x215 | 320 |
950 |
| 11064298 - ROTP GALVA - 950x320 / 850x265 | 320 |
950 |
| 11064299 - ROTP GALVA - 950x320 / 975x265 | 320 |
950 |
| 11066390 - ROTP GALVA - 325x130 / 360x80 | 130 |
325 |
| 11066391 - ROTP GALVA - 325x130 / 350x100 | 130 |
325 |
| 11066392 - ROTP GALVA - 325x130 / 450x100 | 130 |
325 |
| 11066393 - ROTP GALVA - 425x130 / 360x80 | 130 |
425 |
| 11066394 - ROTP GALVA - 425x130 / 350x100 | 130 |
425 |
| 11066395 - ROTP GALVA - 425x130 / 450x100 | 130 |
425 |
| 11066396 - ROTP GALVA - 490x130 / 360x80 | 130 |
490 |
| 11066397 - ROTP GALVA - 490x130 / 350x100 | 130 |
490 |
| 11066398 - ROTP GALVA - 490x130 / 450x100 | 130 |
490 |
| 11066399 - ROTP GALVA - 410x165 / 325x130 | 165 |
410 |
| 11066400 - ROTP GALVA - 410x165 / 425x130 | 165 |
410 |
| 11066401 - ROTP GALVA - 410x165 / 490x130 | 165 |
410 |
| 11066402 - ROTP GALVA - 475x165 / 325x130 | 165 |
475 |
| 11066403 - ROTP GALVA - 475x165 / 425x130 | 165 |
475 |
| 11066404 - ROTP GALVA - 475x165 / 490x130 | 165 |
475 |
| 11066405 - ROTP GALVA - 545x165 / 325x130 | 165 |
545 |
| 11066406 - ROTP GALVA - 545x165 / 425x130 | 165 |
545 |
| 11066407 - ROTP GALVA - 545x165 / 490x130 | 165 |
545 |
| 11066408 - ROTP GALVA - 700x165 / 325x130 | 165 |
700 |
| 11066409 - ROTP GALVA - 700x165 / 425x130 | 165 |
700 |
| 11066410 - ROTP GALVA - 700x165 / 490x130 | 165 |
700 |
| 11066411 - ROTP GALVA - 515x215 / 325x130 | 215 |
515 |
| 11066412 - ROTP GALVA - 515x215 / 425x130 | 215 |
515 |
| 11066413 - ROTP GALVA - 515x215 / 490x130 | 215 |
515 |
| 11066414 - ROTP GALVA - 675x215 / 325x130 | 215 |
675 |
| 11066416 - ROTP GALVA - 675x215 / 490x130 | 215 |
675 |
| 11066420 - ROTP GALVA - 645x265 / 490x130 | 265 |
645 |
| Fire protection rating |
|---|
| M0 |
