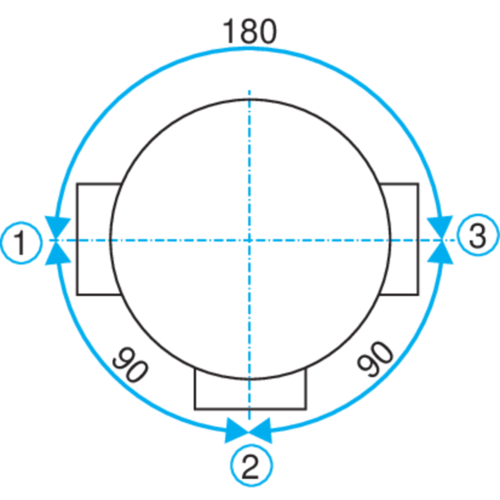

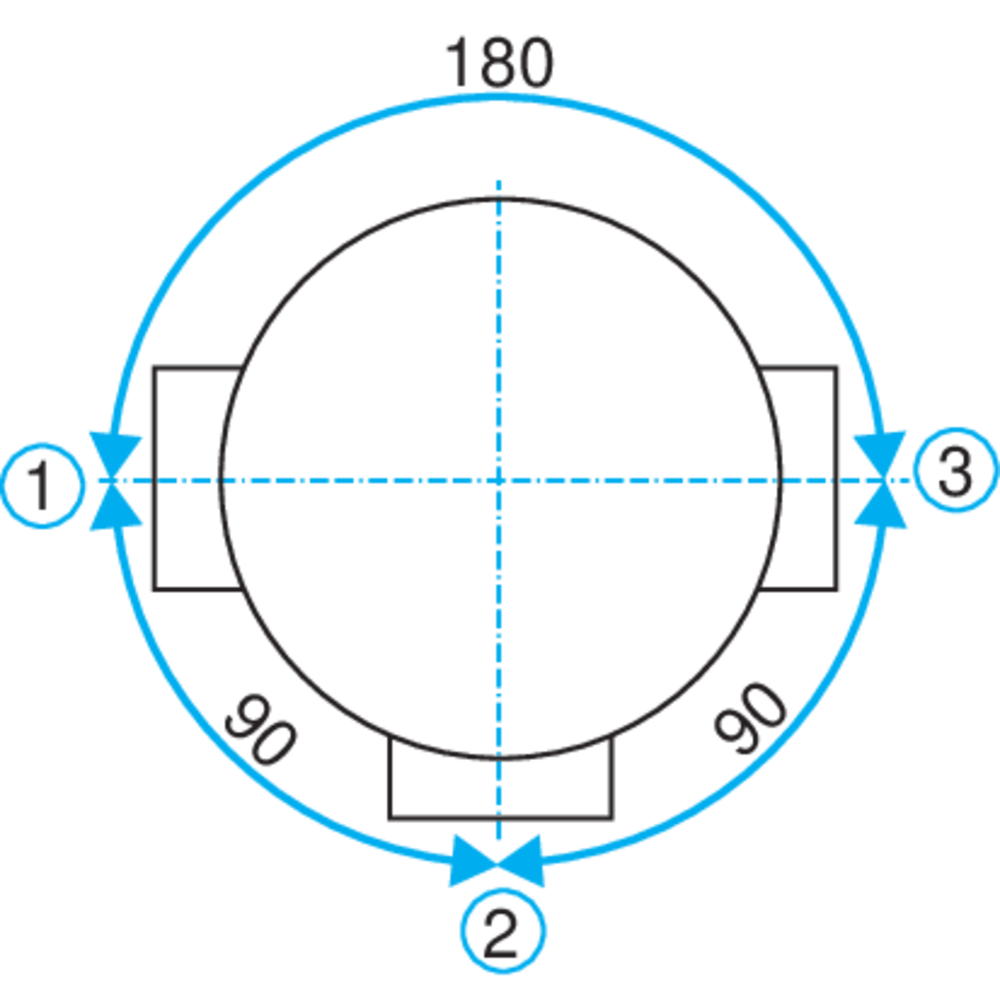

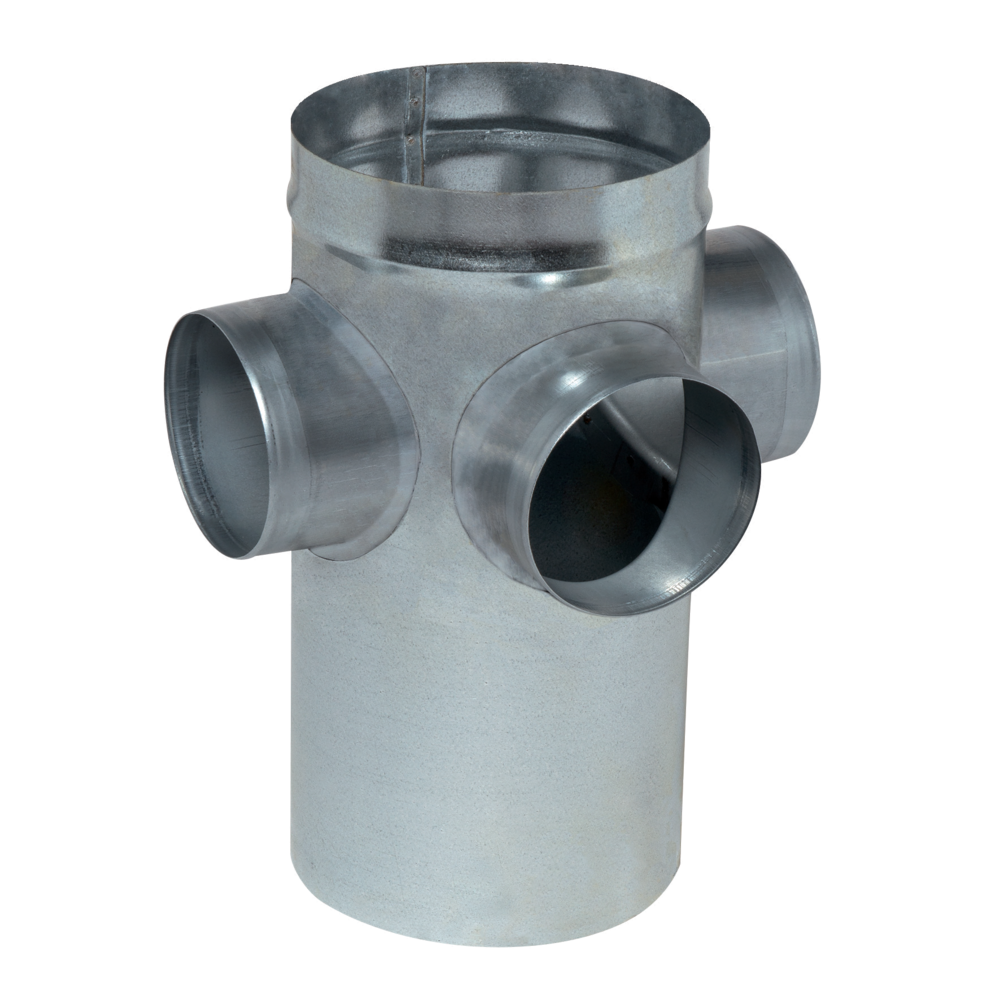

The CRE standard storey manifold is used to connect up to four 125 mm diameter ducts to the vertical riser.
Storey manifold (CRE): Standard CRE storey collector
The CRE sealed storey manifold is used to connect up to four 125 mm diameter ducts to the vertical riser. It ensures leak-free installation without excessive pressure losses on the branch connections. The CRE sealed storey manifold is used with storey elements (2.47 m).
The + products
- connector pre-fitted in factory: no risk of leaks,
- easy to install: the bottom of the CRE slides inside the duct for adjustment.
- available in diameters from 125 to 630,
-
height:
- h = 400 mm for Ø ≤ 250,
- h = 415 mm for Ø ≥ 315.
- up to four Ø125 branch connections,
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- Final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).

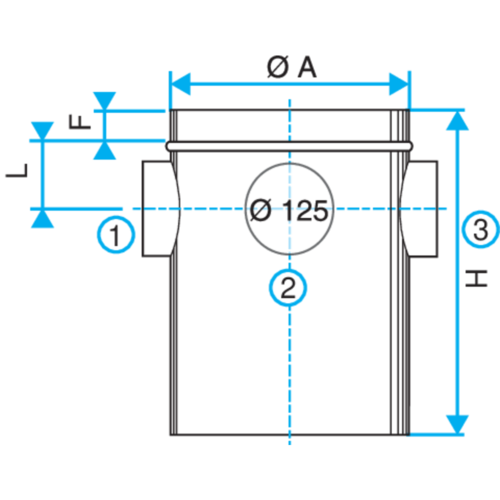

| Main material | Insulation material |
|---|---|
| Galvanised steel |
| References | H (mm) | Ø (mm) | Ø A (mm) | Ø B (mm) | Ø CRE (mm) |
|---|---|---|---|---|---|
| 11093700 - CRE GAL D160 1/125 | 400 |
125 |
160 |
125 |
125 |
| 11093702 - CRE GAL D160 1-3/125 | 400 |
125 |
160 |
125 |
125 |
| 11093704 - CRE GAL D160 1-2/125 | 400 |
125 |
160 |
125 |
125 |
| 11093707 - CRE GAL D160 1-2-3/125 | 400 |
160 |
160 |
125 |
125 |
| 11093711 - CRE GAL D200 1/125 | 400 |
160 |
200 |
125 |
125 |
| 11093713 - CRE GAL D200 1-3/125 | 400 |
160 |
200 |
125 |
125 |
| 11093715 - CRE GAL D200 1-2/125 | 400 |
160 |
200 |
125 |
125 |
| 11093718 - CRE GAL D200 1-2-3/125 | 400 |
200 |
200 |
125 |
125 |
| 11093722 - CRE GAL D250 1/125 | 400 |
200 |
250 |
125 |
125 |
| 11093724 - CRE GAL D250 1-3/125 | 400 |
200 |
250 |
125 |
125 |
| 11093726 - CRE GAL D250 1-2/125 | 400 |
200 |
250 |
125 |
125 |
| 11093729 - CRE GAL D250 1-2-3/125 | 400 |
250 |
250 |
125 |
125 |
| 11093735 - CRE GAL D315 1/125 | 400 |
250 |
315 |
125 |
125 |
| 11093737 - CRE GAL D315 1-3/125 | 400 |
250 |
315 |
125 |
125 |
| 11093739 - CRE GAL D315 1-2/125 | 400 |
250 |
315 |
125 |
125 |
| 11093742 - CRE GAL D315 1-2-3/125 | 415 |
315 |
315 |
125 |
125 |
| 11093746 - CRE GAL D315 1-2-3-4/125 | 415 |
315 |
315 |
125 |
125 |
| 11093748 - CRE GAL D355 1/125 | 415 |
315 |
355 |
125 |
125 |
| 11093750 - CRE GAL D355 1-3/125 | 415 |
315 |
355 |
125 |
125 |
| 11093755 - CRE GAL D355 1-2-3/125 | 415 |
355 |
355 |
125 |
125 |
| 11093761 - CRE GAL D400 1/125 | 415 |
355 |
400 |
125 |
125 |
| 11093765 - CRE GAL D400 1-2/125 | 415 |
355 |
400 |
125 |
125 |
| 11093778 - CRE GAL D500 1-2/125 | 415 |
400 |
500 |
125 |
125 |
| 11093897 - CRE GAL D125 1-3/125 | 415 |
500 |
125 |
125 |
125 |
| 11093898 - CRE GAL D125 1-2/125 | 415 |
630 |
125 |
125 |
125 |
| 11093899 - CRE GAL D125 1/125 | 415 |
630 |
125 |
125 |
125 |
| 11093764 - CRE GAL.D450 1-3/125 | 450 |
125 |
| References | Fire protection rating |
|---|---|
| 11093700 - CRE GAL D160 1/125 | M0 |
| 11093702 - CRE GAL D160 1-3/125 | M0 |
| 11093704 - CRE GAL D160 1-2/125 | M0 |
| 11093707 - CRE GAL D160 1-2-3/125 | M0 |
| 11093711 - CRE GAL D200 1/125 | M0 |
| 11093713 - CRE GAL D200 1-3/125 | M0 |
| 11093715 - CRE GAL D200 1-2/125 | M0 |
| 11093718 - CRE GAL D200 1-2-3/125 | M0 |
| 11093722 - CRE GAL D250 1/125 | M0 |
| 11093724 - CRE GAL D250 1-3/125 | M0 |
| 11093726 - CRE GAL D250 1-2/125 | M0 |
| 11093729 - CRE GAL D250 1-2-3/125 | M0 |
| 11093735 - CRE GAL D315 1/125 | M0 |
| 11093737 - CRE GAL D315 1-3/125 | M0 |
| 11093739 - CRE GAL D315 1-2/125 | M0 |
| 11093742 - CRE GAL D315 1-2-3/125 | M0 |
| 11093746 - CRE GAL D315 1-2-3-4/125 | M0 |
| 11093748 - CRE GAL D355 1/125 | M0 |
| 11093750 - CRE GAL D355 1-3/125 | M0 |
| 11093755 - CRE GAL D355 1-2-3/125 | M0 |
| 11093761 - CRE GAL D400 1/125 | M0 |
| 11093765 - CRE GAL D400 1-2/125 | M0 |
| 11093778 - CRE GAL D500 1-2/125 | M0 |
| 11093897 - CRE GAL D125 1-3/125 | M0 |
| 11093898 - CRE GAL D125 1-2/125 | M0 |
| 11093899 - CRE GAL D125 1/125 | M0 |
| 11093764 - CRE GAL.D450 1-3/125 |
