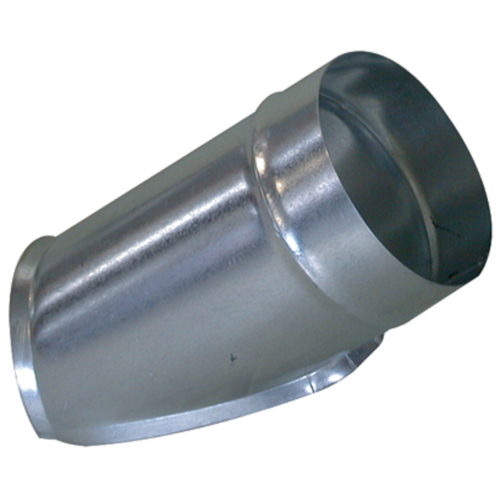

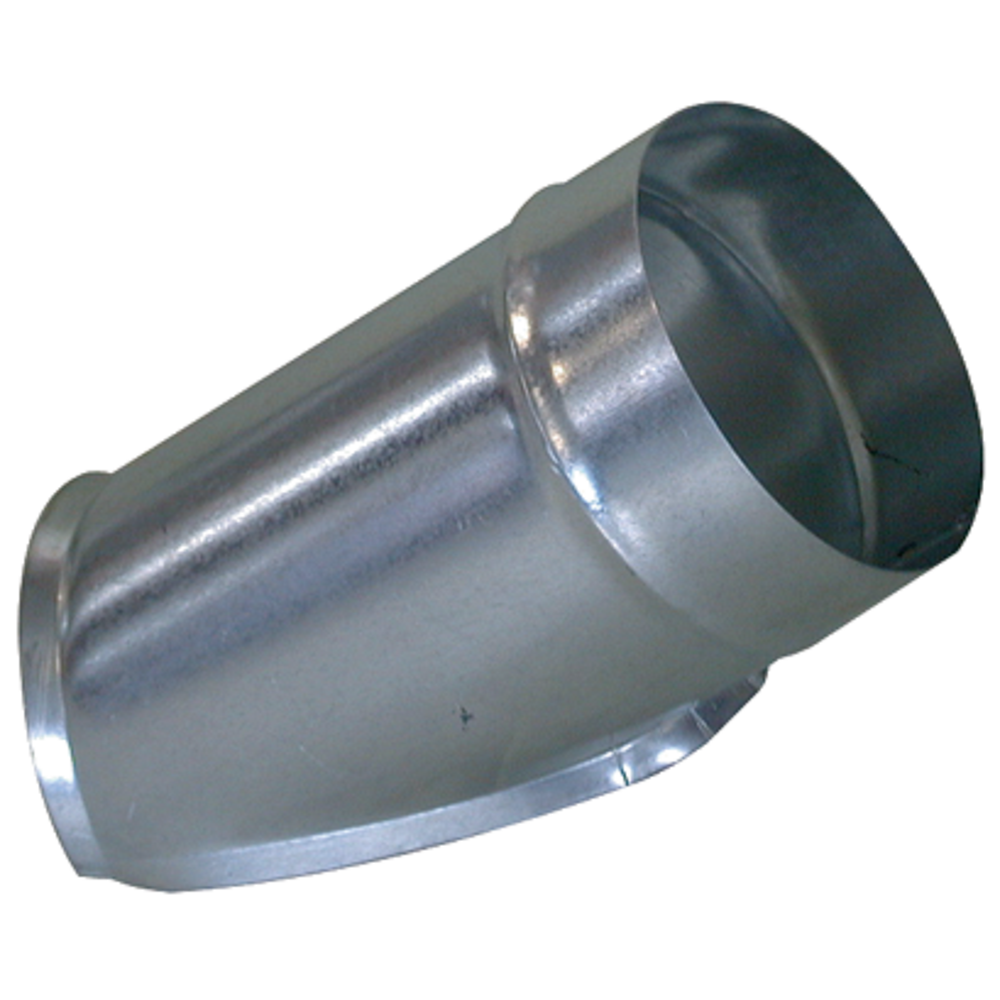

The PEC circular branch connector makes a 45° angle branch on a galvanised circular duct.
Circular Oblique Branch Connector: POC 45°
The PEC circular branch connector makes a 45° angle branch on a galvanised circular duct.
- available in diameters from 80 to 900,
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- when installing, pay special attention to pressures losses, noise and leaks that may be generated,
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Galvanised steel |
| References | Ø A (mm) | Ø B (mm) |
|---|---|---|
| 11097197 - POC ANGLE GALVA - D100/100 | 100 |
100 |
| 11097198 - POC ANGLE GALVA - D100/125 | 125 |
100 |
| 11097200 - POC ANGLE GALVA - D100/160 | 160 |
100 |
| 11097201 - POC ANGLE GALVA - D100/200 | 200 |
100 |
| 11097202 - POC ANGLE GALVA - D100/250 | 250 |
100 |
| 11097203 - POC ANGLE GALVA - D100/315 | 315 |
100 |
| 11097206 - POC ANGLE GALVA - D100/450 | 450 |
100 |
| 11097210 - POC ANGLE GALVA - D125/125 | 125 |
125 |
| 11097212 - POC ANGLE GALVA - D125/160 | 160 |
125 |
| 11097213 - POC ANGLE GALVA - D125/200 | 200 |
125 |
| 11097214 - POC ANGLE GALVA - D125/250 | 250 |
125 |
| 11097215 - POC ANGLE GALVA - D125/315 | 315 |
125 |
| 11097216 - POC ANGLE GALVA - D125/355 | 355 |
125 |
| 11097217 - POC ANGLE GALVA - D125/400 | 400 |
125 |
| 11097218 - POC ANGLE GALVA - D125/450 | 450 |
125 |
| 11097222 - POC ANGLE GALVA - D160/160 | 160 |
160 |
| 11097223 - POC ANGLE GALVA - D160/200 | 200 |
160 |
| 11097224 - POC ANGLE GALVA - D160/250 | 250 |
160 |
| 11097225 - POC ANGLE GALVA - D160/315 | 315 |
160 |
| 11097226 - POC ANGLE GALVA - D160/355 | 355 |
160 |
| 11097227 - POC ANGLE GALVA - D160/400 | 400 |
160 |
| 11097228 - POC ANGLE GALVA - D160/450 | 450 |
160 |
| 11097236 - POC ANGLE GALVA - D200/200 | 200 |
200 |
| 11097237 - POC ANGLE GALVA - D200/250 | 250 |
200 |
| 11097238 - POC ANGLE GALVA - D200/315 | 315 |
200 |
| 11097239 - POC ANGLE GALVA - D200/355 | 355 |
200 |
| 11097240 - POC ANGLE GALVA - D200/400 | 400 |
200 |
| 11097241 - POC ANGLE GALVA - D200/450 | 450 |
200 |
| 11097242 - POC ANGLE GALVA - D200/500 | 500 |
200 |
| 11097243 - POC ANGLE GALVA - D200/560 | 560 |
200 |
| 11097244 - POC ANGLE GALVA - D200/630 | 630 |
200 |
| 11097250 - POC ANGLE GALVA - D250/250 | 250 |
250 |
| 11097251 - POC ANGLE GALVA - D250/315 | 315 |
250 |
| 11097252 - POC ANGLE GALVA - D250/355 | 355 |
250 |
| 11097253 - POC ANGLE GALVA - D250/400 | 400 |
250 |
| 11097254 - POC ANGLE GALVA - D250/450 | 450 |
250 |
| 11097255 - POC ANGLE GALVA - D250/500 | 500 |
250 |
| 11097256 - POC ANGLE GALVA - D250/560 | 560 |
250 |
| 11097264 - POC ANGLE GALVA - D315/315 | 315 |
315 |
| 11097265 - POC ANGLE GALVA - D315/355 | 355 |
315 |
| 11097266 - POC ANGLE GALVA - D315/400 | 400 |
315 |
| 11097267 - POC ANGLE GALVA - D315/450 | 450 |
315 |
| 11097268 - POC ANGLE GALVA - D315/500 | 500 |
315 |
| 11097270 - POC ANGLE GALVA - D315/630 | 630 |
315 |
| 11097277 - POC ANGLE GALVA - D355/355 | 355 |
355 |
| 11097278 - POC ANGLE GALVA - D355/400 | 400 |
355 |
| 11097279 - POC ANGLE GALVA - D355/450 | 450 |
355 |
| 11097289 - POC ANGLE GALVA - D400/400 | 400 |
400 |
| 11097291 - POC ANGLE GALVA - D400/500 | 500 |
400 |
| 11097292 - POC ANGLE GALVA - D400/560 | 560 |
400 |
| 11097293 - POC ANGLE GALVA - D400/630 | 630 |
400 |
| 11097300 - POC ANGLE GALVA - D450/450 | 450 |
450 |
| 11097313 - POC ANGLE GALVA - D500/710 | 710 |
500 |
| 11097355 - POC ANGLE GALVA - D80/125 | 125 |
80 |
| 11097356 - POC ANGLE GALVA - D80/160 | 160 |
80 |
| Fire protection rating |
|---|
| M0 |
