Oblong Female Connector: RFO Airflow control

Oblong Female Connector: RFO

Airflow control

The RFO oblong female connector connects two galvanised oblong accessories together.
Oblong Female Connector: RFO
Oblong Female Connector: RFO
The RFO oblong female connector connects two galvanised oblong accessories together.
Oblong Female Connector: RFO

The + products

  • small size for high airflow,
  • good airtight performance and controlled pressure losses,
  • easy to install and maintain (no inaccessible corners).
  • standard dimensions (20 oblong sections),
  • galvanised steel as per EN 10346 ensuring uniformity of coating,
  • M0 fire certification.
  • easy assembly of interlocking accessories: ducts are female, accessories are male,
  • Final seal requires sealant and/or perforated strip,
  • attached to duct using self-tapping screws (4 to 6 depending on diameter).
Main material Insulation material

Galvanised steel

Oblong Female Connector: RFO

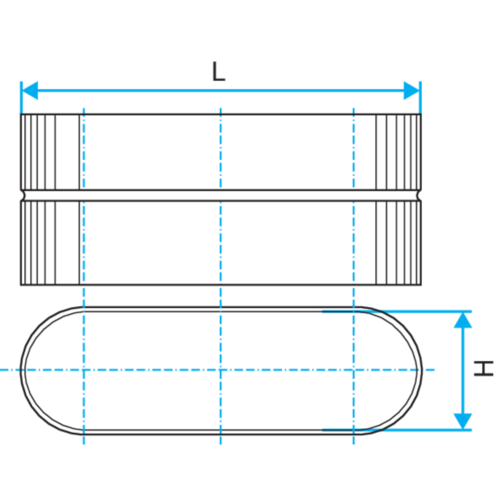

References H (mm) L (mm)
11063041 - RFO GALVA - 360x80

80

360

11063042 - RFO GALVA - 350x100

100

350

11063044 - RFO GALVA - 410x165

165

410

11063045 - RFO GALVA - 475x165

165

475

11063046 - RFO GALVA - 545x165

165

545

11063047 - RFO GALVA - 700x165

165

700

11063048 - RFO GALVA - 515x215

215

515

11063049 - RFO GALVA - 675x215

215

675

11063051 - RFO GALVA - 645x265

265

645

11066466 - RFO GALVA - 325X130

130

325

11066468 - RFO GALVA - 490X130

130

490

Fire protection rating

M0

Products and accessories references

  • RFO GALVA - 360x80
    RFO GALVA - 360x80
    11063041
    90,00 (without VAT)
  • RFO GALVA - 350x100
    RFO GALVA - 350x100
    11063042
    90,00 (without VAT)
  • RFO GALVA - 410x165
    RFO GALVA - 410x165
    11063044
    102,00 (without VAT)
  • RFO GALVA - 475x165
    RFO GALVA - 475x165
    11063045
    116,00 (without VAT)
  • RFO GALVA - 545x165
    RFO GALVA - 545x165
    11063046
    123,00 (without VAT)
  • RFO GALVA - 700x165
    RFO GALVA - 700x165
    11063047
    155,00 (without VAT)
  • RFO GALVA - 515x215
    RFO GALVA - 515x215
    11063048
    120,00 (without VAT)
  • RFO GALVA - 675x215
    RFO GALVA - 675x215
    11063049
    156,00 (without VAT)
  • RFO GALVA - 645x265
    RFO GALVA - 645x265
    11063051
    156,00 (without VAT)
  • RFO GALVA - 325X130
    RFO GALVA - 325X130
    11066466
    90,00 (without VAT)
  • RFO GALVA - 490X130
    RFO GALVA - 490X130
    11066468
    148,00 (without VAT)
