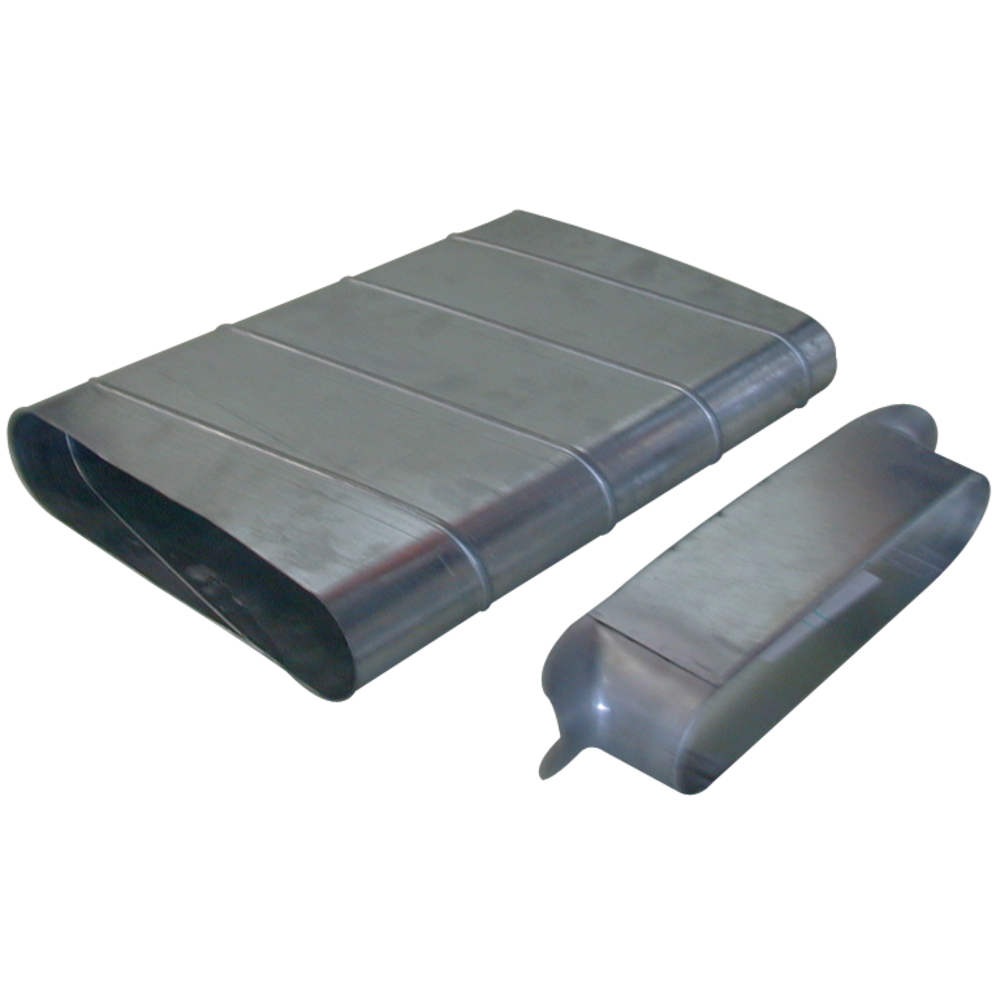

The PDO oblong 90° branch connector makes a right-angle branch on a galvanised circular duct.
Oblong 90° branch connector: PDO 90°
The PDO oblong 90° branch connector makes a right-angle branch on a galvanised circular duct.
The + products
- small size for high airflow,
- good airtight performance and controlled pressure losses,
- easy to install and maintain (no inaccessible corners).
- standard dimensions (20 oblong sections),
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- when installing, pay special attention to pressures losses, noise and leaks that may be generated,
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Galvanised steel |

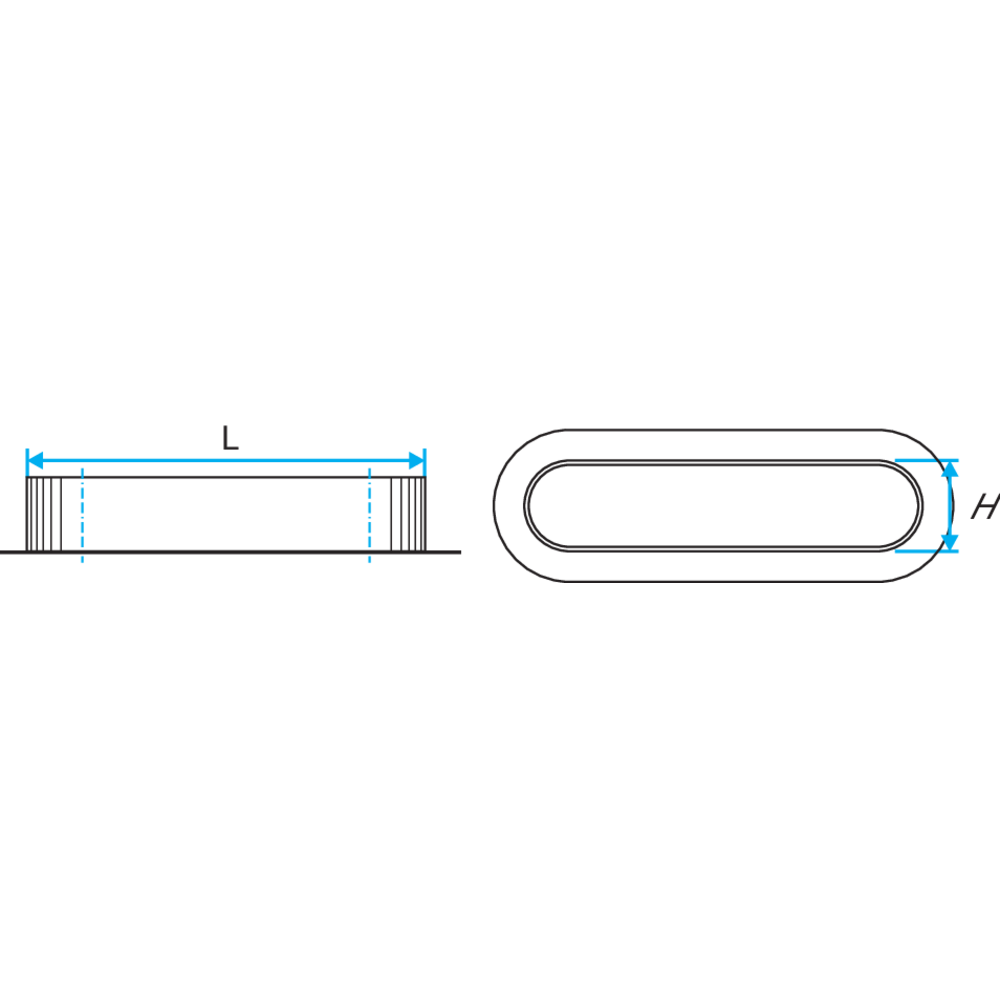

| References | H (mm) | L (mm) | Ø (mm) | Ø B (mm) |
|---|---|---|---|---|
| 11063561 - PDO GALVA - 360x80 - D80 | 80 |
360 |
80 |
80 |
| 11063562 - PDO GALVA - 360x80 - D100 | 80 |
360 |
100 |
100 |
| 11063563 - PDO GALVA - 360x80 - D165 | 80 |
360 |
165 |
165 |
| 11063569 - PDO GALVA - 350x100 - D100 | 100 |
350 |
100 |
100 |
| 11063570 - PDO GALVA - 350x100 - D165 | 100 |
350 |
165 |
165 |
| 11063571 - PDO GALVA - 350x100 - D215 | 100 |
350 |
215 |
215 |
| 11063572 - PDO GALVA - 350x100 - D265 | 100 |
350 |
265 |
265 |
| 11063576 - PDO GALVA - 450x100 - D100 | 100 |
450 |
100 |
100 |
| 11063577 - PDO GALVA - 450x100 - D165 | 100 |
450 |
165 |
165 |
| 11063579 - PDO GALVA - 450x100 - D265 | 100 |
450 |
265 |
265 |
| 11063583 - PDO GALVA - 410x165 - D165 | 165 |
410 |
165 |
165 |
| 11063584 - PDO GALVA - 410x165 - D215 | 165 |
410 |
215 |
215 |
| 11063585 - PDO GALVA - 410x165 - D265 | 165 |
410 |
265 |
265 |
| 11063586 - PDO GALVA - 410x165 - D320 | 165 |
410 |
320 |
320 |
| 11063587 - PDO GALVA - 410x165 - D415 | 165 |
410 |
415 |
415 |
| 11063589 - PDO GALVA - 475x165 - D165 | 165 |
475 |
165 |
165 |
| 11063590 - PDO GALVA - 475x165 - D215 | 165 |
475 |
215 |
215 |
| 11063591 - PDO GALVA - 475x165 - D265 | 165 |
475 |
265 |
265 |
| 11063595 - PDO GALVA - 545x165 - D165 | 165 |
545 |
165 |
165 |
| 11063596 - PDO GALVA - 545x165 - D215 | 165 |
545 |
215 |
215 |
| 11063598 - PDO GALVA - 545x165 - D320 | 165 |
545 |
320 |
320 |
| 11063599 - PDO GALVA - 545x165 - D415 | 165 |
545 |
415 |
415 |
| 11063601 - PDO GALVA - 700x165 - D165 | 165 |
700 |
165 |
165 |
| 11063607 - PDO GALVA - 515x215 - D215 | 215 |
515 |
215 |
215 |
| 11063611 - PDO GALVA - 515x215 - D515 | 215 |
515 |
515 |
515 |
| 11063612 - PDO GALVA - 675x215 - D215 | 215 |
675 |
215 |
215 |
| 11063614 - PDO GALVA - 675x215 - D320 | 215 |
675 |
320 |
320 |
| 11063623 - PDO GALVA - 645x265 - D320 | 265 |
645 |
320 |
320 |
| 11063652 - PDO GALVA - 360x80 - D130 | 80 |
360 |
130 |
130 |
| 11063653 - PDO GALVA - 350x100 - D130 | 100 |
350 |
130 |
130 |
| 11066469 - PDO GALVA - 325X130 - D130 | 130 |
325 |
130 |
130 |
| 11066470 - PDO GALVA - 325X130 - D165 | 130 |
325 |
165 |
165 |
| 11066471 - PDO GALVA - 325X130 - D215 | 130 |
325 |
215 |
215 |
| 11066473 - PDO GALVA - 325X130 - D320 | 130 |
325 |
320 |
320 |
| 11066476 - PDO GALVA - 425X130 - D130 | 130 |
425 |
130 |
130 |
| 11066477 - PDO GALVA - 425X130 - D165 | 130 |
425 |
165 |
165 |
| 11066478 - PDO GALVA - 425X130 - D215 | 130 |
425 |
215 |
215 |
| 11066483 - PDO GALVA - 490X130 - D130 | 130 |
490 |
130 |
130 |
| 11066484 - PDO GALVA - 490X130 - D165 | 130 |
490 |
165 |
165 |
| 11066485 - PDO GALVA - 490X130 - D215 | 130 |
490 |
215 |
215 |
| 11066487 - PDO GALVA - 490X130 - D320 | 130 |
490 |
320 |
320 |
| Fire protection rating |
|---|
| M0 |
