The 30° bend is used to change the direction of a galvanised ducting system by a 30° angle.

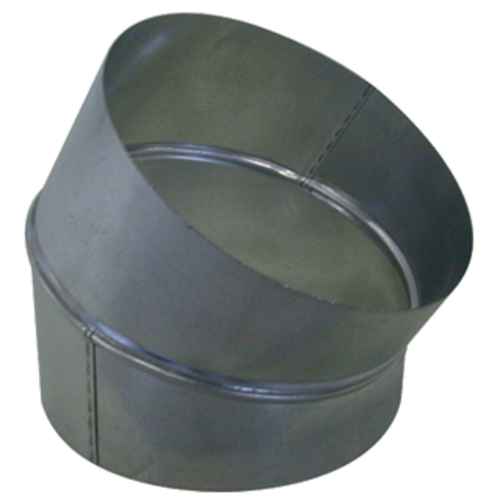

30° bend
The 30° bend is used to change the direction of a galvanised ducting system by a 30° angle. Up to diameter 200 mm, bends are pressed; diameter 250 to 900 are sector bends.
- available in diameters from 80 to 900,
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- Final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Galvanised steel |
| References | Ø (mm) | Ø A (mm) |
|---|---|---|
| 11093100 - 30° PRESSED BEND GALVA - D200 | 200 |
200 |
| 11093367 - 30° BEND GALVA - D250 | 250 |
250 |
| 11093368 - 30° BEND GALVA - D315 | 315 |
315 |
| 11093369 - 30° BEND GALVA - D355 | 355 |
355 |
| 11093370 - 30° BEND GALVA - D400 | 400 |
400 |
| 11093371 - 30° BEND GALVA - D450 | 450 |
450 |
| 11093372 - 30° BEND GALVA - D500 | 500 |
500 |
| 11093373 - 30° BEND GALVA - D630 | 630 |
630 |
| 11093374 - 30° BEND GALVA - D800 | 800 |
800 |
| 11094125 - 30° BEND GALVA - D560 | 560 |
560 |
| 11094126 - 30° BEND GALVA - D710 | 710 |
710 |
| Fire protection rating |
|---|
| M0 |
