The sealed male connector is used to join two galvanised ducts together while delivering class C airtight performance.
Male connector: RM+seals
The sealed male connector is used to joint two galvanised ducts together while delivering class C airtight performance. However, to joint two sealed accessories, use a standard female connector.
The + products
- easy and quick to install,
- class C airtight performance,
- aesthetic ducting.
- available in diameters from 125 to 560,
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- temperature range: - 30°C à + 100°C,
- resistant to ageing (> 30 years), UV and ozone,
- M0 fire certification,
- class C airtight performance as per standard NF EN 12237.
- to slot in or remove an accessory, rotate it slightly in the duct,
- as an airtight seal is automatically provided by the ALDES seal, no need to use sealant or adhesive tape,
- for vertical installations especially, the use of self-tapping screws remains recommended,
- time savings in relation to ducting with standard accessories is in the range of 20 % (at least 15 to 30 seconds saved per junction for diameters 125 to 315, or at least 30 to 60 seconds saved for each accessory in these diameters),
- ALDES sealed accessories are specially designed to ensure easy connection / disconnection. The ALDES range offers class C airtight performance and low connection torque.
| Main material | Insulation material |
|---|---|
| Galvanised steel |

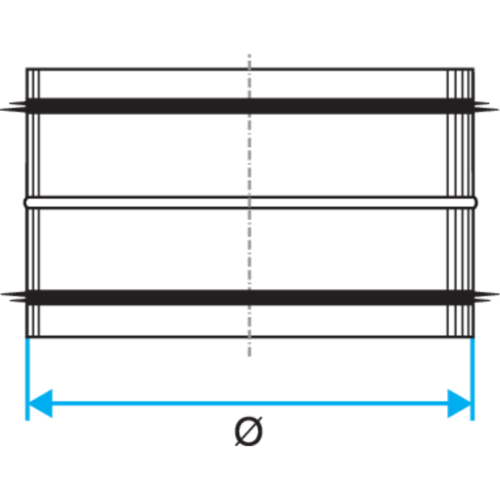

| References | Ø (mm) | Ø A (mm) |
|---|---|---|
| 11098162 - RM GALVA Branch piece+seal - Ø 125 mm | 125 |
125 |
| 11098164 - RM GALVA Branch piece+seal - Ø 200 mm | 200 |
200 |
| 11098165 - RM GALVA Branch piece+seal - Ø 250 mm | 250 |
250 |
| 11098166 - RM GALVA Branch piece+seal - Ø 315 mm | 315 |
315 |
| 11098167 - RM GALVA Branch piece+seal - Ø 355 mm | 355 |
355 |
| 11098168 - RM GALVA Branch piece+seal - Ø 400 mm | 400 |
400 |
| 11098169 - RM GALVA Branch piece+seal - Ø 500 mm | 500 |
500 |
| 11098171 - RM GALVA Branch piece+seal - Ø 450 mm | 450 |
450 |
| 11098172 - RM GALVA Branch piece+seal - Ø 560 mm | 560 |
560 |
| 11098163 - RM GALVA Branch piece+seal - Ø 160 mm | 160 |
160 |
| Fire protection rating |
|---|
| M0 |
