Oblong vertical elbow: CVO 90° Airflow control

Oblong vertical elbow: CVO 90°

Airflow control

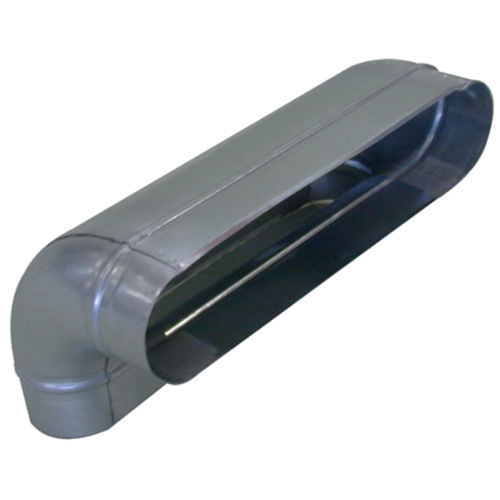

The Oblong vertical 90° bend is used to change the direction of an oblong ducting system by a 90° angle.
Oblong vertical elbow: CVO 90°
Oblong vertical elbow: CVO 90°
The Oblong vertical 90° bend is used to change the direction of an oblong ducting system by a 90° angle.
Oblong vertical elbow: CVO 90°

The + products

  • small size for high airflow,
  • good airtight performance and controlled pressure losses,
  • easy to install and maintain (no inaccessible corners).
  • standard dimensions (20 oblong sections),
  • galvanised steel as per EN 10346 ensuring uniformity of coating,
  • M0 fire certification.
  • easy assembly of interlocking accessories: ducts are female, accessories are male,
  • Final seal requires sealant and/or perforated strip,
  • attached to duct using self-tapping screws (4 to 6 depending on diameter).
Main material Insulation material

Galvanised steel

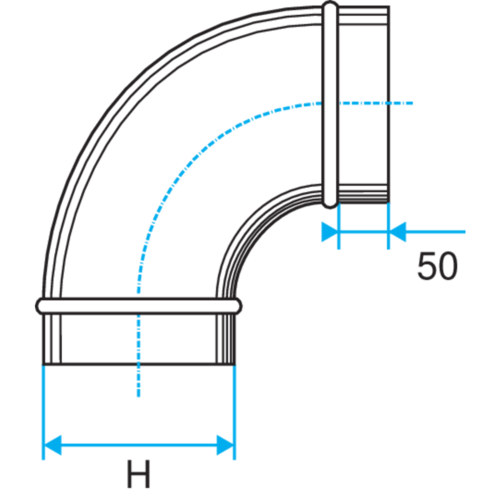

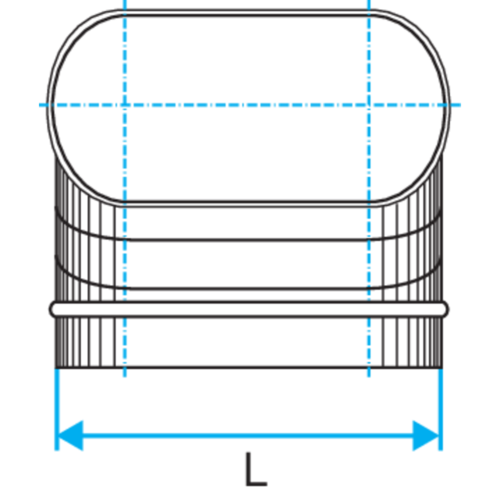

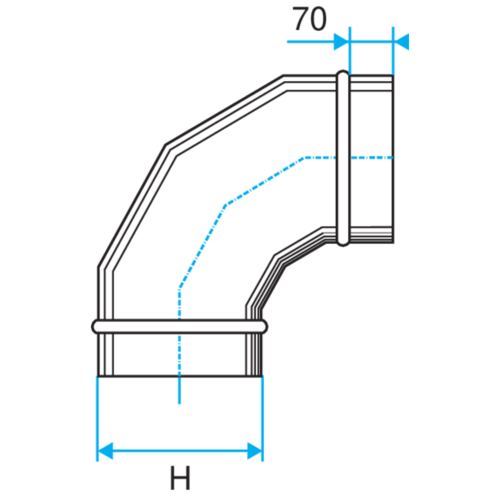

Oblong vertical elbow: CVO 90° Oblong vertical elbow: CVO 90° Oblong vertical elbow: CVO 90°
References H (mm) L (mm)
11063241 - CVO 90° BEND GALVA - 360x80

80

360

11063242 - CVO 90° BEND GALVA - 350x100

100

350

11063243 - CVO 90° BEND GALVA - 450x100

100

450

11063244 - CVO 90° BEND GALVA - 410x165

165

410

11063245 - CVO 90° BEND GALVA - 475x165

165

475

11063246 - CVO 90° BEND GALVA - 545x165

165

545

11063247 - CVO 90° BEND GALVA - 700x165

165

700

11063248 - CVO 90° BEND GALVA - 515x215

215

515

11063249 - CVO 90° BEND GALVA - 675x215

215

675

11063251 - CVO 90° BEND GALVA - 645x265

265

645

11063256 - CVO 90° BEND GALVA - 950x320

320

950

11066318 - CVO 90° BEND GALVA - 325x130

130

325

11066319 - CVO 90° BEND GALVA - 425x130

130

425

11066320 - CVO 90° BEND GALVA - 490x130

130

490

Fire protection rating

M0
