Female connector: RF
Airflow control
Female connector: RF
Airflow control

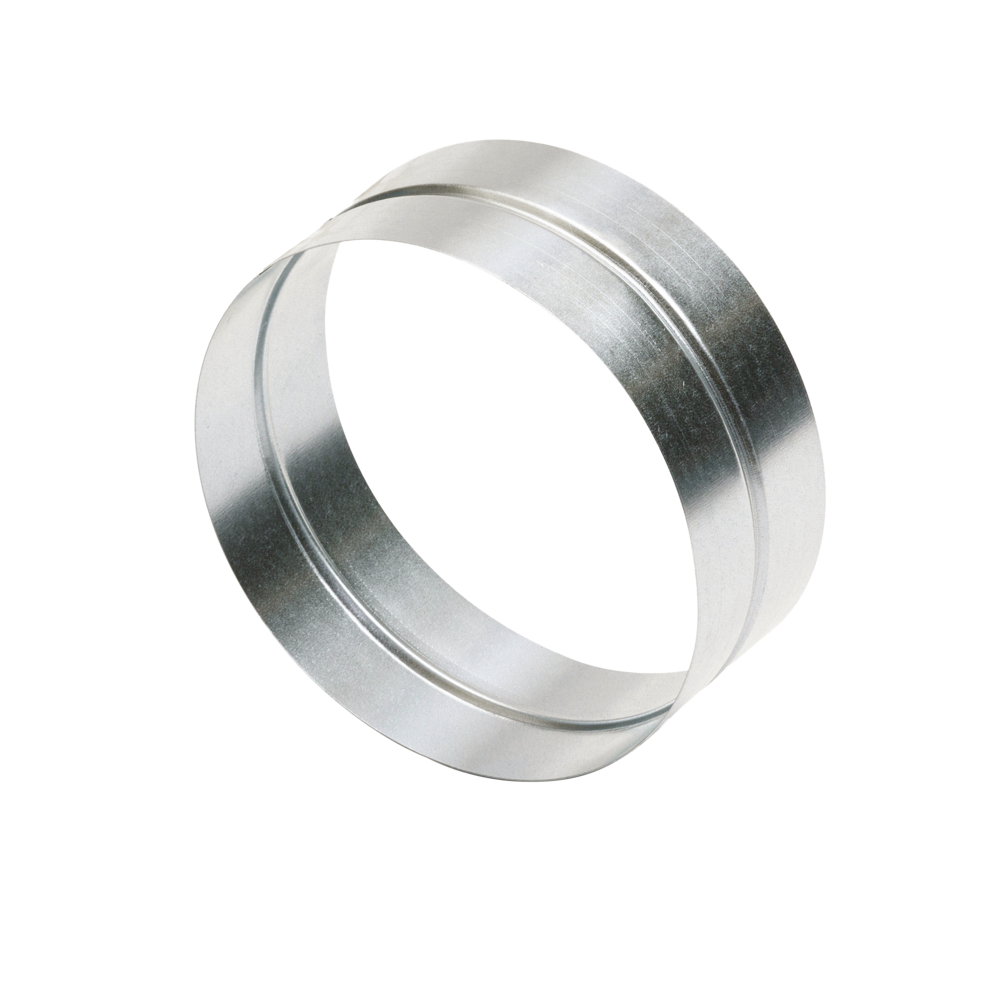

The female connector connects two galvanised accessories together.
Female connector: RF
The female connector connects two galvanised accessories together.
- available in diameters from 80 to 900,
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- Final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Galvanised steel |

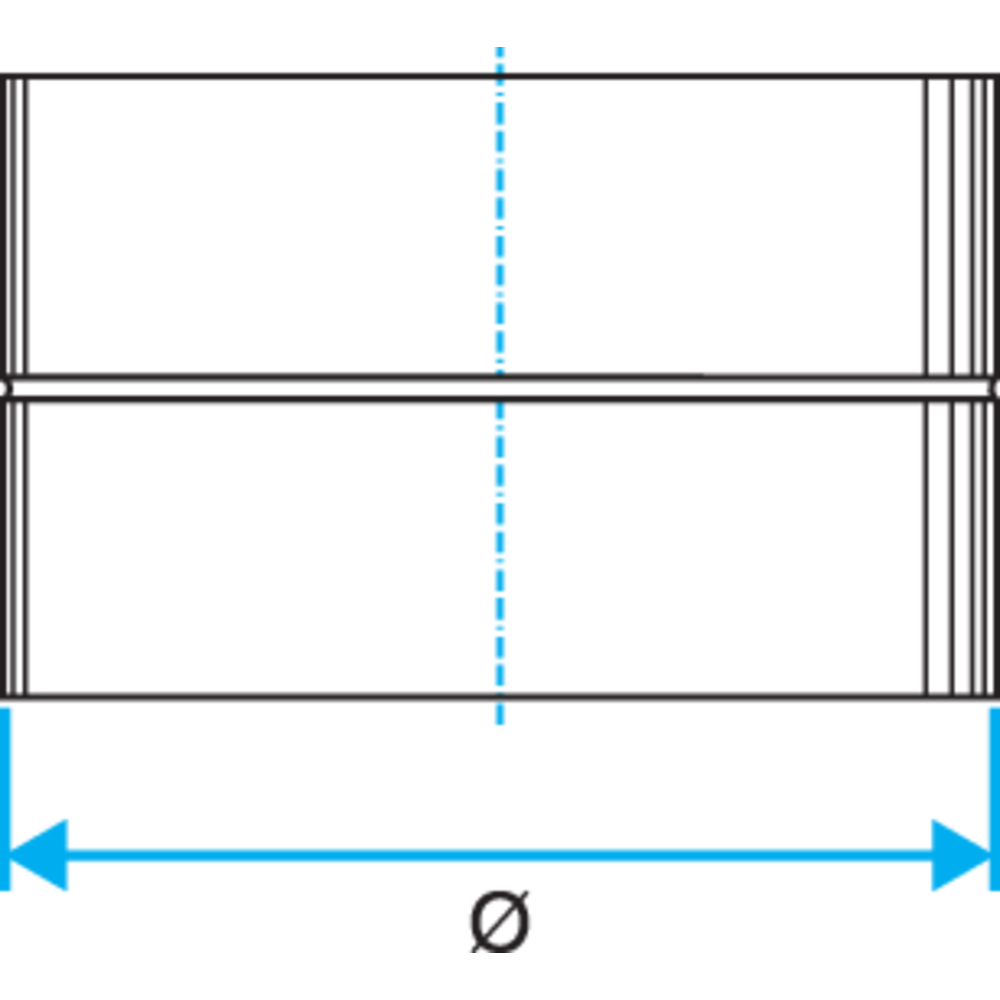

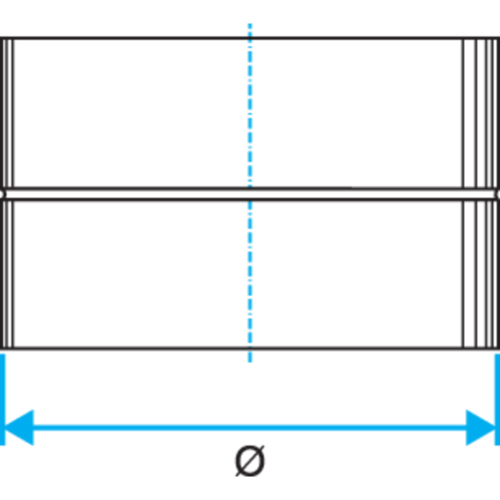

| References | Ø (mm) | Ø A (mm) |
|---|---|---|
| 11093061 - RF GALVA - D80 | 80 |
80 |
| 11093062 - RF GALVA - D100 | 100 |
100 |
| 11093063 - RF GALVA - D125 | 125 |
125 |
| 11093065 - RF GALVA - D160 | 160 |
160 |
| 11093066 - RF GALVA - D200 | 200 |
200 |
| 11093067 - RF GALVA - D250 | 250 |
250 |
| 11093068 - RF GALVA - D315 | 315 |
315 |
| 11093070 - RF GALVA - D400 | 400 |
400 |
| 11093071 - RF GALVA - D450 | 450 |
450 |
| 11093073 - RF GALVA - D630 | 630 |
630 |
| 11093074 - RF GALVA - D800 | 800 |
800 |
| 11094135 - RF GALVA - D560 | 560 |
560 |
| 11094136 - RF GALVA - D710 | 710 |
710 |
| 11094137 - RF GALVA - D900 | 900 |
900 |
| Fire protection rating |
|---|
| M0 |
