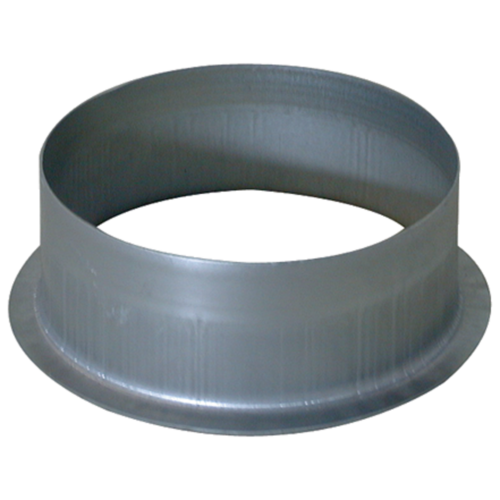

Flat 90° Branch Connector: PEP 90°
Airflow control
Flat 90° Branch Connector: PEP 90°
Airflow control

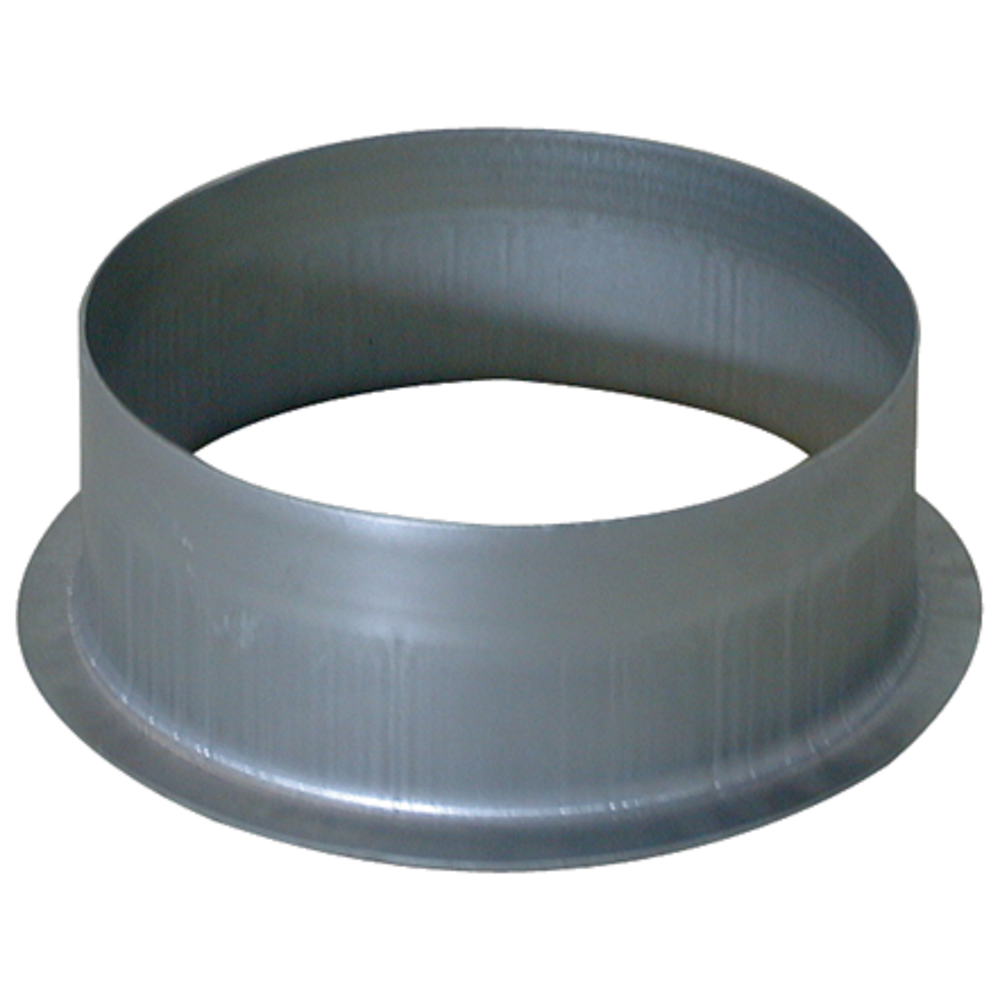

The PEP flat 90° branch connector makes a right-angle branch on a galvanised oblong or rectangular duct.
Flat 90° Branch Connector: PEP 90°
The PEP flat 90° branch connector makes a right-angle branch on a galvanised oblong or rectangular duct.
- available in diameters from 80 to 900,
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- when installing, pay special attention to pressures losses, noise and leaks that may be generated,
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Galvanised steel |

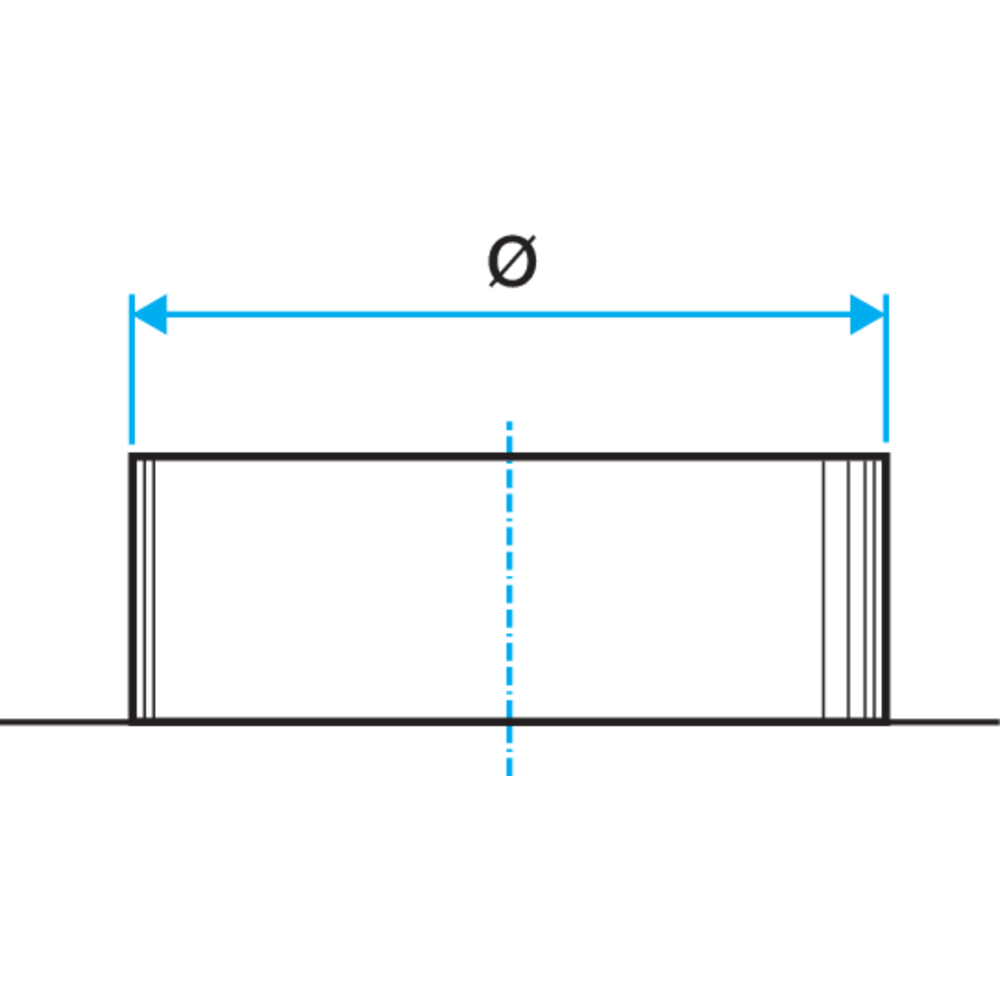

| References | Ø (mm) | Ø A (mm) |
|---|---|---|
| 11094140 - PEP GALVA FLAT CONNECTR - D560 | 560 |
560 |
| 11094141 - PEP GALVA FLAT CONNECTR - D710 | 710 |
710 |
| 11094142 - PEP GALVA FLAT CONNECTR - D900 | 900 |
900 |
| 11094618 - PEP GALVA FLAT CONNECTR - D355 | 355 |
355 |
| 11094619 - PEP GALVA FLAT CONNECTR - D400 | 400 |
400 |
| 11094620 - PEP GALVA FLAT CONNECTR - D500 | 500 |
500 |
| 11094621 - PEP GALVA FLAT CONNECTR - D630 | 630 |
630 |
| 11094622 - PEP GALVA FLAT CONNECTR - D800 | 800 |
800 |
| 11094624 - PEP GALVA FLAT CONNECTR - D450 | 450 |
450 |
| 11094611 - PEP GALVA FLAT CONNECTR - D80 | 80 |
80 |
| 11094612 - PEP GALVA FLAT CONNECTR - D100 | 100 |
100 |
| 11094613 - PEP GALVA FLAT CONNECTR - D125 | 125 |
125 |
| 11094614 - PEP GALVA FLAT CONNECTR - D160 | 160 |
160 |
| 11094615 - PEP GALVA FLAT CONNECTR - D200 | 200 |
200 |
| 11094616 - PEP GALVA FLAT CONNECTR - D250 | 250 |
250 |
| 11094617 - PEP GALVA FLAT CONNECTR - D315 | 315 |
315 |
| Fire protection rating |
|---|
| M0 |
