Oblong Horizontal Y-piece: CSH 90°
Airflow control
Oblong Horizontal Y-piece: CSH 90°
Airflow control
The oblong horizontal 90° Y-piece enables confluence of two oblong duct branches at a 90° angle from each other.

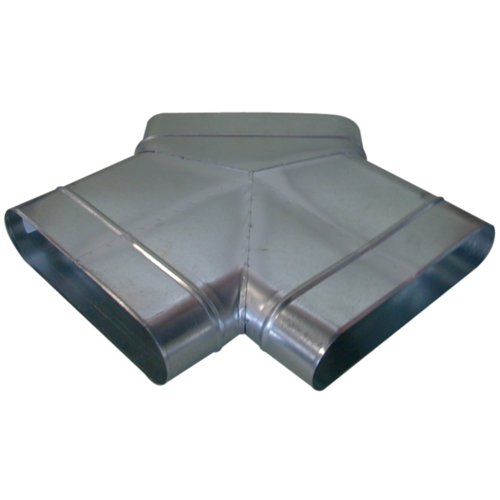

Oblong Horizontal Y-piece: CSH 90°
The oblong horizontal 90° Y-piece enables confluence of two oblong duct branches at a 90° angle from each other. Its aeraulic design means limited pressure loss, especially when used for air supply.
The + products
- small size for high airflow,
- good airtight performance and controlled pressure losses,
- easy to install and maintain (no inaccessible corners).
- standard dimensions (20 oblong sections),
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- Final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Galvanised steel |

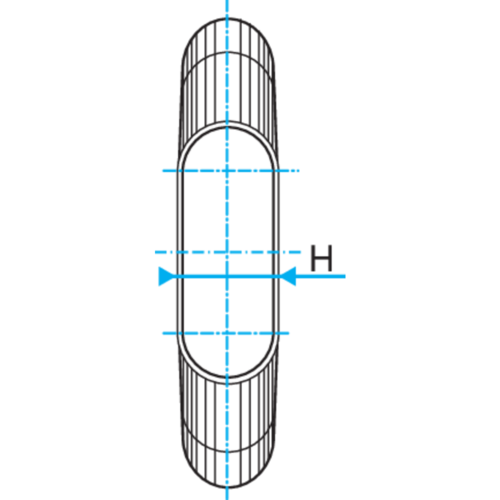

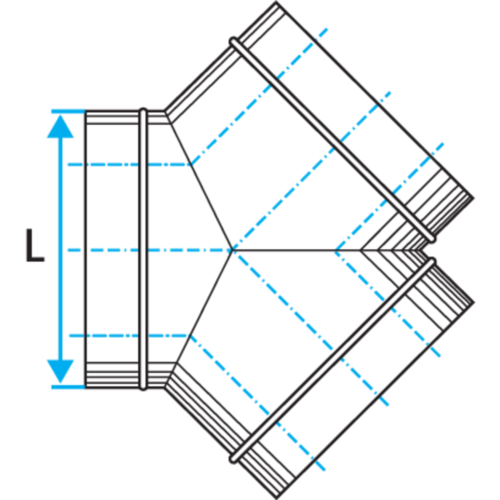

| References | H (mm) | L (mm) |
|---|---|---|
| 11063481 - CSH Y-PIECE GALVA - 360x80 | 80 |
360 |
| 11063482 - CSH Y-PIECE GALVA - 350x100 | 100 |
350 |
| 11063483 - CSH Y-PIECE GALVA - 450x100 | 100 |
450 |
| 11063484 - CSH Y-PIECE GALVA - 410x165 | 165 |
410 |
| 11063485 - CSH Y-PIECE GALVA - 475x165 | 165 |
475 |
| 11063486 - CSH Y-PIECE GALVA - 545x165 | 165 |
545 |
| 11063487 - CSH Y-PIECE GALVA - 700x165 | 165 |
700 |
| 11063488 - CSH Y-PIECE GALVA - 515x215 | 215 |
515 |
| 11063489 - CSH Y-PIECE GALVA - 675x215 | 215 |
675 |
| 11063491 - CSH Y-PIECE GALVA - 645x265 | 265 |
645 |
| 11063496 - CSH Y-PIECE GALVA - 950x320 | 320 |
950 |
| 11066535 - CSH Y-PIECE GALVA - 325X130 | 130 |
325 |
| 11066536 - CSH Y-PIECE GALVA - 425X130 | 130 |
425 |
| 11066537 - CSH Y-PIECE GALVA - 490X130 | 130 |
490 |
| Fire protection rating |
|---|
| M0 |
