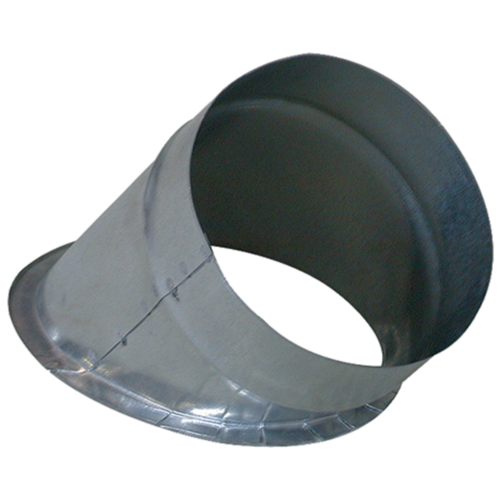

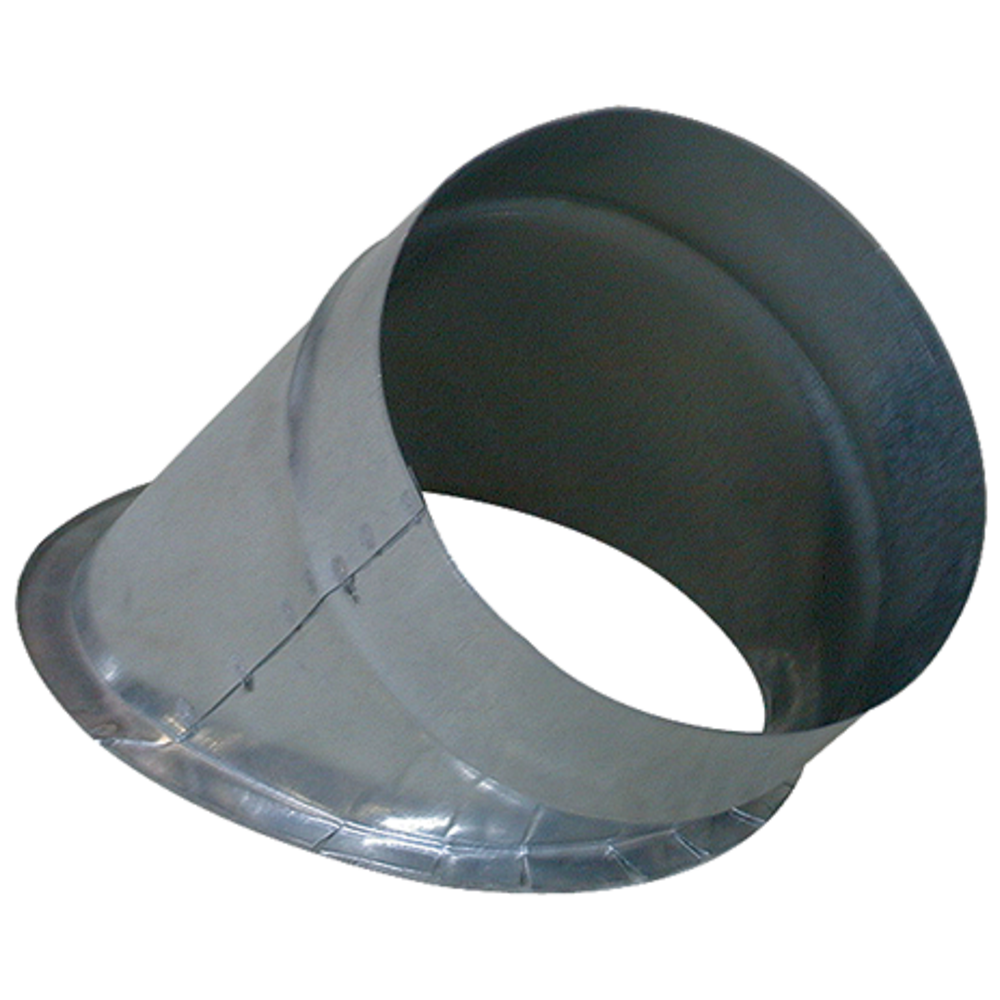

The POP angled branch connector makes a 45° angle branch on a galvanised oblong or rectangular duct.
Flat Oblique Branch Connector: POP 45°
The POP angled branch connector makes a 45° angle branch on a galvanised oblong or rectangular duct.
- available in diameters from 80 to 900,
- galvanised steel as per EN 10346 ensuring uniformity of coating,
- M0 fire certification.
- when installing, pay special attention to pressures losses, noise and leaks that may be generated,
- easy to assemble using interlocking parts: ducts are female in design, accessories are male,
- airtight seal formed using sealant and/or adhesive tape,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Galvanised steel |

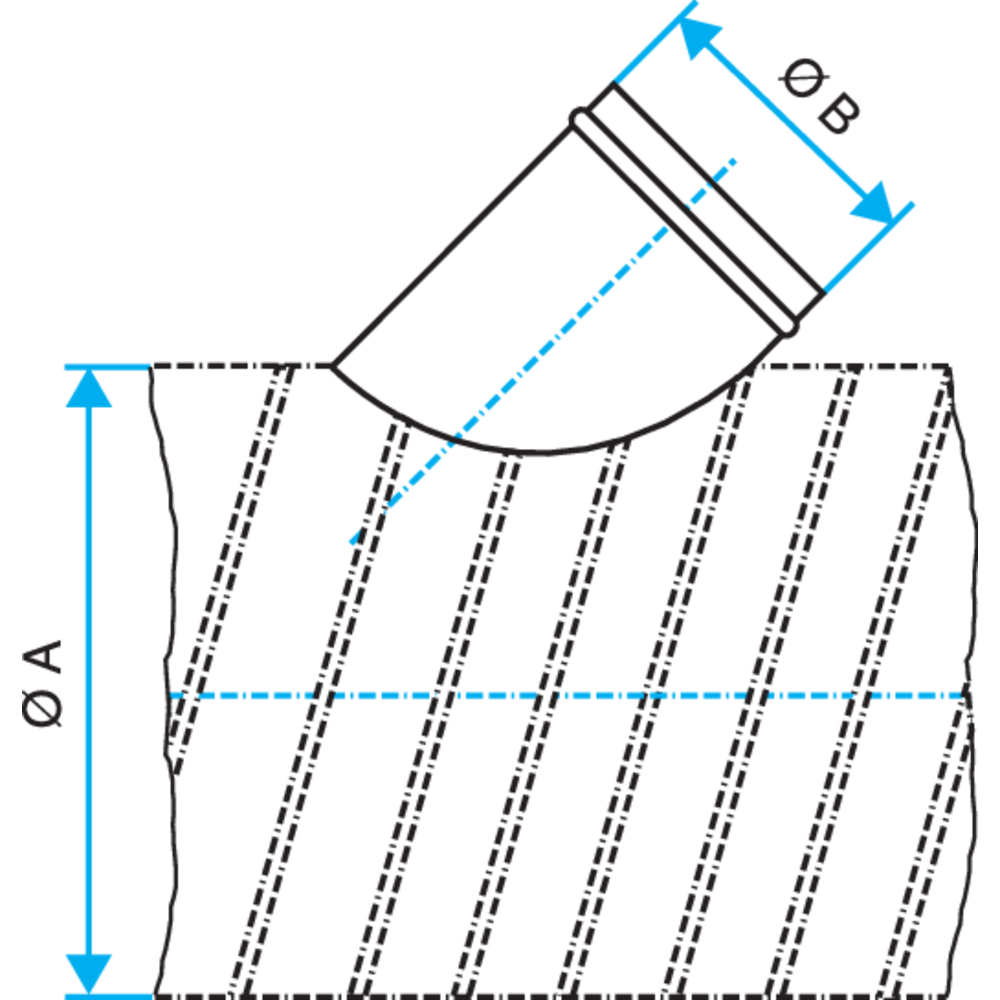

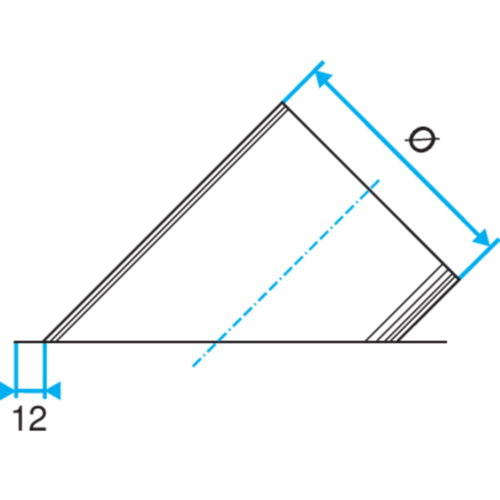

| References | Ø (mm) | Ø A (mm) |
|---|---|---|
| 11097360 - POP GALVA FLAT CONNECTR - D100 | 100 |
100 |
| 11097361 - POP GALVA FLAT CONNECTR - D125 | 125 |
125 |
| 11097362 - POP GALVA FLAT CONNECTR - D160 | 160 |
160 |
| 11097363 - POP GALVA FLAT CONNECTR - D200 | 200 |
200 |
| 11097364 - POP GALVA FLAT CONNECTR - D250 | 250 |
250 |
| 11097365 - POP GALVA FLAT CONNECTR - D315 | 315 |
315 |
| 11097366 - POP GALVA FLAT CONNECTR - D355 | 355 |
355 |
| 11097367 - POP GALVA FLAT CONNECTR - D400 | 400 |
400 |
| 11097368 - POP GALVA FLAT CONNECTR - D450 | 450 |
450 |
| 11097369 - POP GALVA FLAT CONNECTR - D500 | 500 |
500 |
| 11097370 - POP GALVA FLAT CONNECTR - D560 | 560 |
560 |
| 11097371 - POP GALVA FLAT CONNECTR - D630 | 630 |
630 |
| Fire protection rating |
|---|
| M0 |
