The RCC aluminium joins two aluminium ducts of different diameters together.
Concentric Conical Reducer: RCC Alu
The aluminium concentric conical reducer connects two aluminium ducts of different diameters together.
The + products
- range compliant with gas CMEV requirements,
- suited to systems operating in saline atmospheres.
- available in diameters from 125 to 500,
- aluminium 1050A-H18 (formerly A5) compliant with DTU 68.3 for gas CMEV,
- M0 fire certification.
- easy assembly of interlocking accessories: ducts are female, accessories are male,
- Final seal requires sealant and/or perforated strip,
- attached to duct using self-tapping screws (4 to 6 depending on diameter).
| Main material | Insulation material |
|---|---|
| Aluminium |

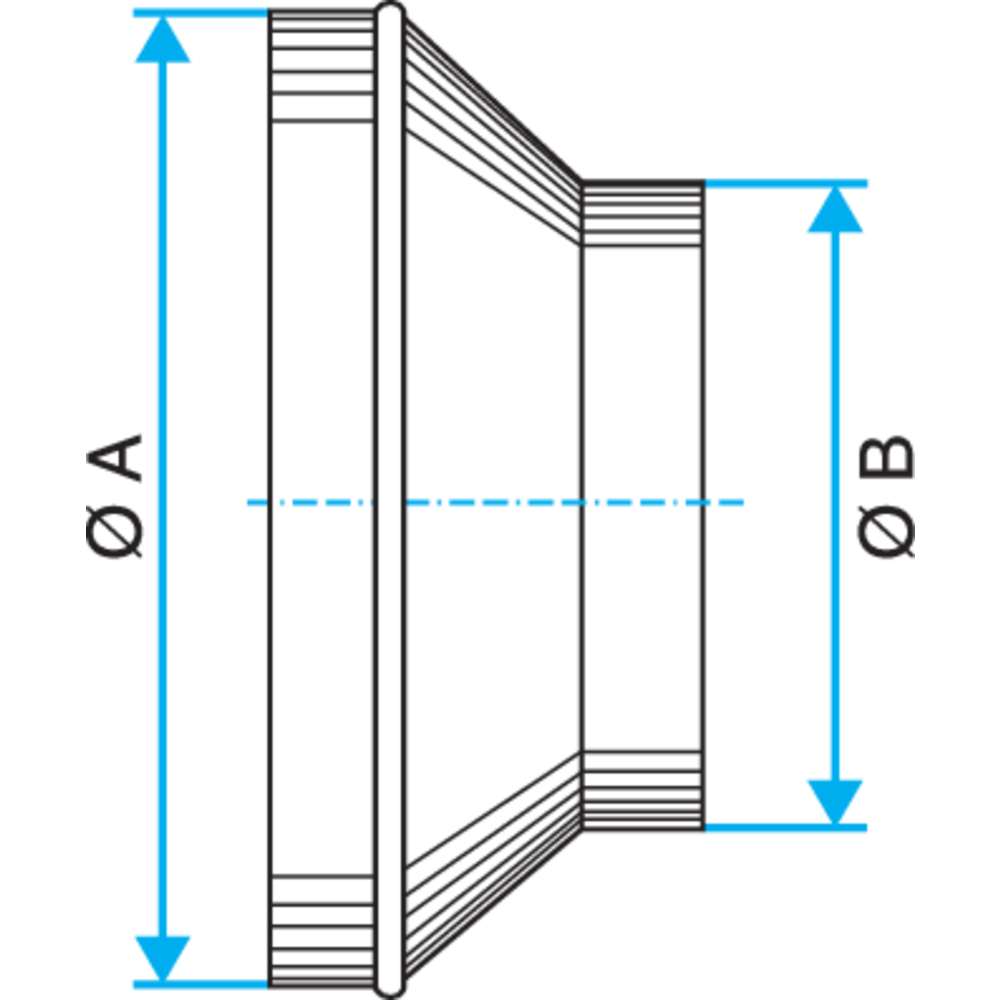

| References | Ø A (mm) | Ø B (mm) |
|---|---|---|
| 11095503 - RCC ALU - D160/125 | 160 |
125 |
| 11095506 - RCC ALU - D200/160 | 200 |
160 |
| 11095507 - RCC ALU - D200/125 | 200 |
125 |
| 11095509 - RCC ALU - D250/200 | 250 |
200 |
| 11095510 - RCC ALU - D250/160 | 250 |
160 |
| 11095511 - RCC ALU - D250/125 | 250 |
125 |
| 11095512 - RCC ALU - D315/250 | 315 |
250 |
| 11095513 - RCC ALU - D315/200 | 315 |
200 |
| 11095514 - RCC ALU - D315/160 | 315 |
160 |
| 11095516 - RCC ALU - D355/315 | 355 |
315 |
| 11095517 - RCC ALU - D355/250 | 355 |
250 |
| 11095518 - RCC ALU - D355/200 | 355 |
200 |
| 11095521 - RCC ALU - D400/355 | 400 |
355 |
| 11095522 - RCC ALU - D400/315 | 400 |
315 |
| 11095523 - RCC ALU - D400/250 | 400 |
250 |
| 11095527 - RCC ALU - D500/400 | 500 |
400 |
| 11095528 - RCC ALU - D500/355 | 500 |
355 |
| 11095529 - RCC ALU - D500/315 | 500 |
315 |
| 11095547 - RCC ALU - D500/450 | 500 |
450 |
| 11095548 - RCC ALU - D450/400 | 450 |
400 |
| 11096670 - RCC ALU - D450/355 | 450 |
355 |
| 11096671 - RCC ALU - D450/315 | 450 |
315 |
| Fire protection rating |
|---|
| M0 |
