Insulated Compact ALGAINE
Swirl jet diffuser
Insulated Compact ALGAINE
Swirl jet diffuser
Flexible plastic duct with 25 mm glass fibre insulation for ventilation systems in unheated areas of an individual house.
Insulated Compact ALGAINE
Flexible plastic duct with 25 mm glass fibre insulation for ventilation systems in unheated areas of an individual house. Available in different diameters from Ø 80 mm to Ø 125 mm.

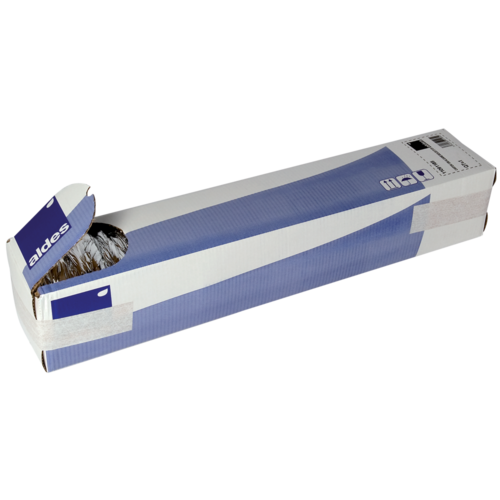

Practical packaging in 12 m carton.
Practical packaging in 12 m carton.
The + products
- prevents condensation in duct,
- optimised packaging: 12 m length,
- dispenser carton: easy to store and transport.
- minimum dimensions for maximum length.
- insulated flexible plastic duct,
-
diameters:
- Ø 80 mm,
- Ø 125 mm.
-
material:
- Inner layer: PVC film + steel wire,
- Outer layer: aluminium-coated PE film.
- packaging: 12 m duct in 1 m long carton,
- temperature range: -10°C / +70°C,
- insulation: 25 mm glass wool.
- use a packing knife to cut ALGAINE to size,
- fully extend ALGAINE and limit bend effects when installing the ducts,
- use EasyClip connectors to ensure an airtight seal on connections to fan units and ventilation terminals.
| Maximum use temperature (°C) | Main material | Insulation material | Minimum use temperature (°C) |
|---|---|---|---|
| 70 |
Expanded polypropylene |
-10 |
| References | L (mm) | Ø (mm) | Rated Ø duct (mm) | Weight (kg) |
|---|---|---|---|---|
| 11091184 - Insulated Compact ALGAINE Ø 80 mm (12 m carton) | 12000 |
80 |
80 |
3,28 |
| 11091185 - Insulated Compact ALGAINE Ø 125 mm (12 m carton) | 12000 |
125 |
125 |
4,69 |
