The Sens CO2 sensor measures the level of CO2 precisely, to adapt the airflow to optimise indoor air quality and energy consumption

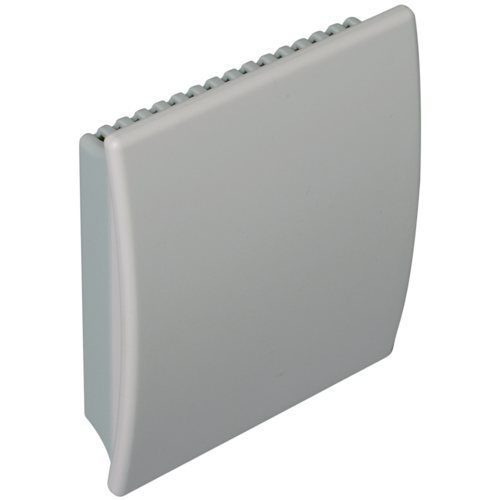

Sens CO2 sensor
The Sens CO2 sensor measures CO2 levels and ambient temperature in a room. The concentration of CO2 is measured by absorption of infra red light. This CO2 measurement is not affected by dust or water vapour.
The + products
- especially suited to large-volume rooms,
- compatible with all products with 0-10V input (VAV damper, fans, etc.).
The Sens CO2 sensor sends a 0-10V signal proportional to the CO2 level to directly control the fan speed controller (AHU or box fan) or to adapt the opening of a VAV type motorised damper.
- CO2 sensor measurement range: 0 to 2000 ppm,
- temperature measurement range: 0 to 50°C,
- output signal: 0-10V,
- power supply: 24 V.
- installed on wall in room covered,

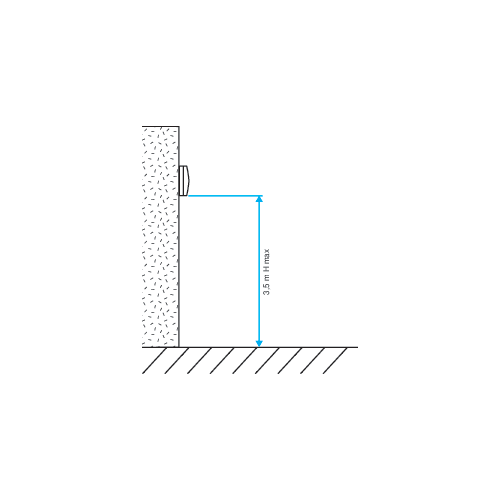

- installation height on wall: from 1.5 to 3.5 m,
- avoid air currents (doors, air supply, etc.) and dead zones (shelves, curtains, etc.),
- avoid proximity of heat sources and occupants (radius of 1 to 2 m from a workstation).
| References | Sensor consumption (W) | Measuring range (ppm) | Response time (min) | Self-calibration | Insulation material |
|---|---|---|---|---|---|
| 11017090 - Sens CO2 sensor | < 2.5 |
0-2000 |
< 9 |
Yes |
|
| 11017180 - 230 V/24 V power supply for Sens CO2 sensor |
| References | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| 11017090 - Sens CO2 sensor | 100 |
85 |
26 |
0,147 |
| 11017180 - 230 V/24 V power supply for Sens CO2 sensor | 93 |
52,5 |
66 |
0,38 |
| References | Voltage (V) | Output signal |
|---|---|---|
| 11017090 - Sens CO2 sensor | 24 |
0-10V |
| 11017180 - 230 V/24 V power supply for Sens CO2 sensor | 230 |
24 |
- Technical Opinion no. : 14.5/16-2185_V1
- Eligibility for EEC : Yes
- ESC data sheet no. 1 : BAR-TH-125
- ESC data sheet no. 2 : BAT-TH-126
