RMA
Centralised vacuum system
RMA
Centralised vacuum system
The RMA associated to an MR covers a peak air needs by switching from a minimum airflow to a maximum airflow and adapting to the conditions of the room.
RMA

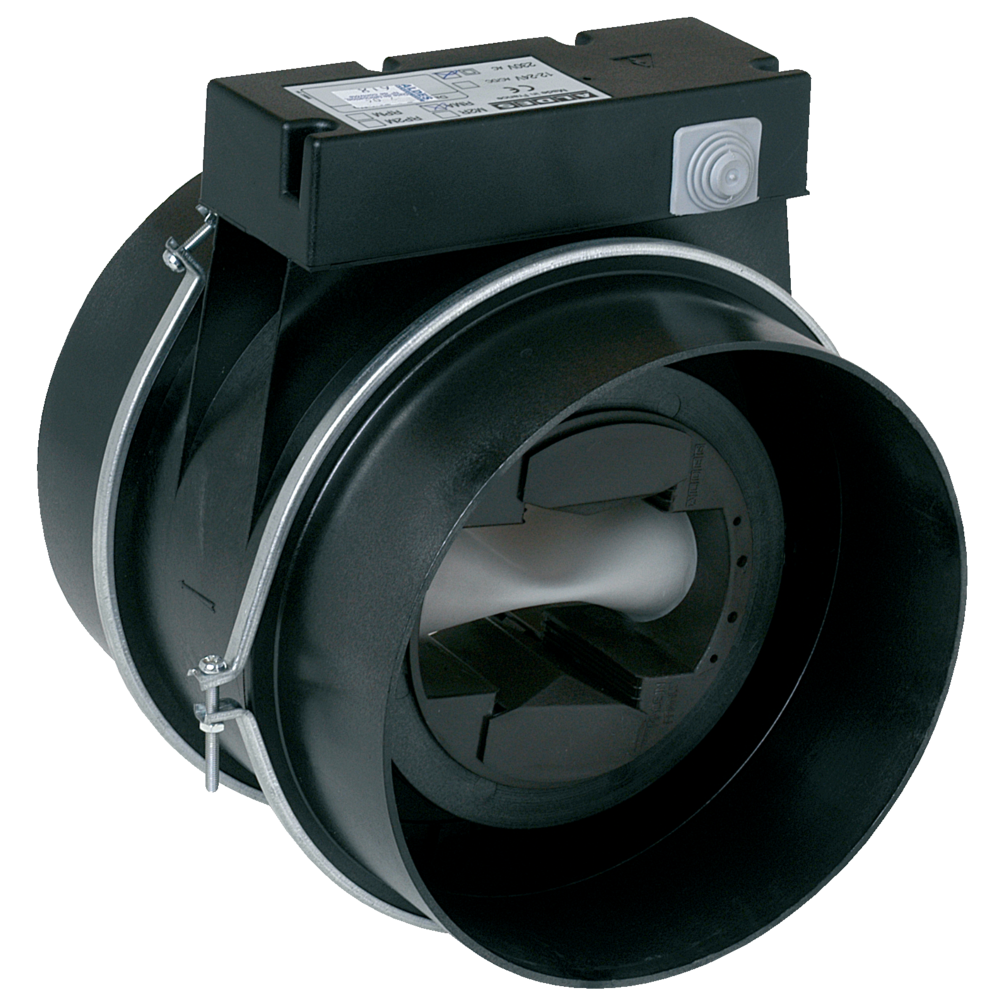

The RMA is associated with an MR to act as a dual-airflow controller to ensure stable airflow levels. When triggered by a switch, a clock or BMS signal, a thermal actuator will close the damper to pass from minimum airflow to maximum airflow and adapt to room occupancy to ensure good IAQ, high comfort and optimised energy consumption.
The + products
- energy savings: dual-airflow solution to adapt to presence in room,
- ready to install: no adjustments required,
- low noise level.
The RMA damper contains an MR which enables stable control of the airflow. If the RMA is triggered, the damper opens to enable another MR located further away in the circuit to adapt in turn. In this way, the airflow is switched from low to high.
- plastic body M1 fire protection rating,
- silicone control membrane,
- boost airflow activated by thermal piston,
-
airflow tolerance:
- Q average = Q nominal +/- 5 m3/h for MR ≤ 50 m3/h,
- Q average = Q nominal +/- 10% for MR > 50 m3/h,
- possible to control boost airflow by adding an MR upstream,
- base airflow set according to a pressure range between 50 and 250 Pa
- operating temperatures: 0 / +50°C
- Caution, must not be powered for more than 24 hours continuously.
- directly installed between two circular ducts,
- installation direction indicated on component,
- 230 V power supply required,
- the RMA must not be activated for more than 24 hours continuously,
- for connection with e.g. timer switch ref. 11022008
- the RMA D200 + RCC enables a D125 or D160 connection (supplied with 2 RCC)
- Note: the RMA must not be activated for more than 24 hours continuously
| References | Airflow accuracy | Insulation material |
|---|---|---|
| 11016057 - RMA Ø 125 - 15 m3/h 230 V | +/- 5 m³/h |
|
| 11016467 - RMA Ø 125 - 90 m3/h 230 V | +/-10% |
|
| 11016468 - RMA Ø 125 - 75 m3/h 230 V | +/-10% |
|
| 11016469 - RMA Ø 125 - 60 m3/h 230 V | +/-10% |
|
| 11016470 - RMA Ø 125 - 50 m3/h 230 V | +/- 5 m³/h |
|
| 11016471 - RMA Ø 125 - 30 m3/h 230 V | +/- 5 m³/h |
|
| 11016472 - RMA Ø 125 - 25 m3/h 230 V | +/- 5 m³/h |
|
| 11016474 - RMA Ø 125 - 20 m3/h 230 V | +/- 5 m³/h |
|
| 11016475 - RMA Ø 125 - 45 m3/h 230 V | +/- 5 m³/h |
| A (mm) | E (mm) | H (mm) | L (mm) | Ø B (mm) | Rated Ø duct (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 170 |
65 |
180 |
145 |
133 |
125 |
0,69 |
| References | Airflow (m³/h) | Pressure range (Pa) |
|---|---|---|
| 11016057 - RMA Ø 125 - 15 m3/h 230 V | 15 |
50-250 |
| 11016467 - RMA Ø 125 - 90 m3/h 230 V | 90 |
50-250 |
| 11016468 - RMA Ø 125 - 75 m3/h 230 V | 75 |
50-250 |
| 11016469 - RMA Ø 125 - 60 m3/h 230 V | 60 |
50-250 |
| 11016470 - RMA Ø 125 - 50 m3/h 230 V | 50 |
50-250 |
| 11016471 - RMA Ø 125 - 30 m3/h 230 V | 30 |
50-250 |
| 11016472 - RMA Ø 125 - 25 m3/h 230 V | 25 |
50-250 |
| 11016474 - RMA Ø 125 - 20 m3/h 230 V | 20 |
50-250 |
| 11016475 - RMA Ø 125 - 45 m3/h 230 V | 45 |
50-250 |
| Fire protection rating |
|---|
| M1 |
