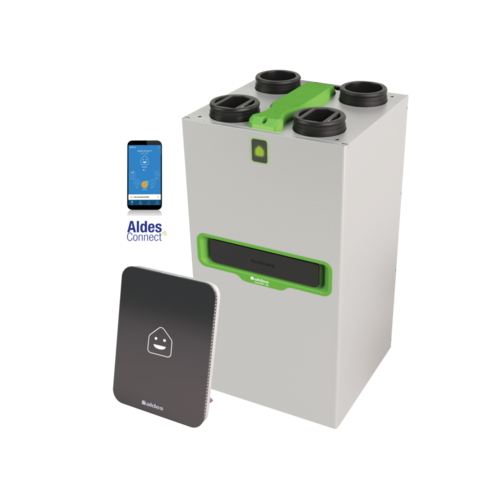

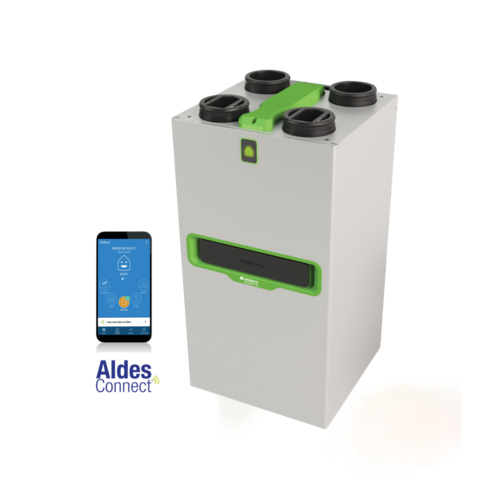

InspirAIR® Top Premium Thermal insulation

InspirAIR® Top Premium

Thermal insulation

The connected heat recovery ventilation solution that efficiently filters out the smallest pollutants and adapts to your needs.

InspirAIR® Top Premium

InspirAIR® Top Premium

See references

Download CAD Library file

InspirAIR® Top Premium

Connected heat recovery ventilation solution for efficient elimination of the smallest pollutants, adapts to user requirements.

InspirAIR® Top Premium

The + products

for air quality: high performance filtration and customised filter recommendations,
for performance: a complete system offering with thermal and electrical performance benchmarks in the market,
for connectivity: a complete user experience with AldesConnect®.

Functioning principles

General and permanent ventilation of dwelling with heat recovery on exhaust air to pre-heat incoming air.

This air is purified by custom filters that ensure healthy air in the dwelling.

material:
- PPE body and metal panels,
configuration:
- 4 x Ø 160 mm connections on top of machine,
two airflow settings:
- 300 m3/h,
- 450 m3/h.
compact dimensions:
- 560 x 560 x 1088 mm,
condition indicator light,
personalised filter recommendations,
exclusive radon mode,
model available with enthalpy heat exchanger.

Product implementation

cradle attachment or with attachment feet (sold as accessories),
easy to reverse airflows,
mandatory condensate connections using the drain kit sold as an accessory (except for kit references)
start-up and adjustment using the InspirAIR wired remote control supplied (except for kit references)
compact dimensions for easy integration in a standard cupboard.

References	Available filters	Type of exchanger	Type of motor
11027108 - InspirAIR® Top 300 Premium kit	pollen: - Coarse 65 % > particles: - ePM10 50% > fine particles: - ePM1 0 85% - ePM2.5 65% > bacteria:- ePM2.5 95% - ePM1 80%> VOC: - ePM10 85% - ePM2.5 65%.		EC
11027109 - InspirAIR® Top 450 Premium kit	pollen: - Coarse 65 % > particles: - ePM10 50% > fine particles: - ePM1 0 85% - ePM2.5 65% > bacteria:- ePM2.5 95% - ePM1 80%> VOC: - ePM10 85% - ePM2.5 65%.		EC
11023474 - InspirAIR® Top 300 Premium	pollen: Coarse 65%, particles: ePM10 50%, fine particles: ePM1 0 85%, ePM2.5 65%. bacteria: ePM2.5 95%, ePM1 80%. VOC: ePM10 85%, ePM2.5 65%.	Counterflow
11023476 - InspirAIR® Top 450 Premium	pollen: Coarse 65%, particles: ePM10 50%, fine particles: ePM1 0 85%, ePM2.5 65%. bacteria: ePM2.5 95%, ePM1 80%. VOC: ePM10 85%, ePM2.5 65%.	Counterflow
11023477 - InspirAIR® Top 300 ERV Premium	pollen: Coarse 65%, particles: ePM10 50%, fine particles: ePM1 0 85%, ePM2.5 65%. bacteria: ePM2.5 95%, ePM1 80%. VOC: ePM10 85%, ePM2.5 65%.	Counterflow
11023478 - InspirAIR® Top 450 ERV Premium	pollen: Coarse 65%, particles: ePM10 50%, fine particles: ePM1 0 85%, ePM2.5 65%. bacteria: ePM2.5 95%, ePM1 80%. VOC: ePM10 85%, ePM2.5 65%.	Counterflow

InspirAIR® Top Premium

References	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	L (mm)	P (mm)	Rated Ø duct (mm)	Weight (kg)	Empty weight (kg)
11027108 - InspirAIR® Top 300 Premium kit	560	560	1045	1088	160	320	294	323	560	560	560	160	41	41
11027109 - InspirAIR® Top 450 Premium kit	560	560	1045	1088	160	320	294	323	560	560	560	160	41	41
11023474 - InspirAIR® Top 300 Premium	560	560	1045	1088	160	320	294	323	560				41
11023476 - InspirAIR® Top 450 Premium	560	560	1045	1088	160	320	294	323	560				41
11023477 - InspirAIR® Top 300 ERV Premium	560	560	1045	1088	160	320	294	323	560				41
11023478 - InspirAIR® Top 450 ERV Premium	560	560	1045	1088	160	320	294	323	560				41

References	Airflow at max. speed (m³/h)
11027108 - InspirAIR® Top 300 Premium kit	300
11027109 - InspirAIR® Top 450 Premium kit	450
11023474 - InspirAIR® Top 300 Premium	300
11023476 - InspirAIR® Top 450 Premium	450
11023477 - InspirAIR® Top 300 ERV Premium	300
11023478 - InspirAIR® Top 450 ERV Premium	450

References	Exchanger performance (%)
11027108 - InspirAIR® Top 300 Premium kit	96
11027109 - InspirAIR® Top 450 Premium kit	94
11023474 - InspirAIR® Top 300 Premium
11023476 - InspirAIR® Top 450 Premium
11023477 - InspirAIR® Top 300 ERV Premium
11023478 - InspirAIR® Top 450 ERV Premium

References	Voltage (V)	Frequency (Hz)	Max. power	Protection rating	Max. current (A)	Weighted electrical power (W-Th-C)
11027108 - InspirAIR® Top 300 Premium kit	230	50/60	240	IP22	1,8	69.1
11027109 - InspirAIR® Top 450 Premium kit	230	50/60	350	IP22	2,5	83.5
11023474 - InspirAIR® Top 300 Premium	230	50/60	240	IP22	1,8
11023476 - InspirAIR® Top 450 Premium	230	50/60	350	IP22	2,5
11023477 - InspirAIR® Top 300 ERV Premium	230	50/60	240	IP22	1,8
11023478 - InspirAIR® Top 450 ERV Premium	230	50/60	350	IP22	2,5

Energy class ErP- Ventilation : A
Text ErP - Ventilation : Complies with eco-design regulation 1253/2014 and energy labelling regulation 1254/2014 for ventilation. Energy classes:

Ventilation energy class - Average climate
A

Products and accessories references

InspirAIR® Top 300 Premium kit

11027108

3876,00 € (without VAT)
Consumables
- Filter kit InspirAIR® Top 300 premium

  11027101

  98,40 € (without VAT)
Accessories
- USB-RS-485 cable

  11023320

  217,00 € (without VAT)
- Mounting base for VEX40T/Kit

  11023484

  384,00 € (without VAT)
- Ceiling penet InspirAIR® Top

  11023485

  221,00 € (without VAT)
- WAP communication module

  11023486

  384,00 € (without VAT)
- Duct-mounted heating coil– 0.3 kW

  11023487

  985,00 € (without VAT)
- AldesConnect® Box Wi-Fi modem

  11023386

  267,00 € (without VAT)
- 11091560

  170,00 € (without VAT)
InspirAIR® Top 450 Premium kit

11027109

4998,00 € (without VAT)
Consumables
- Filter kit InspirAIR® Top 450 premium

  11027103

  140,00 € (without VAT)
Accessories
- USB-RS-485 cable

  11023320

  217,00 € (without VAT)
- Mounting base for VEX40T/Kit

  11023484

  384,00 € (without VAT)
- Ceiling penet InspirAIR® Top

  11023485

  221,00 € (without VAT)
- WAP communication module

  11023486

  384,00 € (without VAT)
- Duct-mounted heating coil– 0.3 kW

  11023487

  985,00 € (without VAT)
- AldesConnect® Box Wi-Fi modem

  11023386

  267,00 € (without VAT)
- 11091560

  170,00 € (without VAT)
InspirAIR® Top 300 Premium

11023474

3921,00 € (without VAT)
Consumables
- Dust filter InspirAIR® Top

  11023490

  38,40 € (without VAT)
- Pollen filter InspirAIR® Top

  11023491

  71,90 € (without VAT)
- Particle filter InspirAIR® Top

  11023492

  78,40 € (without VAT)
- Fine particle filter InspirAIR® Top

  11023493

  105,00 € (without VAT)
- Bacteria filter InspirAIR® Top

  11023494

  140,00 € (without VAT)
- Particle + VOC filter InspirAIR® Top

  11023495

  211,00 € (without VAT)
- Filter kit InspirAIR® Top 300 Classic

  11027100

  91,60 € (without VAT)
- Filter kit InspirAIR® Top 300 premium

  11027101

  98,40 € (without VAT)
- Filter kit InspirAIR® Top 450 Classic

  11027102

  131,00 € (without VAT)
- Filter kit InspirAIR® Top 450 premium

  11027103

  140,00 € (without VAT)
Accessories
- InspirAIR® Top remote control

  11023479

  179,00 € (without VAT)
- Remote control for VEX40T CO2

  11023480

  676,00 € (without VAT)
- VEX40T internal preheating coil*

  11023225

  711,00 € (without VAT)
- Duct-mounted heating coil– 0.3 kW

  11023487

  985,00 € (without VAT)
- WAP communication module

  11023486

  384,00 € (without VAT)
- Syphon/water trap for VEX40T/Kit

  11023483

  67,10 € (without VAT)
- Mounting base for VEX40T/Kit

  11023484

  384,00 € (without VAT)
- Pressure board kit InspirAIR® Top

  11023498

  583,00 € (without VAT)
- Ceiling penet InspirAIR® Top

  11023485

  221,00 € (without VAT)
- USB-RS-485 cable

  11023320

  217,00 € (without VAT)
- 11091560

  170,00 € (without VAT)
InspirAIR® Top 450 Premium

11023476

5121,00 € (without VAT)
Consumables
- Dust filter InspirAIR® Top

  11023490

  38,40 € (without VAT)
- Pollen filter InspirAIR® Top

  11023491

  71,90 € (without VAT)
- Particle filter InspirAIR® Top

  11023492

  78,40 € (without VAT)
- Fine particle filter InspirAIR® Top

  11023493

  105,00 € (without VAT)
- Bacteria filter InspirAIR® Top

  11023494

  140,00 € (without VAT)
- Particle + VOC filter InspirAIR® Top

  11023495

  211,00 € (without VAT)
- Filter kit InspirAIR® Top 300 Classic

  11027100

  91,60 € (without VAT)
- Filter kit InspirAIR® Top 300 premium

  11027101

  98,40 € (without VAT)
- Filter kit InspirAIR® Top 450 Classic

  11027102

  131,00 € (without VAT)
- Filter kit InspirAIR® Top 450 premium

  11027103

  140,00 € (without VAT)
Accessories
- InspirAIR® Top remote control

  11023479

  179,00 € (without VAT)
- Remote control for VEX40T CO2

  11023480

  676,00 € (without VAT)
- VEX40T internal preheating coil*

  11023225

  711,00 € (without VAT)
- Duct-mounted heating coil– 0.3 kW

  11023487

  985,00 € (without VAT)
- WAP communication module

  11023486

  384,00 € (without VAT)
- Syphon/water trap for VEX40T/Kit

  11023483

  67,10 € (without VAT)
- Mounting base for VEX40T/Kit

  11023484

  384,00 € (without VAT)
- Pressure board kit InspirAIR® Top

  11023498

  583,00 € (without VAT)
- Ceiling penet InspirAIR® Top

  11023485

  221,00 € (without VAT)
- USB-RS-485 cable

  11023320

  217,00 € (without VAT)
- 11091560

  170,00 € (without VAT)
InspirAIR® Top 300 ERV Premium

11023477

5121,00 € (without VAT)
Consumables
- Dust filter InspirAIR® Top

  11023490

  38,40 € (without VAT)
- Pollen filter InspirAIR® Top

  11023491

  71,90 € (without VAT)
- Particle filter InspirAIR® Top

  11023492

  78,40 € (without VAT)
- Fine particle filter InspirAIR® Top

  11023493

  105,00 € (without VAT)
- Bacteria filter InspirAIR® Top

  11023494

  140,00 € (without VAT)
- Particle + VOC filter InspirAIR® Top

  11023495

  211,00 € (without VAT)
- Filter kit InspirAIR® Top 300 Classic

  11027100

  91,60 € (without VAT)
- Filter kit InspirAIR® Top 300 premium

  11027101

  98,40 € (without VAT)
- Filter kit InspirAIR® Top 450 Classic

  11027102

  131,00 € (without VAT)
- Filter kit InspirAIR® Top 450 premium

  11027103

  140,00 € (without VAT)
Accessories
- InspirAIR® Top remote control

  11023479

  179,00 € (without VAT)
- Remote control for VEX40T CO2

  11023480

  676,00 € (without VAT)
- VEX40T internal preheating coil*

  11023225

  711,00 € (without VAT)
- Duct-mounted heating coil– 0.3 kW

  11023487

  985,00 € (without VAT)
- WAP communication module

  11023486

  384,00 € (without VAT)
- Syphon/water trap for VEX40T/Kit

  11023483

  67,10 € (without VAT)
- Mounting base for VEX40T/Kit

  11023484

  384,00 € (without VAT)
- Pressure board kit InspirAIR® Top

  11023498

  583,00 € (without VAT)
- Ceiling penet InspirAIR® Top

  11023485

  221,00 € (without VAT)
- USB-RS-485 cable

  11023320

  217,00 € (without VAT)
- 11091560

  170,00 € (without VAT)
InspirAIR® Top 450 ERV Premium

11023478

6188,00 € (without VAT)
Consumables
- Dust filter InspirAIR® Top

  11023490

  38,40 € (without VAT)
- Pollen filter InspirAIR® Top

  11023491

  71,90 € (without VAT)
- Particle filter InspirAIR® Top

  11023492

  78,40 € (without VAT)
- Fine particle filter InspirAIR® Top

  11023493

  105,00 € (without VAT)
- Bacteria filter InspirAIR® Top

  11023494

  140,00 € (without VAT)
- Particle + VOC filter InspirAIR® Top

  11023495

  211,00 € (without VAT)
- Filter kit InspirAIR® Top 300 Classic

  11027100

  91,60 € (without VAT)
- Filter kit InspirAIR® Top 300 premium

  11027101

  98,40 € (without VAT)
- Filter kit InspirAIR® Top 450 Classic

  11027102

  131,00 € (without VAT)
- Filter kit InspirAIR® Top 450 premium

  11027103

  140,00 € (without VAT)
Accessories
- InspirAIR® Top remote control

  11023479

  179,00 € (without VAT)
- Remote control for VEX40T CO2

  11023480

  676,00 € (without VAT)
- VEX40T internal preheating coil*

  11023225

  711,00 € (without VAT)
- Duct-mounted heating coil– 0.3 kW

  11023487

  985,00 € (without VAT)
- WAP communication module

  11023486

  384,00 € (without VAT)
- Syphon/water trap for VEX40T/Kit

  11023483

  67,10 € (without VAT)
- Mounting base for VEX40T/Kit

  11023484

  384,00 € (without VAT)
- Pressure board kit InspirAIR® Top

  11023498

  583,00 € (without VAT)
- Ceiling penet InspirAIR® Top

  11023485

  221,00 € (without VAT)
- USB-RS-485 cable

  11023320

  217,00 € (without VAT)
- 11091560

  170,00 € (without VAT)

Documents

document

Conformity CE InspirAIR® Top

Conformities

59 KB
ErP sheet InspirAIR®Top

Conformities

720 KB
ErP label InspirAIR® Top 300 Premium

Conformities

744 KB
ErP label InspirAIR® Top 300 Premium ERV

Conformities

745 KB
ErP label InspirAIR® Top 450

Conformities

744 KB
ErP label InspirAIR® Top 450 Premium ERV

Conformities

745 KB
InspirAIR® Top User Manual

Manuals

9 MB
VEX40T/InspirAIR® Installation Instructions Ceiling Passage

Manuals

1 MB
VEX40T/InspirAIR® Top Assembly of condensate discharge kit

Manuals

252 KB
VEX40T/InspirAIR® Top Assembly of mounting base

Manuals

512 KB
InspirAIR® Top Installation instructions Internal preheat

Manuals

10 MB
InspirAIR® Installation instructions External Pre- and Post-Heat

Manuals

2 MB
InspirAIR® Top Remote control Installation instructions

Manuals

629 KB
Guide utilisateur InspirAIR

Manuals

8 MB

4 software

Aldes CAD Library

Web platform enabling BIM object downloads of Aldes products
Conceptor Ventilation

Download software
Selector poWair

Selection tool for exhaust, heat recovery, and smoke and heat exhaust units

Download software
Aldes Configurator

Software for configuring VEX40T and accessories

Download software
