Modular heat recovery ventilation and air purification solution to adapt to all your installation configurations.
Dee Fly Modulo®

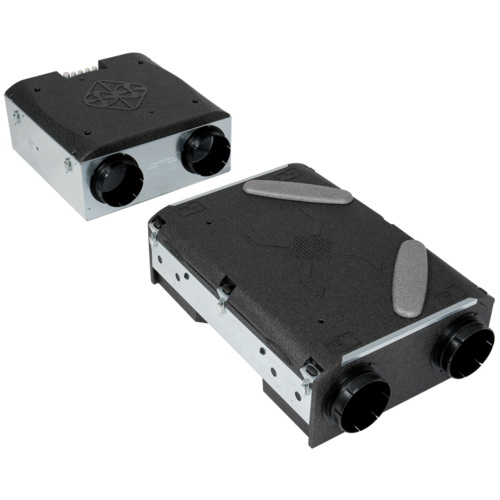

Heat recovery ventilation and air purification solution comprising 2 units - heat exchanger and motor units). Dee Fly Modulo® delivers filtered fresh air by eliminating outdoor pollution, while adapting to all installation configurations.
The + products
- more modularity: the unit comes in two parts for easy installation in all configurations,
- more purified air: fresh air is filtered to eliminate outdoor pollution,
- more comfort: balances indoor air while insulating against outdoor noise pollution.
General and permanent ventilation of dwelling with heat recovery on exhaust air (via heat exchanger) to pre-heat incoming air. This air is filtered and ensures that indoor air remains clean.
heat exchanger:
- expanded polypropylene,
- 4 x Ø 160 mm connections,
-
filters:
- 1 x fine particles filter on fresh air,
- 1 x pollen filter on exhaust.
- bypass included (self-balanced model),
- built-in pressure sensor for control,
- flat siphon supplied.
motor:
- sheet metal box,
- 2 MICRO-WATT 3-speed motors mounted on ball bearings with thermal protection,
- 4 x Ø 160 mm connections.
- suspended attachment to ceiling with suspension kit for each exchanger and each motor,
- horizontal floor installation with floor attachment kit for each exchanger and each motor,
-
horizontal on wall with two kits:
- one floor attachment kit per exchanger and per motor,
- one condensate evacuation kit.
| References | Available filters | Insulation material | Type of exchanger | Type of motor |
|---|---|---|---|---|
| 11023239 - MV300-HE micro-watt AUTO motor fan unit |
|
With plates |
EC |
|
| 11023240 - ES300-HE Exchanger + BYPASS AUTO |
|
Sensible |
EC |
|
| 11023244 - MV250-HE micro-watt HY motor fan unit |
|
With plates |
EC |
| References | A (mm) | B (mm) | C (mm) | D (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 11023239 - MV300-HE micro-watt AUTO motor fan unit | 570 |
160 |
220 |
570 |
17 |
| 11023240 - ES300-HE Exchanger + BYPASS AUTO | 570 |
160 |
370 |
790 |
14 |
| 11023244 - MV250-HE micro-watt HY motor fan unit | 570 |
160 |
220 |
570 |
17 |
| References | Airflow at max. speed (m³/h) |
|---|---|
| 11023239 - MV300-HE micro-watt AUTO motor fan unit | 300 |
| 11023240 - ES300-HE Exchanger + BYPASS AUTO | 300 |
| 11023244 - MV250-HE micro-watt HY motor fan unit | 250 |
| References | Voltage (V) | Frequency (Hz) | Protection rating | Max. current (A) |
|---|---|---|---|---|
| 11023239 - MV300-HE micro-watt AUTO motor fan unit | 230 |
50 |
2 |
|
| 11023240 - ES300-HE Exchanger + BYPASS AUTO | 230 |
50 |
2 |
|
| 11023244 - MV250-HE micro-watt HY motor fan unit | 230 |
50 |
2 |
- Energy class ErP- Ventilation : A
- Text ErP - Ventilation : Complies with eco-design regulation 1253/2014 and energy labelling regulation 1254/2014 for ventilation. Energy classes:
- Eligibility for EEC : Yes
| References | Ventilation energy class - Average climate |
|---|---|
| 11023239 - MV300-HE micro-watt AUTO motor fan unit | B |
| 11023240 - ES300-HE Exchanger + BYPASS AUTO | B |
| 11023244 - MV250-HE micro-watt HY motor fan unit | A |
