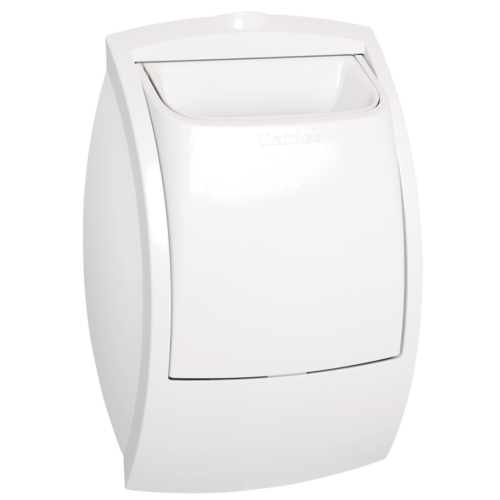

Bap'SI Dual airflow - electric
Gas self-balancing CMEV exhaust terminal
Bap'SI Dual airflow - electric
Gas self-balancing CMEV exhaust terminal
The BAP’SI Dual Airflow Electric terminal is ideal for new construction projects - it offers two airflow settings: a base airflow whatever the conditions inside the dwelling and a boost airflow activated using the push button.
Bap'SI Dual airflow - electric
BAP’SI Electric is a self-balanced dual airflow extract terminal for new and refurbished multi-occupancy residential buildings. The electric versions offer more applications multi-occupancy residential and non-residential.
The + products
- easy to install
- Roll-in seal
- simple to clean
- innovative design
- modulo versions: limits product stocks.
- single reference for battery-powered or 230 V mains power
In a self-balanced CMEV system, the airflow is constant whatever the ambient conditions or presence in rooms.
- self-balanced exhaust terminal, dual airflow
- innovative design, no grille,
- versions and accessories to meet all installation needs,
- electric versions with time delay (PUSH),
- easy to clean: control sub-assembly quick to clip on and unclip,
- pressure range: 50 - 160 Pa.
- BAP'SI Electric must be installed in humid rooms,
- the terminal must be installed at the top of a vertical wall or on the ceiling,
- the terminal must be accessible and removable,
- versions with shaft D 125 mm, slots into sleeves, RT Flex, semi-rigid or rigid ducts. The Roll-in seal ensures air tightness and flush fitting against the wall.
- Shaftless versions are clipped onto shafts D 125 mm, D 116 mm or D 100 mm. The terminal is screwed directly onto the wall or clipped onto a retrofit plate.
| Main material | Insulation material | Colour |
|---|---|---|
| Plastic |
White |
| H (mm) | L (mm) | Ø connection (mm) |
|---|---|---|
| 225 |
54 |
Sans fût |
| References | Other adjustable airflows (m³/h) | Factory setting airflow (m³/h) | Pressure range (Pa) |
|---|---|---|---|
| 11019112 - BAP'SI Elec PUSH 15/30 m3/h shaftless - White | 15/30 |
50-160 |
|
| 11019113 - BAP'SI Elec PUSH D1-Modulo shaftless - White | 20/75 |
30/90 |
50-160 |
| 11019114 - BAP'SI Elec PUSH D2-Modulo shaftless - White | 45/120 and 45/130 |
45/105 |
50-160 |
| References | Dnew (C) (dB) | Lw at 136 Pa (dB(A)) |
|---|---|---|
| 11019112 - BAP'SI Elec PUSH 15/30 m3/h shaftless - White | 56 |
32 |
| 11019113 - BAP'SI Elec PUSH D1-Modulo shaftless - White | 56 |
31 |
| 11019114 - BAP'SI Elec PUSH D2-Modulo shaftless - White | 53 |
38 |
