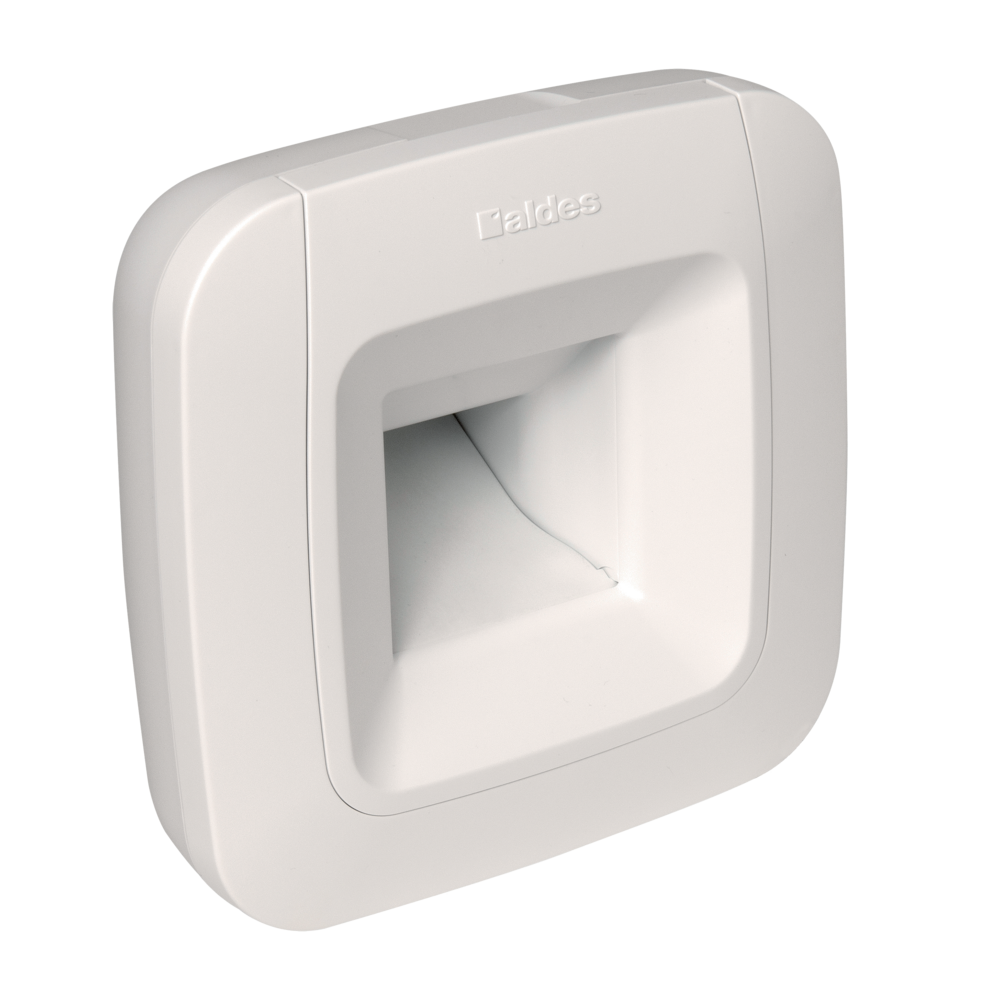

BDH Tertiary
Outlet and terminal
The + products
- unique more modern format even quieter extraction outlet simplified INSTALLATION & SUPPORT & simplified RE2020 reception thanks to the integrated pressure intake
In a hygroregulable VMC system, the air flow rate is automatically regulated according to the humidity level of the rooms and therefore based on the real ventilation needs of the building.
specific tertiary hygro-adjustable mouth

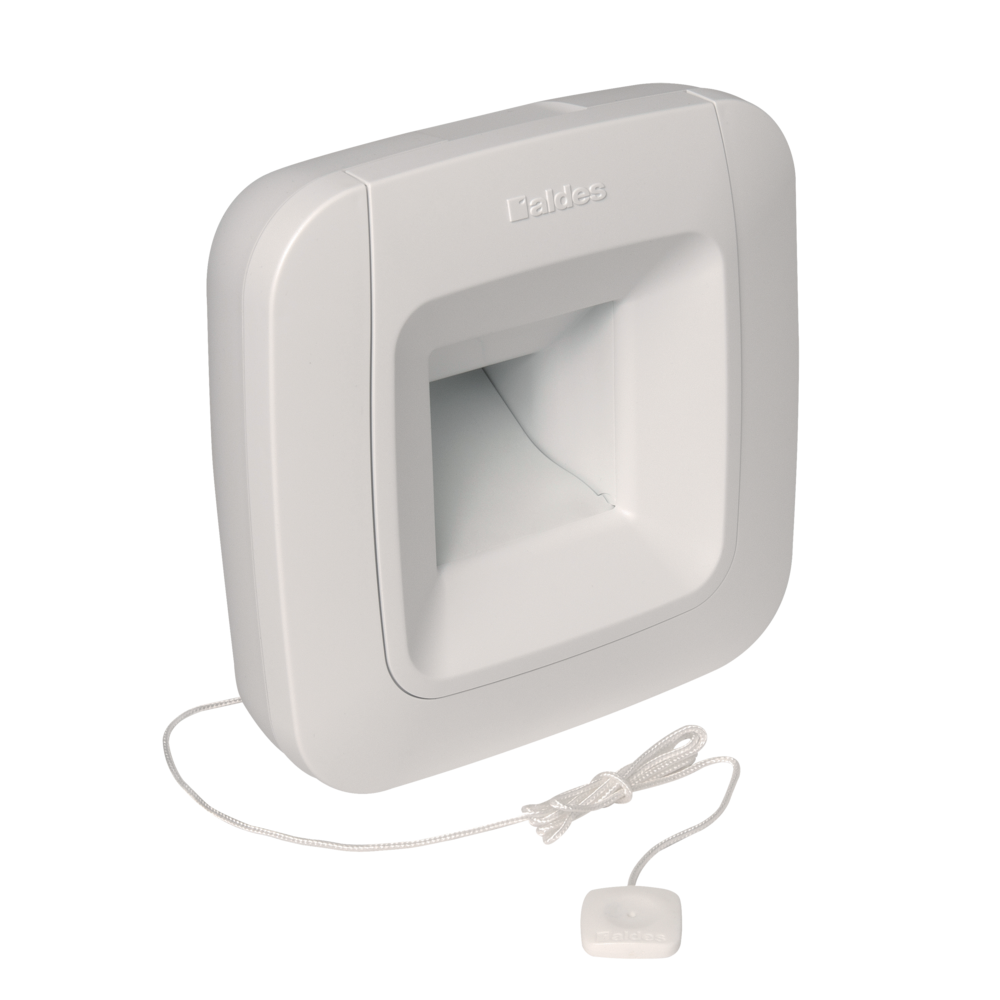

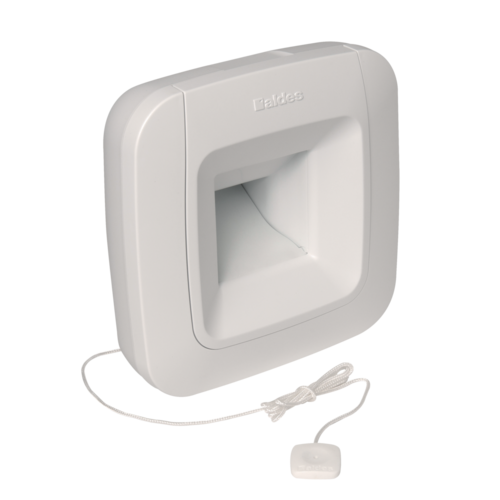

versions with or without barrel, in cord format, presence or electrical and ACCESSORIES allowing to meet all implementation needs,
with its easily clip-on and clip-off CONTROL sub-assembly, the BDH can be easily cleaned without being removed from the wall,
pressure range: 80 - 160 Pa.
BDH Tertiaire must be installed in humid or technical rooms: bathroom, wc, utility room,
the terminal must be positioned at the top part of a vertical wall or on the ceiling at a height of at least 1.80 metres above the floor,
the terminal must be accessible and removable with a distance of at least 20 cm between the centre of the terminal and the adjacent walls and not stuck to the duct, the seal of the terminal - CONNECTION duct CONNECTION must be optimal.
the seal of the terminal - CONNECTION duct CONNECTION must be optimal. This condition is improved by the use of a sleeve. A sheet metal sleeve will be used in the case of collective housing (stainless steel sleeve mandatory in Gas VMC). While a plastic sleeve can be used for individual houses.
versions with shaft D 125 mm: the terminal is fixed directly (by slotting with O-ring seal) in the sleeves.
versions with shaft D 80 mm is fixed by slotting in the sleeves.
versions without shaft: fixed by clip on shaft D 125 mm (Roll - In seal), D 116 mm (Roll - In seal) or D 100 mm (foam seal),
In case of installation of cord terminals on the ceiling or above a piece of furniture, use a cord return (code 11015001),
NOTE: For humidity-controlled terminals with electric CONTROL, provide two AA/LR06 batteries, as well as a classic push button (code 11026011),
Humidity-controlled terminals operate within the pressure range 80-160 Pa,
The exhaust terminals must be maintained and checked at least once a year. It is forbidden to connect a mechanical hood to the VMC network (Art. 14 - decree of 24 March 1982),
Before replacing an old terminal with a new one, carry out a pressure reading and note the type of housing concerned,
| References | Main material | Type of control | Type of hotel room | Type of bathroom in hotel room | Colour |
|---|---|---|---|---|---|
| 11015051 - B82 BDH 10-40 m³/h - Ø 125 mm - White | Plastic |
Double/twin |
Bathroom with separate WC |
White |
|
| 11015052 - B83 BDH 15-45 m³/h - Ø 125 mm - White | Plastic |
3 people |
Bathroom with separate WC |
White |
|
| 11015053 - B84 BDH 15-65 m³/h - Ø 125 mm - White | Plastic |
4 people |
Bathroom with separate WC |
White |
|

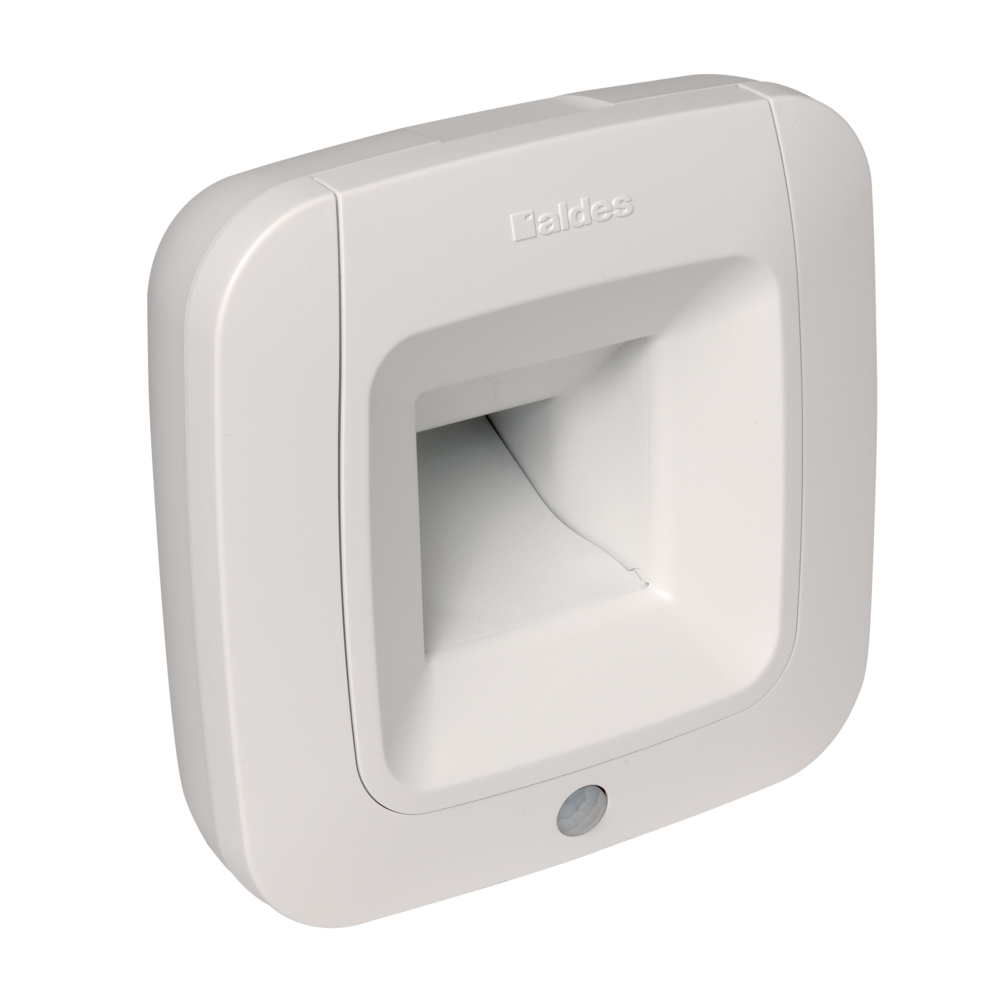

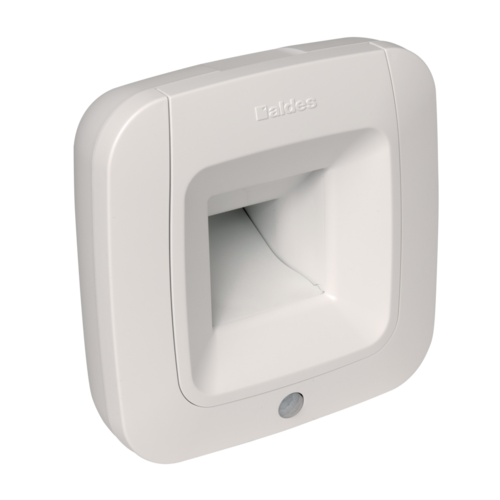

| 11015057 - BW82 BDH 10-40/30 m³/h - Ø 125 mm presence batteries - White | Plastic |
Présence |
Double/twin |
Bathroom and WC combined |
White |
| 11015058 - BW83 BDH 15-50/30 m³/h - Ø 125 mm présence piles - White | Plastic |
Présence |
3 people |
Bathroom and WC combined |
White |
| 11015059 - BW84 BDH 15-65/30 m³/h - Ø 125 mm presence batteries - White | Plastic |
Présence |
4 people |
Bathroom and WC combined |
White |
| H (mm) | L (mm) | P (mm) | Ø connection (mm) |
|---|---|---|---|
| 170 |
170 |
43,1 |
125 |
| References | Basic airflow (m³/h) | Boost airflow (m³/h) | Relative humidity (%) |
|---|---|---|---|
| 11015051 - B82 BDH 10-40 m³/h - Ø 125 mm - White | 10-40 |
32/62 |
|
| 11015052 - B83 BDH 15-45 m³/h - Ø 125 mm - White | 15-45 |
27/57 |
|
| 11015053 - B84 BDH 15-65 m³/h - Ø 125 mm - White | 15-65 |
24/49 |
|
| 11015057 - BW82 BDH 10-40/30 m³/h - Ø 125 mm presence batteries - White | 10-40 |
30 |
27/57 |
| 11015058 - BW83 BDH 15-50/30 m³/h - Ø 125 mm présence piles - White | 15-50 |
30 |
22/57 |
| 11015059 - BW84 BDH 15-65/30 m³/h - Ø 125 mm presence batteries - White | 15-65 |
30 |
22/47 |
