BDH Sanitary Outlet and terminal

BDH Sanitary

Outlet and terminal

The BDH valve adjusts the airflow according to humidity, ensuring effective and economical ventilation for healthy air in bathrooms and toilets
BDH Sanitary
See references
BDH Sanitary
BDH is the hygro-adjustable vent intended for technical rooms in detached houses and new and renovated collective housing. It is the small model hygro-adjustable vent for flows < 50m3/h.
BDH Sanitary

The + products

  • unique more modern format even quieter extraction outlet easier INSTALLATION & SUPPORT & simplified RE2020 reception thanks to the integrated pressure port

In a hygro-adjustable VMC system, the air flow rate is automatically regulated according to the humidity level of the rooms and therefore based on the actual ventilation needs of the building. The BDH valve is installed in the sanitaires.

adjustable humidity damper low flow rates (< 50m3/h),

versions with or without drum, in string format, presence or electric and ACCESSORIES allowing to meet all installation needs,

with its easily clip-on and clip-off CONTROL subassembly, the BDH can be easily cleaned without being removed from the wall,

pressure range: 80 - 160 Pa.

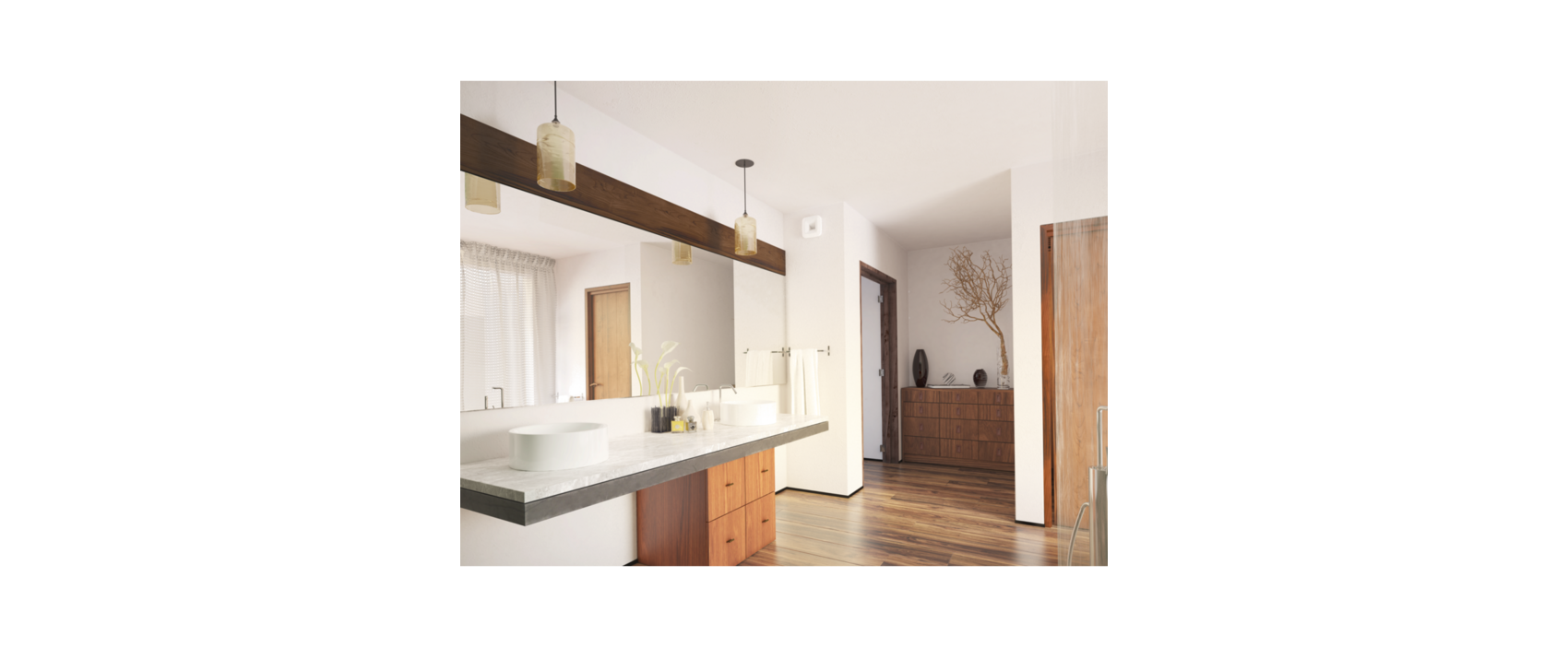

BDH must be installed in humid or technical rooms: bathroom, WC, utility room,

the terminal must be positioned at the top part of a vertical wall or on the ceiling at a height of at least 1.80 metres above the floor,

the terminal must be accessible and detachable with a distance of at least 20 cm between the centre of the terminal and the adjacent walls and not stuck to the duct,

the seal of the CONNECTION terminal - CONNECTION duct must be optimal. This condition is improved by the use of a SLEEVE. A sheet metal SLEEVE will be used in the case of collective housing (stainless steel SLEEVE mandatory in Gas VMC). Whereas a plastic SLEEVE can be used for individual houses.

versions with D 125 mm shaft: the terminal is fixed directly (by fitting with O-ring seal) in the SLEEVES.

versions with D 80 mm shaft fixed by fitting into the SLEEVES.

In case of implementation of cord terminals on the ceiling or above a piece of furniture, use a cord deflector (code 11015001).

NOTA: For humidity-controlled terminals with electric COMMAND, provide two AA/LR06 batteries, as well as a classic push button (code 11026011).

Humidity-controlled terminals operate in the pressure range 80-160 Pa

Extraction terminals must be maintained and checked at least once a year. It is forbidden to connect a mechanical hood to the VMC network (Art. 14 - decree of 24 March 1982),

Before replacing an old terminal with a new one, carry out a pressure survey and record the type of housing concerned

References Main material Type of control Type of dwelling Colour
11015170 - B51 BDH 5-35 - Ø 80 mm - White

Plastic



F1

White
11015171 - B52 BDH 10-40 - Ø 80 mm - White

Plastic



F3

White
11015172 - B53 BDH 15-50 - Ø 80 mm - White

Plastic



F6

White
11015327 - B61 BDH 5-35 - without barrel - White

Plastic



F1

White
11015338 - B61 BDH 5-35 - Ø 125mm - White

Plastic



F1

White
11015328 - B62 BDH 5-35 - without barrel - White

Plastic



F3

White
11015339 - B62 BDH 5-35 - Ø 125 mm - White

Plastic



F3

White
11015329 - B63 BDH 10-40 - without barrel - White

Plastic



F5

White
11015340 - B63 BDH 10-40 - Ø 125 mm - White

Plastic



F5

White
11015175 - BW51 BDH 5-35/30 - Ø 80 mm battery presence - White

Plastic

Présence

F1

White
11015176 - BW52 BDH 15-45/45 - Ø 80 mm battery presence - White

Plastic

Présence

F3

White
11015179 - BW53 BDH 10-40/30 - Ø 80 mm battery presence - White

Plastic

Présence

F5

White
11015341 - BW61 BDH 5-35/30 - without drum cord - White

Plastic

Presence

F1

White
11015344 - BW61 BDH 5-35/30 - Ø 125 mm cord

Plastic

Presence

F1

White
11015389 - BW61 BDH 5-35/30 - without drum battery presence - White

Plastic

Présence

F1

White
11015392 - BW61 BDH 5-35/30 - Ø 125 mm presence batteries - White

Plastic

Présence

F1

White
11015395 - BW61 BDH 5-35/30 - Ø 125 mm presence 230V - White

Plastic

Présence

F1

White
11015342 - BW62 BDH 10-40/30 - without drum cord - White

Plastic

Presence

F3

White
11015345 - BW62 BDH 10-40/30 - Ø 125 mm cord - White

Plastic

Presence

F3

White
11015390 - BW62 BDH 10-40/30 - without drum battery presence - White

Plastic

Présence

F3

White
11015393 - BW62 BDH 10-40/30 - Ø 125 mm battery presence - White

Plastic

Présence

F3

White
11015396 - BW62 BDH 10-40/30 - Ø 125 mm presence 230V - White

Plastic

Présence

F3

White
11015343 - BW63 BDH 15-45/45 - without spool drawstring - White

Plastic

Presence

F5

White
11015347 - BW63 BDH 15-45/45 - Ø 125 mm cord - White

Plastic

Presence

F5

White
11015391 - BW63 BDH 15-45/45 - without barrel battery presence - White

Plastic

Présence

F5

White
11015394 - BW63 BDH 15-45/45 - Ø 125 mm battery presence - White

Plastic

Présence

F5

White
11015397 - BW63 BDH 15-45/45 - Ø 125 mm presence 230V - White

Plastic

Présence

F5

White
11015122 - W16 BDH 5/30 - without barrel cord - White

Plastic

Presence

F1

White
11015123 - W16 BDH 5/30 - Ø 80 mm string - White

Plastic

Presence

F1

White
11015124 - W16 BDH 5/30 - Ø 125 mm cord - White

Plastic

Presence

F1

White
11015125 - W16 BDH 5/30 - without drum battery presence - White

Plastic

Présence

F1

White
11015126 - W16 BDH 5/30 - Ø 80 mm presence batteries- White

Plastic

Présence

F1

White
11015127 - W16 BDH 5/30 - Ø 125 mm presence battery - White

Plastic

Présence

F1

White
11015129 - W16 BDH 5/30 - Ø 125 mm presence batteries- White

Plastic

Présence

F1

White
11015130 - W16 BDH 5/30 - Ø 80 mm push piles- White

Plastic

Lighting circuit

F1

White
11015131 - W16 BDH 5/30 - Ø 125 mm push piles- White

Plastic

Lighting circuit

F1

White
References H (mm) L (mm) P (mm) Ø connection (mm)
11015170 - B51 BDH 5-35 - Ø 80 mm - White

170

170

43,1

80
11015171 - B52 BDH 10-40 - Ø 80 mm - White

170

170

43,1

80
11015172 - B53 BDH 15-50 - Ø 80 mm - White

170

170

43,1

80
11015327 - B61 BDH 5-35 - without barrel - White

170

170

47,1

Sans fût
11015338 - B61 BDH 5-35 - Ø 125mm - White

170

170

43,1

125
11015328 - B62 BDH 5-35 - without barrel - White

170

170

47,1

Sans fût
11015339 - B62 BDH 5-35 - Ø 125 mm - White

170

170

43,1

125
11015329 - B63 BDH 10-40 - without barrel - White

170

170

47,1

Sans fût
11015340 - B63 BDH 10-40 - Ø 125 mm - White

170

170

43,1

125
11015175 - BW51 BDH 5-35/30 - Ø 80 mm battery presence - White

170

170

43,1

80
11015176 - BW52 BDH 15-45/45 - Ø 80 mm battery presence - White

170

170

43,1

80
11015179 - BW53 BDH 10-40/30 - Ø 80 mm battery presence - White

170

170

43,1

80
11015341 - BW61 BDH 5-35/30 - without drum cord - White

170

170

47,1

Sans fût
11015344 - BW61 BDH 5-35/30 - Ø 125 mm cord

170

170

43,1

125
11015389 - BW61 BDH 5-35/30 - without drum battery presence - White

170

170

47,1

Sans fût
11015392 - BW61 BDH 5-35/30 - Ø 125 mm presence batteries - White

170

170

43,1

125
11015395 - BW61 BDH 5-35/30 - Ø 125 mm presence 230V - White

170

170

43,1

125
11015342 - BW62 BDH 10-40/30 - without drum cord - White

170

170

47,1

Sans fût
11015345 - BW62 BDH 10-40/30 - Ø 125 mm cord - White

170

170

43,1

125
11015390 - BW62 BDH 10-40/30 - without drum battery presence - White

170

170

47,1

Sans fût
11015393 - BW62 BDH 10-40/30 - Ø 125 mm battery presence - White

170

170

43,1

125
11015396 - BW62 BDH 10-40/30 - Ø 125 mm presence 230V - White

170

170

43,1

125
11015343 - BW63 BDH 15-45/45 - without spool drawstring - White

170

170

47,1

Sans fût
11015347 - BW63 BDH 15-45/45 - Ø 125 mm cord - White

170

170

43,1

125
11015391 - BW63 BDH 15-45/45 - without barrel battery presence - White

170

170

47,1

Sans fût
11015394 - BW63 BDH 15-45/45 - Ø 125 mm battery presence - White

170

170

43,1

125
11015397 - BW63 BDH 15-45/45 - Ø 125 mm presence 230V - White

170

170

43,1

125
11015122 - W16 BDH 5/30 - without barrel cord - White

170

170

47,1

Sans fût
11015123 - W16 BDH 5/30 - Ø 80 mm string - White

170

170

43,1

80
11015124 - W16 BDH 5/30 - Ø 125 mm cord - White

170

170

43,1

125
11015125 - W16 BDH 5/30 - without drum battery presence - White

170

170

47,1

Sans fût
11015126 - W16 BDH 5/30 - Ø 80 mm presence batteries- White

170

170

43,1

80
11015127 - W16 BDH 5/30 - Ø 125 mm presence battery - White

170

170

43,1

125
11015129 - W16 BDH 5/30 - Ø 125 mm presence batteries- White

170

170

43,1

125
11015130 - W16 BDH 5/30 - Ø 80 mm push piles- White

170

170

43,1

80
11015131 - W16 BDH 5/30 - Ø 125 mm push piles- White

170

170

43,1

125
References Basic airflow (m³/h) Boost airflow (m³/h) Relative humidity (%)
11015170 - B51 BDH 5-35 - Ø 80 mm - White

5-35



45/75
11015171 - B52 BDH 10-40 - Ø 80 mm - White

10-40



31/61
11015172 - B53 BDH 15-50 - Ø 80 mm - White

15-50



20/55
11015327 - B61 BDH 5-35 - without barrel - White

5-35



45/75
11015338 - B61 BDH 5-35 - Ø 125mm - White

5-35



45/75
11015328 - B62 BDH 5-35 - without barrel - White

5-35



35/65
11015339 - B62 BDH 5-35 - Ø 125 mm - White

5-35



35/65
11015329 - B63 BDH 10-40 - without barrel - White

10-40



29/59
11015340 - B63 BDH 10-40 - Ø 125 mm - White

10-40



29/59
11015175 - BW51 BDH 5-35/30 - Ø 80 mm battery presence - White

5-35

30

35/65
11015176 - BW52 BDH 15-45/45 - Ø 80 mm battery presence - White

15-45

45

21/51
11015179 - BW53 BDH 10-40/30 - Ø 80 mm battery presence - White

10-40

30

40/70
11015341 - BW61 BDH 5-35/30 - without drum cord - White

5-35

30

45/75
11015344 - BW61 BDH 5-35/30 - Ø 125 mm cord

5-35

30

45/75
11015389 - BW61 BDH 5-35/30 - without drum battery presence - White

5-35

30

45/75
11015392 - BW61 BDH 5-35/30 - Ø 125 mm presence batteries - White

5-35

30

45/75
11015395 - BW61 BDH 5-35/30 - Ø 125 mm presence 230V - White

5-35

30

45/75
11015342 - BW62 BDH 10-40/30 - without drum cord - White

10-40

30

27/57
11015345 - BW62 BDH 10-40/30 - Ø 125 mm cord - White

10-40

30

27/57
11015390 - BW62 BDH 10-40/30 - without drum battery presence - White

10-40

30

27/57
11015393 - BW62 BDH 10-40/30 - Ø 125 mm battery presence - White

10-40

30

27/57
11015396 - BW62 BDH 10-40/30 - Ø 125 mm presence 230V - White

10-40

30

27/57
11015343 - BW63 BDH 15-45/45 - without spool drawstring - White

15-45

45

31/61
11015347 - BW63 BDH 15-45/45 - Ø 125 mm cord - White

15-45

45

31/61
11015391 - BW63 BDH 15-45/45 - without barrel battery presence - White

15-45

45

31/61
11015394 - BW63 BDH 15-45/45 - Ø 125 mm battery presence - White

15-45

45

31/61
11015397 - BW63 BDH 15-45/45 - Ø 125 mm presence 230V - White

15-45

45

31/61
11015122 - W16 BDH 5/30 - without barrel cord - White

5

30


11015123 - W16 BDH 5/30 - Ø 80 mm string - White

5

30


11015124 - W16 BDH 5/30 - Ø 125 mm cord - White

5

30


11015125 - W16 BDH 5/30 - without drum battery presence - White

5

30


11015126 - W16 BDH 5/30 - Ø 80 mm presence batteries- White

5

30


11015127 - W16 BDH 5/30 - Ø 125 mm presence battery - White

5

30


11015129 - W16 BDH 5/30 - Ø 125 mm presence batteries- White

5

30


11015130 - W16 BDH 5/30 - Ø 80 mm push piles- White

5

30


11015131 - W16 BDH 5/30 - Ø 125 mm push piles- White

5

30



Products and accessories references

  • B51 BDH 5-35 - Ø 80 mm - White
    B51 BDH 5-35 - Ø 80 mm - White
    11015170
    68,00 € (without VAT)
    • Bahia shaft Ø 80/ 125
      Bahia shaft Ø 80/ 125
      11015017
      11,20 € (without VAT)
    • Trident sleeve Ø80
      Trident sleeve Ø80
      11022074
      12,20 € (without VAT)
    • Claw-fit sleeve Ø 80 mm
      Claw-fit sleeve Ø 80 mm
      11022001
      14,20 € (without VAT)
    • Shoulder sleeve Ø 80 mm
      Shoulder sleeve Ø 80 mm
      11012490
      16,60 € (without VAT)
    • Mixed bend for terminal Ø 80 mm
      Mixed bend for terminal Ø 80 mm
      11023002
      6,12 € (without VAT)
    • Minigaine extension equivalent D80 length 150 white
      Minigaine extension equivalent D80 length 150 white
      11023046
      10,80 € (without VAT)
  • B52 BDH 10-40 - Ø 80 mm - White
    B52 BDH 10-40 - Ø 80 mm - White
    11015171
    68,00 € (without VAT)
    • Bahia shaft Ø 80/ 125
      Bahia shaft Ø 80/ 125
      11015017
      11,20 € (without VAT)
    • Claw-fit sleeve Ø 80 mm
      Claw-fit sleeve Ø 80 mm
      11022001
      14,20 € (without VAT)
    • Trident sleeve Ø80
      Trident sleeve Ø80
      11022074
      12,20 € (without VAT)
    • Shoulder sleeve Ø 80 mm
      Shoulder sleeve Ø 80 mm
      11012490
      16,60 € (without VAT)
    • Mixed bend for terminal Ø 80 mm
      Mixed bend for terminal Ø 80 mm
      11023002
      6,12 € (without VAT)
    • Minigaine extension equivalent D80 length 150 white
      Minigaine extension equivalent D80 length 150 white
      11023046
      10,80 € (without VAT)
  • B53 BDH 15-50 - Ø 80 mm - White
    B53 BDH 15-50 - Ø 80 mm - White
    11015172
    68,00 € (without VAT)
    • Bahia shaft Ø 80/ 125
      Bahia shaft Ø 80/ 125
      11015017
      11,20 € (without VAT)
    • Claw-fit sleeve Ø 80 mm
      Claw-fit sleeve Ø 80 mm
      11022001
      14,20 € (without VAT)
    • Trident sleeve Ø80
      Trident sleeve Ø80
      11022074
      12,20 € (without VAT)
    • Shoulder sleeve Ø 80 mm
      Shoulder sleeve Ø 80 mm
      11012490
      16,60 € (without VAT)
    • Mixed bend for terminal Ø 80 mm
      Mixed bend for terminal Ø 80 mm
      11023002
      6,12 € (without VAT)
    • Minigaine extension equivalent D80 length 150 white
      Minigaine extension equivalent D80 length 150 white
      11023046
      10,80 € (without VAT)
  • B61 BDH 5-35 - without barrel - White
    B61 BDH 5-35 - without barrel - White
    11015327
    67,00 € (without VAT)
    • Shaft Ø 125 mm
      Shaft Ø 125 mm
      11019023
      7,14 € (without VAT)
    • Shaft Ø 116
      Shaft Ø 116
      11019024
      8,87 € (without VAT)
    • Shaft Ø 100
      Shaft Ø 100
      11019025
      8,87 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
  • B61 BDH 5-35 - Ø 125mm - White
    B61 BDH 5-35 - Ø 125mm - White
    11015338
    67,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
  • B62 BDH 5-35 - without barrel - White
    B62 BDH 5-35 - without barrel - White
    11015328
    67,00 € (without VAT)
    • Shaft Ø 125 mm
      Shaft Ø 125 mm
      11019023
      7,14 € (without VAT)
    • Shaft Ø 116
      Shaft Ø 116
      11019024
      8,87 € (without VAT)
    • Shaft Ø 100
      Shaft Ø 100
      11019025
      8,87 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
  • B62 BDH 5-35 - Ø 125 mm - White
    B62 BDH 5-35 - Ø 125 mm - White
    11015339
    67,00 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
  • B63 BDH 10-40 - without barrel - White
    B63 BDH 10-40 - without barrel - White
    11015329
    67,00 € (without VAT)
    • Shaft Ø 125 mm
      Shaft Ø 125 mm
      11019023
      7,14 € (without VAT)
    • Shaft Ø 116
      Shaft Ø 116
      11019024
      8,87 € (without VAT)
    • Shaft Ø 100
      Shaft Ø 100
      11019025
      8,87 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
  • B63 BDH 10-40 - Ø 125 mm - White
    B63 BDH 10-40 - Ø 125 mm - White
    11015340
    67,00 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
  • BW51 BDH 5-35/30 - Ø 80 mm battery presence - White
    BW51 BDH 5-35/30 - Ø 80 mm battery presence - White
    11015175
    121,00 € (without VAT)
    • Bahia shaft Ø 80/ 125
      Bahia shaft Ø 80/ 125
      11015017
      11,20 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Claw-fit sleeve Ø 80 mm
      Claw-fit sleeve Ø 80 mm
      11022001
      14,20 € (without VAT)
    • Trident sleeve Ø80
      Trident sleeve Ø80
      11022074
      12,20 € (without VAT)
    • Shoulder sleeve Ø 80 mm
      Shoulder sleeve Ø 80 mm
      11012490
      16,60 € (without VAT)
    • Mixed bend for terminal Ø 80 mm
      Mixed bend for terminal Ø 80 mm
      11023002
      6,12 € (without VAT)
    • Minigaine extension equivalent D80 length 150 white
      Minigaine extension equivalent D80 length 150 white
      11023046
      10,80 € (without VAT)
  • BW52 BDH 15-45/45 - Ø 80 mm battery presence - White
    BW52 BDH 15-45/45 - Ø 80 mm battery presence - White
    11015176
    121,00 € (without VAT)
    • Bahia shaft Ø 80/ 125
      Bahia shaft Ø 80/ 125
      11015017
      11,20 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Claw-fit sleeve Ø 80 mm
      Claw-fit sleeve Ø 80 mm
      11022001
      14,20 € (without VAT)
    • Trident sleeve Ø80
      Trident sleeve Ø80
      11022074
      12,20 € (without VAT)
    • Shoulder sleeve Ø 80 mm
      Shoulder sleeve Ø 80 mm
      11012490
      16,60 € (without VAT)
    • Mixed bend for terminal Ø 80 mm
      Mixed bend for terminal Ø 80 mm
      11023002
      6,12 € (without VAT)
    • Minigaine extension equivalent D80 length 150 white
      Minigaine extension equivalent D80 length 150 white
      11023046
      10,80 € (without VAT)
  • BW53 BDH 10-40/30 - Ø 80 mm battery presence - White
    BW53 BDH 10-40/30 - Ø 80 mm battery presence - White
    11015179
    121,00 € (without VAT)
    • Bahia shaft Ø 80/ 125
      Bahia shaft Ø 80/ 125
      11015017
      11,20 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Claw-fit sleeve Ø 80 mm
      Claw-fit sleeve Ø 80 mm
      11022001
      14,20 € (without VAT)
    • Trident sleeve Ø80
      Trident sleeve Ø80
      11022074
      12,20 € (without VAT)
    • Shoulder sleeve Ø 80 mm
      Shoulder sleeve Ø 80 mm
      11012490
      16,60 € (without VAT)
    • Mixed bend for terminal Ø 80 mm
      Mixed bend for terminal Ø 80 mm
      11023002
      6,12 € (without VAT)
    • Minigaine extension equivalent D80 length 150 white
      Minigaine extension equivalent D80 length 150 white
      11023046
      10,80 € (without VAT)
  • BW61 BDH 5-35/30 - without drum cord - White
    BW61 BDH 5-35/30 - without drum cord - White
    11015341
    108,00 € (without VAT)
    • Shaft Ø 125 mm
      Shaft Ø 125 mm
      11019023
      7,14 € (without VAT)
    • Shaft Ø 116
      Shaft Ø 116
      11019024
      8,87 € (without VAT)
    • Shaft Ø 100
      Shaft Ø 100
      11019025
      8,87 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Pull cord return for ceiling installation
      Pull cord return for ceiling installation
      11015001
      3,47 € (without VAT)
  • BW61 BDH 5-35/30 - Ø 125 mm cord
    BW61 BDH 5-35/30 - Ø 125 mm cord
    11015344
    104,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Pull cord return for ceiling installation
      Pull cord return for ceiling installation
      11015001
      3,47 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
  • BW61 BDH 5-35/30 - without drum battery presence - White
    BW61 BDH 5-35/30 - without drum battery presence - White
    11015389
    121,00 € (without VAT)
    • Shaft Ø 125 mm
      Shaft Ø 125 mm
      11019023
      7,14 € (without VAT)
    • Shaft Ø 116
      Shaft Ø 116
      11019024
      8,87 € (without VAT)
    • Shaft Ø 100
      Shaft Ø 100
      11019025
      8,87 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
  • BW61 BDH 5-35/30 - Ø 125 mm presence batteries - White
    BW61 BDH 5-35/30 - Ø 125 mm presence batteries - White
    11015392
    121,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
  • BW61 BDH 5-35/30 - Ø 125 mm presence 230V - White
    BW61 BDH 5-35/30 - Ø 125 mm presence 230V - White
    11015395
    155,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
  • BW62 BDH 10-40/30 - without drum cord - White
    BW62 BDH 10-40/30 - without drum cord - White
    11015342
    108,00 € (without VAT)
    • Shaft Ø 125 mm
      Shaft Ø 125 mm
      11019023
      7,14 € (without VAT)
    • Shaft Ø 116
      Shaft Ø 116
      11019024
      8,87 € (without VAT)
    • Shaft Ø 100
      Shaft Ø 100
      11019025
      8,87 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Pull cord return for ceiling installation
      Pull cord return for ceiling installation
      11015001
      3,47 € (without VAT)
  • BW62 BDH 10-40/30 - Ø 125 mm cord - White
    BW62 BDH 10-40/30 - Ø 125 mm cord - White
    11015345
    104,00 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Pull cord return for ceiling installation
      Pull cord return for ceiling installation
      11015001
      3,47 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
  • BW62 BDH 10-40/30 - without drum battery presence - White
    BW62 BDH 10-40/30 - without drum battery presence - White
    11015390
    121,00 € (without VAT)
    • Shaft Ø 125 mm
      Shaft Ø 125 mm
      11019023
      7,14 € (without VAT)
    • Shaft Ø 116
      Shaft Ø 116
      11019024
      8,87 € (without VAT)
    • Shaft Ø 100
      Shaft Ø 100
      11019025
      8,87 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
  • BW62 BDH 10-40/30 - Ø 125 mm battery presence - White
    BW62 BDH 10-40/30 - Ø 125 mm battery presence - White
    11015393
    121,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
  • BW62 BDH 10-40/30 - Ø 125 mm presence 230V - White
    BW62 BDH 10-40/30 - Ø 125 mm presence 230V - White
    11015396
    155,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
  • BW63 BDH 15-45/45 - without spool drawstring - White
    BW63 BDH 15-45/45 - without spool drawstring - White
    11015343
    108,00 € (without VAT)
    • Shaft Ø 125 mm
      Shaft Ø 125 mm
      11019023
      7,14 € (without VAT)
    • Shaft Ø 116
      Shaft Ø 116
      11019024
      8,87 € (without VAT)
    • Shaft Ø 100
      Shaft Ø 100
      11019025
      8,87 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Pull cord return for ceiling installation
      Pull cord return for ceiling installation
      11015001
      3,47 € (without VAT)
  • BW63 BDH 15-45/45 - Ø 125 mm cord - White
    BW63 BDH 15-45/45 - Ø 125 mm cord - White
    11015347
    104,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Pull cord return for ceiling installation
      Pull cord return for ceiling installation
      11015001
      3,47 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
  • BW63 BDH 15-45/45 - without barrel battery presence - White
    BW63 BDH 15-45/45 - without barrel battery presence - White
    11015391
    121,00 € (without VAT)
    • Shaft Ø 125 mm
      Shaft Ø 125 mm
      11019023
      7,14 € (without VAT)
    • Shaft Ø 116
      Shaft Ø 116
      11019024
      8,87 € (without VAT)
    • Shaft Ø 100
      Shaft Ø 100
      11019025
      8,87 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
  • BW63 BDH 15-45/45 - Ø 125 mm battery presence - White
    BW63 BDH 15-45/45 - Ø 125 mm battery presence - White
    11015394
    121,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
  • BW63 BDH 15-45/45 - Ø 125 mm presence 230V - White
    BW63 BDH 15-45/45 - Ø 125 mm presence 230V - White
    11015397
    155,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
  • W16 BDH 5/30 - without barrel cord - White
    W16 BDH 5/30 - without barrel cord - White
    11015122
    57,00 € (without VAT)
    • Shaft Ø 125 mm
      Shaft Ø 125 mm
      11019023
      7,14 € (without VAT)
    • Shaft Ø 116
      Shaft Ø 116
      11019024
      8,87 € (without VAT)
    • Shaft Ø 100
      Shaft Ø 100
      11019025
      8,87 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Pull cord return for ceiling installation
      Pull cord return for ceiling installation
      11015001
      3,47 € (without VAT)
  • W16 BDH 5/30 - Ø 80 mm string - White
    W16 BDH 5/30 - Ø 80 mm string - White
    11015123
    57,00 € (without VAT)
    • Pull cord return for ceiling installation
      Pull cord return for ceiling installation
      11015001
      3,47 € (without VAT)
    • Bahia shaft Ø 80/ 125
      Bahia shaft Ø 80/ 125
      11015017
      11,20 € (without VAT)
    • Claw-fit sleeve Ø 80 mm
      Claw-fit sleeve Ø 80 mm
      11022001
      14,20 € (without VAT)
    • Trident sleeve Ø80
      Trident sleeve Ø80
      11022074
      12,20 € (without VAT)
    • Shoulder sleeve Ø 80 mm
      Shoulder sleeve Ø 80 mm
      11012490
      16,60 € (without VAT)
    • Mixed bend for terminal Ø 80 mm
      Mixed bend for terminal Ø 80 mm
      11023002
      6,12 € (without VAT)
    • Minigaine extension equivalent D80 length 150 white
      Minigaine extension equivalent D80 length 150 white
      11023046
      10,80 € (without VAT)
  • W16 BDH 5/30 - Ø 125 mm cord - White
    W16 BDH 5/30 - Ø 125 mm cord - White
    11015124
    57,00 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Pull cord return for ceiling installation
      Pull cord return for ceiling installation
      11015001
      3,47 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
  • W16 BDH 5/30 - without drum battery presence - White
    W16 BDH 5/30 - without drum battery presence - White
    11015125
    84,00 € (without VAT)
    • Shaft Ø 125 mm
      Shaft Ø 125 mm
      11019023
      7,14 € (without VAT)
    • Shaft Ø 116
      Shaft Ø 116
      11019024
      8,87 € (without VAT)
    • Shaft Ø 100
      Shaft Ø 100
      11019025
      8,87 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
  • W16 BDH 5/30 - Ø 80 mm presence batteries- White
    W16 BDH 5/30 - Ø 80 mm presence batteries- White
    11015126
    87,00 € (without VAT)
    • Bahia shaft Ø 80/ 125
      Bahia shaft Ø 80/ 125
      11015017
      11,20 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Claw-fit sleeve Ø 80 mm
      Claw-fit sleeve Ø 80 mm
      11022001
      14,20 € (without VAT)
    • Trident sleeve Ø80
      Trident sleeve Ø80
      11022074
      12,20 € (without VAT)
    • Shoulder sleeve Ø 80 mm
      Shoulder sleeve Ø 80 mm
      11012490
      16,60 € (without VAT)
    • Mixed bend for terminal Ø 80 mm
      Mixed bend for terminal Ø 80 mm
      11023002
      6,12 € (without VAT)
    • Minigaine extension equivalent D80 length 150 white
      Minigaine extension equivalent D80 length 150 white
      11023046
      10,80 € (without VAT)
  • W16 BDH 5/30 - Ø 125 mm presence battery - White
    W16 BDH 5/30 - Ø 125 mm presence battery - White
    11015127
    87,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
  • W16 BDH 5/30 - Ø 125 mm presence batteries- White
    W16 BDH 5/30 - Ø 125 mm presence batteries- White
    11015129
    119,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)
  • W16 BDH 5/30 - Ø 80 mm push piles- White
    W16 BDH 5/30 - Ø 80 mm push piles- White
    11015130
    79,00 € (without VAT)
    • Bahia shaft Ø 80/ 125
      Bahia shaft Ø 80/ 125
      11015017
      11,20 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • Claw-fit sleeve Ø 80 mm
      Claw-fit sleeve Ø 80 mm
      11022001
      14,20 € (without VAT)
    • Trident sleeve Ø80
      Trident sleeve Ø80
      11022074
      12,20 € (without VAT)
    • Shoulder sleeve Ø 80 mm
      Shoulder sleeve Ø 80 mm
      11012490
      16,60 € (without VAT)
    • Mixed bend for terminal Ø 80 mm
      Mixed bend for terminal Ø 80 mm
      11023002
      6,12 € (without VAT)
    • Minigaine extension equivalent D80 length 150 white
      Minigaine extension equivalent D80 length 150 white
      11023046
      10,80 € (without VAT)
  • W16 BDH 5/30 - Ø 125 mm push piles- White
    W16 BDH 5/30 - Ø 125 mm push piles- White
    11015131
    79,00 € (without VAT)
    • Foam airtight seals for terminals
      Foam airtight seals for terminals
      11019049
      32,20 € (without VAT)
    • Acoustic ring for terminals Ø 125 mm
      Acoustic ring for terminals Ø 125 mm
      11019429
      17,00 € (without VAT)
    • Aldes
      12V Case BDH
      11015006
      31,00 € (without VAT)
    • Aldes
      Interface 230 VAC/ 3 V DC
      11015005
      41,00 € (without VAT)
    • Aldes
      Battery case 2X AA/LR06
      11015007
      13,00 € (without VAT)
    • CMEV push button for BAHIA CURVE terminal
      CMEV push button for BAHIA CURVE terminal
      11026011
      24,10 € (without VAT)
    • Trident sleeve for RT Flex
      Trident sleeve for RT Flex
      11018569
      3,60 € (without VAT)
    • Trident sleeve Ø 125 mm
      Trident sleeve Ø 125 mm
      11033007
      15,50 € (without VAT)
    • TRIDENT SHEET SLEEVE D125 H300
      TRIDENT SHEET SLEEVE D125 H300
      11022055
      34,10 € (without VAT)
    • Shoulder sleeve Ø 125 mm
      Shoulder sleeve Ø 125 mm
      11012220
      9,89 € (without VAT)
    • Sheet sleeve 3 tabs Ø 125 mm
      Sheet sleeve 3 tabs Ø 125 mm
      11012252
      16,70 € (without VAT)
    • Trident sleeve hygro Ø 125/80 mm
      Trident sleeve hygro Ø 125/80 mm
      11085343
      11,70 € (without VAT)
    • Sleeve Ø 125 straight 1P
      Sleeve Ø 125 straight 1P
      11091867
      54,90 € (without VAT)
    • Sleeve Ø 125 90° 2P
      Sleeve Ø 125 90° 2P
      11091866
      62,80 € (without VAT)
    • Long sleeve 2X75 / D125
      Long sleeve 2X75 / D125
      11091995
      112,00 € (without VAT)
    • Vertical 90° bend for terminal Ø 125 mm
      Vertical 90° bend for terminal Ø 125 mm
      11023975
      13,00 € (without VAT)
    • Short sleeve 2X75 / D125
      Short sleeve 2X75 / D125
      11091996
      102,00 € (without VAT)
    • Long sleeve OPTIFLEX® 2x90 ∅ 125
      Long sleeve OPTIFLEX® 2x90 ∅ 125
      11091997
      124,00 € (without VAT)
    • Vertical mixed T-piece for terminal Ø 125 mm
      Vertical mixed T-piece for terminal Ø 125 mm
      11023979
      27,70 € (without VAT)
    • Adapter plate 125/150
      Adapter plate 125/150
      11018056
      15,20 € (without VAT)

1 software
