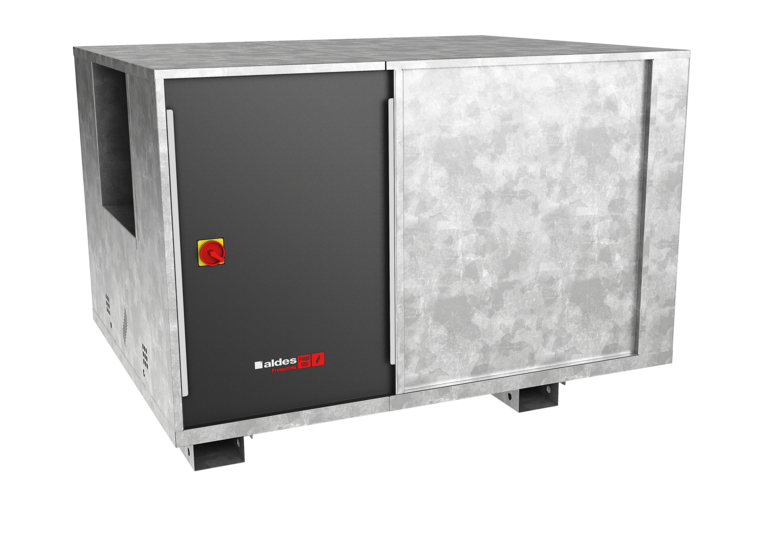

ProtectONE® T range
F400-120 belt & pulley unit
- Easily adjusted airflow with the exclusive ProtectONE® Adapt system.
- All-in-One solution: saves time on cabling, operational guarantee and simplified installation on site.
- Fully removable as standard.
- Thermal insulation for installation in equipment room.
- Access side to motor adjustable on site.
Discover the range
Range présentation
- ProtectONE® T is a range of smoke and heat exhaust fans with belt and pulley drive.
- Two models depending on the impeller (forward curve or backward curve):
- The ProtectONE® T range offer three options of F class IP54 motors:
- Our units are equipped with the ProtectONE®Adapt system exclusive to Aldes, which serves to adjust the exhaust airflow (up to 25%) to reach the optimum operating point easily, safely and in full observance of the compliance report.
- Possible to padlock the proximity switch.
- Made in France.
- CE certification: 1812-CPR-1548
- IP54 protection rating.
ProtectONE® TA (forward curve impeller), 9 unit sizes offering airflow rates from 1,000 to 40,000 m³/h,
ProtectONE® TR (backward curve impeller), 8 unit sizes offering airflow rates from 1,000 to 35,000 m³/h. This enables better results due to lower airflow variation when the load varies.
1-speed
2-speed, independent windings,
2-speed, Dahlander windings.
Application domain
- Smoke and heat extraction in case of fire in all non-residential buildings.
- Extraction of stale air in non-residential and industrial buildings (ProtectONE® TR).
- Extraction of pollutants in professional kitchens (ProtectONE® TR).
Exclusivity
- ProtectONE® rapid airflow adjustment device included in unit.
Principle of operation
- ProtectONE® T is controlled by the FACP via the AXONE safety box.
Implementation
- Can be installed indoors or outdoors.
- Indoor installation: use thermal-acoustic insulation option (EN 12101-3). >Outdoor installation: use screened rain hood + grille.
- Proximity switch supplied fitted and connected with limit switches.
