ISONE® 2.1 Circular
Flexible duct
ISONE® 2.1 Circular
Flexible duct
ISONE® 2.1 dampers are simple to select: a single model for all partitions and all fire resistance levels.

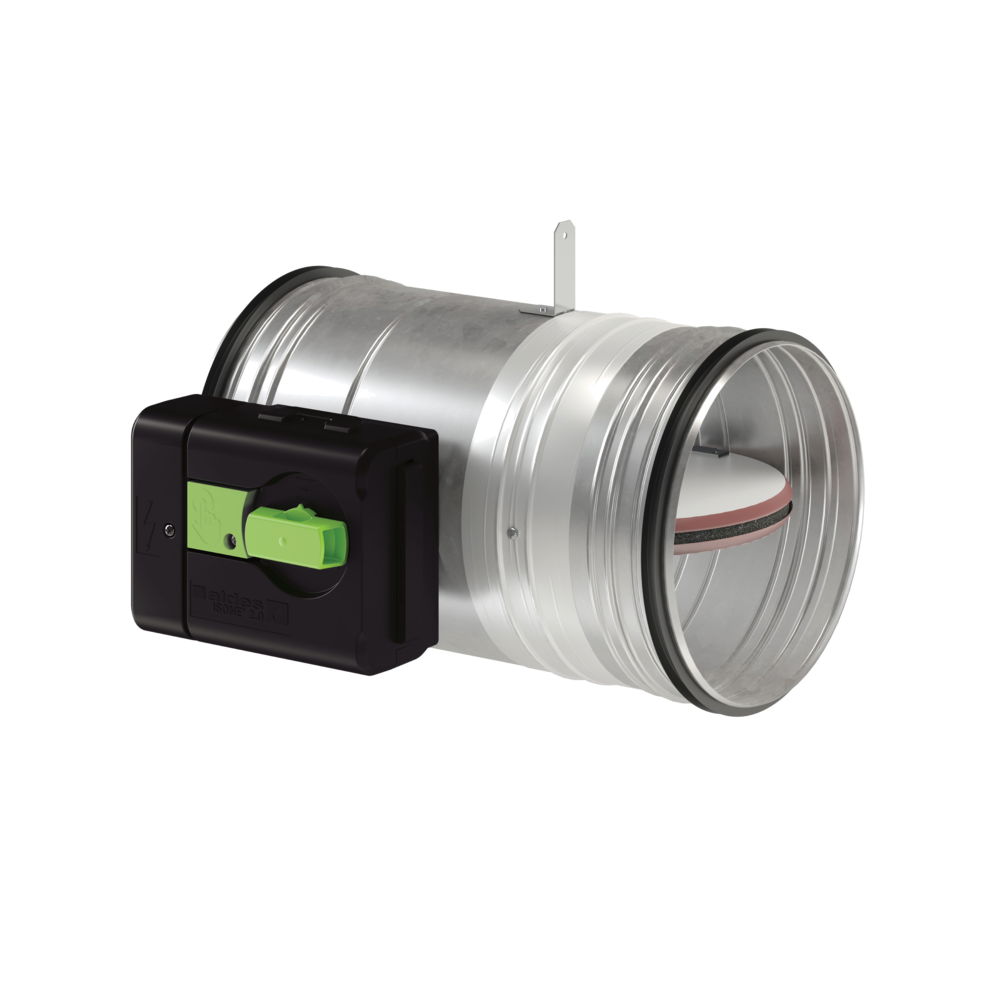

ISONE® 2.1 Circular
Fire dampers for non-residential buildings (public access building, high-rise)
They restore the fire resistance of partition walls crossed by a ventilation duct.
Equipped with 70°C fusible link trip device by default
Controllable by electromagnetic coil trip device: 24/48 V DC current emission; 24 V DC or 48 V DC current break
Reset motor 24/48 V DC
Fire resistance up to 120 minutes on all common partition walls.
They restore the fire resistance of partition walls crossed by a ventilation duct.
Equipped with 70°C fusible link trip device by default
Controllable by electromagnetic coil trip device: 24/48 V DC current emission; 24 V DC or 48 V DC current break
Reset motor 24/48 V DC
Fire resistance up to 120 minutes on all common partition walls.
The + products
- Single damper model for all partitions: easy to select
- Ergonomic quick reset handle: 2 seconds suffice.
- Optional stainless steel pin for harsh environments
- Optional remote control box, 0.7 m or 3 m cord
- New universal damper
- Ergonomic mechanism box: quick reset handle, large electrical connection box.
- Conceptor Ventilation software: guaranteed results based on pressure loss calculations for whole system.
- ALDES SecurONE application for damper data collection and sharing
- Single mechanism, from the simplest to the highest-spec damper: easy to choose, install and maintain
- The damper is open in standby position.
- It opens when instructed by the FACP or thermal rod and moves into safety position (closed).
- Being motorised, it can be reset remotely.
- Certified and compliant with NF S 61937-5 and NF 537
- CE marked as per EN 15650: 1812-CPR-1837
- Class C airtight properties as per EN 1751 as standard
- EI 120 S - 500 Pa on concrete / aerated concrete walls and slabs, type F plasterboard, remote installation on PROMAT / Geostaff
- EXAP EN 15882-2:2015, rules X.45 and X.46.
- Range from D100 mm to D900 mm
- Fully upgradable mechanism
- Single damper adaptable to all walls
- Lightweight wall installation with post-fitted frame
- Reset handle indicating damper position
- Large electrical connection box
- Optional stainless steel pin for harsh environments
- Optional remote control unit
- Low pressure loss
- Mortar-free installation on lightweight walls, even with post-fitted frame
-
Flush-mounted installation on:

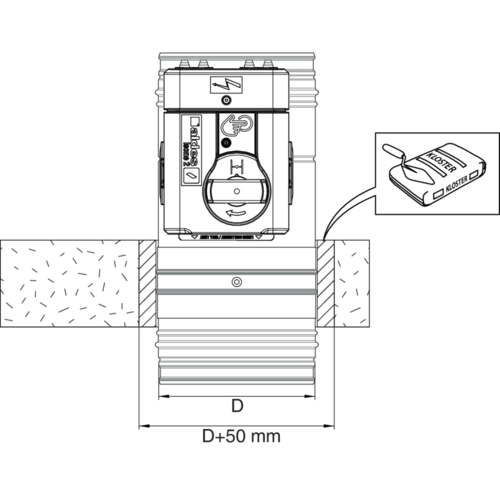

- Concrete and aerated concrete wall/slab
- Plaster block wall
- Type A plasterboards (1h) and type F (2h)
- Remote installation on PROMAT / GEOSTAF
- Positioned on lightweight walls using installation brackets
- EXAP EN 15882-2:2015, rules X.45 and X.46: extended opening dimensions
- Respect the fire rating reports when installing
| References | Free air passage section (dm²) | Insulation material |
|---|---|---|
| 11043130 - ISONE® 2.1 FTE70 Ø 100 mm | 0,51 |
|
| 11043131 - ISONE® 2.1 FTE70 Ø 125 mm | 0,89 |
|
| 11043132 - ISONE® 2.1 FTE70 Ø 160 mm | 1,57 |
|
| 11043133 - ISONE® 2.1 FTE70 Ø 200 mm | 2,59 |
|
| 11043134 - ISONE® 2.1 FTE70 Ø 250 mm | 4,22 |
|
| 11043135 - ISONE® 2.1 FTE70 Ø 315 mm | 6,93 |
|
| 11043136 - ISONE® 2.1 FTE70 Ø 355 mm | 8,72 |
|
| 11043137 - ISONE® 2.1 FTE70 Ø 400 mm | 11,24 |
|
| 11043138 - ISONE® 2.1 FTE70 Ø 450 mm | 14,41 |
|
| 11043139 - ISONE® 2.1 FTE70 Ø 500 mm | 17,97 |
|
| 11043140 - ISONE® 2.1 FTE70 Ø 560 mm | 31,96 |
|
| 11043141 - ISONE® 2.1 FTE70 Ø 630 mm | 38,75 |
|
| 11043142 - ISONE® 2.1 FTE70 Ø 710 mm | 49,36 |
|
| 11043143 - ISONE® 2.1 FTE70 Ø 800 mm | 62,82 |
|
| 11043144 - ISONE® 2.1 FTE70 Ø 900 mm | 79,68 |
|
| 11041307 | 0,5 |
|
| 11041308 | 0,5 |
|
| 11041309 | 0,5 |
|
| 11043178 | 0,9 |
|
| 11043398 | 0,9 |
|
| 11043399 | 0,9 |
|
| 11043416 | 1,6 |
|
| 11043425 | 1,6 |
|
| 11043426 | 1,6 |
|
| 11043427 | 2,6 |
|
| 11043428 | 2,6 |
|
| 11043429 | 2,6 |
|
| 11043436 | 4,2 |
|
| 11043437 | 4,2 |
|
| 11043438 | 4,2 |
|
| 11043439 | 6,9 |
|
| 11043466 | 6,9 |
|
| 11043467 | 6,9 |
|
| 11041312 | 8,7 |
|
| 11041313 | 8,7 |
|
| 11041314 | 8,7 |
|
| 11041316 | 11,2 |
|
| 11041317 | 11,2 |
|
| 11041318 | 11,2 |
|
| 11041319 | 14,4 |
|
| 11041320 | 14,4 |
|
| 11041321 | 14,4 |
|
| 11041322 | 14,4 |
|
| 11041323 | 18 |
|
| 11041324 | 18 |
|
| 11041325 | 18 |
|
| 11041326 | 18 |
|
| 11043346 - ISONE® 2.1 FTE70 Ø 125 mm Stock | 0,89 |
|
| 11043347 - ISONE® 2.1 FTE70 Ø 160 mm Stock | 1,57 |
|
| 11043348 - ISONE® 2.1 FTE70 Ø 200 mm Stock | 2,59 |
|
| 11043349 - ISONE® 2.1 FTE70 Ø 250 mm Stock | 4,22 |
|
| 11043371 - ISONE® 2.1 FTE70 Ø 315 mm Stock | 6,93 |
|
| 11043378 - ISONE® 2.1 FTE70 Ø 355 mm Stock | 8,72 |
|
| 11043379 - ISONE® 2.1 FTE70 Ø 400 mm Stock | 11,24 |
|
| 11041310 |
- ISONE® 2.1 PM: D100 to D500
- ISONE® 2.1 GM: D560 to D900
| References | A (mm) | B (mm) | C (°) | D (°) | J (mm) | K (mm) | L (mm) | Ø (mm) | Ø D (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 11043130 - ISONE® 2.1 FTE70 Ø 100 mm | 97 |
70 |
45 |
18 |
420 |
100 |
100 |
1,8 |
||
| 11043131 - ISONE® 2.1 FTE70 Ø 125 mm | 97 |
70 |
32 |
8 |
420 |
125 |
125 |
2,2 |
||
| 11043132 - ISONE® 2.1 FTE70 Ø 160 mm | 97 |
70 |
15 |
420 |
160 |
160 |
2,8 |
|||
| 11043133 - ISONE® 2.1 FTE70 Ø 200 mm | 97 |
70 |
420 |
200 |
200 |
3,5 |
||||
| 11043134 - ISONE® 2.1 FTE70 Ø 250 mm | 97 |
70 |
420 |
250 |
250 |
3,7 |
||||
| 11043135 - ISONE® 2.1 FTE70 Ø 315 mm | 127 |
40 |
420 |
315 |
315 |
5,6 |
||||
| 11043136 - ISONE® 2.1 FTE70 Ø 355 mm | 127 |
40 |
420 |
355 |
355 |
7,6 |
||||
| 11043137 - ISONE® 2.1 FTE70 Ø 400 mm | 127 |
40 |
420 |
400 |
400 |
8,4 |
||||
| 11043138 - ISONE® 2.1 FTE70 Ø 450 mm | 127 |
40 |
420 |
450 |
450 |
9,1 |
||||
| 11043139 - ISONE® 2.1 FTE70 Ø 500 mm | 127 |
40 |
420 |
500 |
500 |
10,3 |
||||
| 11043140 - ISONE® 2.1 FTE70 Ø 560 mm | 202 |
665 |
560 |
560 |
25,6 |
|||||
| 11043141 - ISONE® 2.1 FTE70 Ø 630 mm | 254 |
735 |
630 |
630 |
32,3 |
|||||
| 11043142 - ISONE® 2.1 FTE70 Ø 710 mm | 279 |
805 |
710 |
710 |
38 |
|||||
| 11043143 - ISONE® 2.1 FTE70 Ø 800 mm | 329 |
905 |
800 |
800 |
45,5 |
|||||
| 11043144 - ISONE® 2.1 FTE70 Ø 900 mm | 379 |
1005 |
900 |
900 |
54,5 |
|||||
| 11041307 | 97 |
70 |
45 |
18 |
420 |
100 |
100 |
1,8 |
||
| 11041308 | 97 |
70 |
45 |
18 |
420 |
100 |
100 |
1,8 |
||
| 11041309 | 97 |
70 |
45 |
18 |
420 |
100 |
100 |
1,8 |
||
| 11043178 | 97 |
70 |
32 |
8 |
420 |
125 |
125 |
2,1 |
||
| 11043398 | 97 |
70 |
32 |
8 |
420 |
125 |
125 |
2,1 |
||
| 11043399 | 97 |
70 |
32 |
8 |
420 |
125 |
125 |
2,1 |
||
| 11043416 | 97 |
70 |
15 |
420 |
160 |
160 |
2,7 |
|||
| 11043425 | 97 |
70 |
15 |
420 |
160 |
160 |
2,7 |
|||
| 11043426 | 97 |
70 |
15 |
420 |
160 |
160 |
2,7 |
|||
| 11043427 | 97 |
70 |
420 |
200 |
200 |
3,5 |
||||
| 11043428 | 97 |
70 |
420 |
200 |
200 |
3,5 |
||||
| 11043429 | 97 |
70 |
420 |
200 |
200 |
3,5 |
||||
| 11043436 | 97 |
70 |
420 |
250 |
250 |
3,6 |
||||
| 11043437 | 97 |
70 |
420 |
250 |
250 |
3,6 |
||||
| 11043438 | 97 |
70 |
420 |
250 |
250 |
3,6 |
||||
| 11043439 | 127 |
40 |
420 |
315 |
315 |
5,6 |
||||
| 11043466 | 127 |
40 |
420 |
315 |
315 |
5,6 |
||||
| 11043467 | 127 |
40 |
420 |
315 |
315 |
5,6 |
||||
| 11041312 | 127 |
40 |
420 |
355 |
355 |
7,6 |
||||
| 11041313 | 127 |
40 |
420 |
355 |
355 |
7,6 |
||||
| 11041314 | 127 |
40 |
420 |
355 |
355 |
7,6 |
||||
| 11041316 | 127 |
40 |
420 |
400 |
400 |
8,4 |
||||
| 11041317 | 127 |
40 |
420 |
400 |
400 |
8,4 |
||||
| 11041318 | 127 |
40 |
420 |
400 |
400 |
8,4 |
||||
| 11041319 | 127 |
40 |
420 |
450 |
450 |
9,1 |
||||
| 11041320 | 127 |
40 |
420 |
450 |
450 |
9,1 |
||||
| 11041321 | 127 |
40 |
420 |
450 |
450 |
9,1 |
||||
| 11041322 | 127 |
40 |
420 |
450 |
450 |
9,1 |
||||
| 11041323 | 127 |
40 |
420 |
500 |
500 |
10,3 |
||||
| 11041324 | 127 |
40 |
420 |
500 |
500 |
10,3 |
||||
| 11041325 | 127 |
40 |
420 |
500 |
500 |
10,3 |
||||
| 11041326 | 127 |
40 |
420 |
500 |
500 |
10,3 |
||||
| 11043346 - ISONE® 2.1 FTE70 Ø 125 mm Stock | 97 |
70 |
32 |
8 |
420 |
125 |
125 |
2,2 |
||
| 11043347 - ISONE® 2.1 FTE70 Ø 160 mm Stock | 97 |
70 |
15 |
420 |
160 |
160 |
2,8 |
|||
| 11043348 - ISONE® 2.1 FTE70 Ø 200 mm Stock | 97 |
70 |
420 |
200 |
200 |
3,5 |
||||
| 11043349 - ISONE® 2.1 FTE70 Ø 250 mm Stock | 97 |
70 |
420 |
250 |
250 |
3,7 |
||||
| 11043371 - ISONE® 2.1 FTE70 Ø 315 mm Stock | 127 |
40 |
420 |
315 |
315 |
5,6 |
||||
| 11043378 - ISONE® 2.1 FTE70 Ø 355 mm Stock | 127 |
40 |
420 |
355 |
355 |
7,6 |
||||
| 11043379 - ISONE® 2.1 FTE70 Ø 400 mm Stock | 127 |
40 |
420 |
400 |
400 |
8,4 |
||||
| 11041310 | 97 |
70 |
45 |
18 |
420 |
100 |
100 |
| References | Pressure loss at 2 m/s (Pa) | Pressure loss at 4 m/s (Pa) | Pressure loss at 6 m/s (Pa) | Pressure loss at 8 m/s (Pa) | Pressure loss at 10 m/s (Pa) | Pressure loss at 12 m/s (Pa) |
|---|---|---|---|---|---|---|
| 11043130 - ISONE® 2.1 FTE70 Ø 100 mm | 3 |
10 |
22 |
39 |
61 |
87 |
| 11043131 - ISONE® 2.1 FTE70 Ø 125 mm | 2 |
7 |
15 |
27 |
41 |
58 |
| 11043132 - ISONE® 2.1 FTE70 Ø 160 mm | 2 |
5 |
11 |
19 |
30 |
42 |
| 11043133 - ISONE® 2.1 FTE70 Ø 200 mm | 2 |
5 |
10 |
17 |
26 |
37 |
| 11043134 - ISONE® 2.1 FTE70 Ø 250 mm | 1 |
4 |
8 |
13 |
20 |
29 |
| 11043135 - ISONE® 2.1 FTE70 Ø 315 mm | 1 |
4 |
8 |
13 |
20 |
28 |
| 11043136 - ISONE® 2.1 FTE70 Ø 355 mm | 1 |
4 |
7 |
12 |
18 |
25 |
| 11043137 - ISONE® 2.1 FTE70 Ø 400 mm | 1 |
3 |
7 |
11 |
16 |
23 |
| 11043138 - ISONE® 2.1 FTE70 Ø 450 mm | 1 |
3 |
6 |
9 |
14 |
19 |
| 11043139 - ISONE® 2.1 FTE70 Ø 500 mm | 1 |
3 |
5 |
8 |
13 |
18 |
| 11043140 - ISONE® 2.1 FTE70 Ø 560 mm | 1 |
2 |
5 |
9 |
14 |
21 |
| 11043141 - ISONE® 2.1 FTE70 Ø 630 mm | 1 |
4 |
8 |
15 |
23 |
34 |
| 11043142 - ISONE® 2.1 FTE70 Ø 710 mm | 1 |
3 |
7 |
12 |
18 |
26 |
| 11043143 - ISONE® 2.1 FTE70 Ø 800 mm | 1 |
2 |
5 |
8 |
13 |
19 |
| 11043144 - ISONE® 2.1 FTE70 Ø 900 mm | 1 |
2 |
5 |
8 |
13 |
18 |
| 11041307 | 3 |
10 |
22 |
39 |
61 |
87 |
| 11041308 | 3 |
10 |
22 |
39 |
61 |
87 |
| 11041309 | 3 |
10 |
22 |
39 |
61 |
87 |
| 11043178 | 2 |
7 |
15 |
27 |
41 |
58 |
| 11043398 | 2 |
7 |
15 |
27 |
41 |
58 |
| 11043399 | 2 |
7 |
15 |
27 |
41 |
58 |
| 11043416 | 2 |
5 |
11 |
19 |
30 |
42 |
| 11043425 | 2 |
5 |
11 |
19 |
30 |
42 |
| 11043426 | 2 |
5 |
11 |
19 |
30 |
42 |
| 11043427 | 2 |
5 |
10 |
17 |
26 |
37 |
| 11043428 | 2 |
5 |
10 |
17 |
26 |
37 |
| 11043429 | 2 |
5 |
10 |
17 |
26 |
37 |
| 11043436 | 1 |
4 |
8 |
13 |
20 |
29 |
| 11043437 | 1 |
4 |
8 |
13 |
20 |
29 |
| 11043438 | 1 |
4 |
8 |
13 |
20 |
29 |
| 11043439 | 1 |
4 |
8 |
13 |
20 |
28 |
| 11043466 | 1 |
4 |
8 |
13 |
20 |
28 |
| 11043467 | 1 |
4 |
8 |
13 |
20 |
28 |
| 11041312 | 1 |
4 |
7 |
12 |
18 |
25 |
| 11041313 | 1 |
4 |
7 |
12 |
18 |
25 |
| 11041314 | 1 |
4 |
7 |
12 |
18 |
25 |
| 11041316 | 1 |
3 |
7 |
11 |
16 |
23 |
| 11041317 | 1 |
3 |
7 |
11 |
16 |
23 |
| 11041318 | 1 |
3 |
7 |
11 |
16 |
23 |
| 11041319 | 1 |
3 |
6 |
9 |
14 |
19 |
| 11041320 | 1 |
3 |
6 |
9 |
14 |
19 |
| 11041321 | 1 |
3 |
6 |
9 |
14 |
19 |
| 11041322 | 1 |
3 |
6 |
9 |
14 |
19 |
| 11041323 | 1 |
3 |
5 |
8 |
13 |
18 |
| 11041324 | 1 |
3 |
5 |
8 |
13 |
18 |
| 11041325 | 1 |
3 |
5 |
8 |
13 |
18 |
| 11041326 | 1 |
3 |
5 |
8 |
13 |
18 |
| 11043346 - ISONE® 2.1 FTE70 Ø 125 mm Stock | 2 |
7 |
15 |
27 |
41 |
58 |
| 11043347 - ISONE® 2.1 FTE70 Ø 160 mm Stock | 2 |
5 |
11 |
19 |
30 |
42 |
| 11043348 - ISONE® 2.1 FTE70 Ø 200 mm Stock | 2 |
5 |
10 |
17 |
26 |
37 |
| 11043349 - ISONE® 2.1 FTE70 Ø 250 mm Stock | 1 |
4 |
8 |
13 |
20 |
29 |
| 11043371 - ISONE® 2.1 FTE70 Ø 315 mm Stock | 1 |
4 |
8 |
13 |
20 |
28 |
| 11043378 - ISONE® 2.1 FTE70 Ø 355 mm Stock | 1 |
4 |
7 |
12 |
18 |
25 |
| 11043379 - ISONE® 2.1 FTE70 Ø 400 mm Stock | 1 |
3 |
7 |
11 |
16 |
23 |
| 11041310 | 3 |
10 |
22 |
39 |
61 |
87 |
- PV CE number : 1812-CPR-2333
Products and accessories references
Documents
Showing 1 - y of
document
-
Declaration of performance (DOP) ISONE® 2.1 Circular1 MB
-
Fire resistance rating certificate ISONE®2.1 Circular2 MB
-
Product Environmental Profile ISONE®2 Circular1 MB
-
Notice ISONE® 2.1 Circular15 MB
-
Notice ISONE®2.1 Accessories kit PM1 MB
-
ISONE®2.1 Accessories kit GM instructions191 KB
-
ISONE®2.1 Circulaire - Rapport de classement au feu
-
ISONE®2.1 - Certificat de constance des performances
