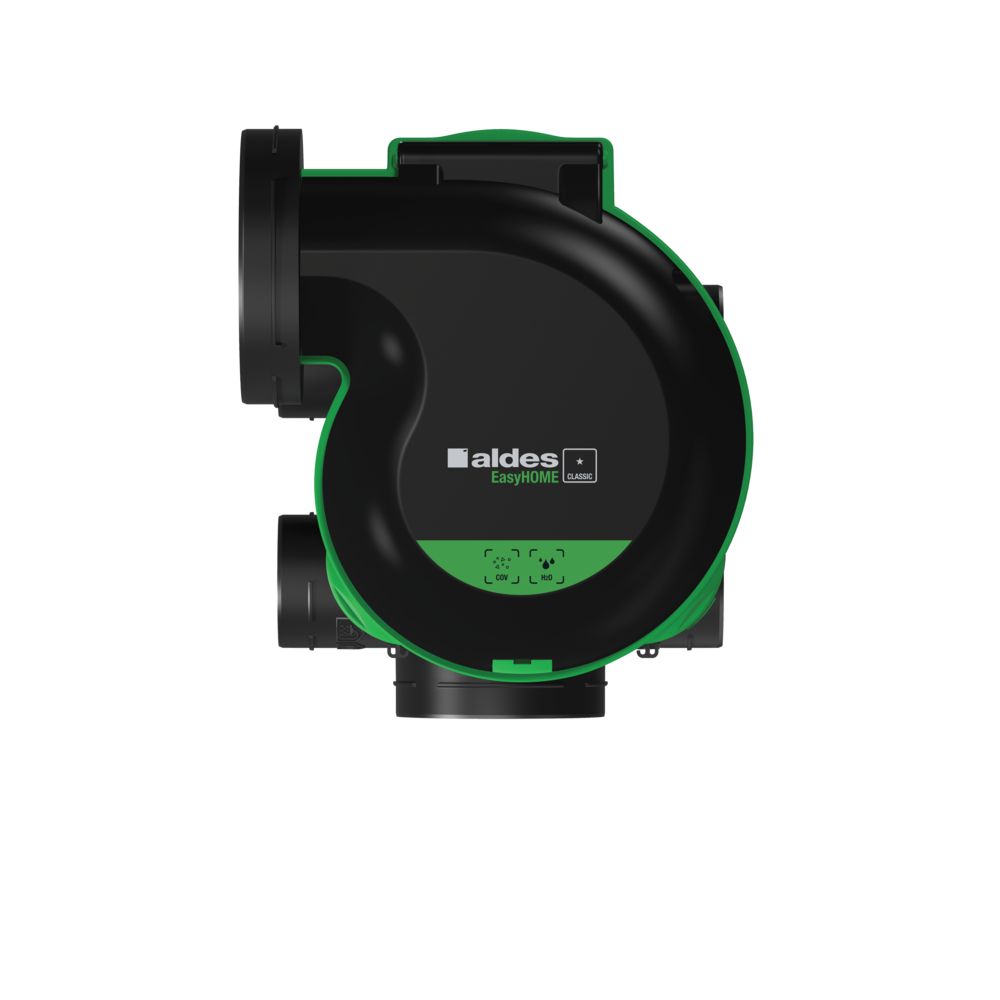

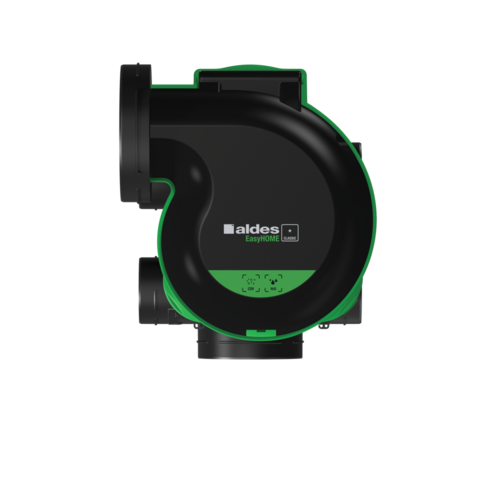

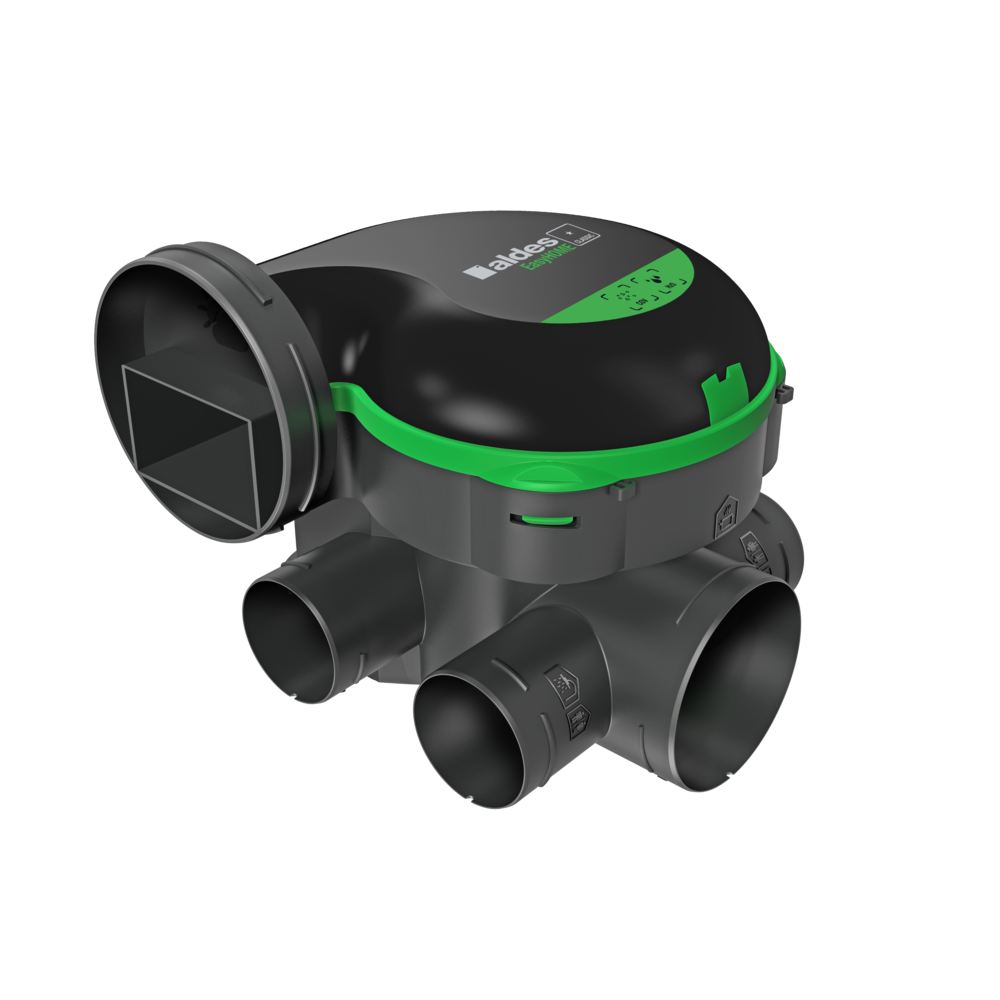

EasyHOME PureAIR Classic
EasyHOME PureAIR Classic
EasyHOME PureAIR Classic renews and purifies the air inside your dwelling using VOC and H2O sensors and its automatic high speed.
EasyHOME PureAIR Classic
EasyHOME PureAIR Classic is a ventilation solution that detects and removes volatile organic compounds (VOCs) and humidity from the dwelling through 2 operating modes.
The PureAIR Classic unit is equipped with 2 electronic multi-pollutant sensors: 1 VOC sensor and 1 H2O sensor fitted on the fan unit.
When associated with AirFILTER air inlets fitted with a pollen filter, the PureAIR solution filters incoming air for optimal indoor air quality.
EasyHOME PureAIR Classic can be installed in an attic.
The PureAIR Classic unit is equipped with 2 electronic multi-pollutant sensors: 1 VOC sensor and 1 H2O sensor fitted on the fan unit.
When associated with AirFILTER air inlets fitted with a pollen filter, the PureAIR solution filters incoming air for optimal indoor air quality.
EasyHOME PureAIR Classic can be installed in an attic.
The + products
- VOC and H2O sensors,
- high automatic fan speed in kitchen and bathroom,
- 78% recycled plastic.
- incoming air filtration by AirFILTER® air inlets,
- seamless integration with interior decoration thanks to ColorLINE® grilles,
- very quiet: as low as 14 dB(A) at the kitchen terminal,
- Easy to install.
EasyHOME PureAIR Classic renews the air in your dwelling and filters incoming air. Using air quality sensors, it offers automatic high-speed operation in kitchens and bathrooms when the VOC or humidity level rises.
- attic unit made of recyclable plastic material,
-
connections on unit for one kitchen and up to 4 Bath/shower rooms:
- 1 x Ø 125 mm connection for kitchen,
- 4 x Ø 80 mm connections for bath/shower,
- 1 x Ø 160/125 mm outlet with the supplied adapter.
- symbols on unit and accessories to help with assembly,
- exhaust airflows controlled according to pollutant concentration detected by the unit,
- 2 ventilation modes: DAILY mode and KITCHEN/BATH BOOST mode,
- 2-speed AC motor,

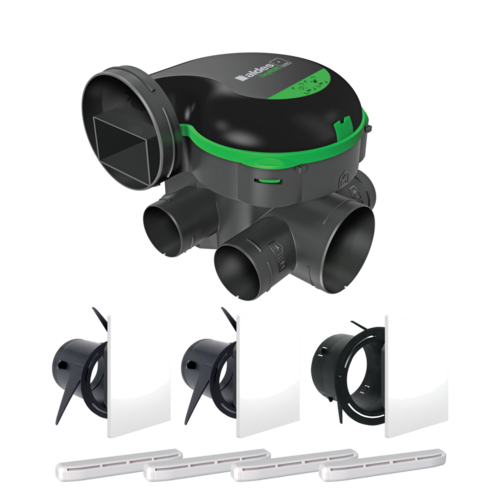

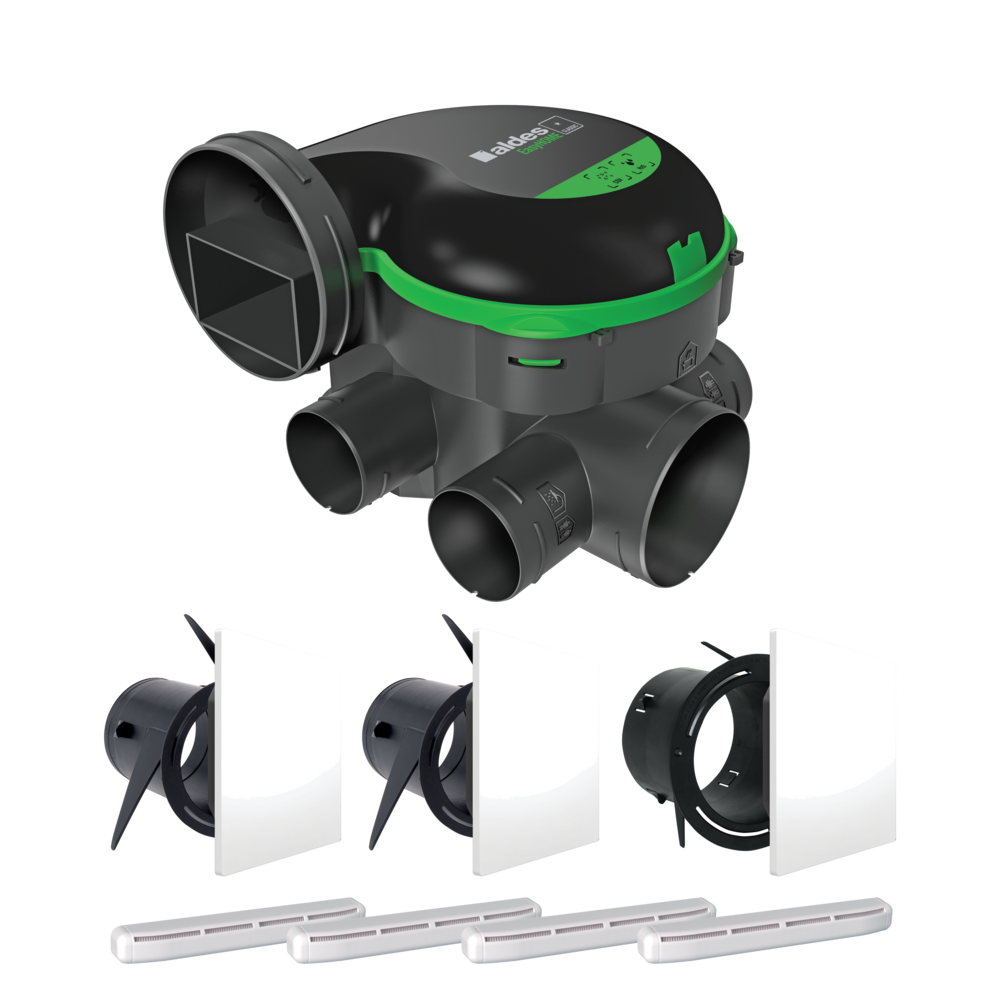

- kits delivered with 3 ColorLINE® ventilation grilles and 4 AirFILTER® air inlets.
-
AUTO mode:
- day-to-day operation mode,
- low constant ventilation speed,
- air renewal suited to room ventilated (kitchen, bathroom, WC).
-
BOOST bath/kitchen mode:
- automatic high speed in bathroom and kitchen,
- automatic activation when the VOC level and humidity level in the dwelling rise,
- manual activation possible using a push button (not supplied).

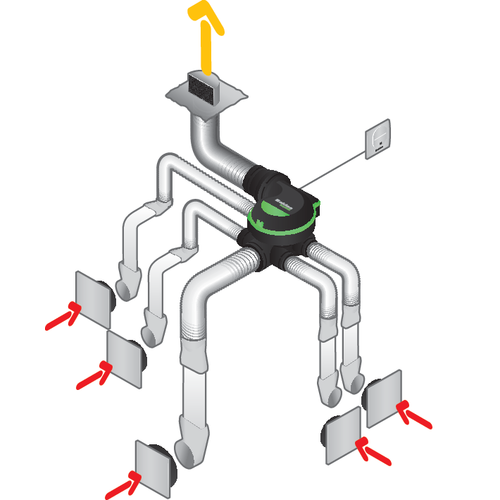

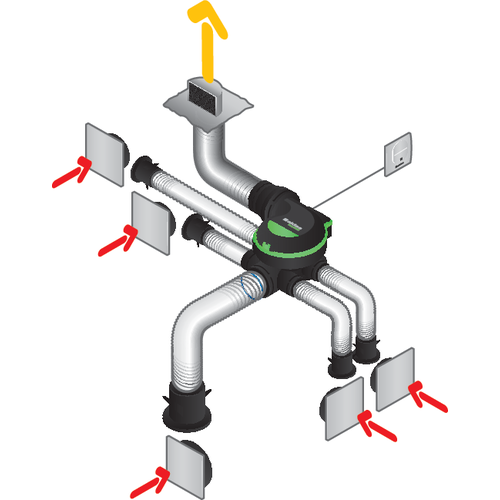

- suspended attachment in attic with cord supplied,
- can be mounted on a vertical wall using the optional wall mounting kit: centreline pitch 95 mm,
- quick-connect electrical terminal block,
- flexible ducts connected directly to the unit,
- optional EasyCLIP Algaine accessories available.
Number of connections Ø 125 mm | Number of connections Ø 80 mm | Maximum number of bathrooms/WC | Number of speeds | Insulation material | Type of motor |
---|---|---|---|---|---|
1 |
4 |
4 |
2 |
AC |
Max. airflow ErP (m³/h) |
---|
241 |
Sound pressure at 2 m from the kitchen terminal (dB(A)) | Sound power at kitchen terminal (dB(A)) | Sound power at the unit at 100 m3/h (dB(A)) | Sound power ErP (dB(A)) |
---|---|---|---|
14 |
31 |
41 |
45 |
Average daily consumption 2-bed dwelling (1 bathroom + 1 WC) (W) | Max. power in BOOST mode (W) |
---|---|
14 |
14 |
Frequency (Hz) | Protection rating | Protection current (A) | Max. current (A) | Voltage (V) |
---|---|---|---|---|
50 |
2 |
0,2 |
230 |
- Identification no. QB37 : NA
- Technical Opinion no. : NA
- Text ErP - Ventilation : Complies with eco-design Regulation 1253/2014 and excluded from energy labelling Regulation 1254/2014 as maximum power is below 30 W.
Energy class - Average climate |
---|
E |
