EasyHOME HYGRO COMPACT Premium SP
EasyHOME HYGRO COMPACT Premium SP
EasyHOME Hygro COMPACT Premium SP is a low-consumption, multi-position, humidity-controlled ventilation solution offering up to 7 speeds.
EasyHOME HYGRO COMPACT Premium SP
EasyHOME HYGRO COMPACT Premium SP is a humidity-controlled unidirectional ventilation solution which adapts the air renewal rate to the humidity level or the presence of occupants in the dwelling, thereby preventing pointless heat losses.
The rate is controlled room by room by the humidity-controlled terminals.
EasyHOME HYGRO COMPACT Premium SP features a very low-consumption motor and offers up to 7 speeds. The operating pressure can be adjusted on site to adapt to the installation.
EasyHOME HYGRO COMPACT Premium SP is compatible with multiple ducting solutions and can be installed with Optiflex semi-rigid ducts for an airtight, high-performance installation.

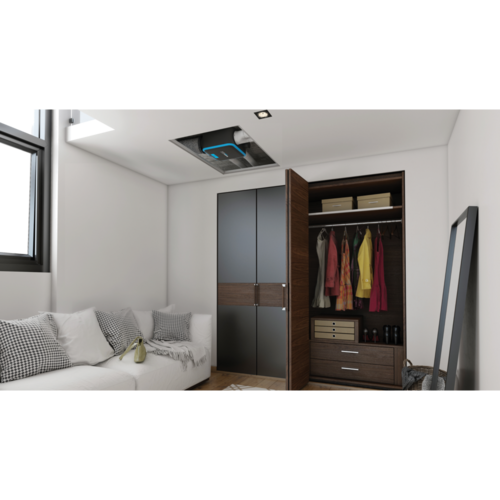

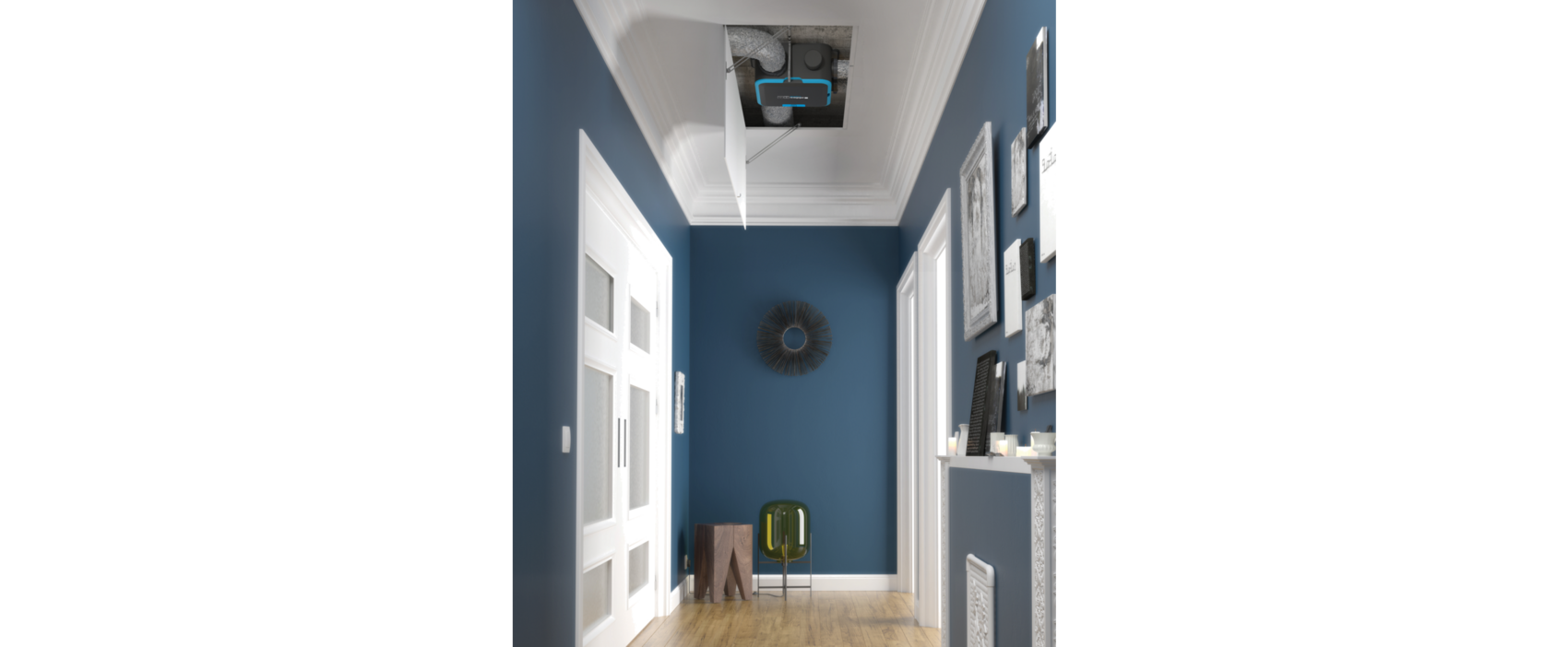

Ultra-flat and multi-position, EasyHOME HYGRO COMPACT Premium SP is suitable for installation in small interior spaces, for example in a suspended ceiling or utility room.
The rate is controlled room by room by the humidity-controlled terminals.
EasyHOME HYGRO COMPACT Premium SP features a very low-consumption motor and offers up to 7 speeds. The operating pressure can be adjusted on site to adapt to the installation.
EasyHOME HYGRO COMPACT Premium SP is compatible with multiple ducting solutions and can be installed with Optiflex semi-rigid ducts for an airtight, high-performance installation.
Ultra-flat and multi-position, EasyHOME HYGRO COMPACT Premium SP is suitable for installation in small interior spaces, for example in a suspended ceiling or utility room.
The + products
- up to 7 fan speeds,
- compatible with multiple ducts using EasyCLIP connection accessories for flexible or semi-rigid ducting,
- 77% recycled plastic.
- ultra-flat and extra-quiet for seamless integration into the dwelling,
- ventilation to precisely match actual needs thanks to humidity detection,
- simple and ultra-fast to install < 19 cm,
- very quiet: as low as 31 dB(A),
- exists in High Pressure version with pressure adjustment on site.
EasyHOME HYGRO renews the air throughout your dwelling and removes ambient humidity.
In each room, the humidity-controlled terminals detect humidity or occupation, to ensure the ventilation airflow is automatically adjusted to suit your needs.

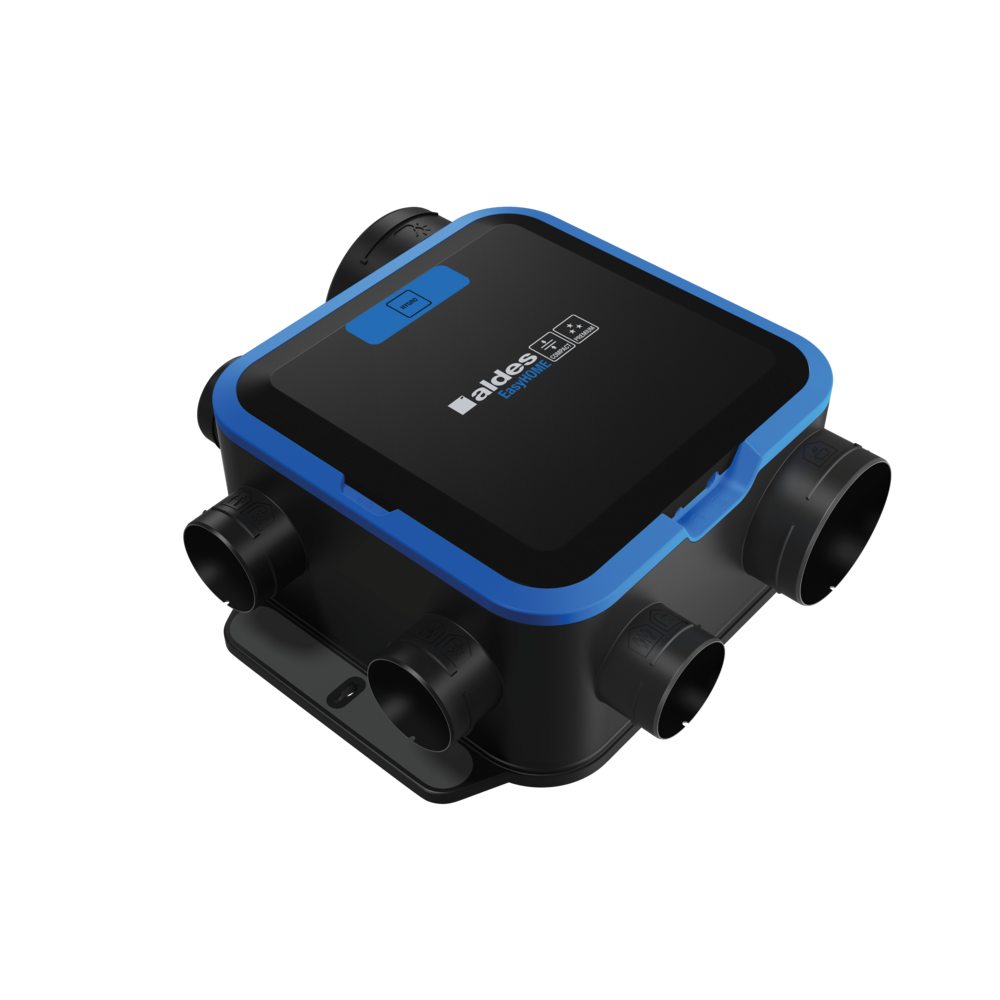

- COMPACT unit made of recyclable plastic,
-
connections on unit:
- 1 x Ø 125 mm connection for kitchen,
- 4 x Ø 80 mm connections for bathrooms/WC,
- 1 x Ø 160 mm outlet.
- exhaust airflow regulated by humidity-controlled terminals according to ambient humidity,
- installation symbols on the unit,
-
EC low-consumption motor, SP version: 7 speeds corresponding to 7 pressure levels from 50 to 250 Pa, can be adjusted on site by installer to manage system pressure losses,
- combine with Bahia Curve humidity-controlled terminals.
- multi-position installation: wall, ceiling, floor, sloped surface,
- just 2 attachment screws: centreline 406 mm,
- built-in anti-vibration strips,
- quick-connect electrical terminal block,
-
compatible with all types of ducting:
- Algaine flexible ducts,
- Optiflex semi-rigid ducts,
- Minigaine rigid ducts,
- ducting must be insulated outside of heated spaces.
- Algaine EasyCLIP accessories supplied: quick-fit connectors and collar clamps for simplified connection of flexible ducts on the unit,
- Optiflex EasyCLIP accessories available as optional extras.
Number of connections Ø 125 mm | Number of connections Ø 80 mm | Maximum number of bathrooms/WC | Number of speeds | Type of motor |
---|---|---|---|---|
1 |
4 |
4 |
7 |
EC |
Max. airflow ErP (m³/h) |
---|
416 |
Sound pressure at 2 m from the kitchen terminal (dB(A)) | Sound power at kitchen terminal (dB(A)) | Sound power at the unit at 100 m3/h (dB(A)) | Sound power ErP (dB(A)) |
---|---|---|---|
32 |
37 |
42 |
49 |
References | Average daily consumption 2-bed dwelling (1 bathroom + 1 WC) (W) |
---|---|
11033071 - EasyHOME COMPACT Premium Hygro kit SP + BAHIA® CURVE ELEC PEB terminals | 10,9 |
11033053 - EASYHOME HYGRO COMPACT Premium SP unit | 10.9 |
References | Frequency (Hz) | Protection rating | Protection current (A) | Max. current (A) | Voltage (V) | Max. power |
---|---|---|---|---|---|---|
11033071 - EasyHOME COMPACT Premium Hygro kit SP + BAHIA® CURVE ELEC PEB terminals | 50 |
0,8 |
230 |
85 |
||
11033053 - EASYHOME HYGRO COMPACT Premium SP unit | 50 |
2 |
0,8 |
230 |
85 |
- Identification no. QB37 : NA
- Technical Opinion no. : NA
- Text ErP - Ventilation : Complies with eco-design regulation 1253/2014 and energy labelling regulation 1254/2014 for ventilation. Energy classes: see ErP regulation page.
Energy class - Average climate |
---|
B |
