EasyHOME HYGRO COMPACT Classic Ventilation terminal kit

EasyHOME HYGRO COMPACT Classic

Ventilation terminal kit

The EasyHOME HYGRO COMPACT Classic multi-position ventilation solution automatically adapts to needs by detecting the humidity level in each room.
EasyHOME HYGRO COMPACT Classic
Download CAD Library file
EasyHOME HYGRO COMPACT Classic
EasyHOME HYGRO COMPACT Classic is a humidity-controlled unidirectional ventilation solution which adapts the air renewal rate to the humidity level or the presence of occupants in the dwelling, thereby preventing pointless heat losses.
The rate is controlled room by room by the humidity-controlled air inlets and terminals.
EasyHOME HYGRO COMPACT is compatible with multiple ducting solutions and can be installed with Optiflex semi-rigid ducts for an airtight, high-performance installation.

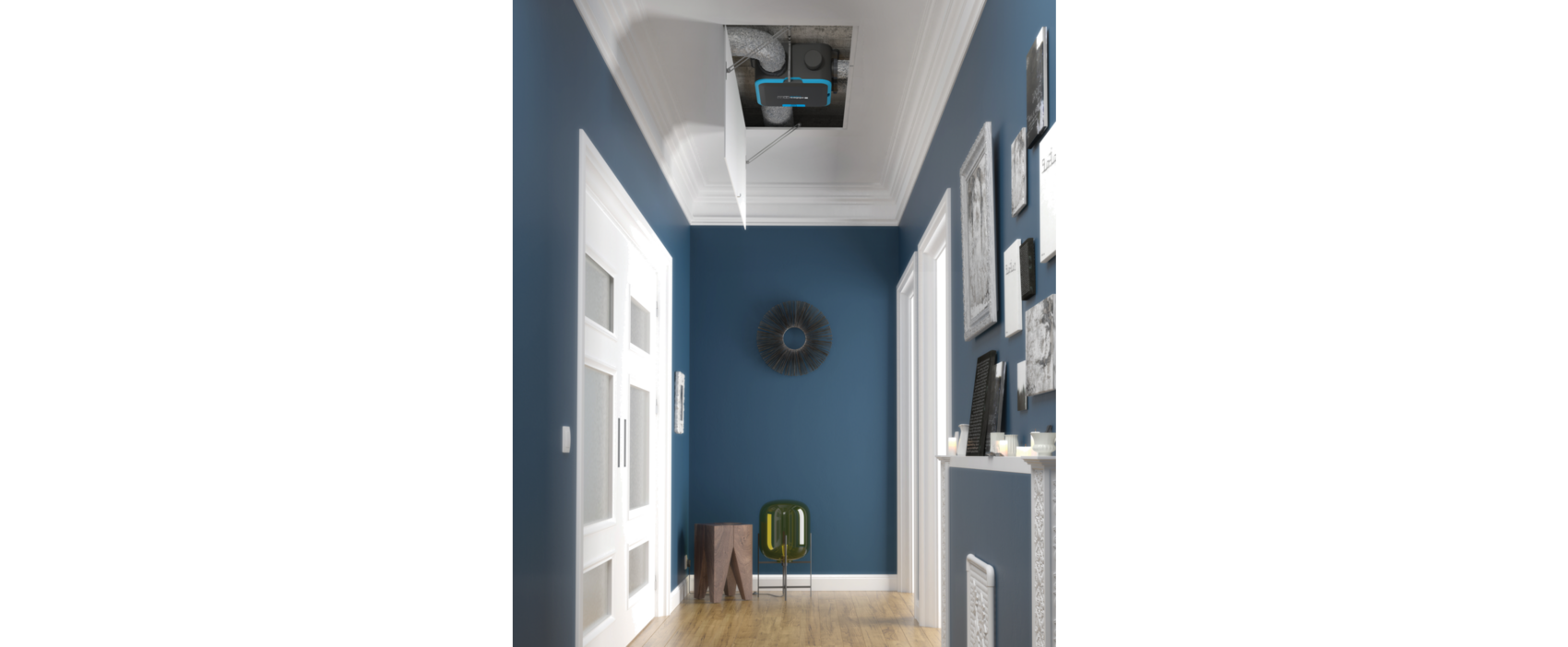

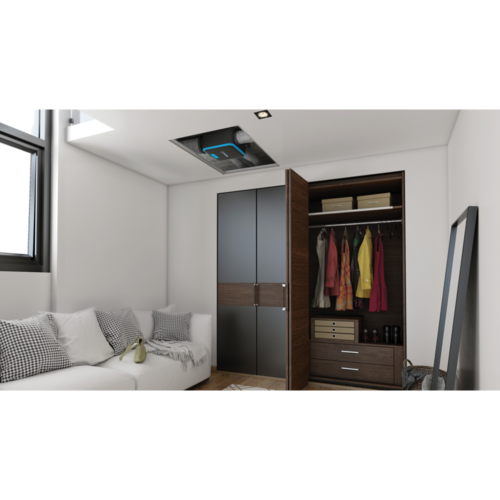

Ultra-flat and multi-position, EasyHOME HYGRO COMPACT is suitable for installation in small interior spaces, for example in a suspended ceiling or utility room.
EasyHOME HYGRO COMPACT Classic

The + products

  • up to €200 savings on heating bills,
  • extra flat for easy installation in the dwelling,
  • 77% recycled plastic.
  • very quiet: as low as 20 dB(A) at the kitchen terminal,
  • compatible with multiple ducts,
  • simple and ultra-fast to install < 19 cm.

EasyHOME HYGRO renews the air throughout your dwelling and removes ambient humidity.

In each room, the humidity-controlled air inlets and terminals detect humidity or occupation, to ensure the ventilation airflow is automatically adjusted to suit your needs.

  • COMPACT unit made of recyclable plastic,
  • connections on unit for 1 kitchen and up to 4 bathrooms/WC:
    • 1 x Ø 125 mm connection for kitchen,
    • 4 x Ø 80 mm connections for bathrooms/WC,
    • 1 x Ø 160 mm outlet.
  • exhaust airflow controlled by humidity-controlled terminals according to ambient humidity or occupancy,
  • installation symbols on the unit,
  • 2 operating modes: HYGRO humidity-controlled mode and BOOST mode for kitchen,
  • 1-speed AC motor,
  • Hygro B kits supplied with Bahia Curve humidity-controlled terminals, electrical control (ELEC).
  • HYGRO mode:
    • continuously variable daily automatic operation,
    • ventilation airflow reduced to minimum during periods of absence,
    • airflow increased at terminals when humidity level rises (perspiration, shower, cooking, etc.) or when occupancy of the WC is detected.
  • BOOST kitchen mode:
    • high speed ventilation in kitchen by opening terminal at peak airflow for a period of 30 min,
    • manual activation of peak airflow by push button (ELEC terminal),
    • fast elimination of humidity and odours at meal times.
  • multi-position installation: wall, ceiling, floor, sloped surface,
  • just 2 attachment screws: centreline 406 mm,
  • built-in anti-vibration strips,
  • quick-connect electrical terminal block,
  • compatible with all types of ducting:
    • Algaine flexible ducts,
    • Optiflex semi-rigid ducts,
    • Minigaine rigid ducts,
    • ducting must be insulated outside of heated spaces,
  • EasyCLIP Algaine accessories supplied: quick-fit connectors and collar clamps for simplified connection of flexible ducts to unit,
  • EasyCLIP Optiflex accessories available as optional extras,
  • Kitchen PUSH and WC PRES terminals powered by 9V alkaline battery (LR61), not supplied).
Number of connections Ø 125 mm Number of connections Ø 80 mm Maximum number of bathrooms/WC Number of speeds Insulation material Type of motor

1

4

4

1

AC

EasyHOME HYGRO COMPACT Classic
H (mm) L (mm) P (mm) Ø discharge (mm) Weight (kg)

187

459

460

160

3,6

Max. airflow ErP (m³/h)

221

Sound pressure at 2 m from the kitchen terminal (dB(A)) Sound power at kitchen terminal (dB(A)) Sound power at the unit at 100 m3/h (dB(A)) Sound power ErP (dB(A))

20

37

46

46

References Average daily consumption 2-bed dwelling (1 bathroom + 1 WC) (W)
11033048 - EasyHOME HYGRO COMPACT Classic unit

20.7

11033049 - EasyHOME HYGRO COMPACT Classic kit + BAHIA® CURVE ELEC terminals

20,7

Frequency (Hz) Protection rating Protection current (A) Max. current (A) Voltage (V) Max. power

50

2

0,2

230

28

  • QB-certified  :  Exhaust unit
  • Identification no. QB37  :  70/01-CHY5-2266
  • Technical Opinion no.  :  14.5/17-2266
  • Text ErP - Ventilation  :  Complies with eco-design Regulation 1253/2014 and excluded from energy labelling Regulation 1254/2014 as maximum power is below 30 W.
Energy class - Average climate

C

Ducting must be insulated outside of heated spaces.

Products and accessories references

  • EasyHOME HYGRO COMPACT Classic unit
    EasyHOME HYGRO COMPACT Classic unit
    11033048
    354,00 (without VAT)
  • EasyHOME HYGRO COMPACT Classic kit +  BAHIA® CURVE ELEC terminals
    EasyHOME HYGRO COMPACT Classic kit + BAHIA® CURVE ELEC terminals
    11033049
    590,00 (without VAT)
