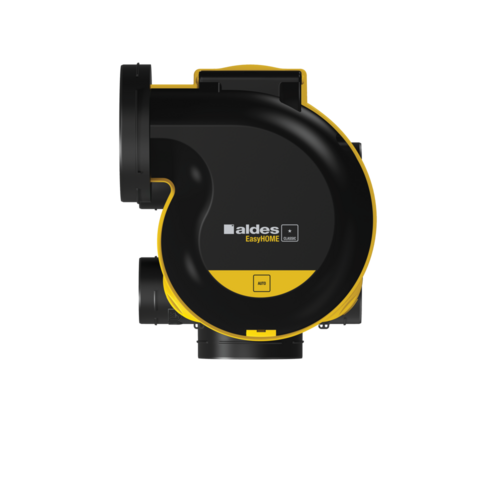

EasyHOME AUTO

EasyHOME AUTO renews the air in your dwelling 24/7 with 2 operating modes: AUTO mode delivering constant airflow for each ventilated room and a BOOST mode which automatically activates high speed in the kitchen via an inverter.

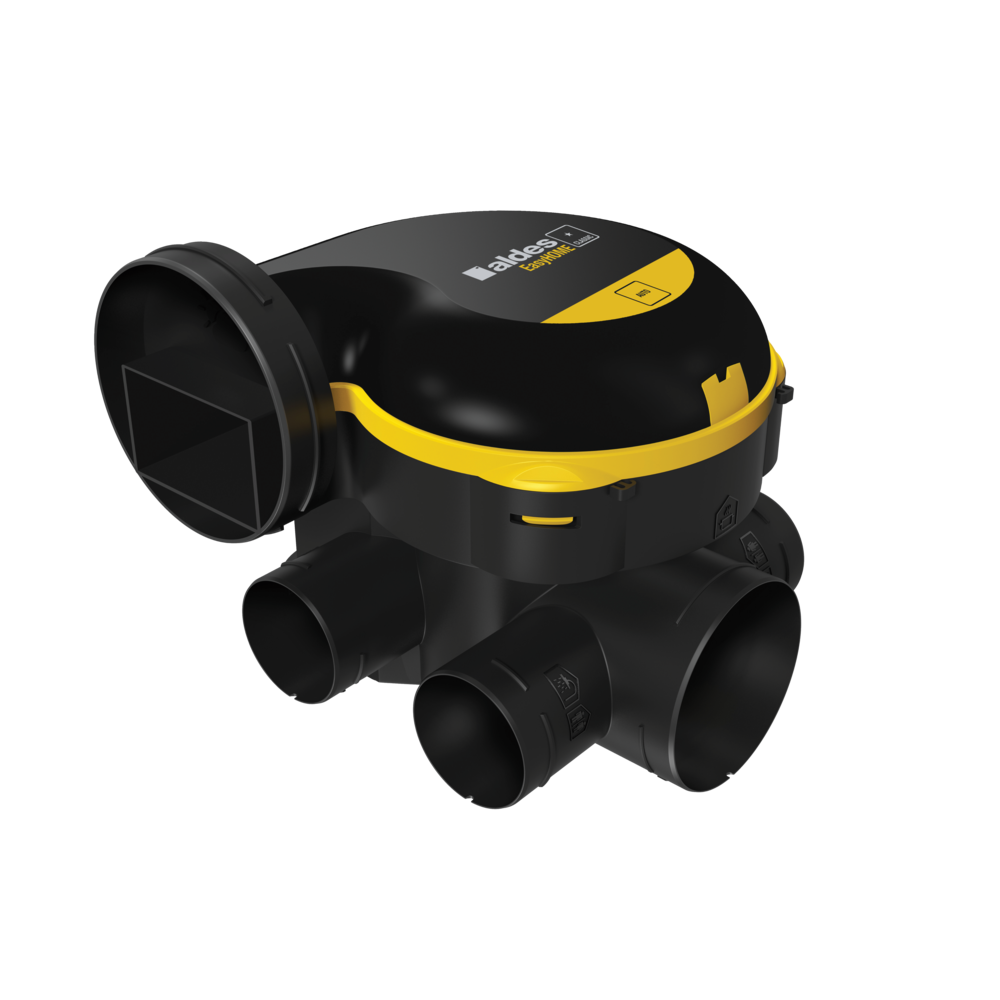

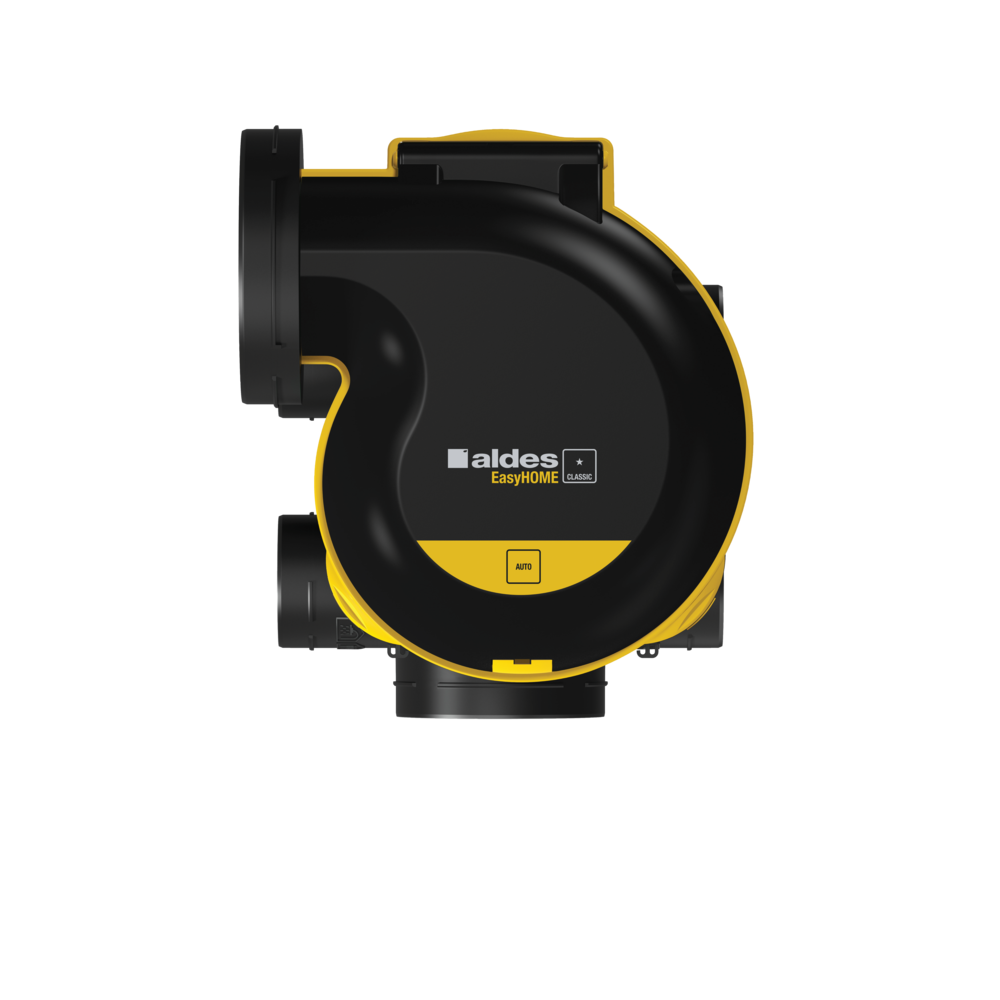

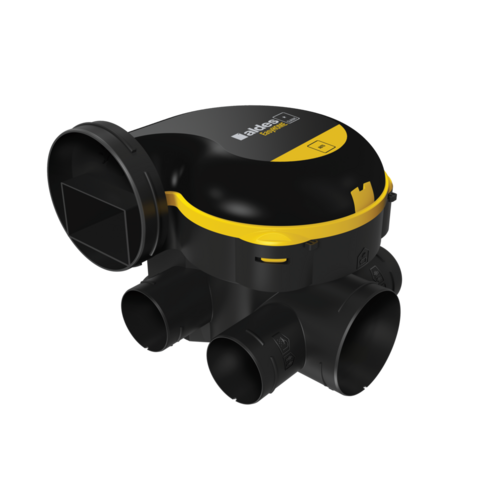

• ATTIC unit made of recyclable plastic,

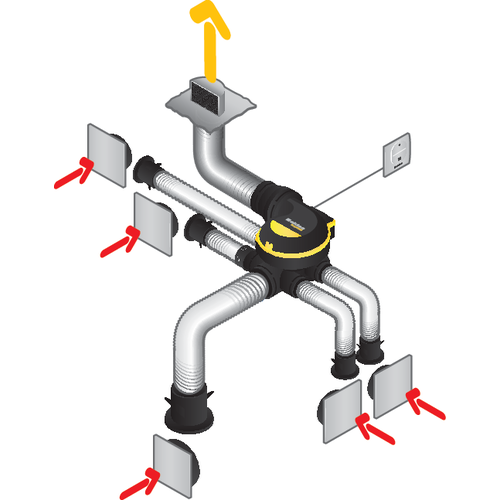

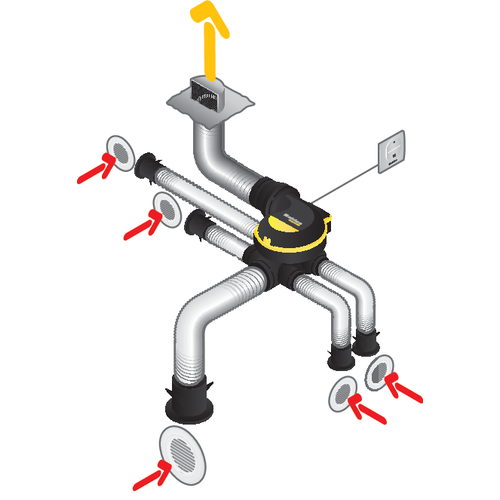

• connections on unit for 1 kitchen and up to 4 bathrooms/WC:
  • 1 x Ø 125 mm connection for kitchen,
  • 4 x Ø 80 mm connections for bathroom/WC,
  • 1 x Ø 160/125 mm outlet using adapter supplied.
• exhaust airflow automatically controlled at each connection via the kitchen auto amplifier and bathroom/WC controllers,
• installation symbols on the unit and accessories,
• 2 operating modes: AUTO mode and kitchen BOOST mode,
• 2-speed AC motor,

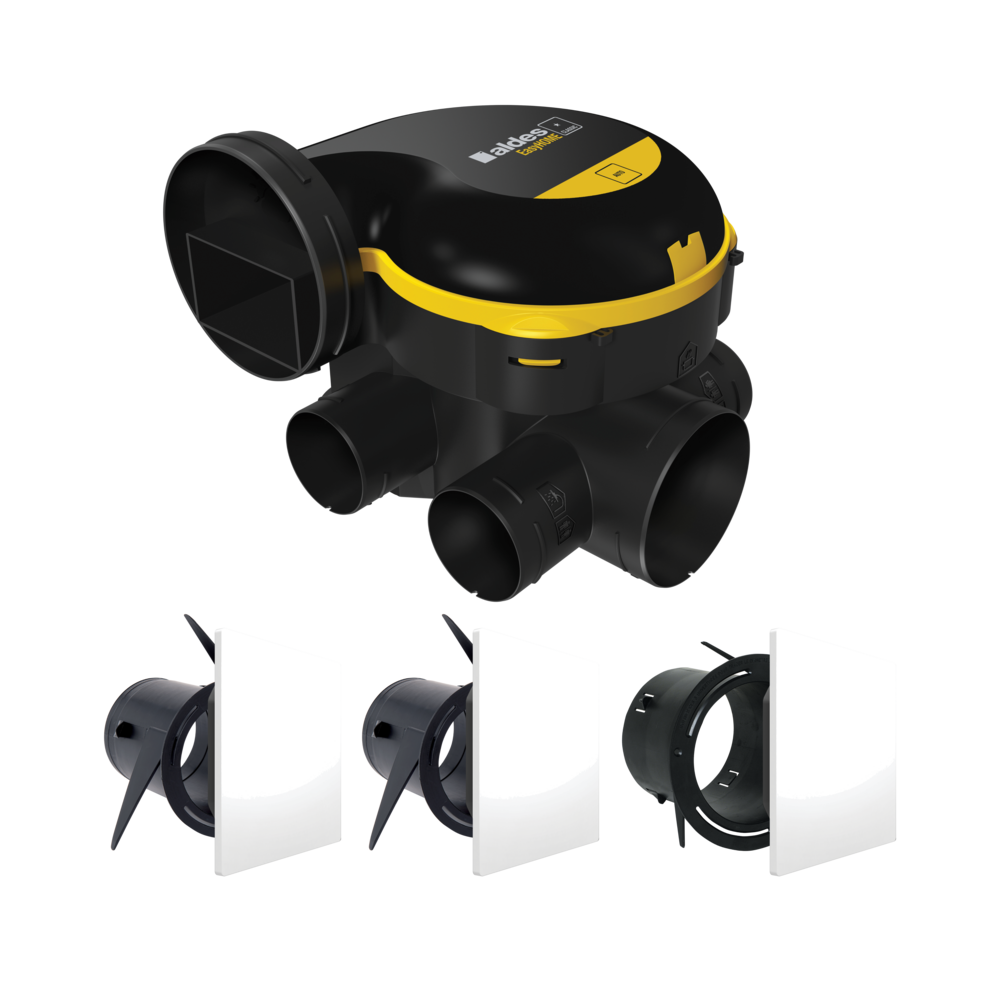

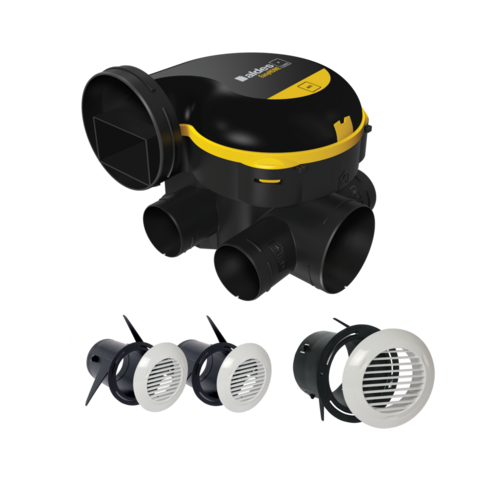

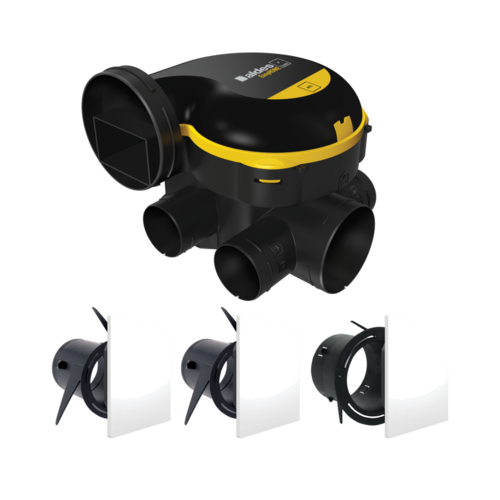

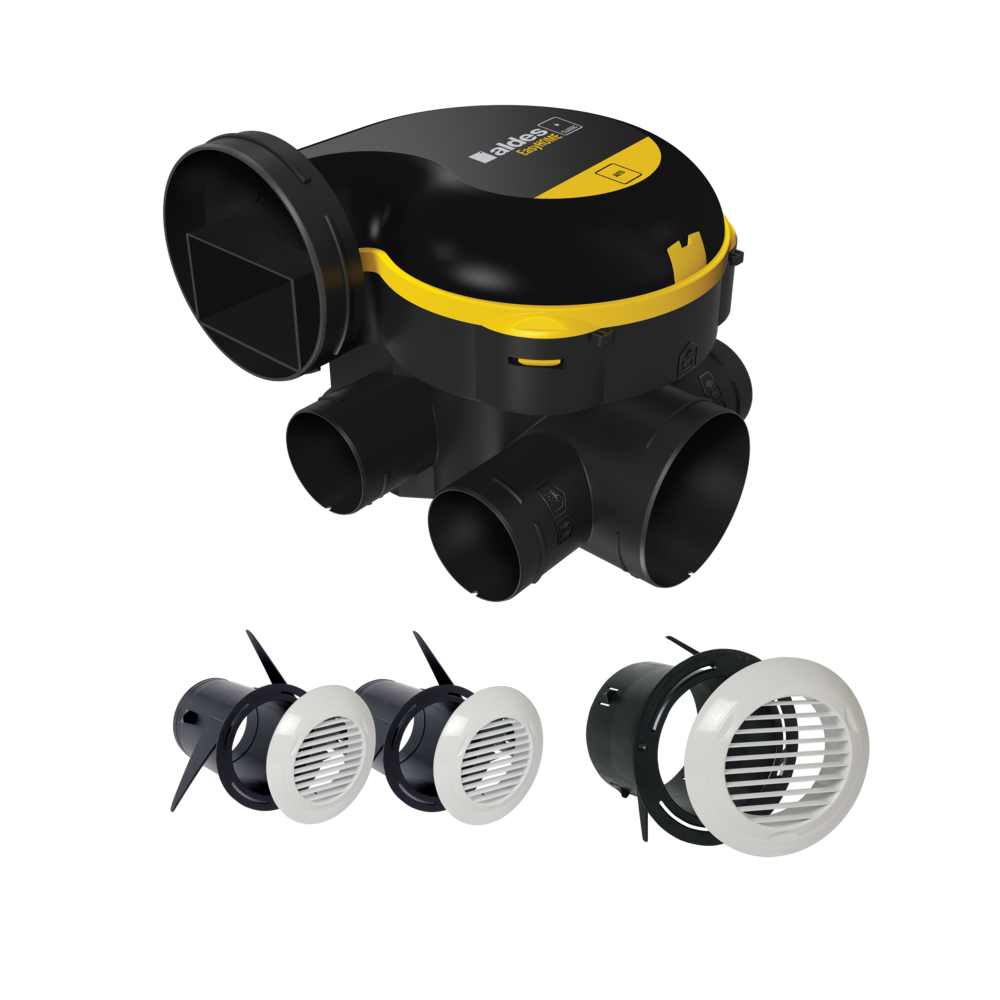

• kits supplied with 3 ColorLINE® ventilation grilles or 3 BIP grilles.

• AUTO mode:
  • day-to-day operation mode,
  • low ventilation speed,
  • air renewal suited to each room ventilated.
• BOOST kitchen mode:
  • high speed kitchen ventilation,
  • manual activation using a CMEV inverter (not supplied),
  • fast elimination of humidity and odours at meal times.

• suspended attachment in attic with cord supplied,
• can be mounted on a vertical wall using the optional wall mounting kit: centreline pitch 95 mm,
• quick-connect electrical terminal block,
• flexible ducts connected directly to the unit,
• optional EasyCLIP Algaine accessories available.
