MONO
Grille
MONO
Grille

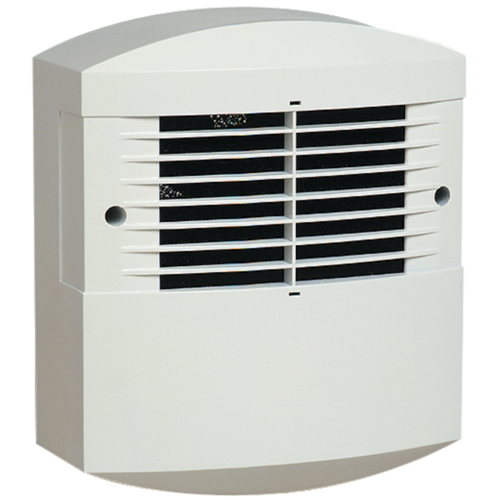

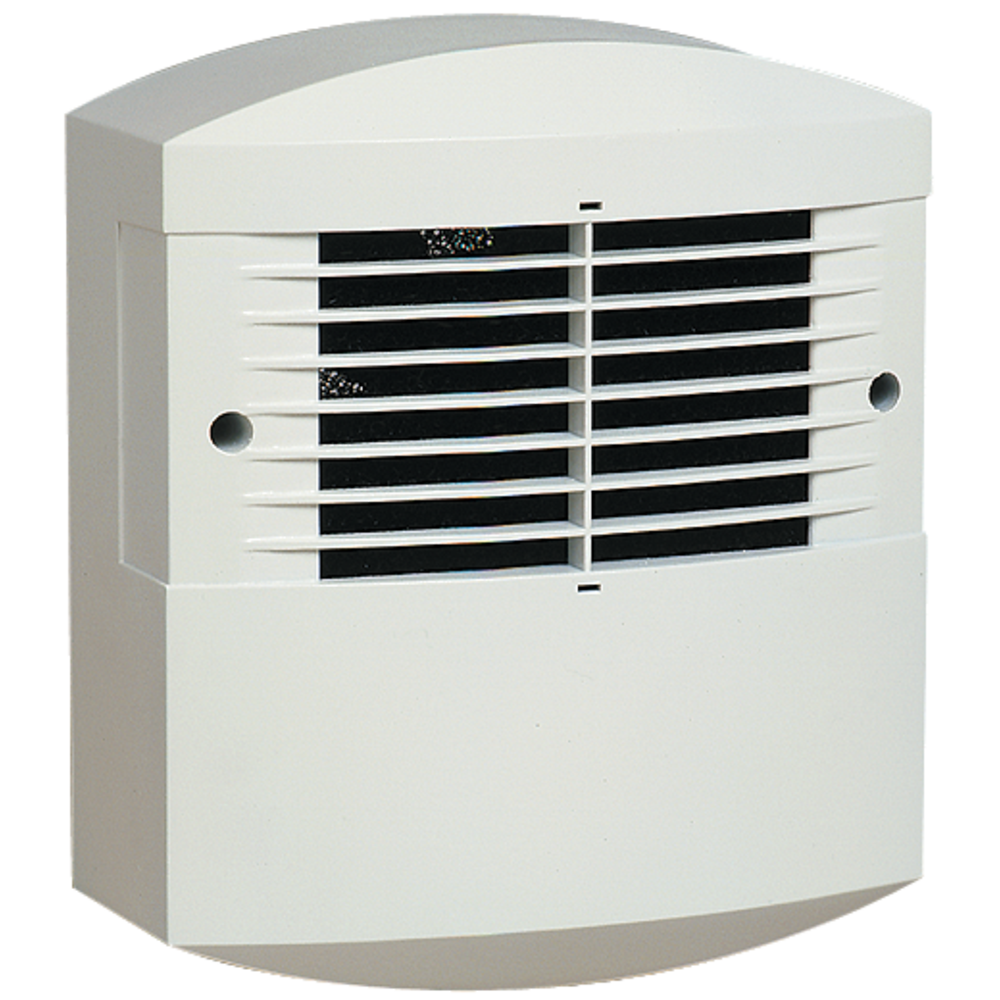

MONO is a continuous extractor that renews the air in a room 24/7: it offers 3 airflow settings and manual boost mode.
MONO
MONO is a continuous extractor which can output air through long duct runs, enabling efficient, constant ventilation in a kitchen, bathroom, WC or utility room.
MONO offers a choice of 3 airflow settings: 15, 30 or 45 m3/h and manual boost connected to a CMEV inverter.
MONO offers a choice of 3 airflow settings: 15, 30 or 45 m3/h and manual boost connected to a CMEV inverter.
The + products
- 3 airflow settings and manual boost,
- acoustic comfort,
- outlet possible via long duct run.
- 24-hr ventilation of single room,
- peak airflow possible,
- low consumption.
MONO ventilates a room continuously and its aeraulic performance enables allows long outlet duct runs. The exhaust airflow can be set at 15, 30 or 45 m3/h and manual boost mode is possible by connecting a CMEV inverter.
- plastic material,
- Ø 100 mm outlet,
- EC low-consumption motor on ball bearings with thermal protection,
- patented electronic airflow control system,
- silent blocks for high acoustic comfort,
- filter installed behind the grille to protect the motor against clogging,
- removable terminal block.
- wall attachment with 4 screws,
- installation in any position directly in ventilated room,
- airflow settings: 15, 30 or 45 m3/h, by calibrating grille air passage (shutters included),
- suited to ducted outlet: up to 20 m depending on airflow,
- manual boost possible by connected CMEV inverter,
- fresh air supplied to living spaces via self-balanced air inlets.
- Text ErP - Ventilation : Complies with eco-design Regulation 1253/2014 and excluded from energy labelling Regulation 1254/2014 as maximum power is below 30 W.
