References	Type of motor
11034060
11034062
11034063
11034064
11034065
11034031 - EasyVEC® Standard 4000 IP VAR STR CIRC	AC
11034032 - EasyVEC® Standard 4000 IP VAR STR CIRC Insulated	AC
11034033 - EasyVEC® Standard 4000 IP VAR STR CIRC DP	AC
11034034 - EasyVEC® Standard 4000 VAR IP STR CIRC DP Insulated	AC
11034036 - EasyVEC® Std 5000 IP VAR STR CIRC	AC
11034037 - EasyVEC® Standard 5000 IP VAR STR CIRC Insulated	AC
11034038 - EasyVEC® Standard 5000 IP VAR STR CIRC DP	AC
11034039 - EasyVEC® Standard 5000 IP VAR STR CIRC DP Insulated	AC
11034041 - EasyVEC® Standard 6500 IP VAR STR CIRC	AC
11034042 - EasyVEC® Standard 6500 IP VAR STR CIRC Insulated	AC
11034043 - EasyVEC® Standard 6500 IP VAR STR CIRC DP	AC
11034044 - EasyVEC® Standard 6500 IP VAR STR CIRC DP Insulated	AC
11034046 - EasyVEC® Standard 8000 IP VAR STR CIRC	AC
11034047 - EasyVEC® Standard 8000 IP VAR STR CIRC Insulated	AC
11034048 - EasyVEC® Standard 8000 IP VAR STR CIRC DP	AC
11034049 - EasyVEC® Standard 8000 IP VAR STR CIRC DP Insulated	AC
11034051 - EasyVEC® Standard 10000 IP VAR STR CIRC	AC
11034052 - EasyVEC® Standard 10000 IP VAR STR CIRC Insulated	AC
11034053 - EasyVEC® Standard 10000 IP VAR STR CIRC DP	AC
11034054 - EasyVEC® Standard 10000 IP VAR STR CIRC DP Insulated	AC
11034056 - EasyVEC® Standard 12000 IP VAR STR CIRC	AC
11034057 - EasyVEC® Standard 12000 IP VAR STR CIRC Insulated	AC
11034058 - EasyVEC® Standard 12000 IP VAR STR CIRC DP	AC
11034059 - EasyVEC® Standard 12000 IP VAR STR CIRC DP Insulated	AC

References	Airflow (m³/h)
11034060	4000
11034062	6500
11034063	8000
11034064	10000
11034065	12000
11034031 - EasyVEC® Standard 4000 IP VAR STR CIRC	4000
11034032 - EasyVEC® Standard 4000 IP VAR STR CIRC Insulated	4000
11034033 - EasyVEC® Standard 4000 IP VAR STR CIRC DP	4000
11034034 - EasyVEC® Standard 4000 VAR IP STR CIRC DP Insulated	4000
11034036 - EasyVEC® Std 5000 IP VAR STR CIRC	5000
11034037 - EasyVEC® Standard 5000 IP VAR STR CIRC Insulated	5000
11034038 - EasyVEC® Standard 5000 IP VAR STR CIRC DP	5000
11034039 - EasyVEC® Standard 5000 IP VAR STR CIRC DP Insulated	5000
11034041 - EasyVEC® Standard 6500 IP VAR STR CIRC	6500
11034042 - EasyVEC® Standard 6500 IP VAR STR CIRC Insulated	6500
11034043 - EasyVEC® Standard 6500 IP VAR STR CIRC DP	6500
11034044 - EasyVEC® Standard 6500 IP VAR STR CIRC DP Insulated	6500
11034046 - EasyVEC® Standard 8000 IP VAR STR CIRC	8000
11034047 - EasyVEC® Standard 8000 IP VAR STR CIRC Insulated	8000
11034048 - EasyVEC® Standard 8000 IP VAR STR CIRC DP	8000
11034049 - EasyVEC® Standard 8000 IP VAR STR CIRC DP Insulated	8000
11034051 - EasyVEC® Standard 10000 IP VAR STR CIRC	10000
11034052 - EasyVEC® Standard 10000 IP VAR STR CIRC Insulated	10000
11034053 - EasyVEC® Standard 10000 IP VAR STR CIRC DP	10000
11034054 - EasyVEC® Standard 10000 IP VAR STR CIRC DP Insulated	10000
11034056 - EasyVEC® Standard 12000 IP VAR STR CIRC	12000
11034057 - EasyVEC® Standard 12000 IP VAR STR CIRC Insulated	12000
11034058 - EasyVEC® Standard 12000 IP VAR STR CIRC DP	12000
11034059 - EasyVEC® Standard 12000 IP VAR STR CIRC DP Insulated	12000

References	Voltage (V)	Frequency (Hz)	Maximum power (W)	Max. power	Protection rating	Max. current (A)	Maximum current (A)	Power supply
11034060	3x400			0,5	IP24	1,27		Three-phase
11034062	3x400	50		1,1	IP24	2,4		Three-phase
11034063	3x400	50		1,2	IP24	3,26		Three-phase
11034064	3x400	50		2,2	IP24	4,64		Three-phase
11034065	3x400			3	IP24	6,17		Three-phase
11034031 - EasyVEC® Standard 4000 IP VAR STR CIRC			720	720	IP24		5.2	Single-phase
11034032 - EasyVEC® Standard 4000 IP VAR STR CIRC Insulated			720	720	IP24		5.2	Single-phase
11034033 - EasyVEC® Standard 4000 IP VAR STR CIRC DP			720	720	IP24		5.2	Single-phase
11034034 - EasyVEC® Standard 4000 VAR IP STR CIRC DP Insulated			720	720	IP24		5.2	Single-phase
11034036 - EasyVEC® Std 5000 IP VAR STR CIRC			1100	1100	IP24		7,1	Single-phase
11034037 - EasyVEC® Standard 5000 IP VAR STR CIRC Insulated			1100	1100	IP24		7,1	Single-phase
11034038 - EasyVEC® Standard 5000 IP VAR STR CIRC DP			1100	1100	IP24		7,1	Single-phase
11034039 - EasyVEC® Standard 5000 IP VAR STR CIRC DP Insulated			1100	1100	IP24		7,1	Single-phase
11034041 - EasyVEC® Standard 6500 IP VAR STR CIRC			1255	1255	IP24		8,2	Single-phase
11034042 - EasyVEC® Standard 6500 IP VAR STR CIRC Insulated			1255	1255	IP24		8,2	Single-phase
11034043 - EasyVEC® Standard 6500 IP VAR STR CIRC DP			1255	1255	IP24		8,2	Single-phase
11034044 - EasyVEC® Standard 6500 IP VAR STR CIRC DP Insulated			1255	1255	IP24		8,2	Single-phase
11034046 - EasyVEC® Standard 8000 IP VAR STR CIRC			1750	1750	IP24		11	Single-phase
11034047 - EasyVEC® Standard 8000 IP VAR STR CIRC Insulated			1750	1750	IP24		11	Single-phase
11034048 - EasyVEC® Standard 8000 IP VAR STR CIRC DP			1750	1750	IP24		11	Single-phase
11034049 - EasyVEC® Standard 8000 IP VAR STR CIRC DP Insulated			1750	1750	IP24		11	Single-phase
11034051 - EasyVEC® Standard 10000 IP VAR STR CIRC			2050	2050	IP24		13,2	Single-phase
11034052 - EasyVEC® Standard 10000 IP VAR STR CIRC Insulated			2050	2050	IP24		13,2	Single-phase
11034053 - EasyVEC® Standard 10000 IP VAR STR CIRC DP			2050	2050	IP24		13,2	Single-phase
11034054 - EasyVEC® Standard 10000 IP VAR STR CIRC DP Insulated			2050	2050	IP24		13,2	Single-phase
11034056 - EasyVEC® Standard 12000 IP VAR STR CIRC			3200	3200	IP24		22,1	Single-phase
11034057 - EasyVEC® Standard 12000 IP VAR STR CIRC Insulated			3200	3200	IP24		22,1	Single-phase
11034058 - EasyVEC® Standard 12000 IP VAR STR CIRC DP			3200	3200	IP24		22,1	Single-phase
11034059 - EasyVEC® Standard 12000 IP VAR STR CIRC DP Insulated			3200	3200	IP24		22,1	Single-phase

References	E (mm)	EA1 (mm)	EA2 (mm)	ER1 (mm)	F (mm)	H (mm)	HP (mm)	HT (mm)	L (mm)	LT (mm)	M (mm)	P (mm)	S (mm)	T (mm)	Y (mm)	Z (mm)	Ø (mm)	Weight (kg)
11034060	450				910	665			690		60	700		740	720	115	500
11034062	500				975	760			790		60	765		835	815	115	630
11034063	500				975	760			790		60	765		835	815	115	630
11034064	575				1155	905			910		60	945		960	940	115	710
11034065	575				1155	905			910		60	945		960	940	115	710
11034031 - EasyVEC® Standard 4000 IP VAR STR CIRC	450				910	665			690		60	700		740	720	115	500	64
11034032 - EasyVEC® Standard 4000 IP VAR STR CIRC Insulated	450				910	665			690		60	700		740	720	115	500	64
11034033 - EasyVEC® Standard 4000 IP VAR STR CIRC DP	450				910	665			690		60	700		740	720	115	500	64
11034034 - EasyVEC® Standard 4000 VAR IP STR CIRC DP Insulated	450				910	665			690		60	700		740	720	115	500	64
11034036 - EasyVEC® Std 5000 IP VAR STR CIRC	500				975	760			790		60	765		835	815	115	630	83
11034037 - EasyVEC® Standard 5000 IP VAR STR CIRC Insulated	500				975	760			790		60	765		835	815	115	630	83
11034038 - EasyVEC® Standard 5000 IP VAR STR CIRC DP	500				975	760			790		60	765		835	815	115	630	83
11034039 - EasyVEC® Standard 5000 IP VAR STR CIRC DP Insulated	500				975	760			790		60	765		835	815	115	630	83
11034041 - EasyVEC® Standard 6500 IP VAR STR CIRC	500				975	760			790		60	765		835	815	115	630	90
11034042 - EasyVEC® Standard 6500 IP VAR STR CIRC Insulated	500				975	760			790		60	765		835	815	115	630	90
11034043 - EasyVEC® Standard 6500 IP VAR STR CIRC DP	500				975	760			790		60	765		835	815	115	630	90
11034044 - EasyVEC® Standard 6500 IP VAR STR CIRC DP Insulated	500				975	760			790		60	765		835	815	115	630	90
11034046 - EasyVEC® Standard 8000 IP VAR STR CIRC	500				975	760			790		60	765		835	815	115	630	98
11034047 - EasyVEC® Standard 8000 IP VAR STR CIRC Insulated	500				975	760			790		60	765		835	815	115	630	98
11034048 - EasyVEC® Standard 8000 IP VAR STR CIRC DP	500				975	760			790		60	765		835	815	115	630	98
11034049 - EasyVEC® Standard 8000 IP VAR STR CIRC DP Insulated	500				975	760			790		60	765		835	815	115	630	98
11034051 - EasyVEC® Standard 10000 IP VAR STR CIRC	575				1155	905			910		60	945		960	940	115	710	160
11034052 - EasyVEC® Standard 10000 IP VAR STR CIRC Insulated	575				1155	905			910		60	945		960	940	115	710	160
11034053 - EasyVEC® Standard 10000 IP VAR STR CIRC DP	575				1155	905			910		60	945		960	940	115	710	160
11034054 - EasyVEC® Standard 10000 IP VAR STR CIRC DP Insulated	575				1155	905			910		60	945		960	940	115	710	160
11034056 - EasyVEC® Standard 12000 IP VAR STR CIRC		552	394	522		1015	118	1183	1138	1005	50	1420	961		937	1392	710	202
11034057 - EasyVEC® Standard 12000 IP VAR STR CIRC Insulated		552	394	522		1015	118	1183	1138	1005	50	1420	961		937	1392	710	202
11034058 - EasyVEC® Standard 12000 IP VAR STR CIRC DP		552	394	522		1015	118	1183	1138	1005	50	1420	961		937	1392	710	202
11034059 - EasyVEC® Standard 12000 IP VAR STR CIRC DP Insulated		552	394	522		1015	118	1183	1138	1005	50	1420	961		937	1392	710	202

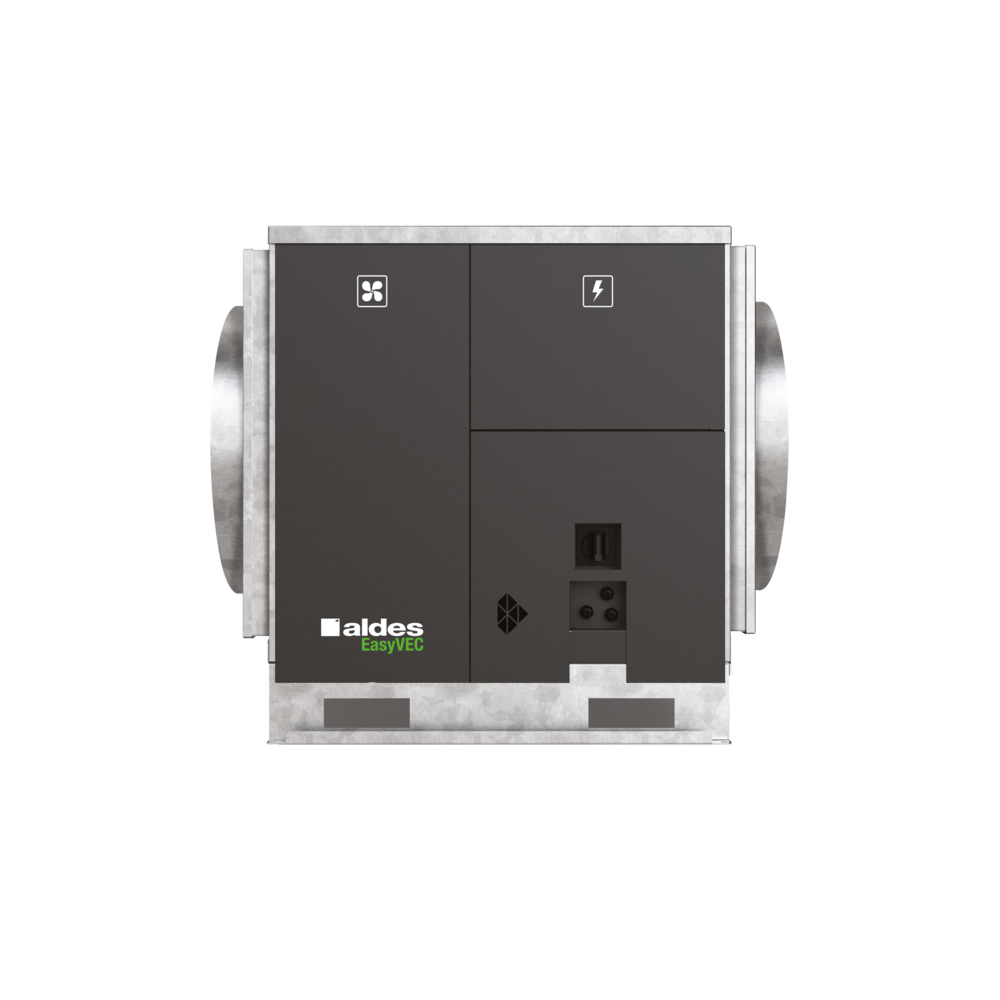

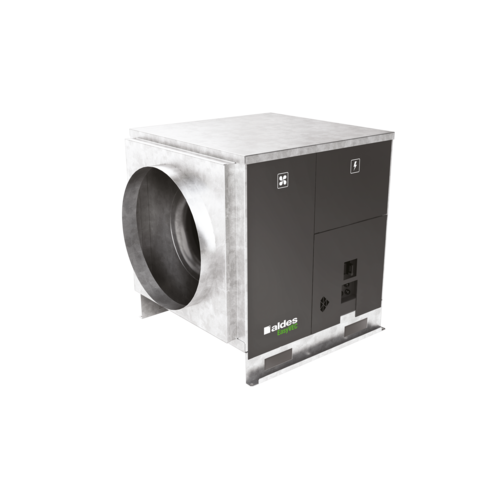

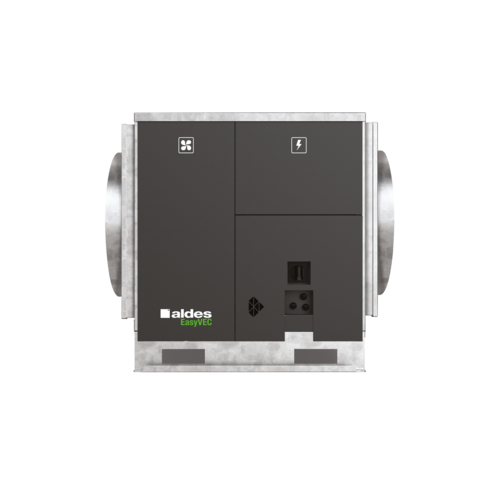

EasyVEC® Standard

Ventilation box fan
