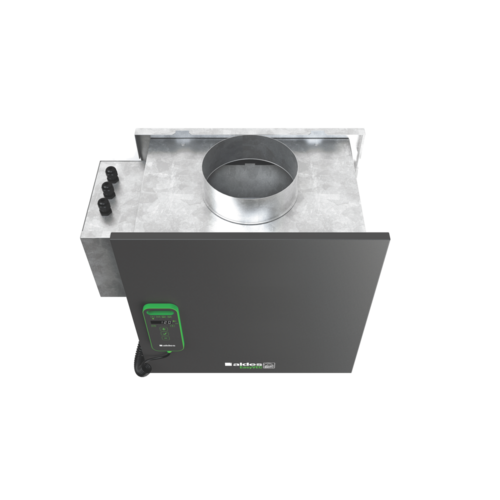

EasyVEC® Compact MICRO-WATT +

EasyVEC® Compact Micro-watt+ delivers exhaust ventilation in non-residential buildings via air exhaust or supply to ensure sufficient air quality and to preserve the building structure.

• Micro-watt+ control and patented Aldes Auto-Adaptive Technology™ software to adapt the pressure delivered by the unit to the actual needs of the system,
• 3 other additional control modes:
  • Micro-watt at constant pressure,
  • via external 0-10V probe (e.g. CO2 sensor),
  • constant airflow.
• EC motor with very low power consumption (50/60 Hz),
• backward curve impeller,
• unit made of galvanised steel Z275,
• simple and intuitive EasyVEC® remote control,

> proximity switch as standard,

• humidity-controlled or pre-configured T.Flow control mode
• compatible with all types of ductwork, even with junctions,
• central system: savings on maintenance,
• alarm relay available by wiring to the PCB,
• multiple options and accessories:
  • filter box,
  • ISO filter coarse 60%, ePM10 50%, ePM1 50-75%, ePM1 85%,
  • pressure switch,
  • ducted discharge,
  • 25 mm dual-wall acoustic insulation,
  • compatible with Modbus RS485,
  • AldesConnect® Pro.
• made in France.

• compatible with Technical Approval for Modulated Ventilation - Presence-Agito-CO2-Hygro no. 14.5/16-2185_V1,
• ErP 2018,
• ECS-eligible: BAT-TH-112, BAT-TH-125, BAT-EQ-123.

• installation:
  • indoor or outdoor,
  • installation in suspended ceiling, pack of 4 adjustable straps 100 mm - 400 mm available to attach box to ceiling or to a beam,
  • outdoors: for roof installation, preferably positioned out of the wind to limit pressure losses at the outlet.
• For better acoustic and aeraulic performances, we recommend that you:
  • install sound attenuators at the unit connections,
  • use the ALDES VIRTUO-FIX range of sealed accessories,
  • use MS PRO sealed flexible sleeves to muffle ductwork vibrations.
