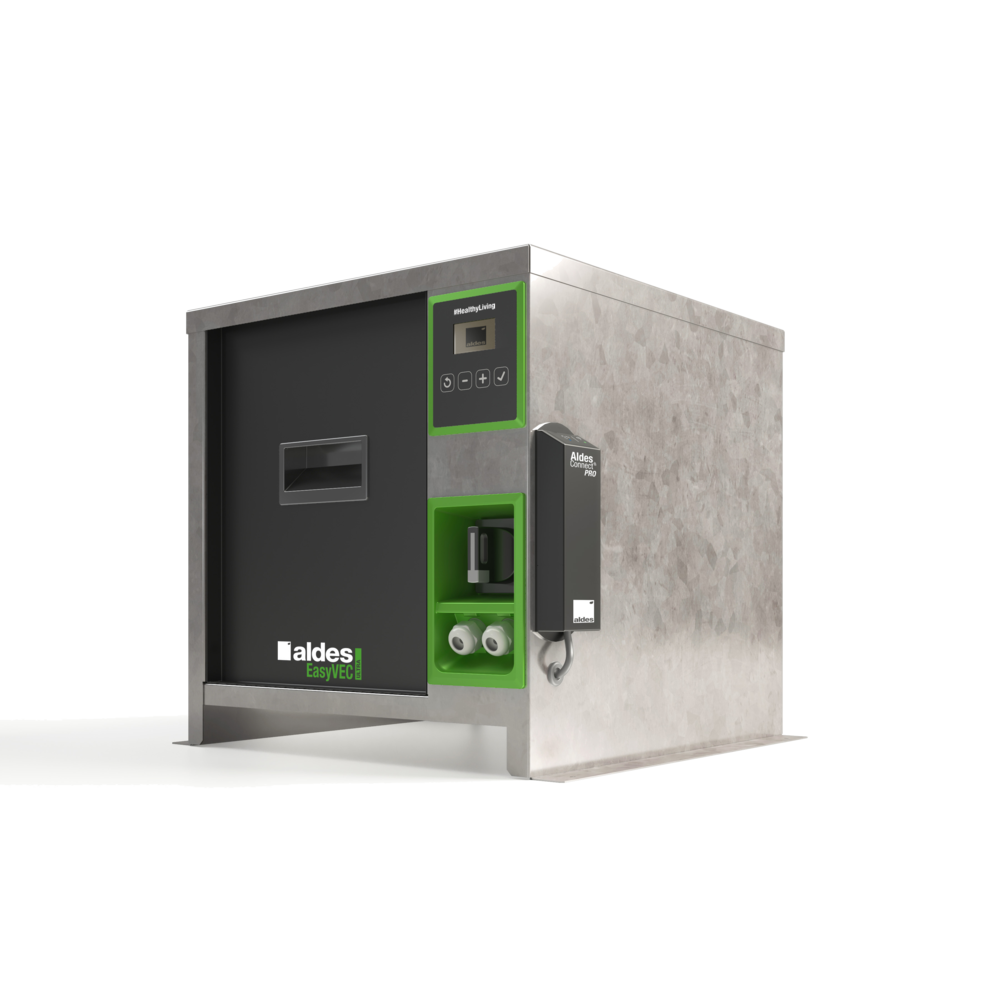

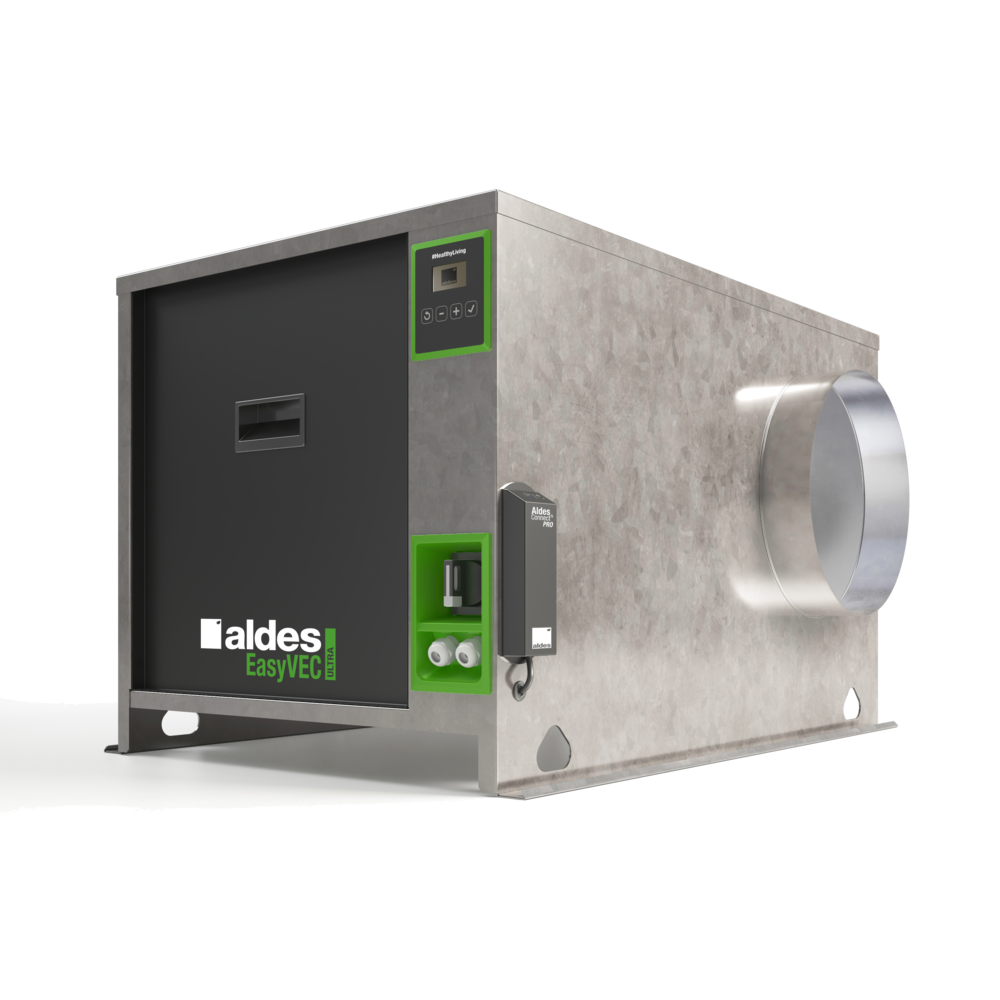

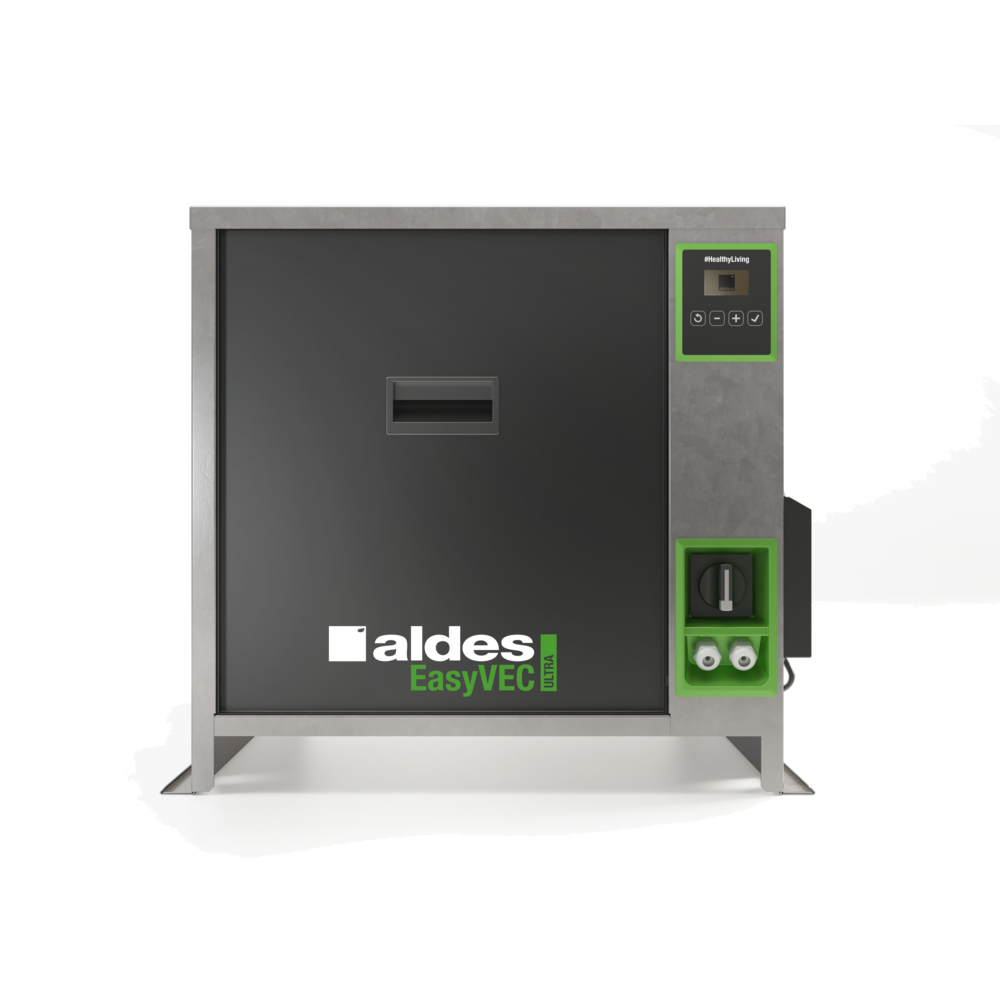

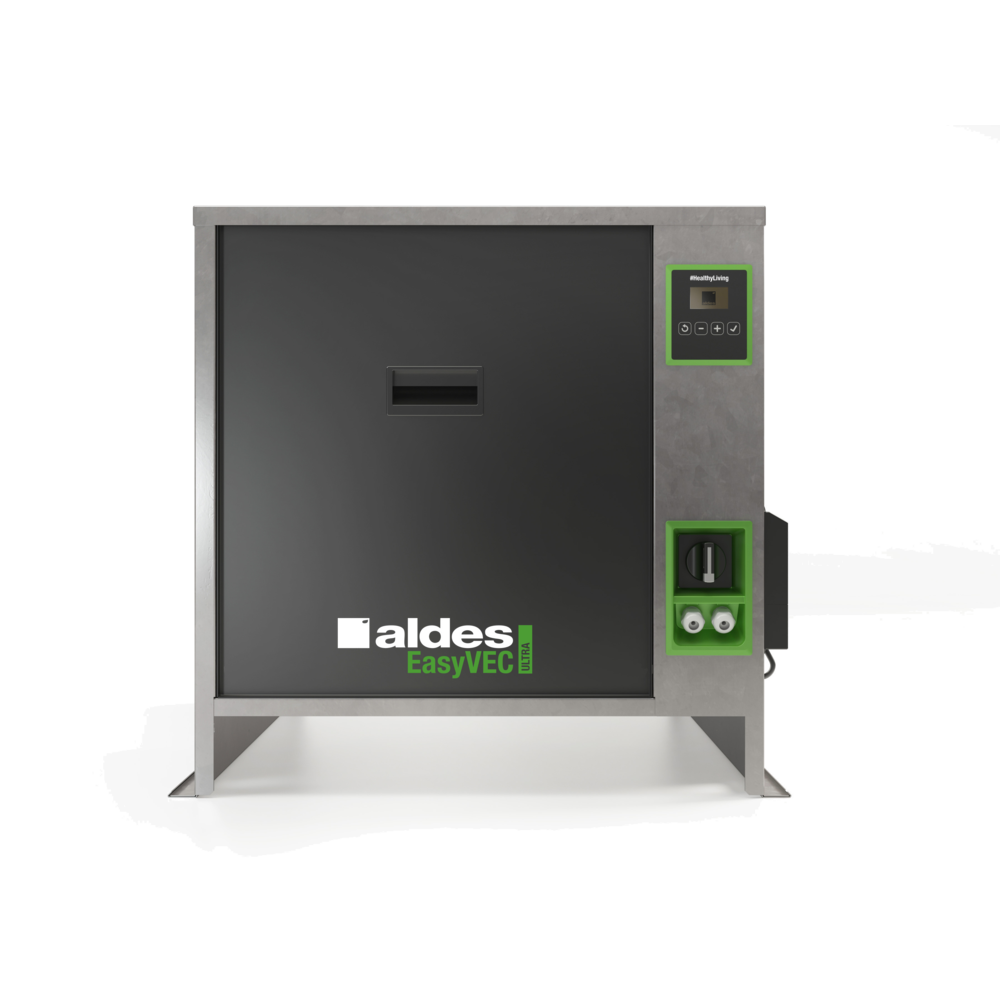

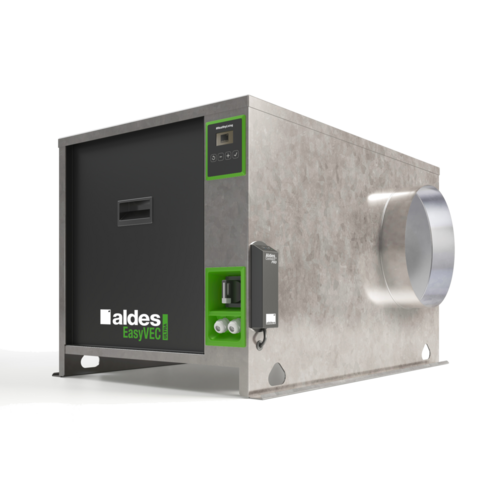

EasyVEC® C4 ULTRA 1000 to 4000

EasyVEC® C4 ventilates multi-occupancy residential buildings to ensure correct air quality in dwellings and preserve the building structure.

• Micro-watt+ control and patented Aldes Auto-Adaptive Technology™ software to adapt the pressure delivered by the unit to the actual needs of the system,
• 3 other additional control modes:
  • Micro-watt at constant pressure,
  • via external 0-10V probe (e.g. CO2 sensor),
• constant airflow,
  • constant speed.
• EC motor with very low power consumption (50/60 Hz),
• backward curve impeller,
• unit made of galvanised steel Z275,
• ergonomic and intuitive interface,

> proximity switch as standard,

• humidity-controlled or pre-configured T.Flow control mode
• compatible with all types of ductwork, even with junctions,
• central system: savings on maintenance,
• alarm relay available by wiring to the PCB,
• Modbus RS485 as standard.
• multiple options and accessories:
  • fixed pressure switch 80 Pa for GAS CMEV,
  • ducted discharge,
  • AldesConnect® Pro.
• made in France.

• certification C4 Ø160,
• compatible with "Bahia” humidity-controlled ventilation technical approval no. 14.5/17-2267,
• ESC-eligible: BAR-TH-127.

• installation:
  • on anti-vibration slab as per DTU 68.3 recommendations,,
  • indoor or outdoor location,
  • sufficient space must be left in front of the box fan to avoid obstructing the access panel and allow maintenance of internal components.
  • for roof installation, preferably positioned out of the wind to limit pressure losses at the outlet.
• For better acoustic and aeraulic performances, we recommend that you:
  • install sound attenuators at the unit connections,
  • use the ALDES VIRTUO-FIX range of sealed accessories,
  • use MS PRO sealed flexible sleeves to muffle ductwork vibrations.
