EasyVEC® C4 Standard 4000 to 12000
CO2 sensor
EasyVEC® C4 Standard 4000 to 12000
CO2 sensor
The best-designed range of exhaust box fans on the market, making ventilation efficient, serene, and easy.

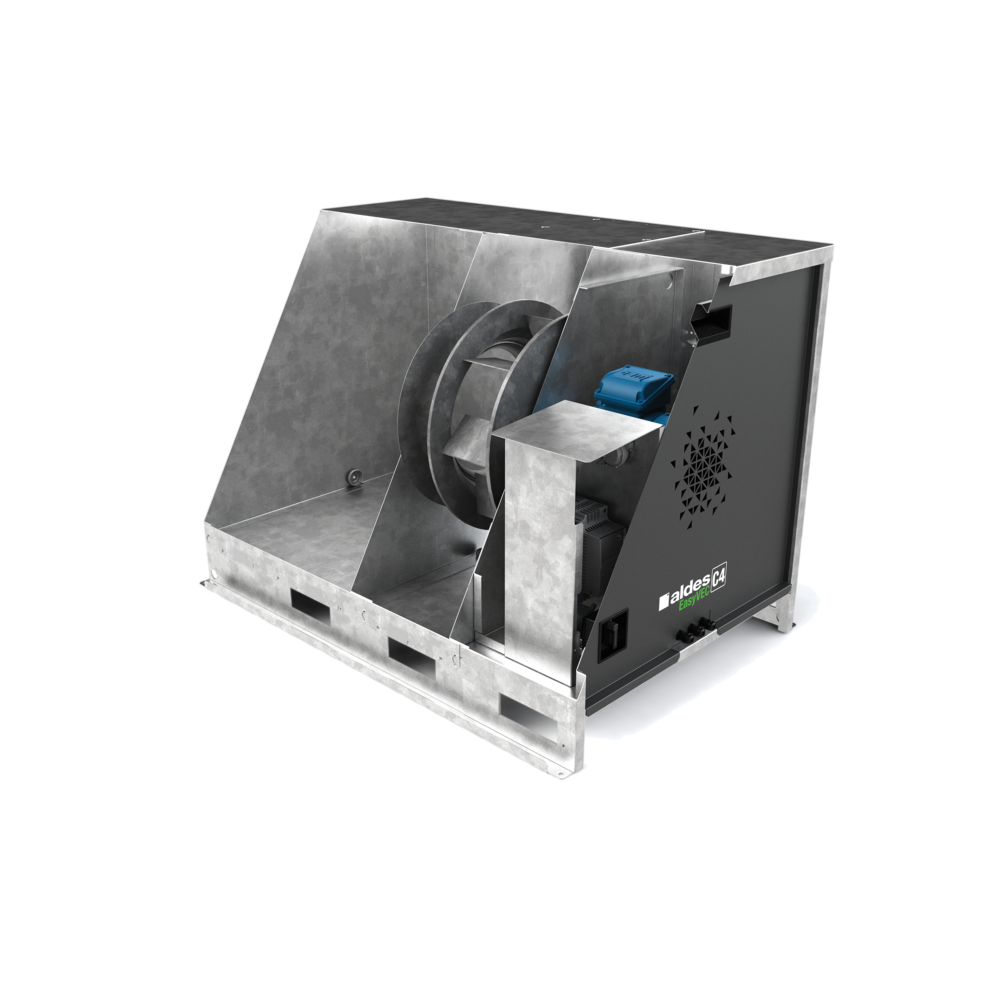

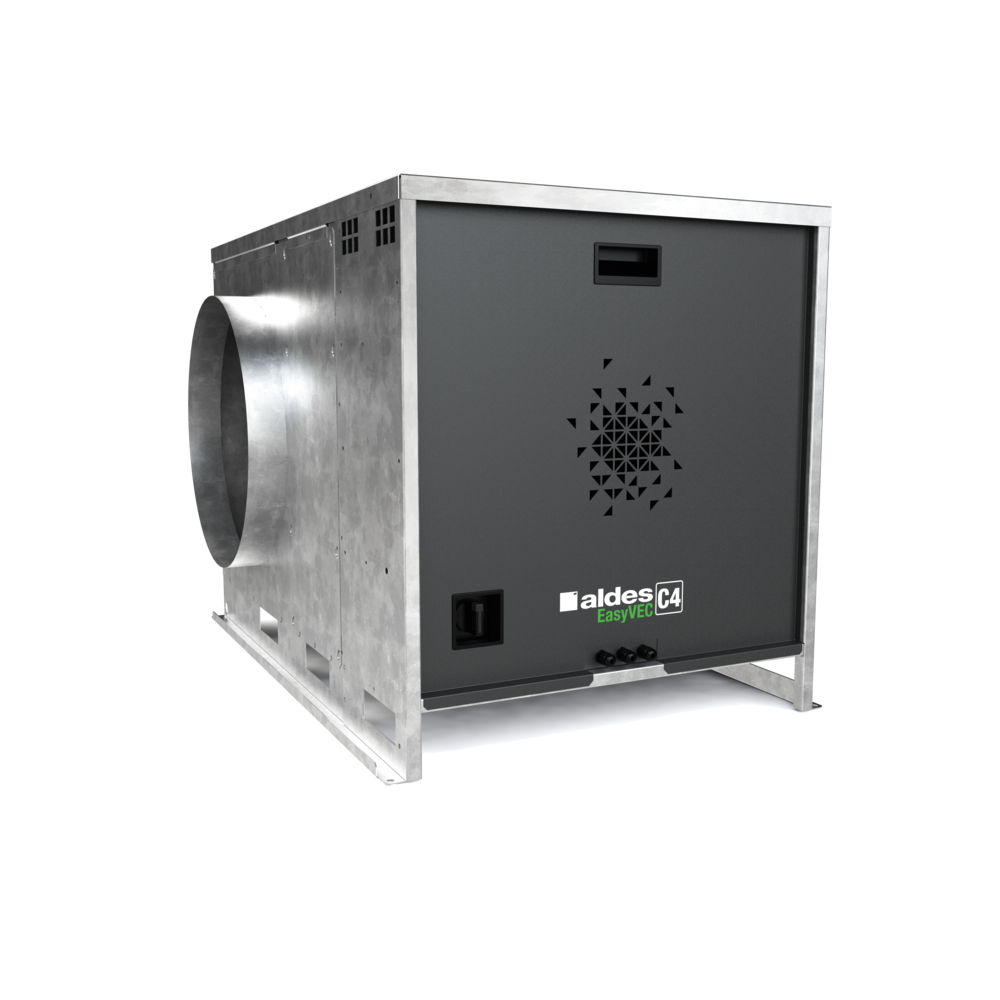

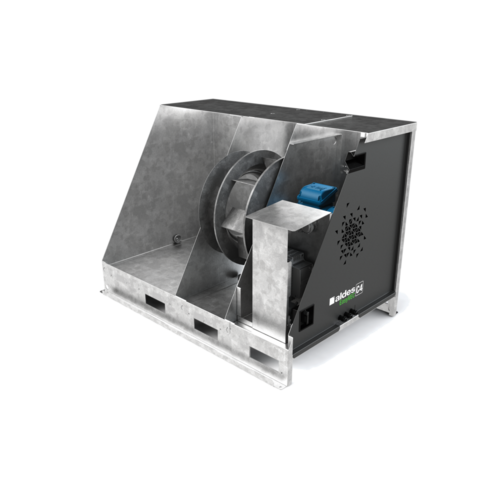

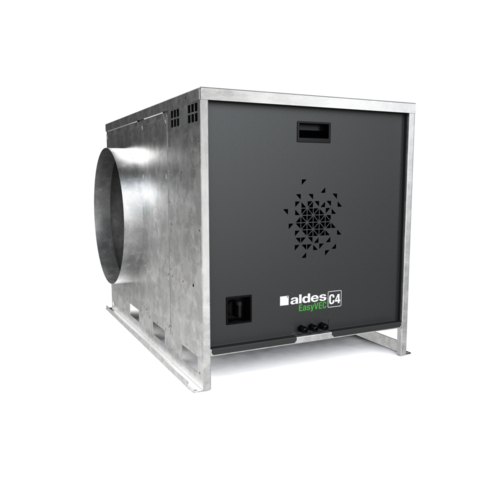

EasyVEC® C4 Standard 4000 to 12000
The EasyVEC® C4 Standard fan is suited to the refurbishment market with its wide range of airflow possibilities and its single-phase or 3-phase power supply.
The + products
- wide range from 300 to 12,000 m3/h,
- compatible to replace unit only,
- can be dismantled (4,000 m3/h and higher),
- 100% recyclable.
- easy to select: Selector poWair and Conceptor Ventilation design software.
- easy to control: adjustment using potentiometer (models ≥ 1,000 m3/h),
- easy to service: link to documentation via QR code, single access panel.
EasyVEC® C4 ventilates multi-occupancy residential buildings to ensure correct air quality in dwellings and preserve the building structure.
- AC motor (50/60 Hz),
- backward curve impeller,
- speed controller as standard to match power needs precisely,
- galvanised panels Z275,
- proximity switch as standard,
- compatible with all ducting types even with junctions,
- centralised system: savings on maintenance.
-
multiple options and accessories:
- configuration 1: inlet and outlet in line,
- 3-phase power supply 400 V 50 Hz,
- fixed 80 Pa pressure switch for gas CMEV,
- 25 mm rock wool double-skin insulation,
- ducted outlet.
- made in France.
- certification C4 Ø160,
- compatible with technical approval for “Bahia” humidity-controlled ventilation
No. 14.5/17-2267.
-
installation:
- on anti-vibration slab as per DTU 68.3 recommendations,,
- indoor or outdoor location,
- sufficient space must be left in front of the box fan to avoid obstructing the access panel and allow maintenance of internal components.
- for roof installation, preferably positioned out of the wind to limit pressure losses at the outlet.
-
for better acoustic and aeraulic performance, we recommend that you:
- install sound attenuators at the unit connections,
- use the ALDES VIRTUO-FIX range of sealed accessories,
- use MS PRO sealed flexible sleeves to muffle ductwork vibrations.

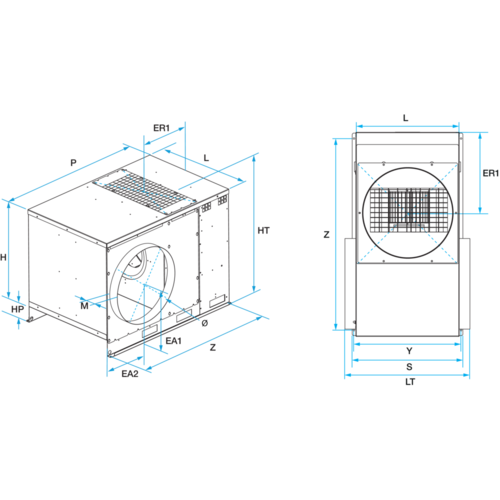

| Type of motor |
|---|
| AC |
| References | EA1 (mm) | EA2 (mm) | ER1 (mm) | H (mm) | HP (mm) | HT (mm) | L (mm) | LT (mm) | M (mm) | P (mm) | S (mm) | Y (mm) | Z (mm) | Ø (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11034730 - EasyVEC® C4 Standard 6500 IP | 485 |
353 |
496 |
760 |
115 |
923.5 |
785 |
882 |
48.5 |
1195 |
833 |
813 |
1164 |
630 |
110 |
| 11034732 - EasyVEC® C4 Standard 10000 IP | 552 |
394 |
522 |
1015 |
118 |
1183 |
908 |
1006 |
50 |
1420 |
961 |
937 |
1392 |
710 |
195 |
| 11034728 - EasyVEC® C4 Standard 4000 IP | 410 |
276 |
400 |
660 |
110 |
835 |
690 |
812 |
65 |
1070 |
743 |
718 |
1037 |
500 |
78 |
| 11034729 - EasyVEC® C4 Standard 5000 IP | 485 |
353 |
496 |
760 |
115 |
923.5 |
785 |
882 |
48.5 |
1195 |
833 |
813 |
1164 |
630 |
103 |
| 11034731 - EasyVEC® C4 Standard 8000 IP | 485 |
353 |
496 |
760 |
115 |
923.5 |
785 |
882 |
48.5 |
1195 |
833 |
813 |
1164 |
630 |
118 |
| 11034775 - EasyVEC® C4 Standard 4000 IP Pressure drop switch 3-Phase | 410 |
276 |
400 |
660 |
110 |
835 |
690 |
812 |
65 |
1070 |
743 |
718 |
1037 |
500 |
78 |
| 11034776 - EasyVEC® C4 Standard 5000 IP Pressure drop switch 3-Phase | 485 |
353 |
496 |
760 |
115 |
923,5 |
785 |
882 |
48,5 |
1195 |
833 |
813 |
1164 |
630 |
103 |
| 11034777 - EasyVEC® C4 Standard 6500 IP Pressure drop switch 3-Phase | 485 |
353 |
496 |
760 |
115 |
923,5 |
785 |
882 |
48,5 |
1195 |
833 |
813 |
1164 |
630 |
110 |
| 11034788 - EasyVEC® C4 Standard 4000 IP Pressure drop switch | 410 |
276 |
400 |
660 |
110 |
835 |
690 |
812 |
65 |
1070 |
743 |
718 |
1037 |
500 |
78 |
| 11034789 - EasyVEC® C4 Standard 5000 IP Pressure drop switch | 485 |
353 |
496 |
760 |
115 |
923.5 |
785 |
882 |
48.5 |
1195 |
833 |
813 |
1164 |
630 |
103 |
| 11034790 - EasyVEC® C4 Standard 6500 IP Pressure drop switch | 485 |
353 |
496 |
760 |
115 |
923.5 |
785 |
882 |
48.5 |
1195 |
833 |
813 |
1164 |
630 |
110 |
| 11034791 - EasyVEC® C4 Standard 8000 IP Pressure drop switch | 485 |
353 |
496 |
760 |
115 |
923.5 |
785 |
882 |
48.5 |
1195 |
833 |
813 |
1164 |
630 |
118 |
| 11034230 - EasyVEC® C4 Standard 8000 IP Pressure drop switch 3-Phase | 485 |
353 |
496 |
760 |
115 |
923.5 |
785 |
882 |
48.5 |
1195 |
833 |
813 |
1164 |
630 |
118 |
| 11034231 - EasyVEC® C4 Standard 10000 IP Pressure drop switch 3-Phase | 552 |
394 |
522 |
1015 |
118 |
1183 |
908 |
1006 |
50 |
1420 |
961 |
937 |
1392 |
710 |
195 |
| 11034232 - EasyVEC® C4 Standard 10000 IP Pressure drop switch 3-Phase | 552 |
394 |
522 |
1015 |
118 |
1183 |
908 |
1006 |
50 |
1420 |
961 |
937 |
1392 |
710 |
195 |
| 11034233 - EasyVEC® C4 Standard 12000 IP Pressure drop switch 3-Phase | 552 |
394 |
522 |
1015 |
118 |
1183 |
908 |
1006 |
50 |
1420 |
961 |
937 |
1392 |
710 |
202 |
| 11034234 - EasyVEC® C4 Standard 12000 IP Pressure drop switch 3-Phase | 552 |
394 |
522 |
1015 |
118 |
1183 |
908 |
1006 |
50 |
1420 |
961 |
937 |
1392 |
710 |
202 |
| References | Airflow (m³/h) |
|---|---|
| 11034730 - EasyVEC® C4 Standard 6500 IP | 6500 |
| 11034732 - EasyVEC® C4 Standard 10000 IP | 10000 |
| 11034728 - EasyVEC® C4 Standard 4000 IP | 4000 |
| 11034729 - EasyVEC® C4 Standard 5000 IP | 5000 |
| 11034731 - EasyVEC® C4 Standard 8000 IP | 8000 |
| 11034775 - EasyVEC® C4 Standard 4000 IP Pressure drop switch 3-Phase | 4000 |
| 11034776 - EasyVEC® C4 Standard 5000 IP Pressure drop switch 3-Phase | 5000 |
| 11034777 - EasyVEC® C4 Standard 6500 IP Pressure drop switch 3-Phase | 6500 |
| 11034788 - EasyVEC® C4 Standard 4000 IP Pressure drop switch | 4000 |
| 11034789 - EasyVEC® C4 Standard 5000 IP Pressure drop switch | 5000 |
| 11034790 - EasyVEC® C4 Standard 6500 IP Pressure drop switch | 6500 |
| 11034791 - EasyVEC® C4 Standard 8000 IP Pressure drop switch | 8000 |
| 11034230 - EasyVEC® C4 Standard 8000 IP Pressure drop switch 3-Phase | 8000 |
| 11034231 - EasyVEC® C4 Standard 10000 IP Pressure drop switch 3-Phase | 10000 |
| 11034232 - EasyVEC® C4 Standard 10000 IP Pressure drop switch 3-Phase | 10000 |
| 11034233 - EasyVEC® C4 Standard 12000 IP Pressure drop switch 3-Phase | 12000 |
| 11034234 - EasyVEC® C4 Standard 12000 IP Pressure drop switch 3-Phase | 12000 |
| References | Maximum power (W) | Max. power | Protection rating | Maximum current (A) | Power supply |
|---|---|---|---|---|---|
| 11034730 - EasyVEC® C4 Standard 6500 IP | 1255 |
1255 |
IP24 |
8,2 |
Single-phase |
| 11034732 - EasyVEC® C4 Standard 10000 IP | 2050 |
2050 |
IP24 |
13,2 |
Single-phase |
| 11034728 - EasyVEC® C4 Standard 4000 IP | 720 |
720 |
IP24 |
5,2 |
Single-phase |
| 11034729 - EasyVEC® C4 Standard 5000 IP | 1100 |
1100 |
IP24 |
7,1 |
Single-phase |
| 11034731 - EasyVEC® C4 Standard 8000 IP | 1750 |
1750 |
IP24 |
11 |
Single-phase |
| 11034775 - EasyVEC® C4 Standard 4000 IP Pressure drop switch 3-Phase | 720 |
720 |
IP24 |
5,2 |
Three-phase |
| 11034776 - EasyVEC® C4 Standard 5000 IP Pressure drop switch 3-Phase | 1100 |
1100 |
IP24 |
7,1 |
Three-phase |
| 11034777 - EasyVEC® C4 Standard 6500 IP Pressure drop switch 3-Phase | 1255 |
1255 |
IP24 |
8,2 |
Three-phase |
| 11034788 - EasyVEC® C4 Standard 4000 IP Pressure drop switch | 720 |
720 |
IP24 |
5,2 |
Single-phase |
| 11034789 - EasyVEC® C4 Standard 5000 IP Pressure drop switch | 1100 |
1100 |
IP24 |
7,1 |
Single-phase |
| 11034790 - EasyVEC® C4 Standard 6500 IP Pressure drop switch | 1255 |
1255 |
IP24 |
8,2 |
Single-phase |
| 11034791 - EasyVEC® C4 Standard 8000 IP Pressure drop switch | 1750 |
1750 |
IP24 |
11 |
Single-phase |
| 11034230 - EasyVEC® C4 Standard 8000 IP Pressure drop switch 3-Phase | 1750 |
1750 |
IP24 |
11 |
Three-phase |
| 11034231 - EasyVEC® C4 Standard 10000 IP Pressure drop switch 3-Phase | 2050 |
2050 |
IP24 |
13,2 |
Three-phase |
| 11034232 - EasyVEC® C4 Standard 10000 IP Pressure drop switch 3-Phase | 2050 |
2050 |
IP24 |
13,2 |
Single-phase |
| 11034233 - EasyVEC® C4 Standard 12000 IP Pressure drop switch 3-Phase | 3200 |
3200 |
IP24 |
21,8 |
Three-phase |
| 11034234 - EasyVEC® C4 Standard 12000 IP Pressure drop switch 3-Phase | 3200 |
3200 |
IP24 |
21,8 |
Single-phase |
