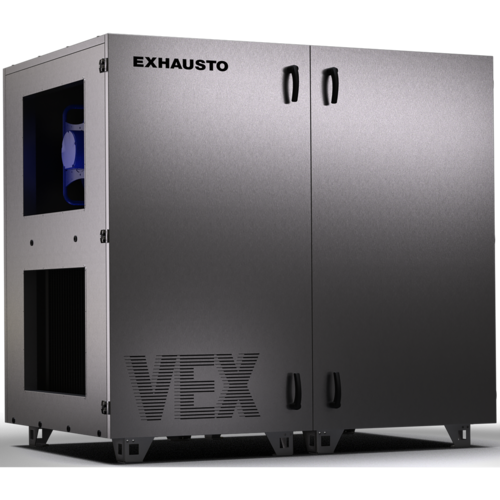

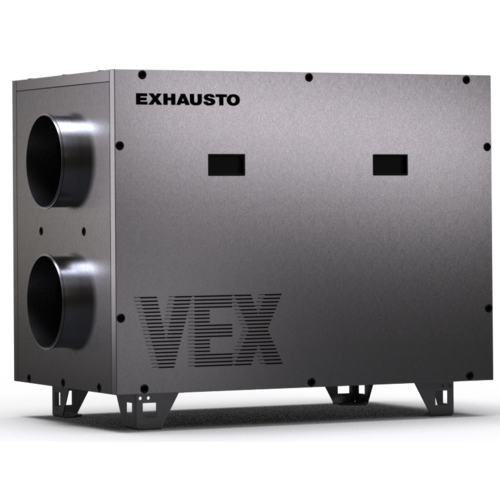

VEX1000RS
Air handling unit
The Eurovent-certified VEX1000 series is equipped with highly efficient and energy optimized components. All components are easy to pull out for inspection, service, repair, or cleaning.
VEX1000 modules are optimized to deliver the highest possible air capacity with the smallest possible space requirement. All modules from VEX1005 to VEX1065 can pass through a standard door. If you need more air capacity or have extra limited access conditions, the product can be delivered as SPLIT, where the unit is assembled after transportation.
The automatic leakage control function, ALC™, gives you all the benefits of a rotary heat exchanger while eliminating the recirculation of particles, aerosols, viruses, etc.
VEX1000 is delivered with integrated EXcon+ automation, which has a built-in WiFi connection for quick connection with tablet, HMI, or PC. A new intuitive user interface makes the installation, commissioning, and adjustment of the indoor climate in your building easy and quick.
The + products
- Compact design - High performance with minimum space requirements
- All modules from VEX1005 to VEX1065 fit through a standard door
- Removable components and integrated coils make installation, maintenance, and cleaning easy

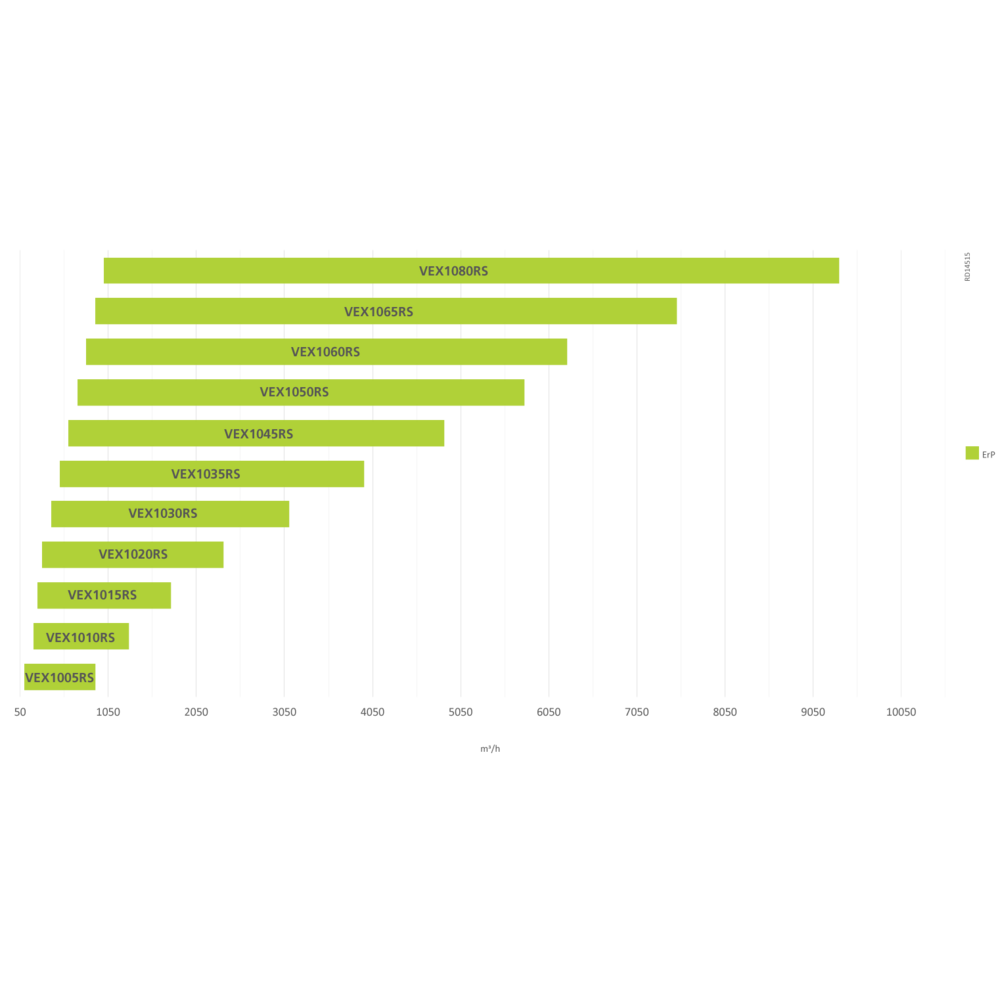

- 11 unit sizes up to 9340 m³/h
- Can be delivered as SPLIT for extra limited access conditions
- Option for extract and/or exhaust air outlet positioned on top
- EXcon+ automation with integrated WiFi access point and intuitive user interface
VEX1000 brings fresh, filtered air into the building and recovers heat from the exhaust air using the high-efficiency heat exchanger. The incoming air can be heated and/or cooled using a complete range of integrated cooling and heating coils. VEX1000 is a compact unit designed to deliver the highest possible air capacity with the least possible space requirement. VEX1000RS can be equipped with automatic leakage control, ALC™, which eliminates the transfer of particles, aerosols, viruses, etc., from exhaust air to supply air through the heat exchanger. Thus, you get all the benefits of a rotary heat exchanger without leakage: > Moisture transfer provides improved indoor climate and higher productivity > Does not require defrosting > Saves energy by cooling recovery > No need to handle condensation > Compact design
> 1x230V or 3x400V power supply > Mixing section (VEX1030 – 1080) > Duct silencers > Outdoor units (Roof, plinth, doorstop, damper motor cover, electric heater for control box) > Shut-off damper > Integrated coils (Water, Electric, DX) > External casing for DX and combined water heating and cooling coil with drip tray and droplet separator > Patented automatic leakage control (ALC™) > Rotating heat exchanger with sorption and epoxy coating > Choice between bag and panel filter > Choice between integrated EXcon+ control, controller ready or without control > Flexible duct connections > Option for extract and/or exhaust air outlet positioned on top > Class 3 damper
