DEX3000 CMEV air handling unit

DEX3000

CMEV air handling unit

The environmentally friendly, quiet and most effective ventilation solution for schools – equipped with counterflow heat exchanger
DEX3000
See references
DEX3000
A decentralised air handling unit is a simple solution where one air handling unit is placed in each room with separate connection through a wall or ceiling/roof. The simple installation means no need to fit ventilation ducts and other air distributin systems. The DEX3000 units can be installed on an ongoing basis in line with needs and finances, and installation can take place room by room, section by section, without affecting the school’s normal operations.
DEX3000

The + products

  • Excellent sound-absorbing insulation that ensures a quiet learning environment,
  • Easy and simple installation – service and maintenance can be carried out by one person,
  • Best indoor air quality due to site-specific filtration offer,
  • Connection options adapted to different installation locations,
  • Developed in accordance with French fire legislation M1 and A2-s1,D0 (CH36),
  • Developed in accordance with hygiene standard VDI6022.
  • Option: Semi-integrated ceiling version available
  • Central control of multiple units via web server
  • High temperature recovery:
  • Simple control, factory-set

DEX3000 brings fresh, filtered air into the building and recovers heat from the exhaust air by means of its highly efficient heat exchanger. The supply air can be heated and/or cooled with a complete range of accessories such as heating/cooling coils.

  • 3 decentral models: 600 m3/h, 900 m3/h and 1400 m3/h, in 2 versions free-hanging or semi-integrated:

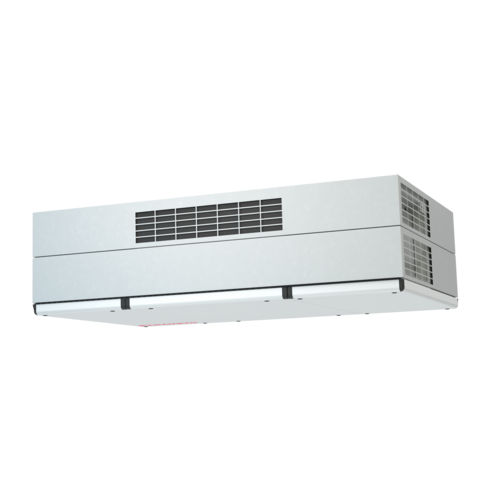

    • Visible versions (STD)

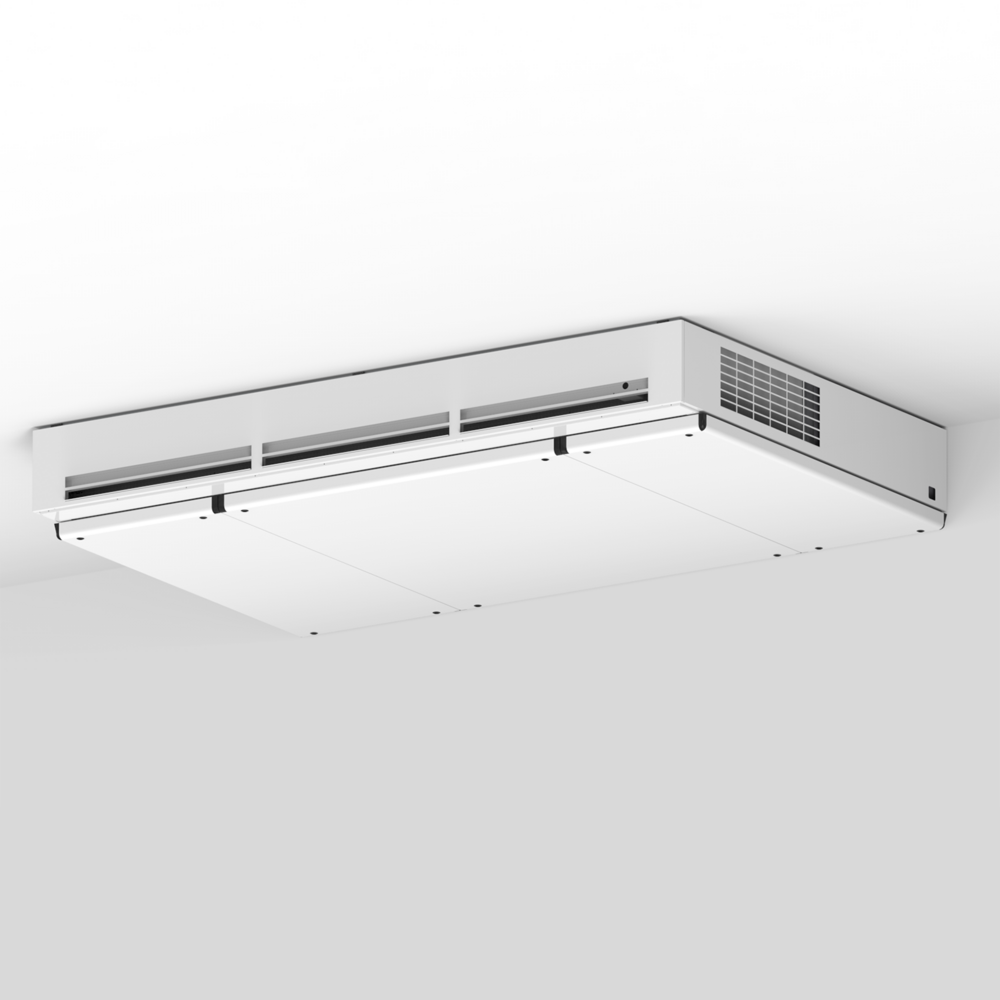

    • Semi-integrated (INT) for installation under suspended ceiling

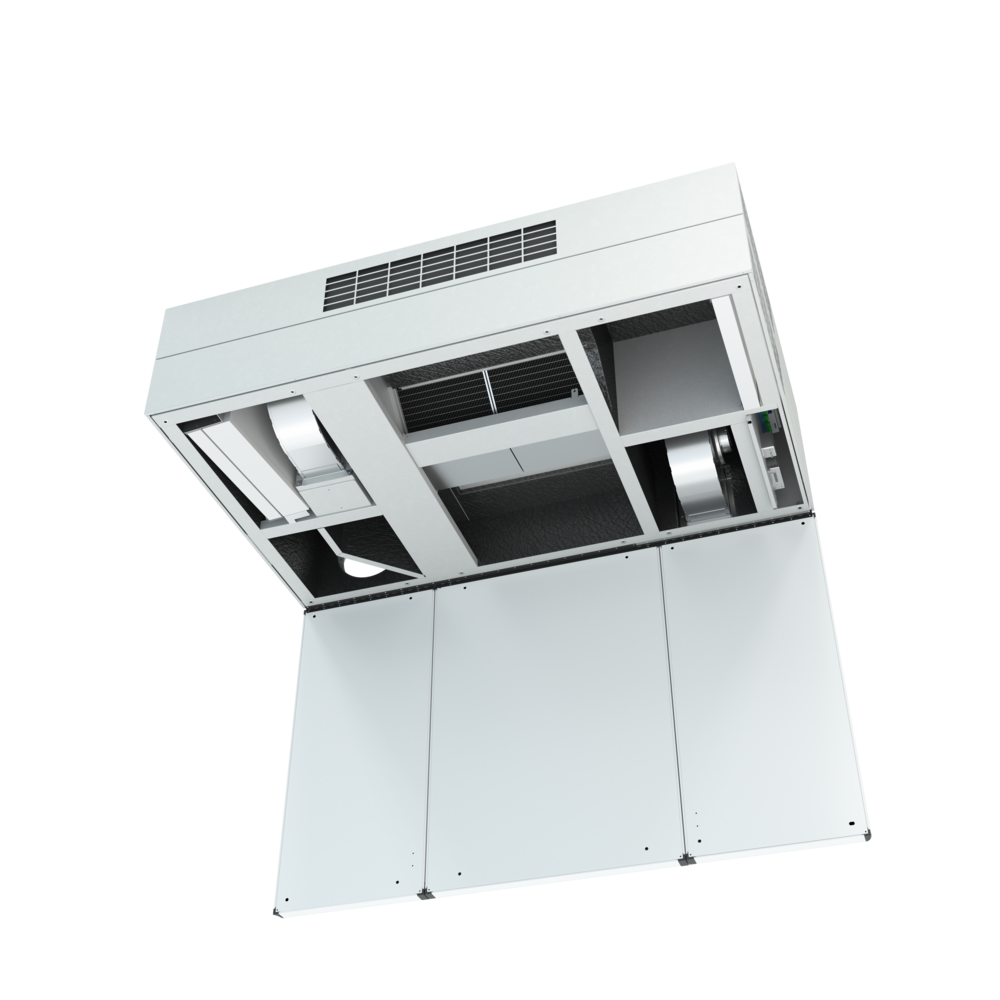

  • Monoblock design
  • Insulation – 50-mm insulation material for lowest sound or noise level, Basotect (M1 fire class), Puresound (VDI 6022)
  • Exterior finish: Aluzinc AZ185: corrosion class C4. Decor panels pre-coated material in white (standard)
  • Horizontal mounting with wall bracket option
  • EC motor with F impeller fan
  • High-performance counter flow heating exchanger (Eurovent AAHE)
  • Modulating bypass
  • ePM10 60% (M5) and ePM1 55% (F7). Pre-filter coarse 60% (G4), as accessory/option
  • Accessories/option:
    • Integrated CO2 sensor
    • Integrated motion sensor - PIR
    • Integrated humidity sensor - %HR
    • Webserver communication - WEBE
    • HMI interface (for start and setting)
    • When both integrated CO2 sensor and integrated PIR are selected, the unit will be fully plug and play
  • EXcon Control System:
    • Constant speed,
    • Constant airflow,
    • Constant pressure,
    • Air measurement control CO2/VOC sensor (0–10V signal),
    • Controlled pressure,
    • Built-in clock: operation hours can be controlled by means of a timer,
    • Remote control system via cable,
    • BMS Communication via Modbus RTU and Bacnet TCP/IP protocols,
    • Constant air speed (CAV),
    • Variable air speed (VAV),
    • Airflow controlled - demand controlled (DCV) using CO2,/VOC sensor (0–10V signal),
    • Option: Built-in web server,
    • Option: BMS communication via Modbus RTU/RS485, Modbus TCP/IP, BACnet, MSTP/BACnet IP.

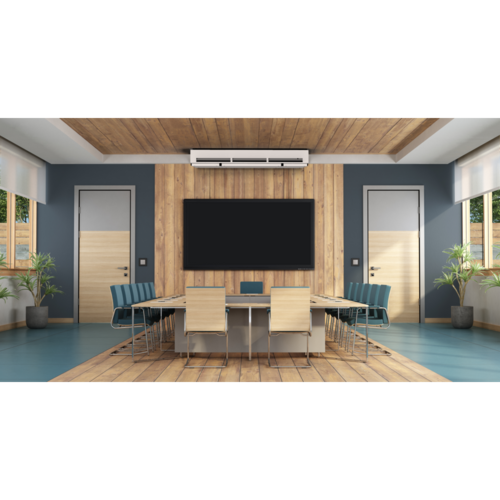

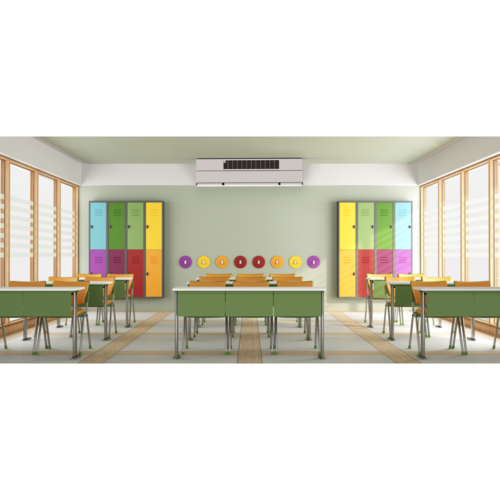

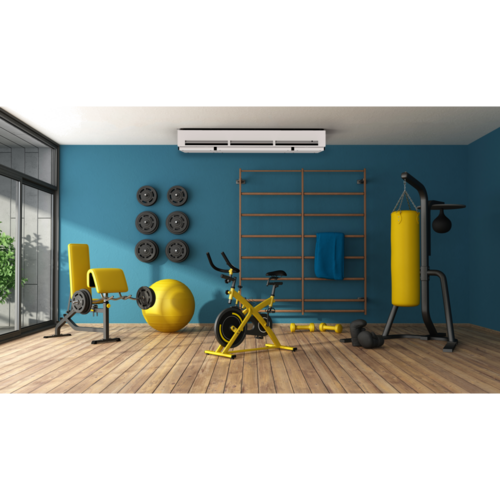

  • Indoors: in a class room, office environment or similar
  • Ceiling-mounted installation (visible or semi-integrated free or against a wall)
  • Limited need for duct mounting
