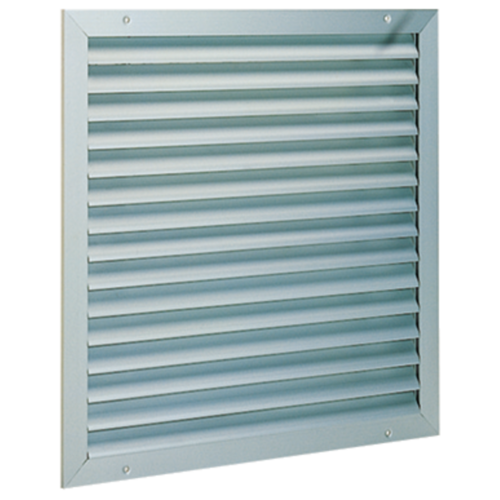

AWA 251 series - aluminium
Plastic grille
The + products
- light grille suited to ventilation airflow;
- stocked in most standard dimensions.
The AWA 251 outdoor wall grilles enable fresh air intake or contaminated air outlet on ventilation systems.
- outdoor wall grille for air intake or outlet,
- extruded aluminium frame,
- extruded aluminium horizontal vanes with rain protection,
- vane pitch 25 mm,
- interior section featuring a diamond mesh protective screen 10 x 30 diam. 0.8 mm,
- anodised aluminium finish, natural satin hue,
- visible screw attachment in frame.
- for installation on wall,
- visible screw attachment in frame.
| References | Main material | Insulation material | Type of finish | Colour |
|---|---|---|---|---|
| 11002504 - AWA251 OUTDOOR GRILLE | ||||
| 11052032 - AWA251 200X200 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052090 - AWA251 250X250 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052028 - AWA251 300X150 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052039 - AWA251 300X300 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052033 - AWA251 300X200 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052135 - AWA251 350X350 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052034 - AWA251 400X200 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052040 - AWA251 400X300 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052045 - AWA251 400X400 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052154 - AWA251 450X450 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052035 - AWA251 500X200 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052041 - AWA251 500X300 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052046 - AWA251 500X400 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052052 - AWA251 500X500 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052042 - AWA251 600X300 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052047 - AWA251 600X400 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052064 - AWA251 600X500 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052167 - AWA251 600X600 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052065 - AWA251 700X500 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052173 - AWA251 700X700 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052049 - AWA251 800X400 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052066 - AWA251 800X500 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052179 - AWA251 800X800 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11052068 - AWA251 1000X500 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
| References | H (mm) | L (mm) |
|---|---|---|
| 11002504 - AWA251 OUTDOOR GRILLE | 75-1200 |
200-1200 |
| 11052032 - AWA251 200X200 | 200 |
200 |
| 11052090 - AWA251 250X250 | 250 |
250 |
| 11052028 - AWA251 300X150 | 150 |
300 |
| 11052039 - AWA251 300X300 | 300 |
300 |
| 11052033 - AWA251 300X200 | 200 |
300 |
| 11052135 - AWA251 350X350 | 350 |
350 |
| 11052034 - AWA251 400X200 | 200 |
400 |
| 11052040 - AWA251 400X300 | 300 |
400 |
| 11052045 - AWA251 400X400 | 400 |
400 |
| 11052154 - AWA251 450X450 | 450 |
450 |
| 11052035 - AWA251 500X200 | 200 |
500 |
| 11052041 - AWA251 500X300 | 300 |
500 |
| 11052046 - AWA251 500X400 | 400 |
500 |
| 11052052 - AWA251 500X500 | 500 |
500 |
| 11052042 - AWA251 600X300 | 300 |
600 |
| 11052047 - AWA251 600X400 | 400 |
600 |
| 11052064 - AWA251 600X500 | 500 |
600 |
| 11052167 - AWA251 600X600 | 600 |
600 |
| 11052065 - AWA251 700X500 | 500 |
700 |
| 11052173 - AWA251 700X700 | 700 |
700 |
| 11052049 - AWA251 800X400 | 400 |
800 |
| 11052066 - AWA251 800X500 | 500 |
800 |
| 11052179 - AWA251 800X800 | 800 |
800 |
| 11052068 - AWA251 1000X500 | 500 |
1000 |
