AC 102 D series- aluminium
Heat and smoke exhaust flap grille
AC 102 D series- aluminium
Heat and smoke exhaust flap grille
The AC 102 D wall grille enables air supply on all ventilation and air-conditioning systems.
AC 102 D series- aluminium
The AC 102 D is a steel dual deflection wall-mounted grille with individually adjustable, movable horizontal rear and vertical front vanes.
The + products
- adjustable vanes,
- aesthetic,
- easy to install / remove.
The AC 102 D dual-deflection has individually dirigible horizontal and vertical vanes to adjust the air supply level in a room.
- anodised aluminium, natural satin colour,
- individually dirigible horizontal rear and vertical front vanes, 20 mm pitch.
- wall installation,
- concealed F3 attachment using friction clips.
| References | Main material | Insulation material | Type of finish | Colour |
|---|---|---|---|---|
| 11002201 - AC 102D | Aluminium |
|||
| 11050577 - AC 102D F3 200x100 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11050579 - AC 102D F3 300x100 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |
|
| 11050583 - AC 102D F3 300x150 | Aluminium |
Aluminium |
Aluminium with mosquito mesh |

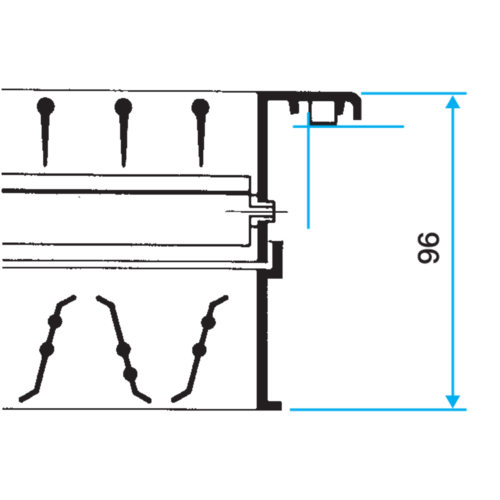

| References | H (mm) | L (mm) |
|---|---|---|
| 11002201 - AC 102D | ||
| 11050577 - AC 102D F3 200x100 | 100 |
200 |
| 11050579 - AC 102D F3 300x100 | 100 |
300 |
| 11050583 - AC 102D F3 300x150 | 150 |
300 |
| References | Comfort airflow for Lw < NR 25 (m³/h) |
|---|---|
| 11002201 - AC 102D | |
| 11050577 - AC 102D F3 200x100 | 200 |
| 11050579 - AC 102D F3 300x100 | 300 |
| 11050583 - AC 102D F3 300x150 | 450 |
