The SC 370 ceiling grille offers discreet aesthetics for air extraction in ventilation or air-conditioning systems.
SC 370 series - steel

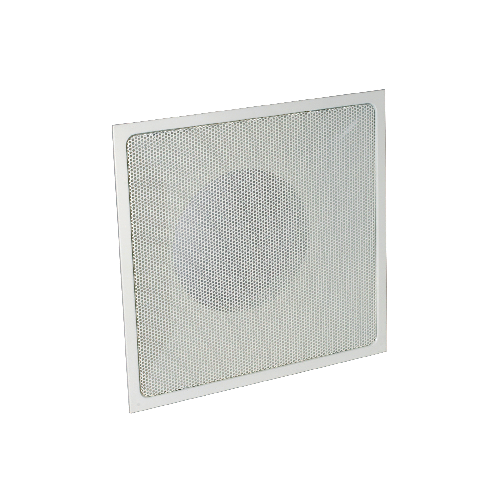

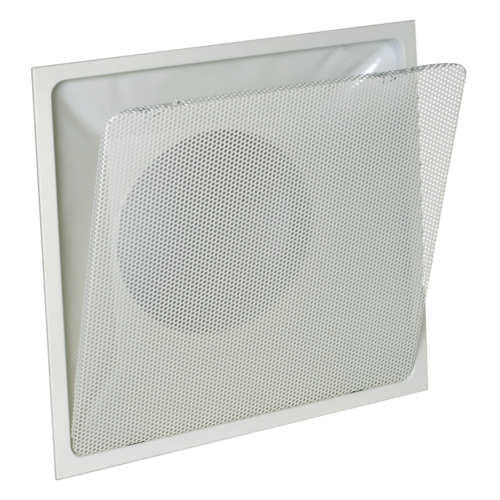

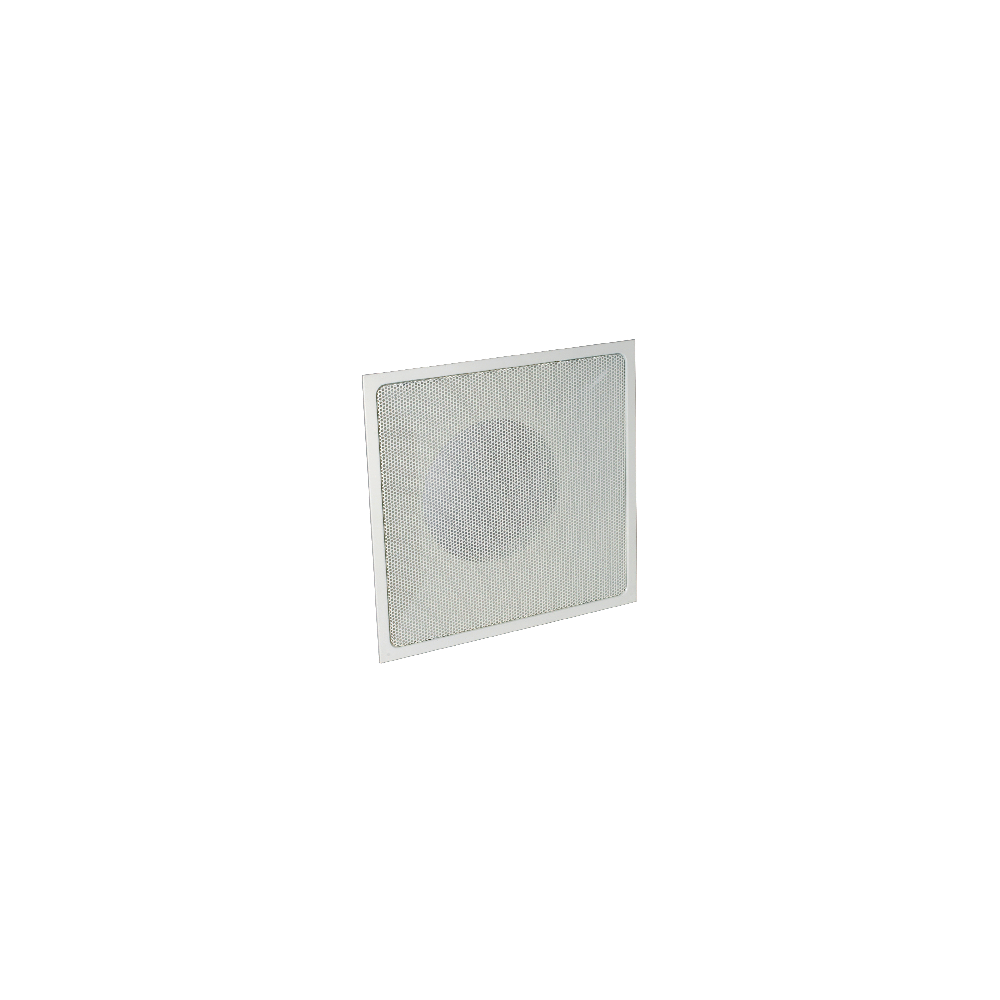

The SC 370 ceiling grille delivers air extraction in ventilation or air-conditioning systems. Its construction in slotted sheet metal with 45% of free air passage and its white epoxy coating enable discreet installation on walls. It is installed directly on the T-bar frames.
The + products
- aesthetic,
- replaces a 600x600 mm suspended ceiling tile.
The SC 370 suspended ceiling grille is made of slotted metal sheet with 45% of free air passage to enable air return. It is installed directly on the T-bar frames.
- slotted ceiling grille with 45% free air passage,
- steel with epoxy paint RAL 9003 white 30%,
- for 600x600 mm ceiling panel on T-bar frame,
- frameless grille.
- Range of dimensions suited to standard ceiling panels 600 x 600 mm and 1200 x 600 mm (except AU 124).
- Dimensions from 100 x 100 to 1200 x 600 mm with increments of 25 mm in length & height for the extended range.
- installed in place of 600x600 mm suspended ceiling tile, direct attachment on T-bar frame.
| Main material | Insulation material | Type of finish | Colour |
|---|---|---|---|
| Aluminium |
Epoxy paint |
Lagoon blue |

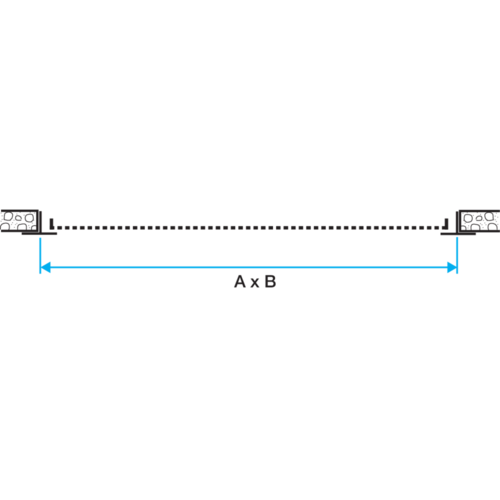

| A (mm) | A x B* (mm) | B (mm) | Ø plenum (mm) | Plenum height (mm) |
|---|---|---|---|---|
| 600 |
600X600 |
600 |
250 |
330 |
| Comfort airflow for Lw < NR 25 (m³/h) |
|---|
| 1000 |
