AC 161 series - aluminium
Heat and smoke exhaust flap grille
AC 161 series - aluminium
Heat and smoke exhaust flap grille
The AC 161 aluminium filtered hinged wall grille enables air extraction on all ventilation and air-conditioning systems.
AC 161 series - aluminium

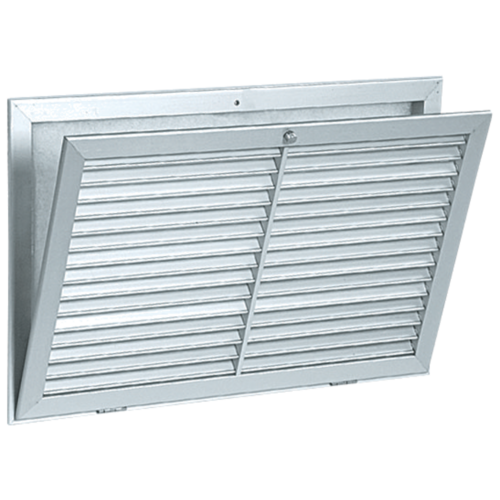

The AC 161 wall grille is made of anodised aluminium. It features a single deflection with fixed horizontal vanes at a 40° incline. It offers a hinged front face and a built-in filter.
The + products
- built-in filter,
- easy to open on stainless steel hinges, closed with thumb screw.• hinged side opening for easy access to filter, • RAL9003 white finish.
The AC 161 single-deflection grille has fixed horizontal vanes to deliver the right air extraction level in a room. Furthermore, it contains an easily-accessible filter as the grille opens on hinges.
- horizontal fixed vanes, 40° incline, 20 mm pitch,
- anodised aluminium finish.
- easy to open on stainless steel hinges, closed with thumb screw,
- G3 filter with M1 fire rating.
- dimensions from 172 x 122 to 1,222 x 622 in increments of 25 mm.
- for installation on wall.
| Main material | Insulation material | Type of finish | Colour |
|---|---|---|---|
| Aluminium |
Epoxy paint |
Lagoon blue |
| H (mm) | L (mm) | Ø D plenum (mm) | Standard filter (mm) | H Plenum (mm) |
|---|---|---|---|---|
| 522 |
622 |
450 |
596X496 |
215 |
| Comfort airflow for Lw < NR 25 (m³/h) |
|---|
| 2400 |
