Walter® is a connected multi-pollutant sensor which measures and manages the air quality inside a dwelling.
Walter� connected sensor
Walter® is a connected assistant which measures and controls air quality inside an individual house or multi-occupancy residential building. In addition to real-time warnings about air quality, Walter® is also able to automatically boost the ventilation system when high levels of contaminants are reached. Walter® is compatible with Aldes InspirAIR® HRV systems.
Walter� connected sensor

The + products

  • 4 dedicated sensors to measure the indoor air quality,
  • automatic air quality control with an Aldes air purification solution,
  • outdoor air quality measured in terms of 4 pollutants via the Aldes Cloud.
  • remote data access via the AldesConnect™ application,
  • sleek design and simple to install.
  • compatible with InspirAIR® heat recovery systems.

Walter® measures and manages the quality of indoor air. In addition to real-time warnings about air quality, Walter® is also able to automatically boost the ventilation system when high levels of contaminants are reached.

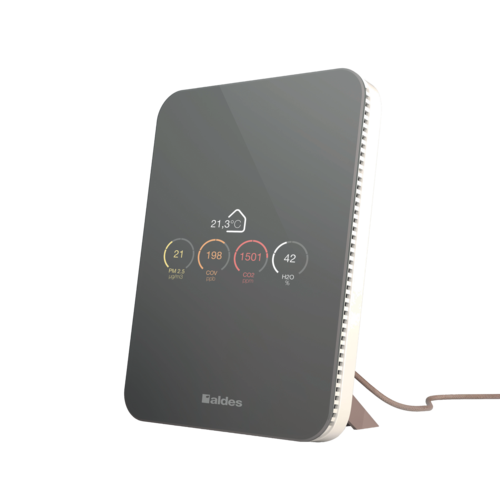

  • Walter® provides information on indoor air quality using its 4 pollution sensors:
    • fine particles (PM 2.5),
    • volatile organic compounds (VOC),
    • carbon dioxide (CO2),
    • temperature and humidity (°C and H2O).

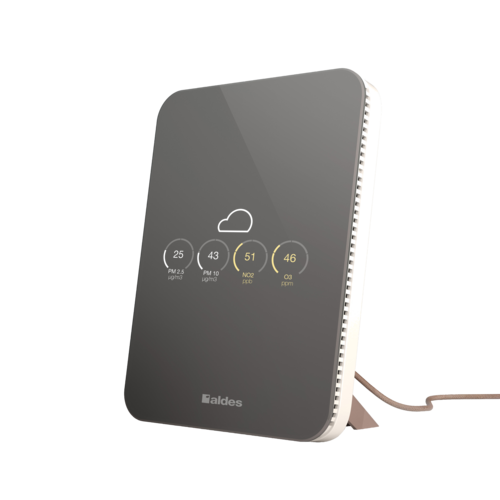

  • Walter® also provides information on outdoor air quality nearby, using the data it receives from the Aldes Cloud:
    • fine particles (PM2.5),
    • pollen (PM10),
    • nitrogen dioxide (NO2),
    • ozone (03).
  • installed on furniture, powered by the USB cable and transformer supplied,

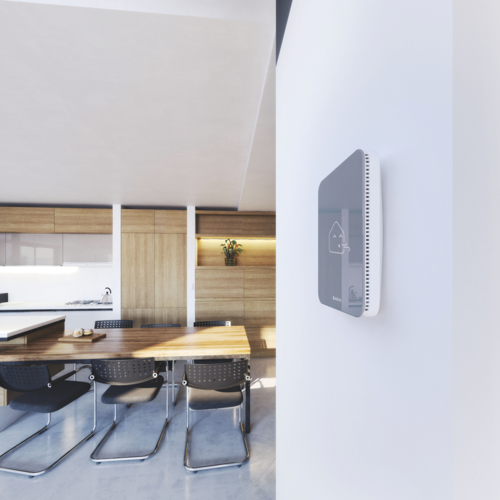

  • installed on wall, 12V DC power supply.
Self-calibration Insulation material

Yes

Walter� connected sensor Walter� connected sensor

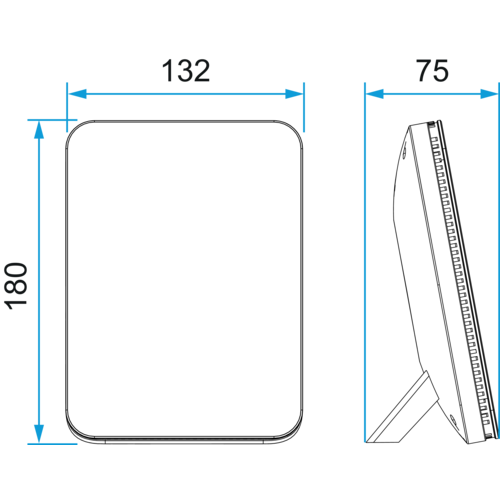

Height (mm) Width (mm) Depth (mm)

180

132

36

Voltage (V)

12

Products and accessories references

  • Walter® connected sensor
    Walter® connected sensor
    11023470
    543,00 (without VAT)

Documents

Showing 1 - y of document
  • Installation instructions Capteur Connected Walter®
    Manuals
    2 MB
