Standard VAV Airflow control system

Standard VAV

Airflow control system

The VAV enables precise airflow adjustment based on a signal whatever the pressure variation, to adapt the quantity of air to actual needs.
Download CAD Library file
Standard VAV

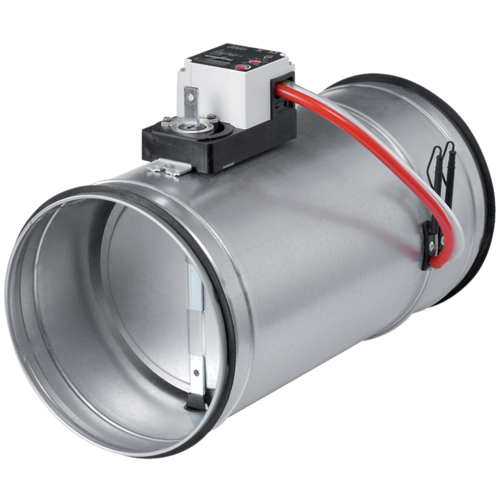

The VAV is an airflow control system which will adjust the airflow according to an external signal (sensor, BMS, etc.). Its built-in pressure sensors maintain the airflow according to the signal, whatever the variations in pressure. In this way, the airflow corresponds to actual needs for greater comfort, IAQ and energy savings.
Standard VAV

The + products

  • precise adjustment of airflow,
  • easy to adjust on site, remote control.

Based on a 0-10V or 2-10V signal, the VAV will adjust the airflow precisely over a wide airflow range, thanks to its built-in pressure taps. The minimum and maximum airflow settings can be adjusted on site using a screen and two buttons.

  • galvanised steel body and flap,
  • sealed damper: class 3 airtight performance upline/downline as per EN 1751,
  • class B airtight properties as per EN 1751.
  • directly installed between two circular ducts,
  • installed horizontally or vertically,
  • airflow direction indicated on component,
  • adjustment of min./max. airflow on site,

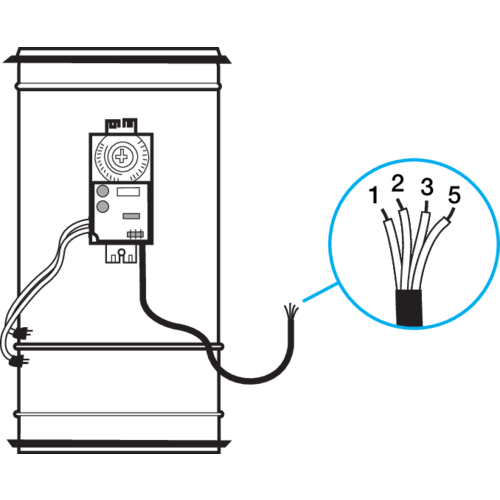

  • 24V AC power supply.
References Airflow accuracy Insulation material
11017030 - VAV CIRC + MOT D100

5 (>1 m/s)


11017031 - VAV CIRC + MOT D125

5% (>1 m/s)

11017032 - VAV CIRC + MOT D160

5% (>1 m/s)


11017034 - VAV CIRC + MOT D250

5% (>1 m/s)


11017035 - VAV CIRC + MOT D315

5% (>1 m/s)


11017037 - VAV CIRC + MOT D500

5% (>1 m/s)


11017033 - VAV CIRC + MOT D200

5% (>1 m/s)


11017036 - VAV CIRC + MOT D400

5% (>1 m/s)


Standard VAV
References L (mm) Ø (mm) Weight (kg)
11017030 - VAV CIRC + MOT D100

400

100

1,4

11017031 - VAV CIRC + MOT D125

400

125

1,7

11017032 - VAV CIRC + MOT D160

400

160

2,2

11017034 - VAV CIRC + MOT D250

580

250

4,1

11017035 - VAV CIRC + MOT D315

580

315

5,4

11017037 - VAV CIRC + MOT D500

850

500

14,2

11017033 - VAV CIRC + MOT D200

400

200

2,7

11017036 - VAV CIRC + MOT D400

650

400

9,3

References Airflow range (m³/h) Pressure range (Pa)
11017030 - VAV CIRC + MOT D100

50-200

30-300

11017031 - VAV CIRC + MOT D125

88-331

30-300

11017032 - VAV CIRC + MOT D160

145-543

30-300

11017034 - VAV CIRC + MOT D250

353-1325

30-300

11017035 - VAV CIRC + MOT D315

561-2103

30-300

11017037 - VAV CIRC + MOT D500

1413-5299

30-300

11017033 - VAV CIRC + MOT D200

226-848

30-300

11017036 - VAV CIRC + MOT D400

904-3391

30-300

References Frequency (Hz) Protection current (A) Power consumption Power supply Voltage (V)
11017030 - VAV CIRC + MOT D100

50/60

6

4.5



24

11017031 - VAV CIRC + MOT D125

50/60

6

4,5

Single-phase

24

11017032 - VAV CIRC + MOT D160

50/60

6

4,5

Single-phase

24

11017034 - VAV CIRC + MOT D250

50/60

6

4,5

Single-phase

24

11017035 - VAV CIRC + MOT D315

50/60

6

4,5

Single-phase

24

11017037 - VAV CIRC + MOT D500

50/60

6

4,5

Single-phase

24

11017033 - VAV CIRC + MOT D200

50/60

6

4,5

Single-phase

24

11017036 - VAV CIRC + MOT D400

50/60

6

4,5

Single-phase

24

  • Eligibility for EEC  :  Yes
  • ESC data sheet no. 1  :  BAR-TH-125
  • ESC data sheet no. 2  :  BAT-TH-126
Fire protection rating

A1

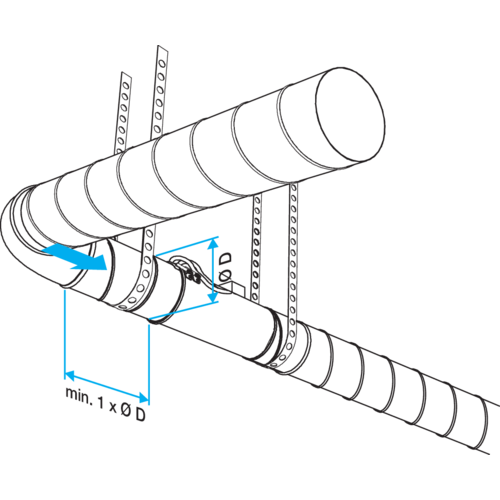

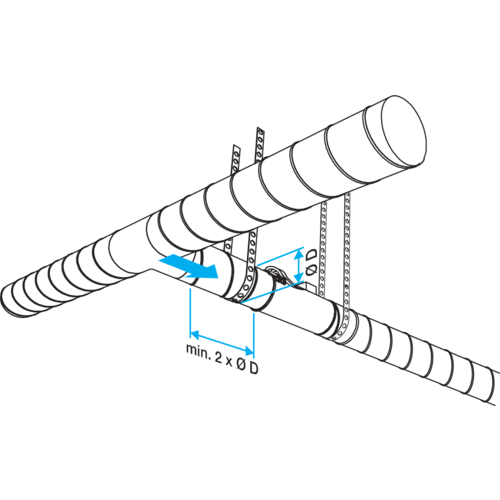

We advise you leave a reserve distance (min. Distance D) upstream of the VAV to prevent aeraulic or acoustic disturbances and enable precise measurement.

Products and accessories references

  • VAV CIRC + MOT D100
    VAV CIRC + MOT D100
    11017030
    862,00 (without VAT)
  • VAV CIRC + MOT D125
    VAV CIRC + MOT D125
    11017031
    869,00 (without VAT)
  • VAV CIRC + MOT D160
    VAV CIRC + MOT D160
    11017032
    889,00 (without VAT)
  • VAV CIRC + MOT D250
    VAV CIRC + MOT D250
    11017034
    935,00 (without VAT)
  • VAV CIRC + MOT D315
    VAV CIRC + MOT D315
    11017035
    963,00 (without VAT)
  • VAV CIRC + MOT D500
    VAV CIRC + MOT D500
    11017037
    1537,00 (without VAT)
  • VAV CIRC + MOT D200
    VAV CIRC + MOT D200
    11017033
    881,00 (without VAT)
  • VAV CIRC + MOT D400
    VAV CIRC + MOT D400
    11017036
    1275,00 (without VAT)
