Insulated VAV XVA

Axial heat and smoke exhaust fan

The VAV enables precise airflow adjustment based on a signal whatever the pressure variation, to adapt the quantity of air to actual needs.
See references

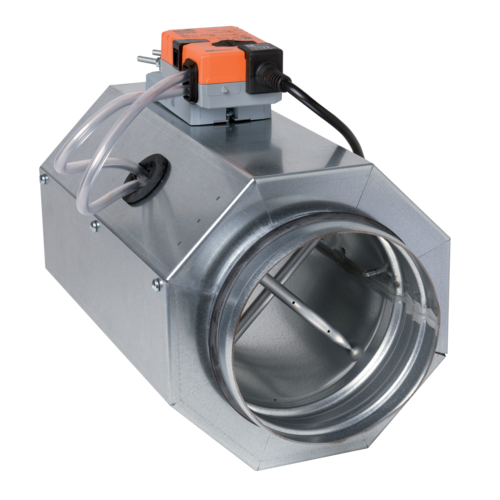

Insulated VAV XVA
The VAV is an airflow controller which will adjust the airflow according to an external signal from a sensor, BMS, etc. Its integrated pressure sensors maintain the airflow specified by the signal whatever the pressure variations. The airflow is kept at the exact level required for greater comfort, IAQ and energy savings

According to a 0-10 V or 2-10 V external signal, the VAV will adjust the airflow over a wide range with precision thanks to its built-in pressure taps. Minimum and maximum airflow settings can be adjusted on site using the Belimo app or the associated configuration tool.

  • directly installed between two circular ducts,
  • installed horizontally or vertically,
  • airflow direction indicated on component,
  • adjustment of min./max. airflow on site,
  • 24V AC power supply.
References Airflow accuracy Insulation material
11017057 - VAV CIRCULAR INSULATED XVA D125

5% ( > 2 m/s )

Mineral wool
11017058 - VAV CIRCULAR INSULATED XVA D160

5% ( > 2 m/s )

Mineral wool
11017059 - VAV CIRCULAR INSULATED XVA D200

5% ( > 2 m/s )

Mineral wool
11017060 - VAV CIRCULAR INSULATED XVA D250

5% ( > 2 m/s )

Mineral wool
11017061 - VAV CIRCULAR INSULATED XVA D315

5% ( > 2 m/s )

Mineral wool
11017062 - VAV CIRCULAR INSULATED XVA D400

5% (> 2 m/s )

Mineral wool
11017063 - VAV CIRCULAR INSULATED XVA D500

5% (> 2 m/s )

Mineral wool
11017191 - VAV CIRCULAR INSULATED XVA D125
11017192 - VAV CIRCULAR INSULATED XVA D160
11017193 - VAV CIRCULAR INSULATED XVA D200
11017194 - VAV CIRCULAR INSULATED XVA D250
11017195 - VAV CIRCULAR INSULATED XVA D315
11017196 - VAV CIRCULAR INSULATED XVA D400
11017197 - VAV CIRCULAR INSULATED XVA D500
11017212
References L (mm) Ø (mm) Ø external (mm) Weight (kg)
11017057 - VAV CIRCULAR INSULATED XVA D125

400

125

225

4.5
11017058 - VAV CIRCULAR INSULATED XVA D160

400

160

260

5.5
11017059 - VAV CIRCULAR INSULATED XVA D200

400

200

300

6.5
11017060 - VAV CIRCULAR INSULATED XVA D250

580

250

350

10.5
11017061 - VAV CIRCULAR INSULATED XVA D315

580

315

415

13
11017062 - VAV CIRCULAR INSULATED XVA D400

650

400

500

17
11017063 - VAV CIRCULAR INSULATED XVA D500

850

500

600

25
11017191 - VAV CIRCULAR INSULATED XVA D125

310

125

185

2
11017192 - VAV CIRCULAR INSULATED XVA D160

400

160

220

4
11017193 - VAV CIRCULAR INSULATED XVA D200

400

200

260

4.5
11017194 - VAV CIRCULAR INSULATED XVA D250

400

250

310

5.5
11017195 - VAV CIRCULAR INSULATED XVA D315

500

315

375

8.5
11017196 - VAV CIRCULAR INSULATED XVA D400

630

400

460

11.5
11017197 - VAV CIRCULAR INSULATED XVA D500

630

500

560

17.5
11017212

310

100

160

2
References Airflow (m³/h) Airflow range (m³/h) Pressure range (Pa)
11017057 - VAV CIRCULAR INSULATED XVA D125

90-530

50-1000
11017058 - VAV CIRCULAR INSULATED XVA D160

150-870

50-1000
11017059 - VAV CIRCULAR INSULATED XVA D200

230-1360

50-1000
11017060 - VAV CIRCULAR INSULATED XVA D250

350-2120

50-1000
11017061 - VAV CIRCULAR INSULATED XVA D315

560-3365

50-1000
11017062 - VAV CIRCULAR INSULATED XVA D400

900-5425

50-1000
11017063 - VAV CIRCULAR INSULATED XVA D500

1400-8480

50-1000
11017191 - VAV CIRCULAR INSULATED XVA D125

53-530


11017192 - VAV CIRCULAR INSULATED XVA D160

87-870


11017193 - VAV CIRCULAR INSULATED XVA D200

138-1380


11017194 - VAV CIRCULAR INSULATED XVA D250

212-2120


11017195 - VAV CIRCULAR INSULATED XVA D315

337-3370


11017196 - VAV CIRCULAR INSULATED XVA D400

543-5430


11017197 - VAV CIRCULAR INSULATED XVA D500

848-8480


11017212

34-340


References Frequency (Hz) Protection current (A) Power consumption Power supply Voltage (V)
11017057 - VAV CIRCULAR INSULATED XVA D125

50/60

6

4.5

Single-phase

24
11017058 - VAV CIRCULAR INSULATED XVA D160

50/60

6

4.5

Single-phase

24
11017059 - VAV CIRCULAR INSULATED XVA D200

50/60

6

4.5

Single-phase

24
11017060 - VAV CIRCULAR INSULATED XVA D250

50/60

6

4.5

Single-phase

24
11017061 - VAV CIRCULAR INSULATED XVA D315

50/60

6

4.5

Single-phase

24
11017062 - VAV CIRCULAR INSULATED XVA D400

50/60

6

4.5

Single-phase

24
11017063 - VAV CIRCULAR INSULATED XVA D500

50/60

6

4.5

Single-phase

24
11017191 - VAV CIRCULAR INSULATED XVA D125

IP54



Single-phase

24
11017192 - VAV CIRCULAR INSULATED XVA D160

IP54



Single-phase

24
11017193 - VAV CIRCULAR INSULATED XVA D200

IP54



Single-phase

24
11017194 - VAV CIRCULAR INSULATED XVA D250

IP54



Single-phase

24
11017195 - VAV CIRCULAR INSULATED XVA D315

IP54



Single-phase

24
11017196 - VAV CIRCULAR INSULATED XVA D400

IP54



Single-phase

24
11017197 - VAV CIRCULAR INSULATED XVA D500

IP54



Single-phase

24
11017212

IP54



Single-phase

24
References Fire protection rating
11017057 - VAV CIRCULAR INSULATED XVA D125

A1
11017058 - VAV CIRCULAR INSULATED XVA D160

A1
11017059 - VAV CIRCULAR INSULATED XVA D200

A1
11017060 - VAV CIRCULAR INSULATED XVA D250

A1
11017061 - VAV CIRCULAR INSULATED XVA D315

A1
11017062 - VAV CIRCULAR INSULATED XVA D400

A1
11017063 - VAV CIRCULAR INSULATED XVA D500

A1
11017191 - VAV CIRCULAR INSULATED XVA D125

M1
11017192 - VAV CIRCULAR INSULATED XVA D160

M1
11017193 - VAV CIRCULAR INSULATED XVA D200

M1
11017194 - VAV CIRCULAR INSULATED XVA D250

M1
11017195 - VAV CIRCULAR INSULATED XVA D315

M1
11017196 - VAV CIRCULAR INSULATED XVA D400

M1
11017197 - VAV CIRCULAR INSULATED XVA D500

M1
11017212

Products and accessories references

  • VAV CIRCULAR INSULATED XVA D125
    VAV CIRCULAR INSULATED XVA D125
    11017057
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
    • RM SMART access branch piece - Ø 125 mm
      RM SMART access branch piece - Ø 125 mm
      11093056
      111,00 € (without VAT)
  • VAV CIRCULAR INSULATED XVA D160
    VAV CIRCULAR INSULATED XVA D160
    11017058
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
    • RM SMART access branch piece - Ø 160 mm
      RM SMART access branch piece - Ø 160 mm
      11093057
      122,00 € (without VAT)
  • VAV CIRCULAR INSULATED XVA D200
    VAV CIRCULAR INSULATED XVA D200
    11017059
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
    • RM SMART access branch piece - Ø 200 mm
      RM SMART access branch piece - Ø 200 mm
      11093058
      142,00 € (without VAT)
  • VAV CIRCULAR INSULATED XVA D250
    VAV CIRCULAR INSULATED XVA D250
    11017060
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
    • RM SMART access branch piece - Ø 250 mm
      RM SMART access branch piece - Ø 250 mm
      11093059
      160,00 € (without VAT)
  • Aldes
    VAV CIRCULAR INSULATED XVA D315
    11017061
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
    • RM SMART access branch piece - Ø 315 mm
      RM SMART access branch piece - Ø 315 mm
      11093060
      193,00 € (without VAT)
  • Aldes
    VAV CIRCULAR INSULATED XVA D400
    11017062
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
  • Aldes
    VAV CIRCULAR INSULATED XVA D500
    11017063
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
  • VAV CIRCULAR INSULATED XVA D125
    VAV CIRCULAR INSULATED XVA D125
    11017191
    956,00 € (without VAT)
  • VAV CIRCULAR INSULATED XVA D160
    VAV CIRCULAR INSULATED XVA D160
    11017192
    987,00 € (without VAT)
  • VAV CIRCULAR INSULATED XVA D200
    VAV CIRCULAR INSULATED XVA D200
    11017193
    1028,00 € (without VAT)
  • VAV CIRCULAR INSULATED XVA D250
    VAV CIRCULAR INSULATED XVA D250
    11017194
    1188,00 € (without VAT)
  • VAV CIRCULAR INSULATED XVA D315
    VAV CIRCULAR INSULATED XVA D315
    11017195
    1240,00 € (without VAT)
  • VAV CIRCULAR INSULATED XVA D400
    VAV CIRCULAR INSULATED XVA D400
    11017196
    1290,00 € (without VAT)
  • VAV CIRCULAR INSULATED XVA D500
    VAV CIRCULAR INSULATED XVA D500
    11017197
    1652,00 € (without VAT)
  • Aldes
    11017212
    850,00 € (without VAT)
