The MR Modulo is an airflow regulator which ensures a stable airflow. It can be adjusted on site to control IAQ, comfort and energy savings.
MR Modulo

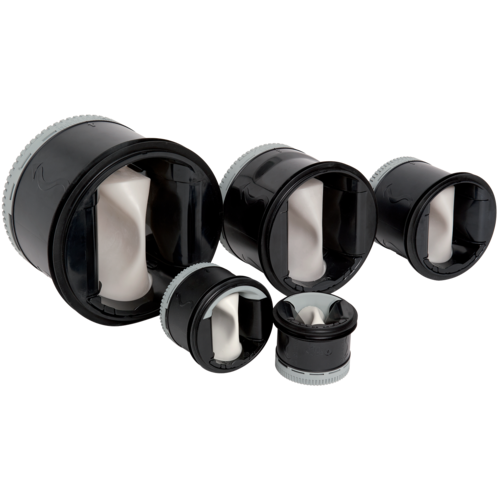

The MR Modulo is an airflow regulator which guarantees a stable airflow whatever the pressure variation, over a wide range of values to prevent over-consumption due to excess airflow, ensure good IAQ and a high level of comfort. its membrane technology ensures low noise levels. The nominal airflow can be adjusted on site without a tool.
The + products
- easy to stock: just 1 product for each diameter (except 125 mm) to cover multiple airflow levels,
- low noise level,
- easy and fast to install: multiple positions and adjustments.
- tool-free installation and adjustment,
- made in France.
Using its membrane the MR Modulo maintains a constant airflow in the air supply or extract circuit. The airflow value can easily be adjusted on site using a rotating ring, to cover a wide range.
- plastic material (M1 fire certification),
- silicone control membrane,
- support and airtight properties using double-lip elastomer seal,
-
airflow tolerance over operating pressure range:
- Q average = Q nominal +/- 5 m3/h for MR ≤ 50 m3/h,
- Q average = Q nominal +/- 10 % for MR > 50 m3/h,
- temperature range: -10°C / +60°C.

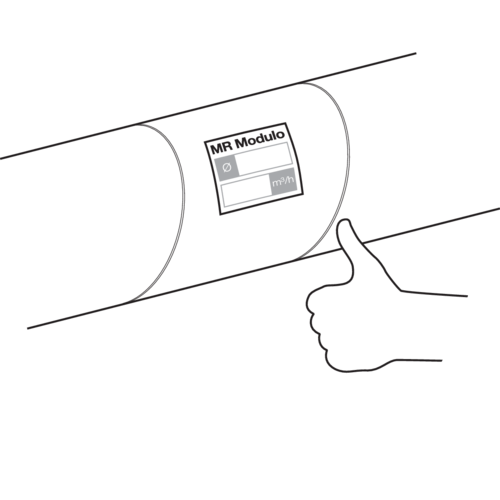

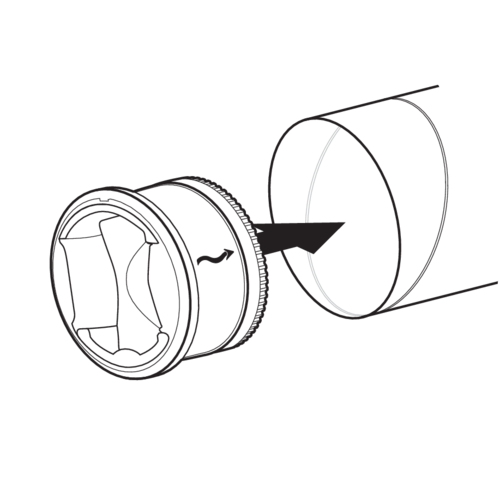

- installed directly in the duct,
- installation direction indicated on component,
- horizontal or vertical installation at any angle,

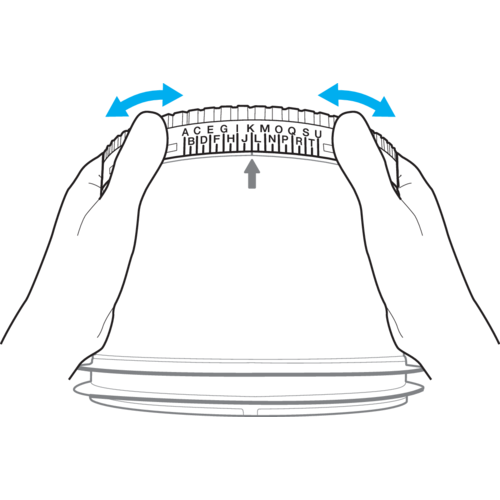

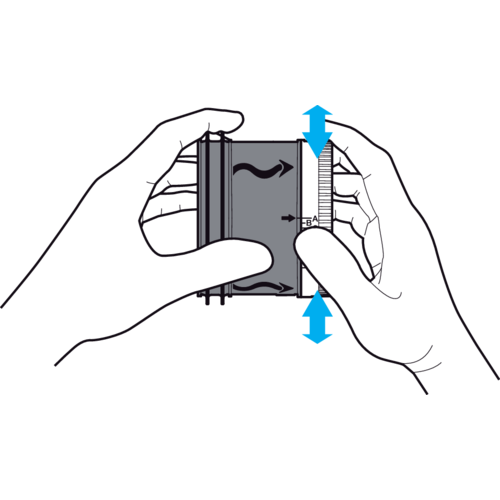

- manual and tool-free adjustment of desired airflow by removing shim and turning rotating ring,
- reserve distance with a grille, T-piece or bend: 1D on extract and 3D on air supply.
| References | Airflow accuracy |
|---|---|
| 11016316 | |
| 11016307 - MR Modulo Ø 80 - 20-60 m³/h | +/- 5 m³/h > 50 m³/h +/- 10% Qmax > 50 m³/h |
| 11016308 - MR Modulo ∅ 100 - 15-90 m³/h | +/- 5 m³/h > 50 m³/h +/- 10% Qmax > 50 m³/h |
| 11016309 - MR Modulo ∅ 125 - 15-85 m³/h | +/- 5 m³/h > 50 m³/h +/- 10% Qmax > 50 m³/h |
| 11016310 - MR Modulo ∅ 125 - 100-190 m³/h | +/- 10% Qmax |
| 11016311 - MR Modulo ∅ 150 - 100-240 m³/h | +/- 10% |
| 11016312 - MR Modulo ∅ 160 - 100-240 m³/h | +/- 10% |
| 11016313 - MR Modulo ∅ 200 - 225-400 m³/h | +/- 10% |
| 11016314 - MR Modulo ∅ 250 - 300-650 m³/h | +/- 10% |
| References | A (mm) | E (mm) | F (mm) | Ø B (mm) | Ø N (mm) | Rated Ø duct (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 11016316 | |||||||
| 11016307 - MR Modulo Ø 80 - 20-60 m³/h | 65 |
14 |
15 |
85 |
76 |
80 |
0,08 |
| 11016308 - MR Modulo ∅ 100 - 15-90 m³/h | 70 |
14 |
13 |
105 |
92 |
100 |
0,12 |
| 11016309 - MR Modulo ∅ 125 - 15-85 m³/h | 70 |
14 |
13 |
132 |
116 |
125 |
0,15 |
| 11016310 - MR Modulo ∅ 125 - 100-190 m³/h | 110 |
14 |
17 |
132 |
116 |
125 |
0,17 |
| 11016311 - MR Modulo ∅ 150 - 100-240 m³/h | 118 |
14 |
19 |
153 |
147 |
150 |
0,37 |
| 11016312 - MR Modulo ∅ 160 - 100-240 m³/h | 118 |
14 |
19 |
167 |
153 |
160 |
0,37 |
| 11016313 - MR Modulo ∅ 200 - 225-400 m³/h | 144 |
20 |
23 |
210 |
190 |
200 |
0,59 |
| 11016314 - MR Modulo ∅ 250 - 300-650 m³/h | 180 |
20 |
26 |
262 |
238 |
250 |
1,02 |
| References | Airflow range (m³/h) | Pressure range (Pa) |
|---|---|---|
| 11016316 | ||
| 11016307 - MR Modulo Ø 80 - 20-60 m³/h | 20-60 |
50-250 |
| 11016308 - MR Modulo ∅ 100 - 15-90 m³/h | 15-90 |
50-250 |
| 11016309 - MR Modulo ∅ 125 - 15-85 m³/h | 15-90 |
50-250 |
| 11016310 - MR Modulo ∅ 125 - 100-190 m³/h | 100-190 |
50-250 |
| 11016311 - MR Modulo ∅ 150 - 100-240 m³/h | 100-240 |
50-250 |
| 11016312 - MR Modulo ∅ 160 - 100-240 m³/h | 100-240 |
50-250 |
| 11016313 - MR Modulo ∅ 200 - 225-400 m³/h | 225-400 |
50-250 |
| 11016314 - MR Modulo ∅ 250 - 300-650 m³/h | 300-650 |
50-250 |
| References | Fire protection rating |
|---|---|
| 11016316 | |
| 11016307 - MR Modulo Ø 80 - 20-60 m³/h | M1 |
| 11016308 - MR Modulo ∅ 100 - 15-90 m³/h | M1 |
| 11016309 - MR Modulo ∅ 125 - 15-85 m³/h | M1 |
| 11016310 - MR Modulo ∅ 125 - 100-190 m³/h | M1 |
| 11016311 - MR Modulo ∅ 150 - 100-240 m³/h | M1 |
| 11016312 - MR Modulo ∅ 160 - 100-240 m³/h | M1 |
| 11016313 - MR Modulo ∅ 200 - 225-400 m³/h | M1 |
| 11016314 - MR Modulo ∅ 250 - 300-650 m³/h | M1 |
