The MR Max Motorised is an airflow regulator which ensures a stable airflow. It can be adjusted remotely to control IAQ, comfort and energy savings.
Motorised MR Max
Motorised MR Max

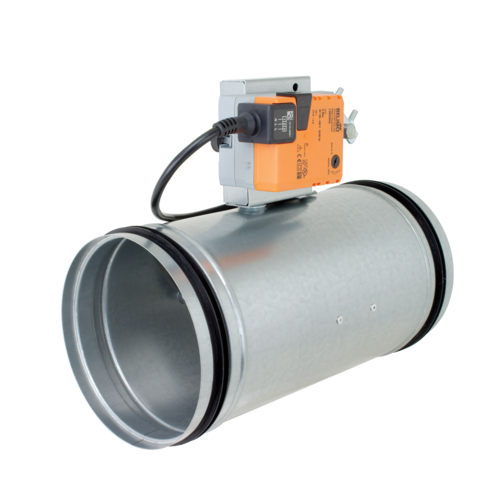

The MR Max is an airflow regulator which guarantees a stable airflow whatever the pressure variation, over a wide range of values including high pressure, to prevent over-consumption due to excess airflow, ensure good indoor air quality and a high level of comfort. A motor can be installed so that if triggered, it changes the airflow setting from a minimum value to a maximum value to adapt the airflow to the occupancy conditions of the room.

The MR Max can be motorised with an On/Off motor. When triggered, the motor changes the MR Max airflow setting from a minimum value to a maximum value. These values can be adjusted on site.

  • galvanised steel body,
  • plate for motor installation,
  • airflow indicator to determine min. and max. airflow settings,
  • male connector with crimped seals,
  • Class C airtight properties as per EN 1751,
  • airflow tolerance:
    • Q average = Q nominal +/- 10 m3/h for Q nominal ≤ 100 m3/h,
    • Q average = Q nominal +/- 10% for Q nominal > 100 m3/h,
  • operating temperatures: -30°C / +100°C,
  • certified VDI 6022,
  • insulated version (on request)
  • a control device comprising:
    • an aluminium damper
    • a spring and stainless steel pin fitted to PTFE bearings (polytetrafluoroethylene).

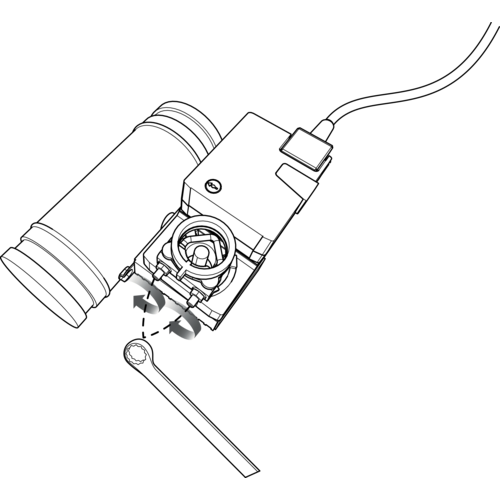

  • motor installed directly on plate and connected to shaft of MR Max by its clamp collar,

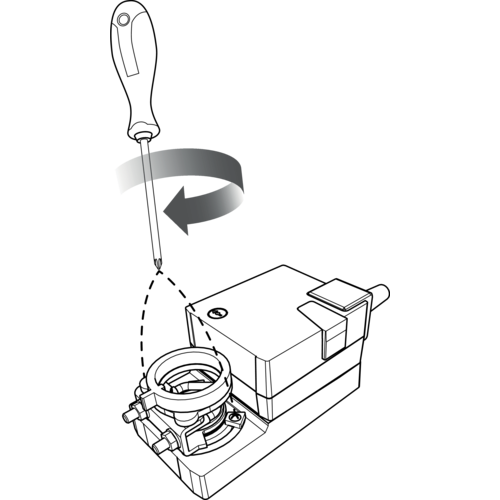

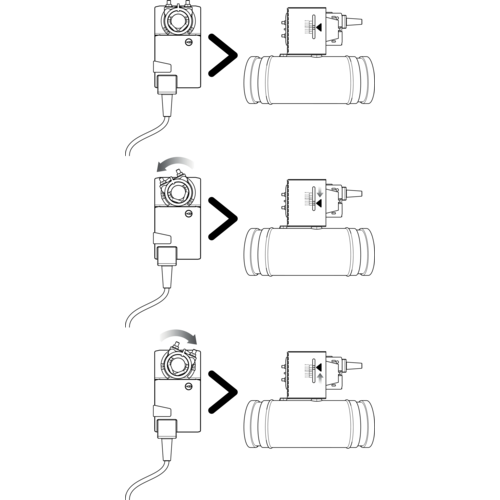

  • nominal airflow adjusted by acting on the motor limit positions,
  • directly installed between two circular ducts,
  • installation direction irrelevant,
  • horizontal or vertical installation.
References Airflow accuracy Insulation material
11016215 - MR Max Ø 80 Motorised

+/- 10 m³/h (? 100m³/h)+/-10% > 100 m³/h

11016216 - MR Max Ø 100 Motorised

+/- 10 m³/h (? 100m³/h)+/-10% > 100 m³/h

11016217 - MR Max Ø 160 Motorised

+/-10%

References A (mm) H (mm) L (mm) Rated Ø duct (mm) Weight (kg)
11016215 - MR Max Ø 80 Motorised

160

102

215

80

0,92

11016216 - MR Max Ø 100 Motorised

160

102

245

100

0,92

11016217 - MR Max Ø 160 Motorised

160

102

315

160

1,42

References Airflow range (m³/h) Pressure range (Pa)
11016215 - MR Max Ø 80 Motorised

40-125

50-1000

11016216 - MR Max Ø 100 Motorised

70-220

50-1000

11016217 - MR Max Ø 160 Motorised

100-350

50-1000

Fire protection rating

A1
