RG circular balancing damper with seals Airflow balancing

RG circular balancing damper with seals

Airflow balancing

The RG sealed damper balances a circular ducting system, while ensuring a very low leak rate: class D (up to D315) or C (D355 and beyond).
RG circular balancing damper with seals
Download CAD Library file
RG circular balancing damper with seals

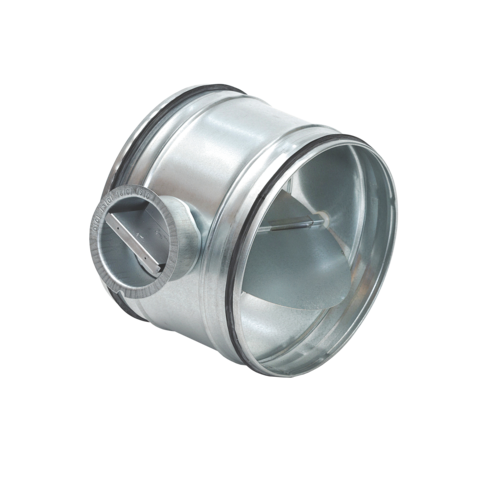

The RG sealed damper balances airflow in a circular ducting system. It features double-lip airtight seals on each junction to minimise leaks with the rest of the system. Its top jumper enables overlaid insulation without covering the handle.
RG circular balancing damper with seals

The + products

  • class D airtight performance (up to 315 mm) as per EN 1751,

The flap of the sealed RG is opened and closed by rotating a handle located on a jumper.

  • class D airtight performance (315 mm and below) and class C (355 mm and above) as per EN 1751,
  • galvanised steel,
  • metal handle,

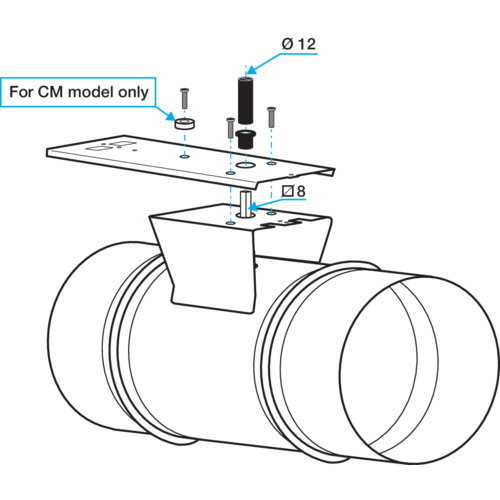

  • can be motorised upwards of diameter 355 mm using motor plate kit ordered separately.
  • installed in circular ducts.
Insulation material
RG circular balancing damper with seals
References H (mm) L (mm) Ø (mm) Weight (kg)
11098441 - RG GALVA +SEAL - D125

70

200

125

0,65

11098442 - RG GALVA +SEAL - D160

70

200

160

0,80

11098443 - RG GALVA +SEAL - D200

70

200

200

1,00

11098444 - RG GALVA +SEAL - D250

70

200

250

1,25

11098445 - RG GALVA +SEAL - D315

70

200

315

1,60

11098446 - RG GALVA +SEAL - D355

80

202

355

2,13

11098447 - RG GALVA +SEAL - D400

80

202

400

2,49

11098448 - RG GALVA +SEAL - D450

80

202

450

2,90

11098449 - RG GALVA +SEAL - D500

80

202

500

3,35

11098450 - RG GALVA +SEAL - D560

80

202

560

3,54

References Airtightness class
11098441 - RG GALVA +SEAL - D125

D

11098442 - RG GALVA +SEAL - D160

D

11098443 - RG GALVA +SEAL - D200

D

11098444 - RG GALVA +SEAL - D250

D

11098445 - RG GALVA +SEAL - D315

D

11098446 - RG GALVA +SEAL - D355

C

11098447 - RG GALVA +SEAL - D400

C

11098448 - RG GALVA +SEAL - D450

C

11098449 - RG GALVA +SEAL - D500

C

11098450 - RG GALVA +SEAL - D560

C

Products and accessories references

  • RG GALVA +SEAL - D125
    RG GALVA +SEAL - D125
    11098441
    51,70 (without VAT)
  • RG GALVA +SEAL - D160
    RG GALVA +SEAL - D160
    11098442
    53,50 (without VAT)
  • RG GALVA +SEAL - D200
    RG GALVA +SEAL - D200
    11098443
    57,70 (without VAT)
  • RG GALVA +SEAL - D250
    RG GALVA +SEAL - D250
    11098444
    81,10 (without VAT)
  • RG GALVA +SEAL - D315
    RG GALVA +SEAL - D315
    11098445
    95,90 (without VAT)
  • RG GALVA +SEAL - D355
    RG GALVA +SEAL - D355
    11098446
    128,00 (without VAT)
  • RG GALVA +SEAL - D400
    RG GALVA +SEAL - D400
    11098447
    134,00 (without VAT)
  • RG GALVA +SEAL - D450
    RG GALVA +SEAL - D450
    11098448
    196,00 (without VAT)
  • RG GALVA +SEAL - D500
    RG GALVA +SEAL - D500
    11098449
    225,00 (without VAT)
  • RG GALVA +SEAL - D560
    RG GALVA +SEAL - D560
    11098450
    283,00 (without VAT)
