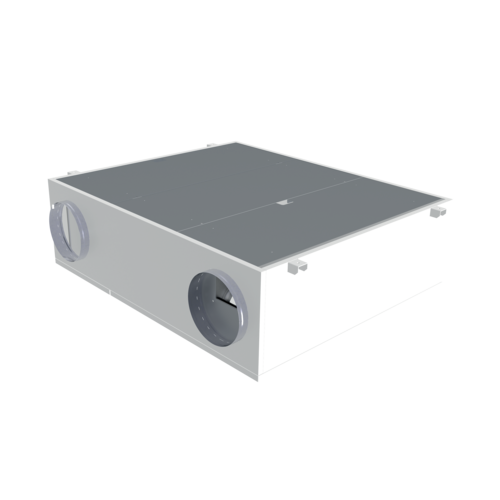

DEX C 300
CMEV air handling unit
DEXc304 and 308 are both equipped with at AAHE appproved heat exchanger that offers a heat recovery up to 85%. Fresh Air is secured by standard ePM1 ≥ 70% (F7). Elctrical Preheater and Postheater and additional 2 hot water coils is part of the accessory list that we offer. Setting up the control part is easily done with the 2,8" HMI colour touch display. Intuitive user interface in the control makes installation and operation easy (Plug and Play).
- 2 models 500 & 1100 m3/h @ 50 Pa
- Filtration double ePM1 ≥ 70% (F7)
- Integrated Bypass / free cooling
- 50 mm Insulation / thermal and acoustic performance
- High efficient Counterflow (up to 85%) heat exchanger made of Aluminium and comply to CH36 fire regulation in FR
- Comprehensive coil programme + sensors.
- Noise level 38 dB(A) @ 1 meter (280 m3/h & 520 m3/h) FR market demand.
- Colour Touch Display 2,8" intutively user interface

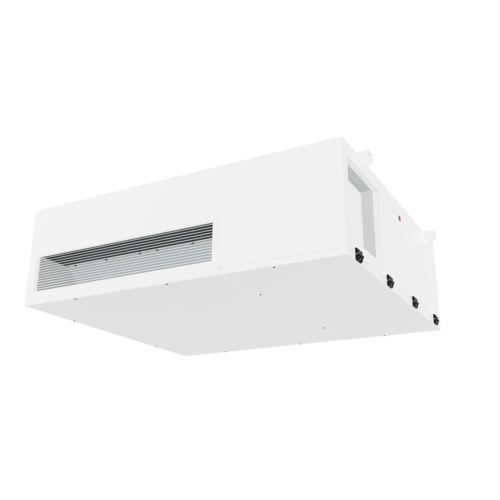

DEXc304 & DEXc308 are intended for decental installation, ultra compact in size and fit where space is scarce. Counterflow heat exchanger, Plug & Play easy installation. The idea is that the products adresses one room and are typically used in Office, restaurants as well as school class rooms.
| References | Insulation density (kg/m³) | Thickness of insulation (mm) | Available filters | Connection direction | Type of exchanger | Type of motor | Type of impeller |
|---|---|---|---|---|---|---|---|
| 11059019 | 70 |
25 |
Ceiling |
With plates |
EC |
Backward curve |
|
| 11059020 | 70 |
25 |
Ceiling |
With plates |
EC |
Backward curve |
|
| 11059018 - DEXc304 | 70 |
25 |
ePM1 70% (F7) - ePM10 50% (M5) |
Ceiling |
With plates |
EC |
Backward curve |
| 11059038 - DEXc308 | 70 |
25 |
ePM1 70% (F7) - ePM10 50% (M5) |
Ceiling |
With plates |
EC |
Backward curve |
| 11059028 | 70 |
25 |
Ceiling |
With plates |
EC |
Backward curve |
|
| 11059029 | 70 |
25 |
With plates |
EC |
Backward curve |
||
| 11059030 | 70 |
25 |
Ceiling |
With plates |
EC |
Backward curve |
|
| 11059039 | 70 |
25 |
Ceiling |
With plates |
EC |
Backward curve |
|
| 11059040 | 70 |
25 |
Ceiling |
With plates |
EC |
Backward curve |
|
| 11059048 | 70 |
25 |
Ceiling |
With plates |
EC |
Backward curve |
|
| 11059049 | 70 |
25 |
With plates |
EC |
Backward curve |
||
| 11059050 | 70 |
25 |
Ceiling |
With plates |
EC |
Backward curve |
| References | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Ø (mm) | Ø connection (mm) | Ø connection (fresh air or exhaust) (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 11059019 | 1105 |
1130 |
360 |
182 |
710 |
250 |
|||
| 11059020 | 1105 |
1130 |
360 |
182 |
710 |
250 |
|||
| 11059018 - DEXc304 | 1105 |
1130 |
360 |
182 |
710 |
250 |
130 |
||
| 11059038 - DEXc308 | 1605 |
1350 |
480 |
225 |
1160 |
315 |
315 |
130 |
|
| 11059028 | 1105 |
1130 |
360 |
182 |
710 |
250 |
|||
| 11059029 | 1105 |
1130 |
360 |
182 |
710 |
250 |
|||
| 11059030 | 1105 |
1130 |
360 |
182 |
710 |
250 |
|||
| 11059039 | 1605 |
1350 |
480 |
225 |
1160 |
315 |
315 |
||
| 11059040 | 1605 |
1350 |
480 |
225 |
1160 |
315 |
315 |
||
| 11059048 | 1605 |
1350 |
480 |
225 |
1160 |
315 |
|||
| 11059049 | 1605 |
1350 |
480 |
225 |
1160 |
315 |
315 |
||
| 11059050 | 1605 |
1350 |
480 |
225 |
1160 |
315 |
315 |
| References | Minimum airflow | Max. airflow (m³/h) |
|---|---|---|
| 11059019 | 195 |
500 |
| 11059020 | 195 |
500 |
| 11059018 - DEXc304 | 195 |
500 |
| 11059038 - DEXc308 | 205 |
1100 |
| 11059028 | 195 |
500 |
| 11059029 | 195 |
500 |
| 11059030 | 195 |
500 |
| 11059039 | 205 |
1100 |
| 11059040 | 205 |
1100 |
| 11059048 | 205 |
1100 |
| 11059049 | 205 |
1100 |
| 11059050 | 205 |
1100 |
| Max. exchanger output (%) |
|---|
| 85 |
| References | Frequency (Hz) | Rated current (A) | Power consumption | Max. power of electrical coil 1 (kW) | Voltage (V) | Electrical coil voltage 1 | Unit voltage (V) | Max. line fuse (A) | Max. power of electrical coil 2 | Voltage of electrical coil 2 | Maximum current - unit (A) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 11059019 | 50 |
2,2 |
0,5 |
1x230 |
230 |
230 |
4 |
0,5 |
230 |
||
| 11059020 | 50 |
2,2 |
0,5 |
1x230 |
230 |
230 |
4 |
0,5 |
230 |
||
| 11059018 - DEXc304 | 50 |
2,2 |
0,5 |
1x230 |
230 |
230 |
0,5 |
230 |
|||
| 11059038 - DEXc308 | 50 |
4,4 |
1000 |
1 |
1x230 |
230 |
230 |
1 |
230 |
4,4 |
|
| 11059028 | 50 |
2,2 |
0,5 |
1x230 |
230 |
230 |
0,5 |
230 |
|||
| 11059029 | 50 |
2,2 |
0,5 |
1x230 |
230 |
230 |
0,5 |
230 |
|||
| 11059030 | 50 |
2,2 |
0,5 |
1x230 |
230 |
230 |
0,5 |
230 |
|||
| 11059039 | 50 |
4,4 |
1000 |
1 |
1x230 |
230 |
230 |
1 |
230 |
4,4 |
|
| 11059040 | 50 |
4,4 |
1000 |
1 |
1x230 |
230 |
230 |
1 |
230 |
4,4 |
|
| 11059048 | 50 |
4,4 |
1000 |
1 |
1x230 |
230 |
230 |
1 |
230 |
4,4 |
|
| 11059049 | 50 |
4,4 |
1000 |
1 |
1x230 |
230 |
230 |
1 |
230 |
4,4 |
|
| 11059050 | 50 |
4,4 |
1000 |
1 |
1x230 |
230 |
230 |
1 |
230 |
4,4 |
- Eligibility for EEC : Yes
- ESC data sheet no. 1 : BAT-TH-126
