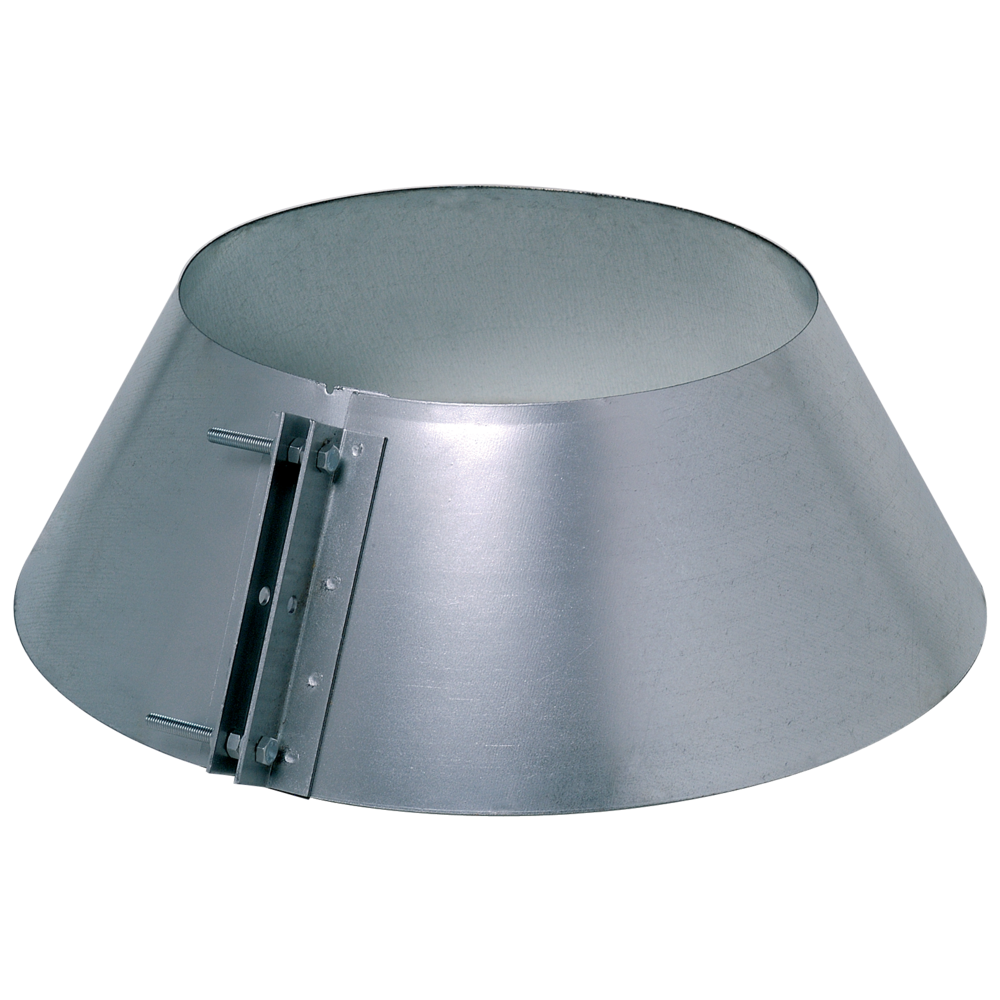

The sealing flap is a galvanised steel ducting accessory that ensures a leaktight seal on roof penetrations.
Sealing flap
The sealing flap is a galvanised steel ducting accessory that ensures a leaktight seal on roof penetrations.
- range available from diameter 100 to 800.
- galvanised steel compliant with EN 10346 ensuring regularity of the coating.
- M0 fire rating.
- Two screws enable adaptation to male or female diameters.
- Final leak tightness ensured on site with sealant or silicone.
| Insulation material |
|---|
| References | Ø (mm) |
|---|---|
| 11094788 - Sealing flap Ø 710 | 710 |
| 11094789 - Sealing flap Ø 800 | 800 |
| 11094776 - Sealing flap Ø 100 | 100 |
| 11094777 - Sealing flap Ø 125 | 125 |
| 11094778 - Sealing flap Ø 160 | 160 |
| 11094779 - Sealing flap Ø 200 | 200 |
| 11094780 - Sealing flap Ø 250 | 250 |
| 11094781 - Sealing flap Ø 315 | 315 |
| 11094782 - Sealing flap Ø 355 | 355 |
| 11094783 - Sealing flap Ø 400 | 400 |
| 11094784 - Sealing flap Ø 450 | 450 |
| 11094785 - Sealing flap Ø 500 | 500 |
| 11094786 - Sealing flap Ø 560 | 560 |
| 11094787 - Sealing flap Ø 630 | 630 |
